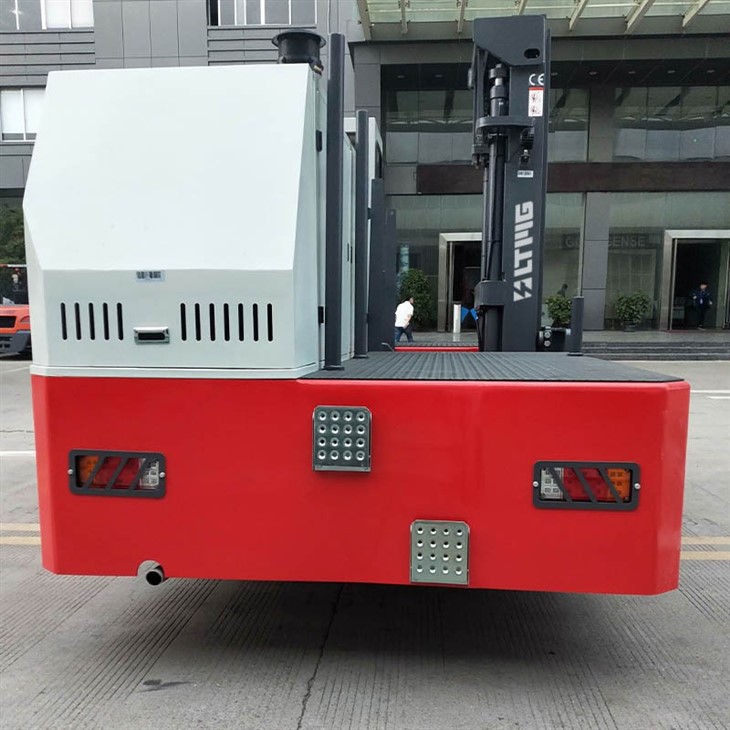

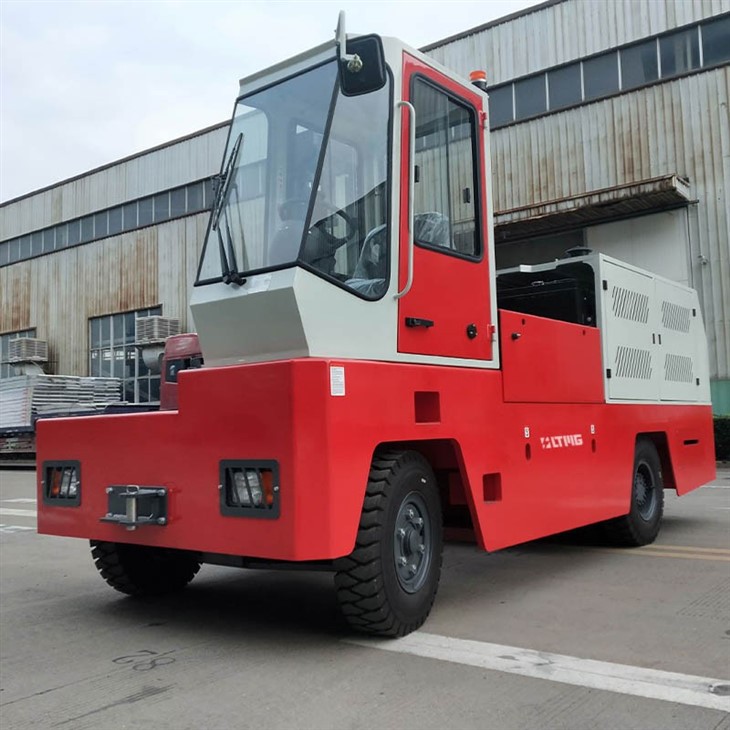

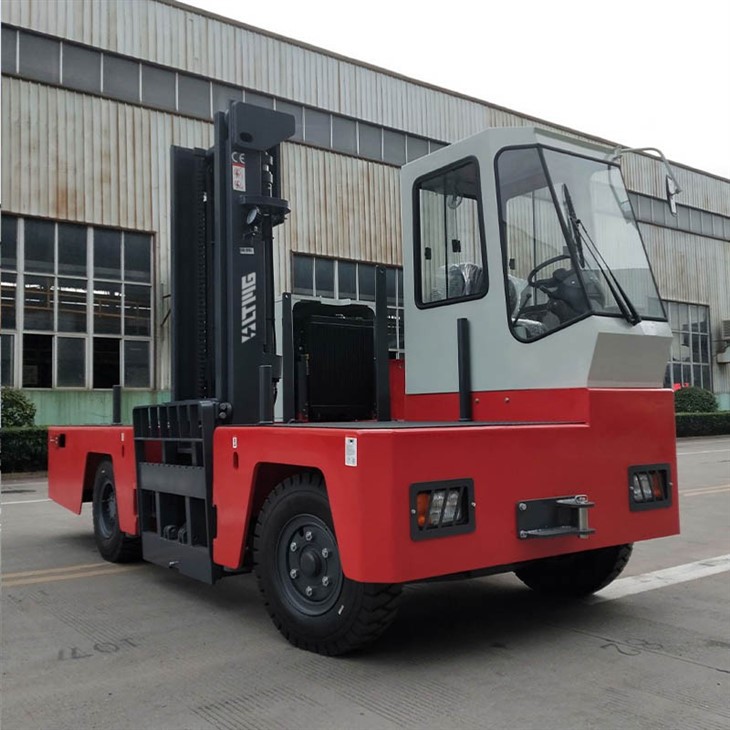

When it comes to heavy lifting, a reliable and sturdy forklift is the go-to piece of equipment. The 6 ton side loader forklift is one of the most powerful and capable machines which is designed to handle side loading heavy loads with ease and precision.
Impressive lifting capacity: Able to lift up to 6 tons of weight, it can tackle even the heaviest of loads with ease. This makes it an ideal choice for businesses that need to move large objects such as heavy machinery, materials, or large containers.
Versatility: It is designed with a side loading feature, allowing it to access tight spaces and narrow aisles. This is particularly useful in warehouse environments where space is at a premium and maneuverability is key. It also allows for efficient loading and unloading of goods, maximizing productivity and minimizing downtime.
Safety: the 6 ton side loader forklift is built to the highest standards. It is equipped with safety features such as an anti-tip system, overload protection, and a robust braking system. These features help to ensure the safety of the operator and any other personnel working in the vicinity of the machine.
Fuel efficiency: It is designed with a powerful but efficient engine, which helps to reduce fuel consumption and minimize emissions. This not only makes it an environmentally friendly option, but also helps to reduce operating costs for the business.
The 6 ton sideloader forklift is a powerful and versatile machine that is ideal for businesses that require heavy lifting capabilities. With its impressive lifting capacity, side loading feature, and high safety standards, it is a reliable and efficient option that is sure to increase productivity and streamline operations.
parameters
| Model | FDS60 | ||
| Power Type | Diesel | ||
| Rated Capacity | kg | 6000 | |
| Load Centre | mm | 600 | |
| Lift Height | mm | 3600 | |
| Fork Size | L×W×T | mm | 1220×150×60 |
| Mast Tilt Angle | F/R | Deg | 3°/3° |
| Ground Clearance(Bottom of mast) | mm | 245 | |
|
Overall Dimension |
L*W*T | mm | 5280*2100*3000 |
| Platform length | mm | 5280 | |
| Platform width | mm | 1200 | |
| Platform height | mm | 1080 | |
| Overhead Guard Height | mm | 2660 | |
| Turning Radius (outside) | mm | 4450 | |
|
Speed |
Travel (Empty load) | km/h | 18 |
| Lifting (Full load) | mm/s | 440 | |
| Max.Gradeability | % | 15 | |
|
Tyre |
Front | mm | 2×8.25-15-14PR |
| Rear | mm | 4×8.25-15-14PR | |
| Wheelbase | mm | 2900 | |
| Self weight | kg | 10140 | |
| Battery | Voltage/Capacity | V/Ah | (12/80) x 2 |
|
Engine |
Model | CY6102 | |
| Manufacture | Chaochai | ||
| Rated output/r.p.m. | kw | 82.4/2000 | |
| Rated torque/r.p.m. | N·m | 416/1400-1600 | |
| No.of Cylinder | 6 | ||
| Bore×Stroke | mm | 105×125 | |
| Displacement | cc | 6494 | |
| Fuel Tank Capacity | L | 178 | |
| Transmission | Type | Hydraulic | |
| Stage | FWD/RVS | 2/1 | |
| Operating Pressure for Attachment | Mpa | 19 | |
Company profile
comprehensive service
FAQ
Q: How do I operate a diesel sideloader forklift?
Q: What kind of maintenance does a diesel sideloader forklift require?
Q: How do I select the right diesel sideloader forklift for my needs?
Q: How does the side-loading feature on a diesel sideloader forklift work?
