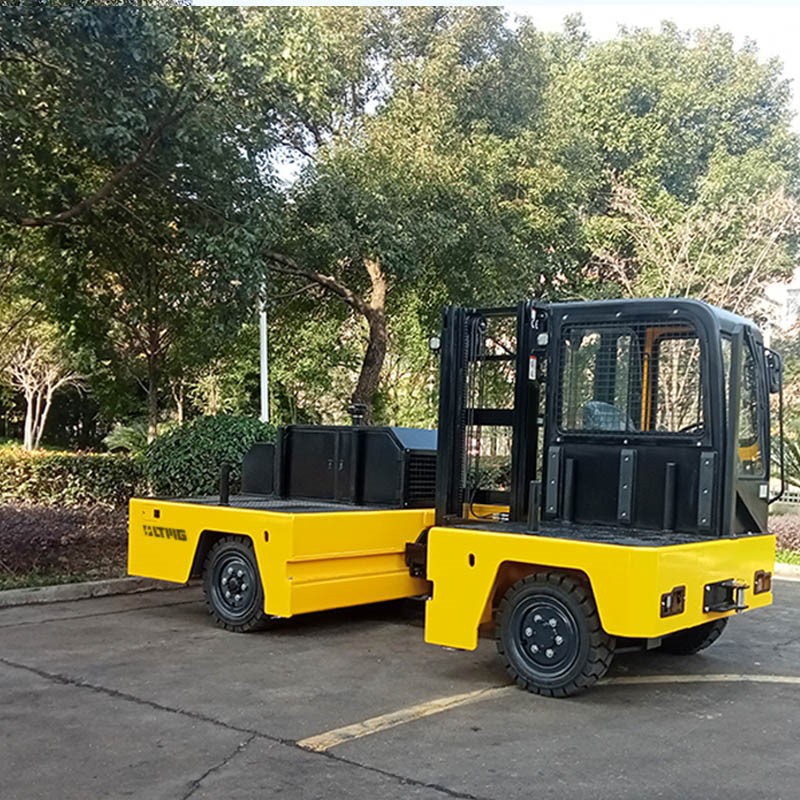

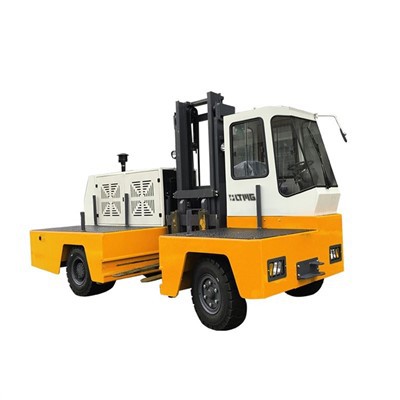

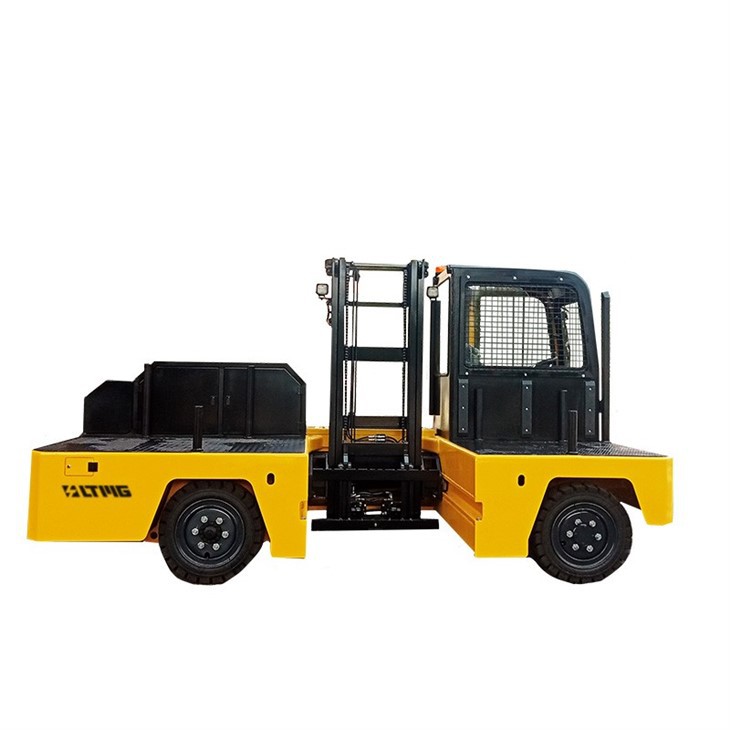

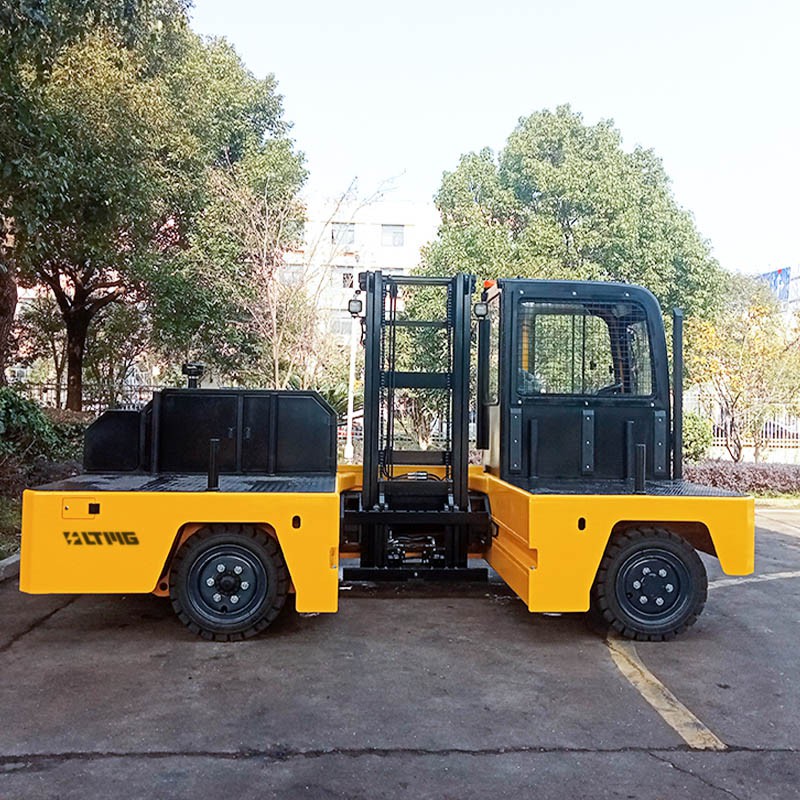

Narrow Aisle Side Loader Forklift

Items: 3 ton diesel side loader forklift
Power type: diesel
Rated capacity: 3000 kg
Lift height: 3600 mm
A narrow aisle side loader forklift is a specialized industrial vehicle designed to navigate narrow aisles in warehouses. With its ability to handle long loads, it ensures efficient storage and retrieval of goods in confined spaces.
Send Inquiry
Chat Now

Product Introduction

1. Space Efficiency: Narrow aisle side loader forklifts are specifically designed to operate in narrow aisles, maximizing the utilization of warehouse space. They can navigate aisles as narrow as 1.75 meters (5.75 feet), allowing for more storage density.
2. Versatility: These forklifts are highly versatile and can handle a wide range of loads, including long and awkward loads such as lumber, pipes, and steel beams. They can operate both indoors and outdoors, making them suitable for various applications.
3. Precise Handling: Narrow aisle side loader forklifts offer excellent maneuverability, enabling operators to handle loads with precision. They often come with features like proportional controls and advanced steering systems, allowing for smooth and accurate load handling.
4. Increased Productivity: With their ability to navigate narrow aisles and efficiently handle loads, these forklifts can significantly increase warehouse productivity. They enable faster and more efficient material handling operations, reducing the time required for loading, unloading, and stacking.
5. Safety: Narrow aisle side loader forklifts are designed with safety features to protect both the operators and the loads. These may include features like stability control systems, operator presence sensors, and load backrests, ensuring safe and secure operations.
6. Cost Savings: Due to their space optimization capabilities, narrow aisle side loader forklifts can potentially reduce the need for larger warehouses or expansion projects. This can result in cost savings in terms of real estate and operational expenses.

Applications of Narrow Aisle Side Loader Forklift:

1. Warehousing and Distribution: These forklifts are commonly used in warehouses and distribution centers where space optimization and efficient material handling are crucial.
2. Manufacturing: Narrow aisle side loader forklifts are employed in manufacturing facilities to handle long and heavy materials, such as metal extrusions and large components.
3. Retail: Retail operations with limited storage space can benefit from these forklifts to maximize their storage capacity while efficiently handling and organizing inventory.
4. Wholesale: Wholesalers dealing with large and varied loads can utilize narrow aisle side loader forklifts to handle and store their inventory in a space-efficient manner.
5. Construction: Construction sites often require the transportation and handling of long building materials, making narrow aisle side loader forklifts useful in such environments.
6. Cold Storage: These forklifts are suitable for operations in cold storage facilities, where space is limited, and precise handling is important due to the sensitive nature of the products stored.



3 ton sideloader forklift



small side lift forklift



side loding forklift truck


Specification



Model



FDS30

Power Type



Diesel

Rated Capacity

kg

3000

Load Centre

mm

500

Lift Height

mm

3600

Fork Size ( L x W x T )

mm

1070x125x45

Mast Tilt Angle (F/R)

Deg

676°

Front Overhang

mm

700

Ground Clearance (bottom of mast )

mm

190

Overall Dimension

Length x Width x Height

mm

4190*2000*2475

Platform Width

mm

1200

Platform Length

mm

4190

Overhead Guard Height

mm

2475

Turning Radius (outside )

mm

4250

Speed

Travel ( full load )

km/h

17

Lifting ( full load )

mm/s

440

Max. Gradeability

%

20

Tire

Front



2x28x9-15-12PR

Rear



2x28x9-15-12PR

Wheelbase

mm

2580

Service Weight

kg

5670

Battery ( Voltage/ Capacity )

V/Ah

12/80

Engine

Model



A498BPG-78

Manufacturer



XinChai

Rated output/ r.p.m.

kw

45/2500

Rated torque/ r.p.m.

N • m

193/1800

No.of Cylinder



4

Bore*Stroke

mm

98x105

Displacement

cc

3168

Fuel Tank Capacity

L

75





Special part of LTMG forklift



LTMG's forklifts are built on a strong foundation of high-quality core components. Our forklift components are sourced exclusively from internationally renowned brands, ensuring exceptional craftsmanship and unwavering quality. You can trust that our forklifts are built to last and perform reliably.



forkift spare part



Well recognized in the market



LTMG's machines have been distributed to over 100 countries worldwide and are supported by a network of over 30 exclusive distributors. Our market recognition is built upon the foundation of excellent quality and service we provide.



LTMG forklift feedback



FAQ



Q: What kind of industries use narrow aisle side loader forklifts?

A: Narrow aisle side loader forklifts are commonly used in manufacturing, logistics, and distribution industries where inventory is stored and transported using pallets.

Q: What are some key features of a narrow aisle side loader forklift?

A: Key features of a narrow aisle side loader forklift include a compact and maneuverable design, extended reach capabilities, and customizable bed lengths.

Q: How does a narrow aisle side loader forklift differ from a regular forklift?

A: A narrow aisle side loader forklift differs from a regular forklift in its ability to operate effectively in narrow aisles where space is limited. It also features a unique side loading capability that regular forklifts do not possess.

Q: Why choose us?

A: As a trustworthy forklift manufacturer in China, LTMG industrial is committed to offer high-quality forklift and competitive price, Our wide product range of forklift including side loader forklift, telescopic forklift,  lpg forklift, rough terrain forklift and so on.
