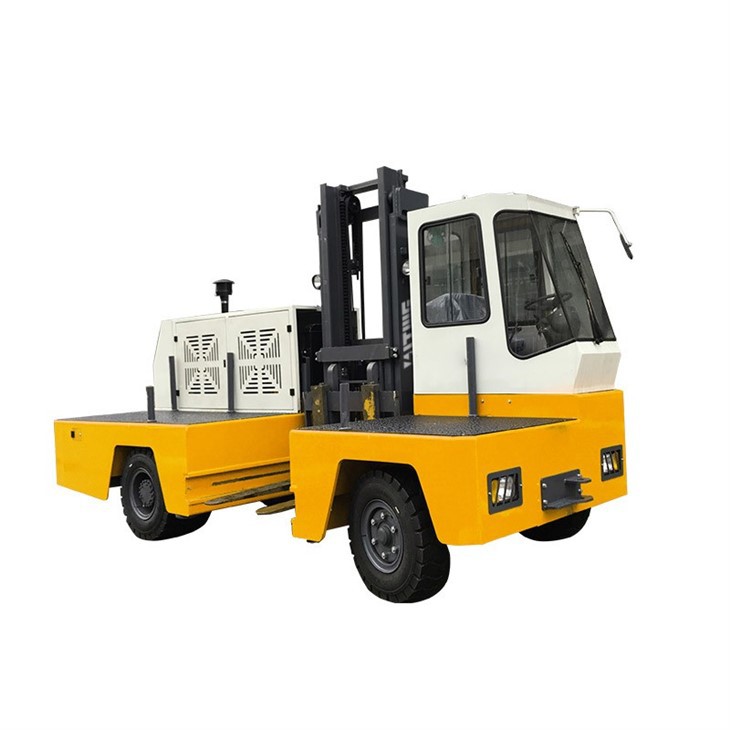

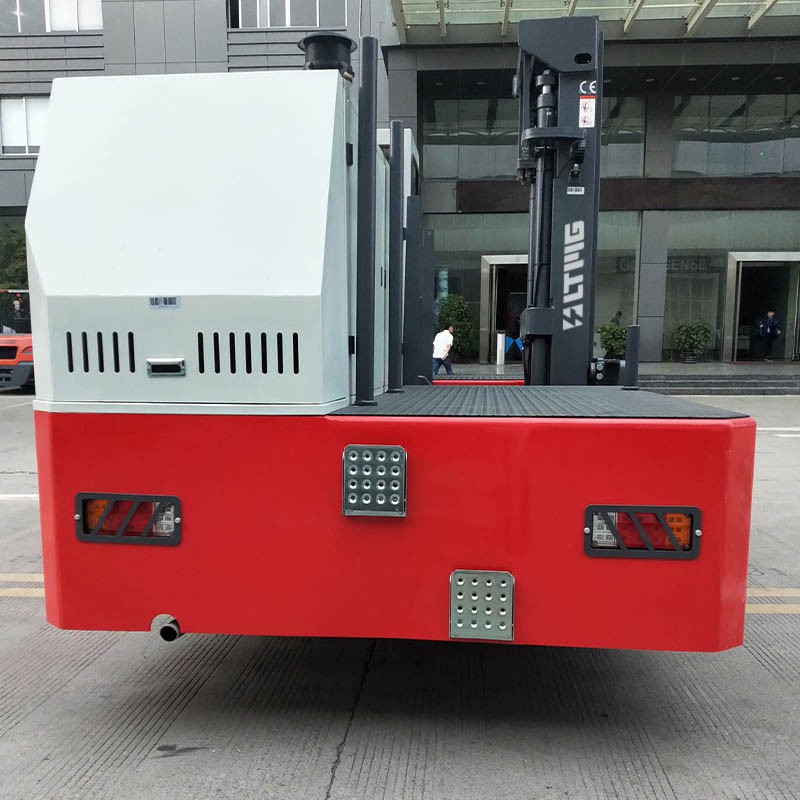

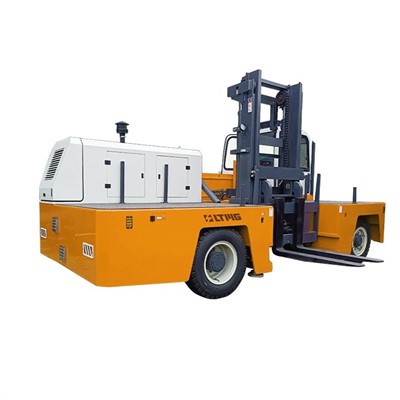

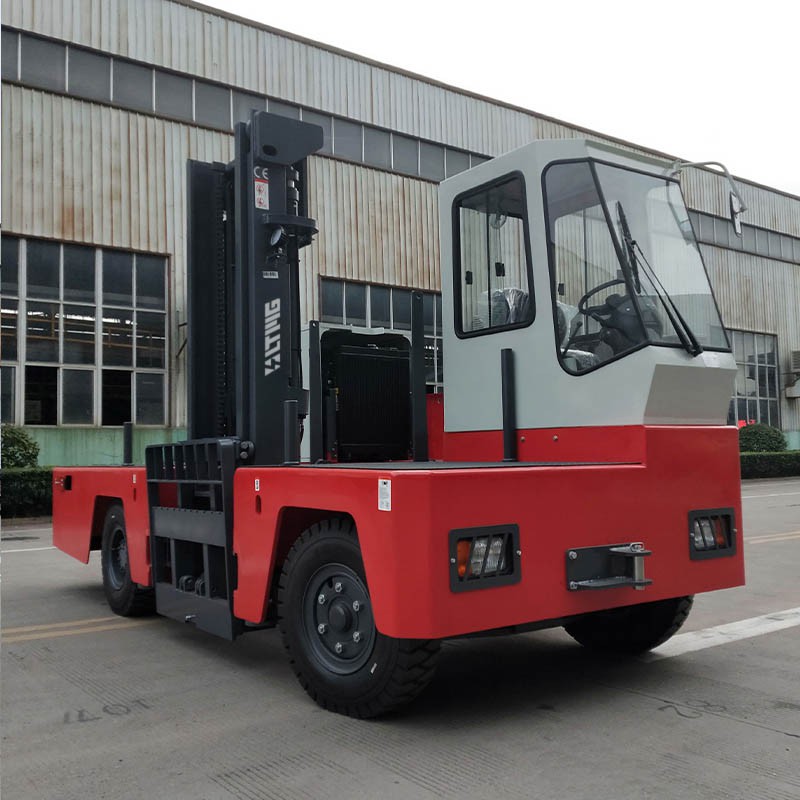

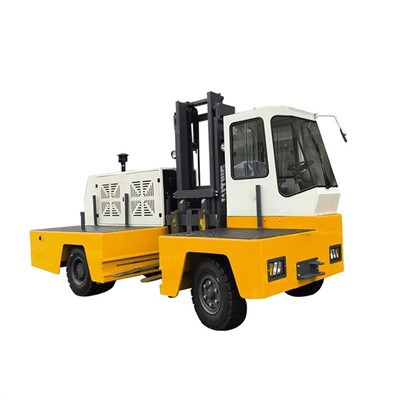

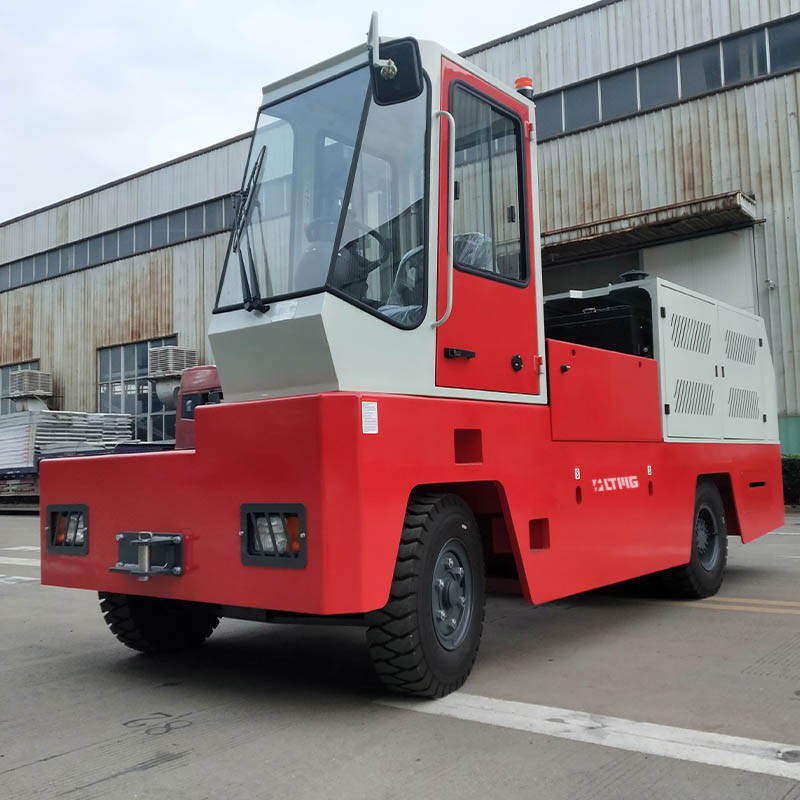

Diesel driven side loading forklift truck stands out with its low system maintenance costs, simple yet effective design, and exceptional durability, ensuring a reliable solution for your business.
1. Low Maintenance, High Performance:
This sideloader forklift boasts a low system maintenance cost, ensuring that operational expenses remain economical. Its straightforward design is a testament to its efficiency, while the high-level engineering and durability guarantee optimal performance even in demanding environments.
2. Enhanced Safety and Stability:
Experience heightened safety and smoother control with our industrial side loader forklifts 's perfect synchronization of outreach. This feature not only ensures higher safety standards but also contributes to stable and controlled operations, enabling precise and efficient load handling.
3. Ergonomic Seating for Comfort and Fatigue Relief:
Equipped with ergonomic seating, our side loader fork truck prioritizes operator comfort, providing relief from fatigue during prolonged operations. This design choice promotes sustained efficiency throughout the workday, enhancing overall productivity.
4. Versatile Material Transport:
Designed specifically for transporting lengthy and cumbersome materials, our forklift excels at lateral picking and conveying. Navigating through narrow aisles is a breeze, thereby maximizing your facility's storage capacity. Whether handling lumber, steel, or pipes, the ability to transport long loads with the load facing the direction of travel simplifies the process, significantly reducing the machine's overall width and load dimensions.
5. Efficiency, Precision, and Cost Savings:
Diesel driven side loading forklift truck not only excels in material transport and handling but also in cost-effective maintenance, safety, and operator comfort. Choosing this forklift ensures you get a high-performing, precise, and cost-efficient material handling solution, propelling your business to new heights.
parameters
| Model | FDS60 | ||
| Power Type | Diesel | ||
| Rated Capacity | kg | 6000 | |
| Load Centre | mm | 600 | |
| Lift Height | mm | 3600 | |
| Fork Size | L×W×T | mm | 1220×150×60 |
| Mast Tilt Angle | F/R | Deg | 3°/3° |
| Ground Clearance(Bottom of mast) | mm | 245 | |
|
Overall Dimension |
L*W*T | mm | 5280*2100*3000 |
| Platform length | mm | 5280 | |
| Platform width | mm | 1200 | |
| Platform height | mm | 1080 | |
| Overhead Guard Height | mm | 2660 | |
| Turning Radius (outside) | mm | 4450 | |
|
Speed |
Travel (Empty load) | km/h | 18 |
| Lifting (Full load) | mm/s | 440 | |
| Max.Gradeability | % | 15 | |
|
Tyre |
Front | mm | 2×8.25-15-14PR |
| Rear | mm | 4×8.25-15-14PR | |
| Wheelbase | mm | 2900 | |
| Self weight | kg | 10140 | |
| Battery | Voltage/Capacity | V/Ah | (12/80) x 2 |
|
Engine |
Model | CY6102 | |
| Manufacture | Chaochai | ||
| Rated output/r.p.m. | kw | 82.4/2000 | |
| Rated torque/r.p.m. | N·m | 416/1400-1600 | |
| No.of Cylinder | 6 | ||
| Bore×Stroke | mm | 105×125 | |
| Displacement | cc | 6494 | |
| Fuel Tank Capacity | L | 178 | |
| Transmission | Type | Hydraulic | |
| Stage | FWD/RVS | 2/1 | |
| Operating Pressure for Attachment | Mpa | 19 | |

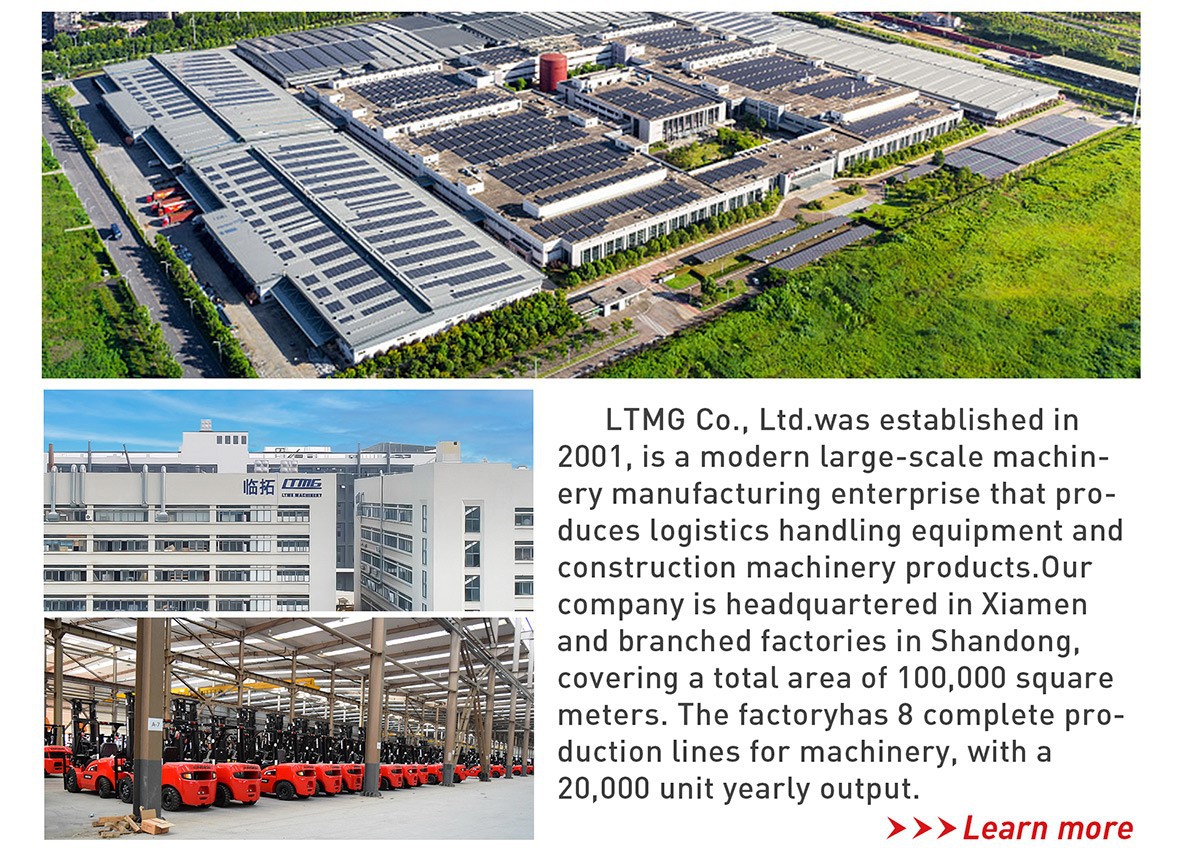

Company profile
LTMG's forklifts have gained a reputation for their outstanding products and comprehensive service. Our forklifts are crafted with meticulous care, showcasing exceptional craftsmanship and unwavering reliability. We take great pride in exceeding customers' expectations, ensuring utmost satisfaction for our esteemed clientele.
Customer Feedback
comprehensive service
FAQ
Q: What assurances can you provide regarding the quality of your side loader forklifts?
A: Our side loader forklifts undergo rigorous quality control measures, adhering to international standards. We employ cutting-edge engineering and materials to ensure durability, safety, and optimal performance. Additionally, we can provide certifications and product testing reports upon request.
Q: Are there any specific requirements or regulations we need to be aware of when importing forklifts from China?
A: Import regulations can vary by country. We will provide you with all necessary documentation, including product certifications and compliance information, to facilitate a smooth customs clearance process. Additionally, we recommend checking your country's import regulations to ensure compliance.
Q: Can the side loader forklifts be customized to suit our specific operational needs?
A: Yes, customization options are available to tailor the forklifts to your specific requirements. From load capacity to special attachments, we can work with you to ensure the forklifts meet the unique demands of your operations.
