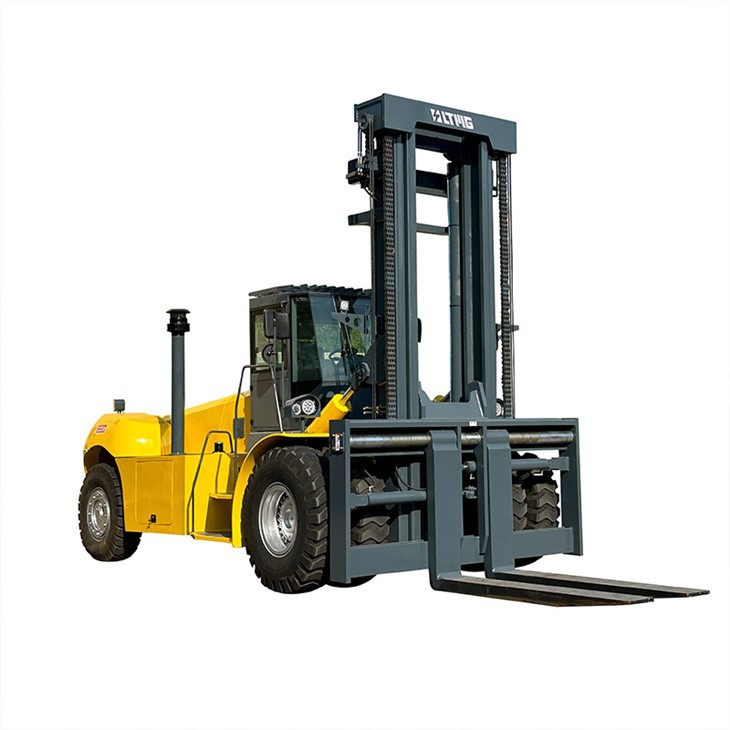

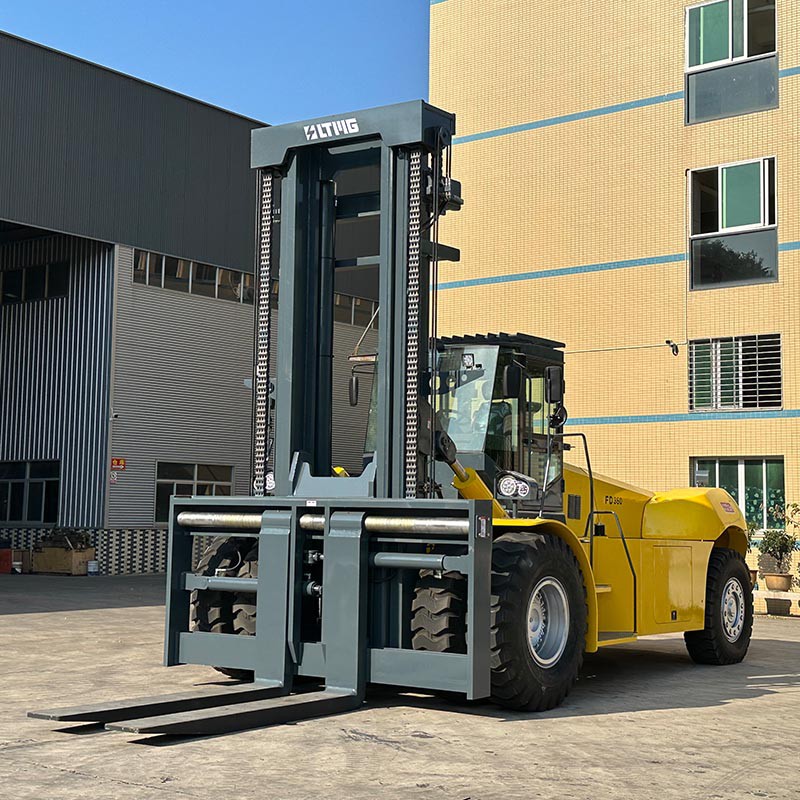

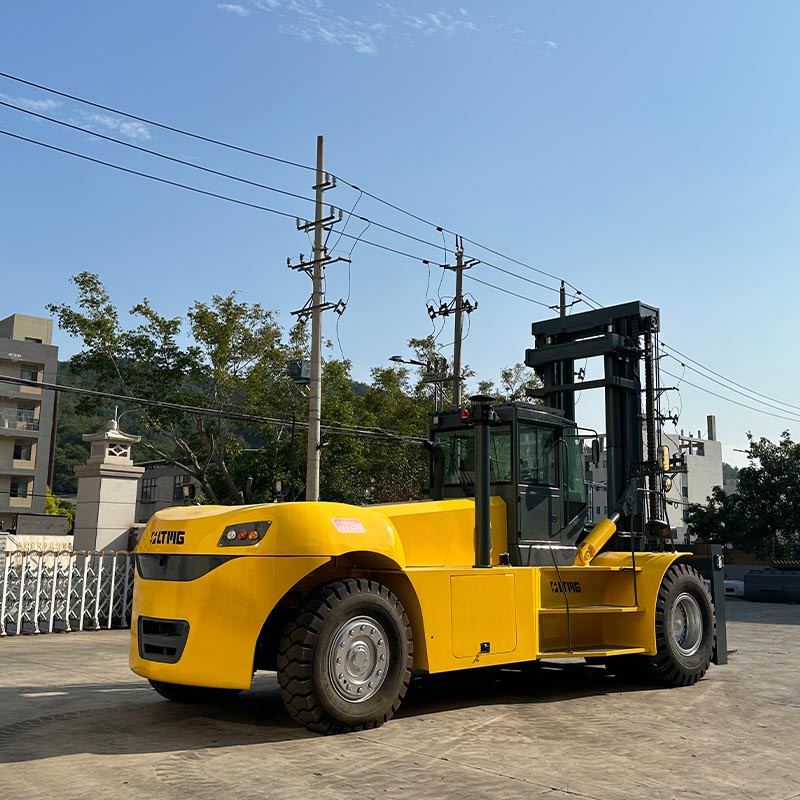

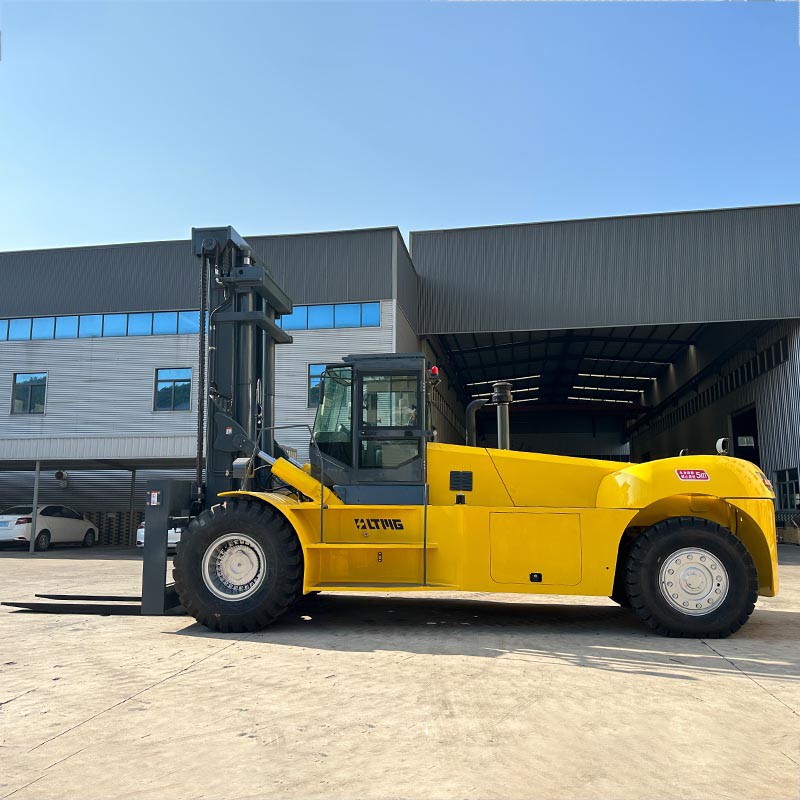

Introducing the LTMG 42-ton Big Diesel Forklift Truck, engineered to handle heavy-duty lifting tasks with remarkable efficiency and power. This robust beast of a forklift is designed to tackle the most demanding industrial environments, delivering unparalleled performance and reliability.
The heavy duty forklift brings together innovative technology and exceptional engineering to provide a superior lifting solution. Powered by a high-capacity diesel engine, this forklift boasts impressive torque and acceleration, enabling it to handle massive loads with ease. Whether you're lifting shipping containers, steel beams, or oversized machinery, this forklift is up to the challenge.
Equipped with a sturdy mast and heavy-duty forks, the forklift delivers exceptional stability, precision, and control. Its ergonomic design ensures optimal operator comfort and safety, allowing for extended operation without fatigue. The spacious cabin provides excellent visibility and intuitive controls, ensuring operators can maneuver with confidence, even in tight spaces.
The diesel forklift truck is engineered to maximize productivity and minimize downtime. With advanced hydraulic systems and intelligent load-sensing technology, it offers quick and precise load handling, reducing cycle times and increasing operational efficiency. Its robust construction ensures longevity and durability, with minimal maintenance requirements to keep your operations running smoothly.
Safety is a top priority, and this forklift is equipped with a range of safety features to protect both operators and bystanders. It incorporates advanced stability systems, including anti-tilt mechanisms and automatic weight distribution, to prevent accidents and ensure optimal stability during lifting operations. Additionally, the forklift is equipped with powerful brakes and emergency stop functions for enhanced safety.
Versatile and adaptable, the large forklift is designed to meet the unique needs of your business. It can be customized with various attachments and accessories, such as side shifters, clamps, and extensions, to enhance its versatility and handle specific material handling tasks efficiently.
The 42-ton big diesel forklift truck is a powerhouse of strength and performance, ready to take on the most demanding lifting challenges. With its exceptional capacity, durability, and advanced features, it provides a reliable solution for heavy-duty material handling, promoting productivity and efficiency in your operations. Invest in this impressive forklift and experience the difference it can make in your industrial environment.
Technical parameters
Item | Specification | Unit | |||
General | 1 | Model | FD420 | ||
3 | Power Type/model | Diesel | |||
4 | Rated Capacity | Kg | 42000 | ||
5 | Load Center | mm | 1250 | ||
Dimensions | 6 | Lift Height | mm | 4000 | |
7 | Fork Size(LxWxT) | mm | 2600×300×130 | ||
8 | Fork Spread(outside)(Min./Max) | mm | 910/2830 | ||
9 | Mast Tilt Angle(F/R) | deg | 6°/12° | ||
10 | Fork Overhang | mm | 1180 | ||
11 | Length without forks | mm | 8170 | ||
12 | Overall Width | mm | 3600 | ||
13 | Mast Lowered Height | mm | 5040 | ||
14 | Overhead Guard Height | mm | 3820 | ||
15 | Outer turning Radius | mm | 7730 | ||
Performance | 16 | Speed(Unload/Load) | Travel | km/h | 30/26 |
17 | Lifting | mm/s | 300 | ||
18 | Max.gradeability(Load) | % | 20 | ||
19 | Max.drawbar pull(Load) | KN | 240 | ||
20 | service Weight | kg | 53000 | ||
Wheels&Tires | 21 | Tire | Front | 4X18.00-25-28PR | |
22 | Rear | 2X16.00-25-28PR | |||
23 | Tread | Front | mm | 2495 | |
24 | Rear | mm | 2880 | ||
25 | Wheelbase | mm | 5500 | ||
26 | Ground Clearance(Under mast) | mm | 400 | ||
Power & Transmission | 27 | Battery | Voltage/Capacity(5HR) | VA/h | 2X12/150 |
28 | Engine | Model | WP12G375E350 | ||
29 | Manufacture | WeiChai | |||
30 | Rated Output | Kw | 276 | ||
31 | Rated Torque | N.m | 1550 | ||
32 | No.Of Cyinder | 6 | |||
33 | Bore*stroke | mm | 126x155 | ||
34 | Displacement | L | 11.6 | ||
35 | Transmissions | Manufacture | ZL80 | ||
37 | StageFWD/RVS | 4/4 | |||
38 | Operating Pressute | Mpa | 21 |

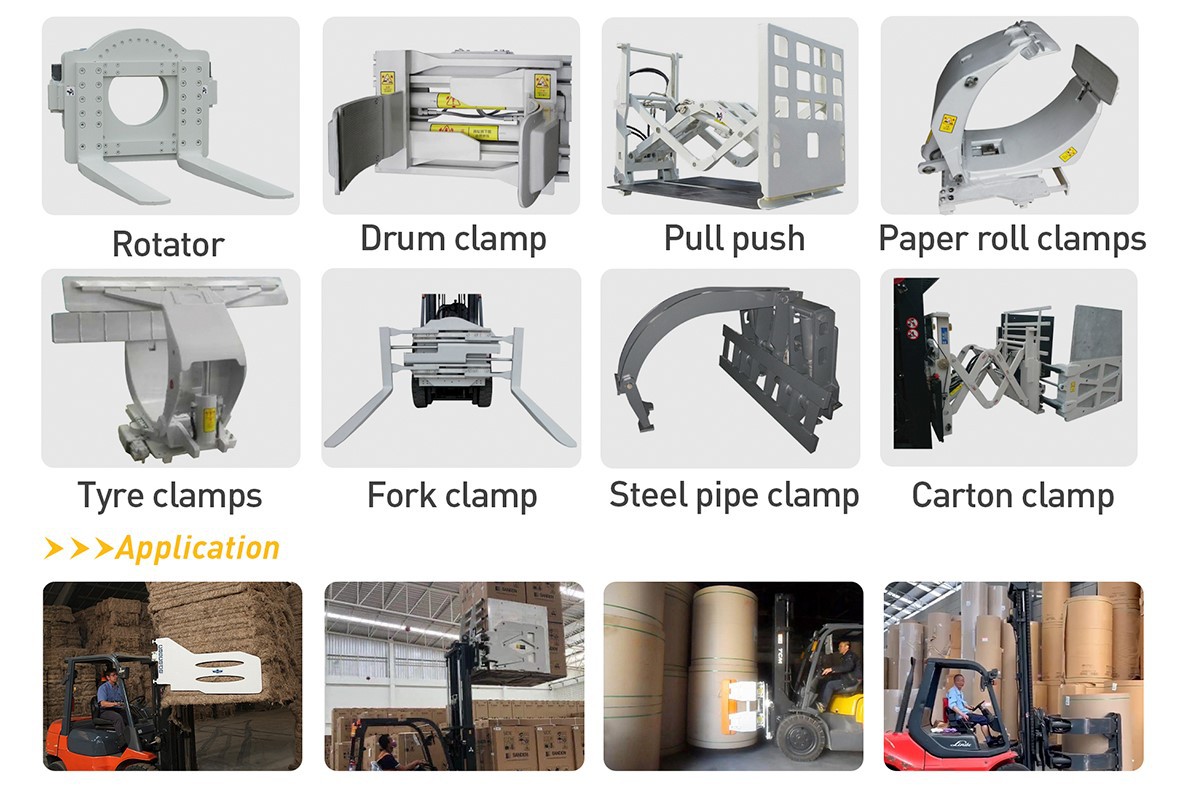

Attachment

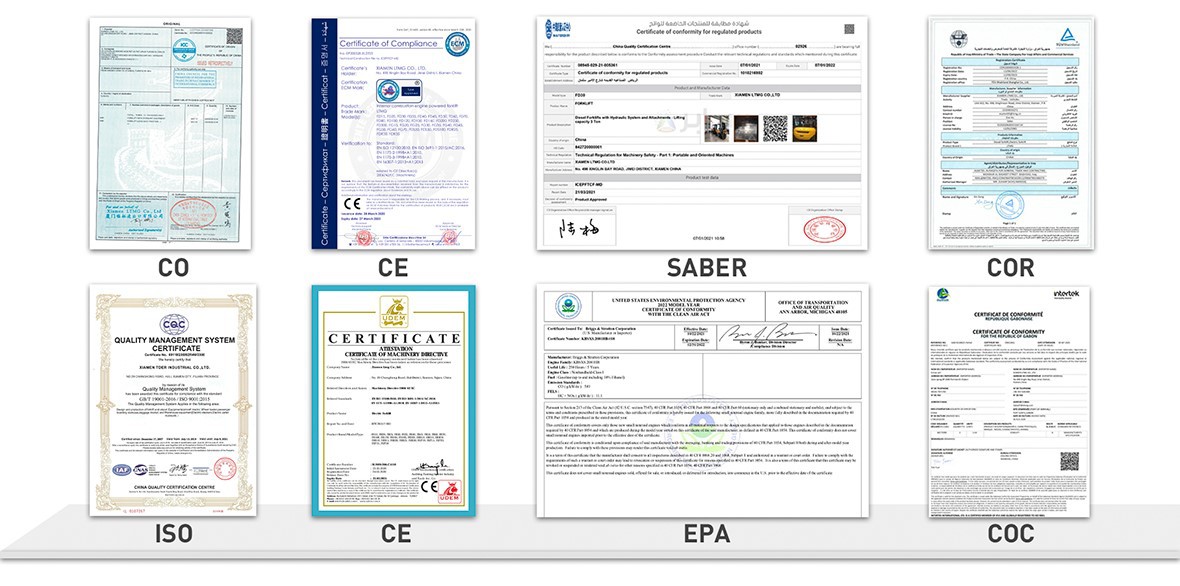

certification
