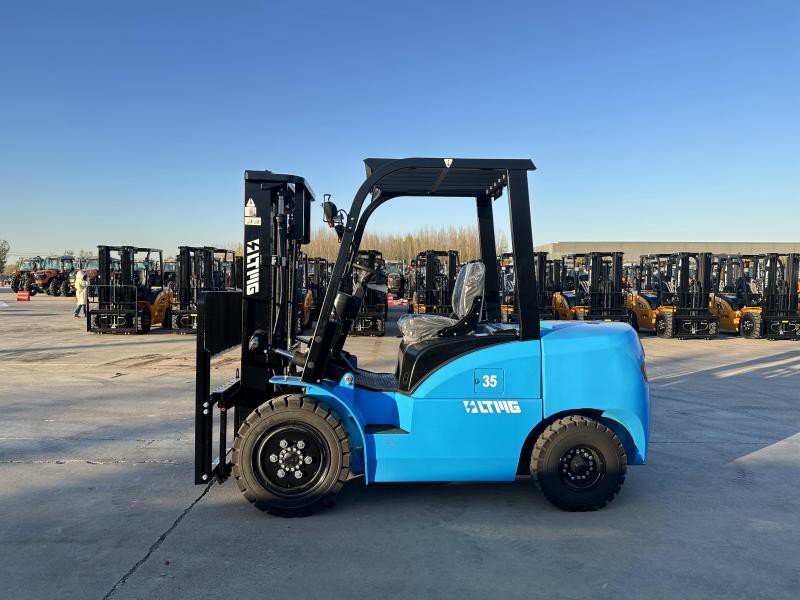

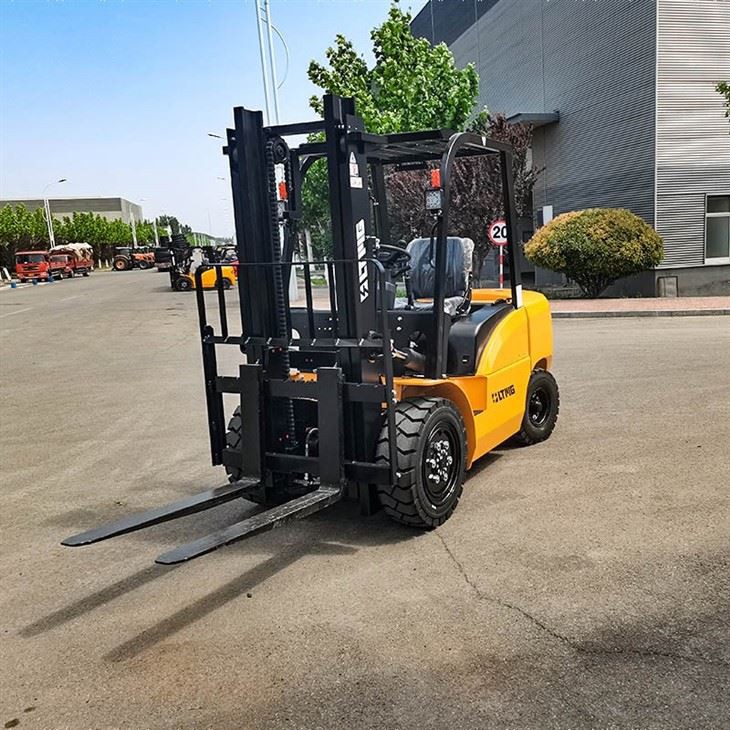

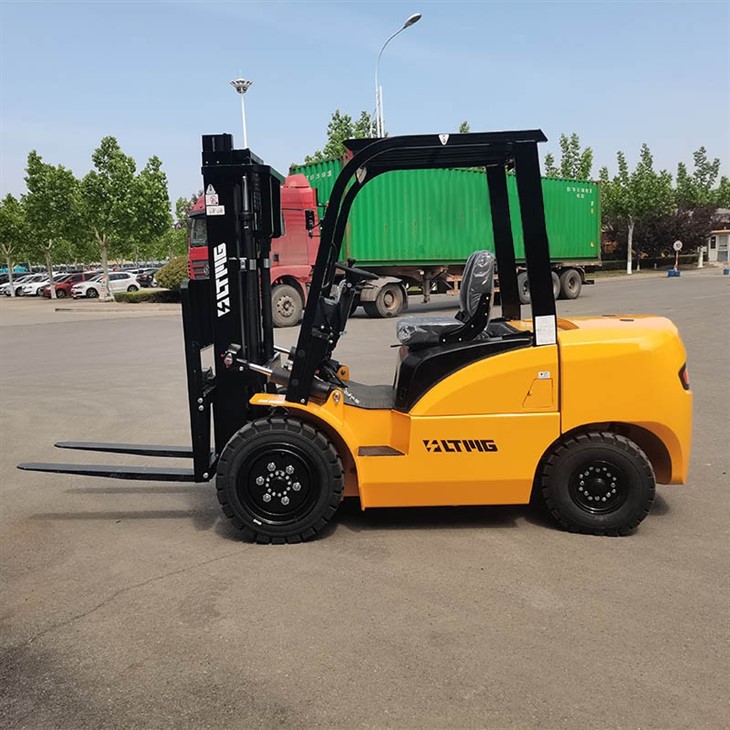

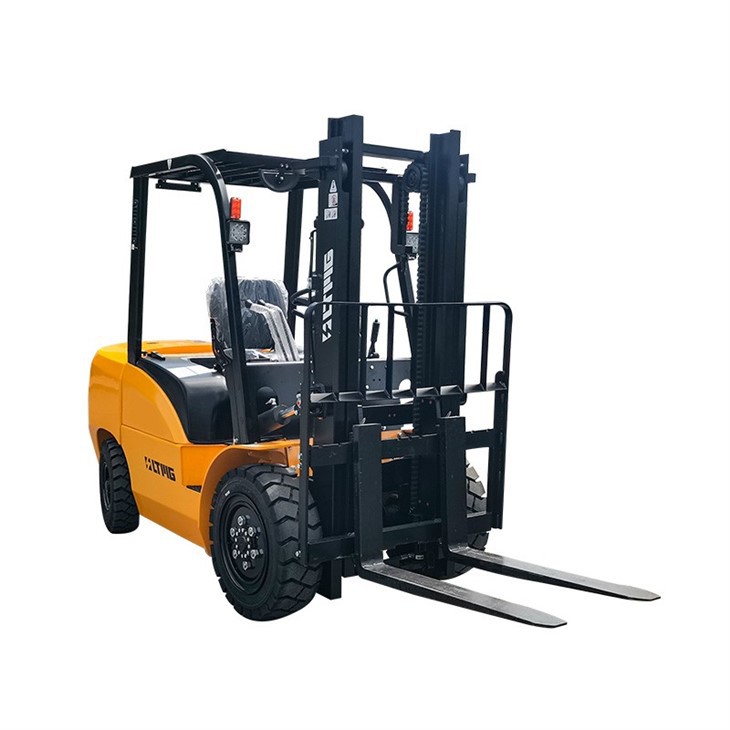

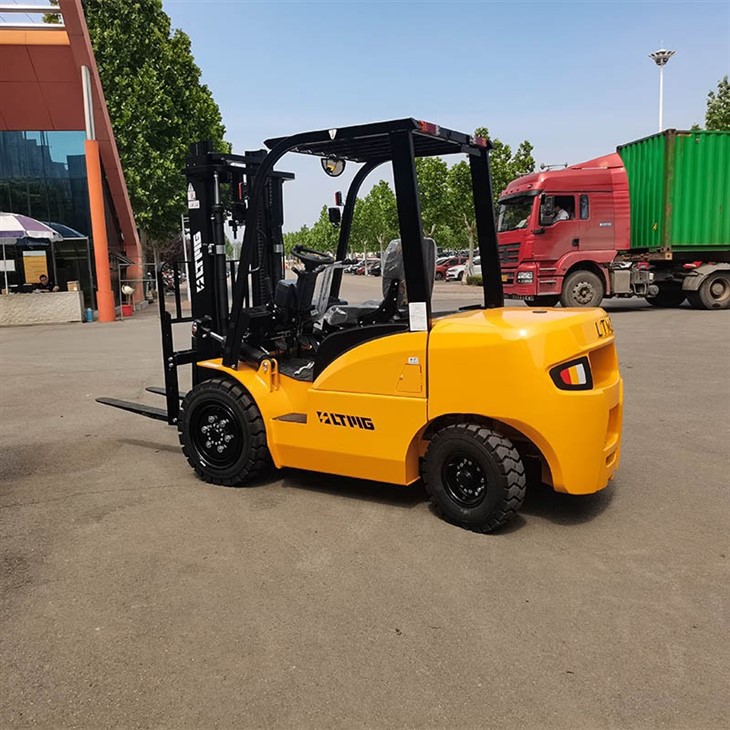

The 3.5 ton diesel forklift is an excellent choice for anyone in need of a powerful and dependable piece of machinery for heavy lifting jobs. With its impressive array of features and reliable construction, Whether it's warehouses, construction sites, or logistics facilities, this forklift adapts effortlessly to cater to your needs.
1. Equipped with advanced hydraulic system, it empowers you to effortlessly maneuver heavy loads with utmost precision, ultimately boosting your efficiency and maximizing productivity.
2. Safety is our utmost priority: With features such as an anti-tip system, overload protection, and advanced braking system, operators can confidently handle heavy loads with ease. Additionally, the forklift's enhanced visibility ensures optimal awareness of the surroundings, minimizing the risk of accidents.
3. Fitted with the stamped bonnet, the small diesel forkliftnot only looks sleek and modern, but also adds to the overall durability and strength of the forklift.
4. Digital dashboard: provides clear and easy-to-read information about the forklift's performance and operation. This allows drivers to stay informed and in control at all times.
5. Endowed with the wide view mast, offering maximum visibility and safety while working. And the hydraulic system is powerful and reliable, ensuring smooth and efficient lifting and lowering of heavy loads.
6. The cast one-piece steering axle with tapered design offers superior strength and stability. Besides, the two-stage air purification system ensures clean and healthy air for the driver and anyone else working in the area.
specification
| Model | FD35 | |
| Power Type | Desiel | |
| Rated Capacity | (kg) | 3500 |
| Load Center | (mm) | 500 |
| Battery(Voltage/Capacity ) | (V/Ah) | 12/80 |
| Maximum lifting height | (mm) | 3000 |
| Free lifting height | (mm) | 130 |
| Tiltiing angle (up/down) | (°) | 6/12 |
| Lifting speed (Full/No load) | (mm/s) | 480/510 |
| Lowered speed(Full/No load) | (mm/s) | 500/450 |
| Travel speed(Full/No load) | (km/h) | 18.5/19 |
| Turning radius | (mm) | 2560 |
| Ascend slope ability(Full/No load) | (%) | 15/20 |
| Maximum hook traction | kN | 19.5 |
| Over Weight | (kg) | 4650 |
| Overall length (without fork) | (mm) | 2810 |
| Overall width of frame | (mm) | 1230 |
| Mast lowered height | (mm) | 2130 |
| Overhead guard height | (mm) | 2130 |
| Shelf height | (mm) | 1225 |
| Maximum lifting height | (mm) | 4230 |
| Minimum ground clearance | (mm) | 130 |
| Wheelbase | (mm) | 1750 |
| Front wheel track | (mm) | 1000 |
| Rear wheel track | (mm) | 970 |
| Front Overhang | (mm) | 480 |
| Rear Overhang | (mm) | 580 |
| Front | 28x9-15-14PR | |
| Rear | 6.50-10-10PR | |
| Fork Size(L×W×T) | (mm) | 1220×122×50 |
| Optional Engine | ||
| Model | Xinchai4D27G31 | |
| Rated power | (kW/r) | 36.8/2500 |
| Maximum torque | (N.m/r) | 156/1700-1900 |
| Number of cylinders | 4 | |
| Displacement | (L) | 2.67 |

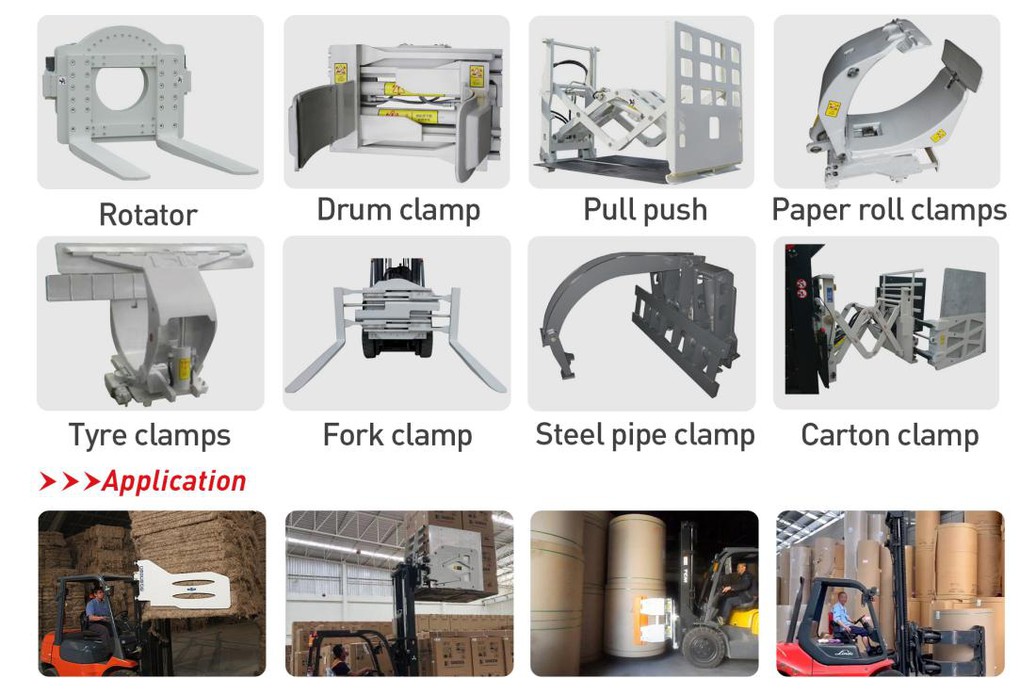

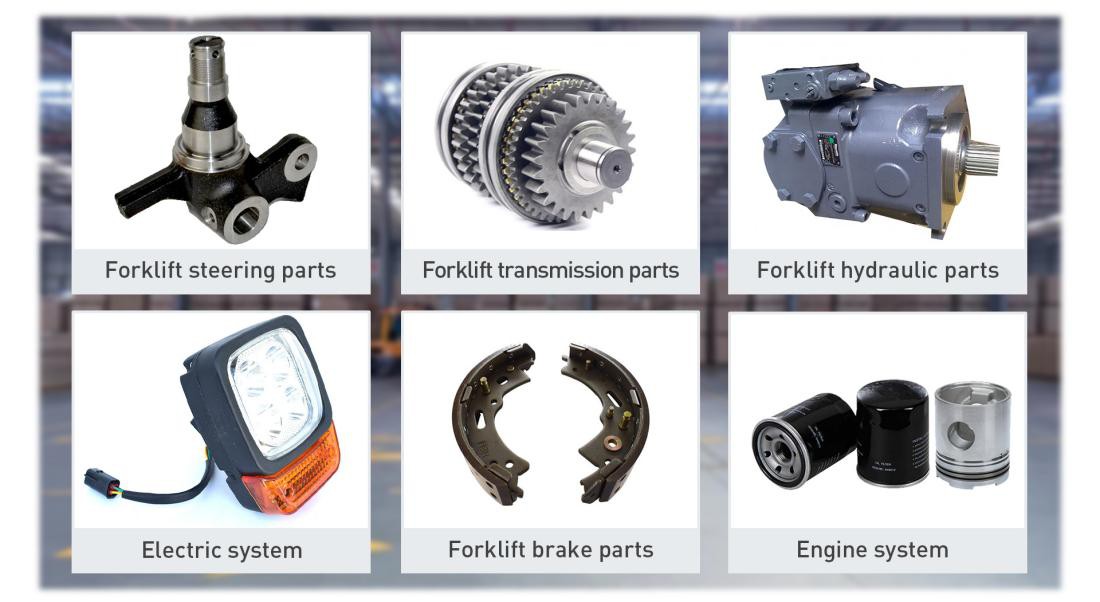

parts & attachments
certificates
LTMG is committed to providing our customers with high-quality, reliable products. Its extensive rangeof certifications including ISO, CE, EPA, COC, COR, SABER, and CO exemplify their position as a reputable and conscientious industry leader. Their commitment to excellence empowers customers with the confidence to choose LTMG as their preferred partner.
FAQ
Q: Is the 3.5 Ton Diesel Forklift suitable for indoor and outdoor use?
Q: What maintenance and support options are available for the 3.5 Ton Diesel Forklift?
Q: What about the Minimun Order Quantity?
Q: How long is the warranty of the forklift?
