Products Description

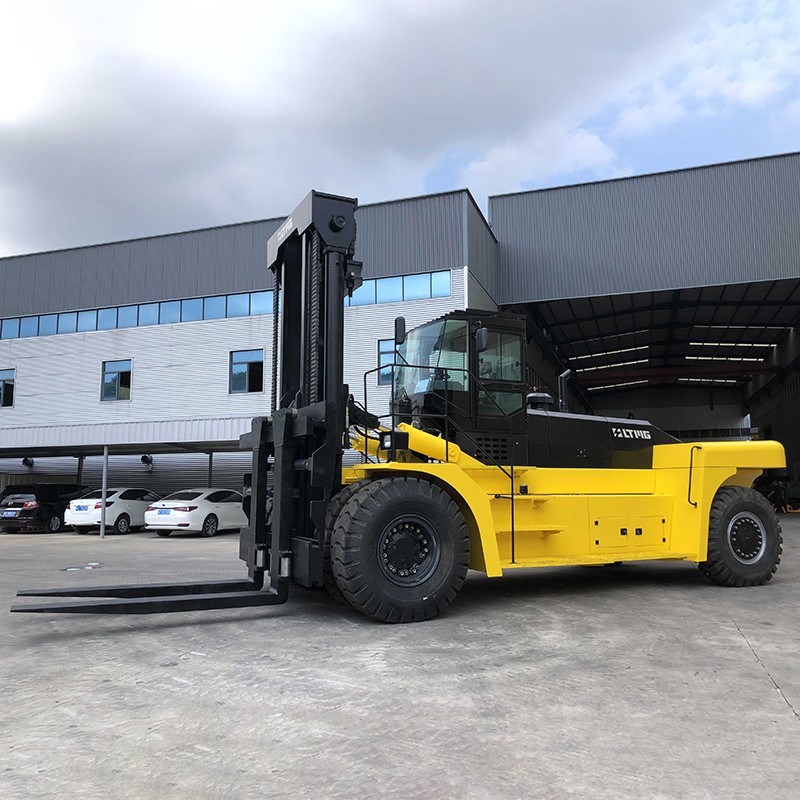

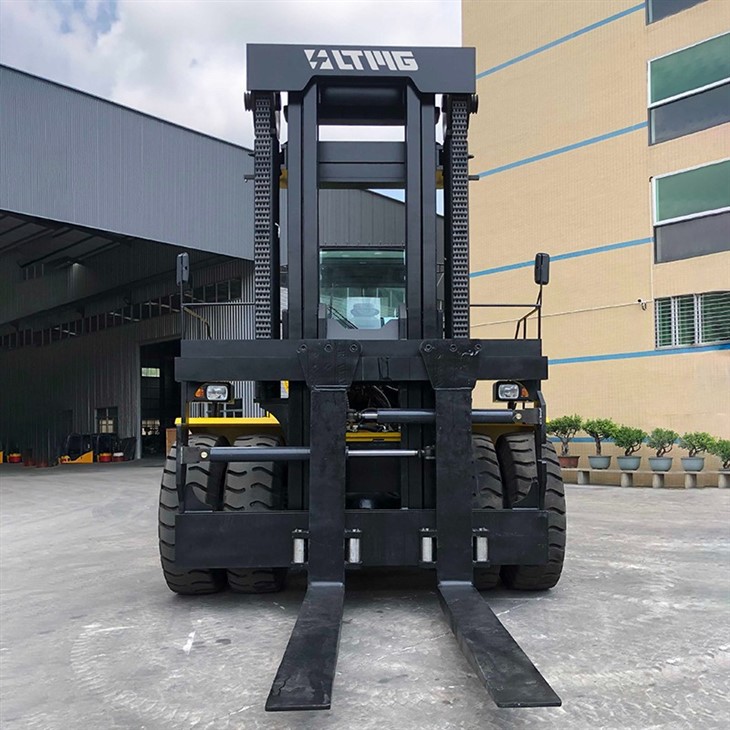

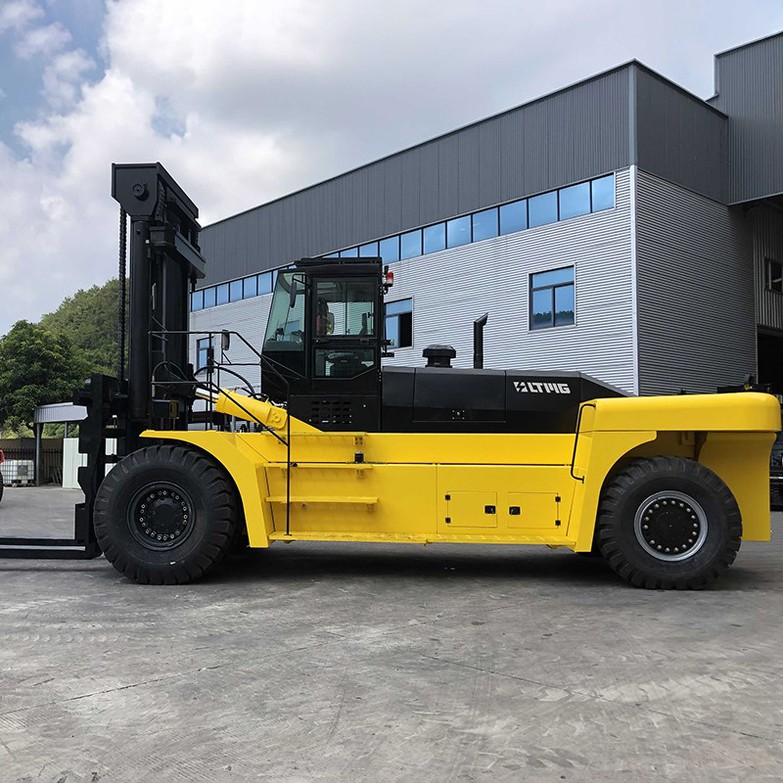

Introducing our Heavy Duty 15 Ton Diesel Forklift, a pinnacle of engineering prowess that redefines heavy material handling with its robust design, advanced safety features, and optimized performance capabilities. Built for the toughest industrial environments, this heavy diesel forklift merges power with precision, ensuring your operations run smoothly and efficiently.
At the core of its innovative design, the forklift's drive motor is ingeniously mounted transversely. This strategic orientation not only significantly increases the capacity of the onboard batteries but also strategically lowers the center of gravity. The result? Enhanced stability and a substantial boost in operational runtime, allowing for prolonged and uninterrupted heavy lifting tasks.
Standard equipped on this heavy diesel forklift is a state-of-the-art caliper disc hydraulic braking system. With three sets of large diameter caliper disc brakes fitted on each tire side, it boasts a formidable braking torque, ensuring ease of operation and exceptional stopping power. This advanced braking system guarantees safety and control, even under the heaviest loads and most demanding conditions.
Understanding the importance of engine longevity, our forklift incorporates a sophisticated intake system. It combines an external pre-filter with an internal double-filter element dry filter, achieving a remarkable 99.9% filtration efficiency. This high-level air cleaning process safeguards the engine from harmful particles, promoting cleaner combustion and significantly extending the engine's lifespan.
Safety and convenience are further emphasized through the integration of an electric one-button parking brake. Activated by hydraulic power, this system is ingeniously separated from the driving brake, offering a more reliable and secure parking mechanism. The simplicity of operation enhances operator confidence and overall worksite safety.
While the features mentioned above are tailored for heavy-duty diesel forklifts, it's important to clarify that points 1 and 4 typically pertain to electric forklifts, specifically regarding battery orientation and electric parking brakes. However, the essence of advanced technology, safety, and performance enhancements resonates across all high-end forklift designs, whether diesel-powered or electric.
In conclusion, our Heavy Duty 15 Ton Diesel Forklift stands as a testament to the fusion of power and precision in heavy material handling. With its innovative drive motor placement, superior braking system, meticulous air filtration, and enhanced safety features, it is engineered to excel in the most challenging industrial environments. This diesel powerhouse ensures your operations remain at peak performance, backed by a commitment to durability, efficiency, and operator safety. Experience the difference a truly advanced heavy diesel forklift can make in your logistics and warehousing operations.
attachment
feedback from client
| Model | FD120 | FD150 | ||
| Features | Rated Load | Q(t) | 12 | 15 |
| Load center | c(mm) | 600 | 600 | |
| Wheelbase | y(mm) | 3000 | 3800 | |
| Weight | Weight | kg | 18000 | 24000 |
| Chassis | Tyre Specs.:Front | 10.00-20-18PR | 12.00-24-18PR | |
| Tyre Specs.:Rear | 10.00-20-18PR | 12.00-20-18PR | ||
| Tyres Qty,front/rear(X-drive wheels) | 4 | 4 | ||
| Wheel tread:Front | b10(mm) | 1677 | 2060 | |
| Wheel tread:Rear | b11(mm) | 2013 | 2330 | |
| Dimension | Mast/carriage tilt angle(front/rear) | Degree(°) | 6 | 6 |
| Mast height(fork lowering) | h1(mm) | 3100 | 3625 | |
| Mast lifting height | h3(mm) | 3000 | 3000 | |
| Max.lifting height | h4(mm) | 4600 | 5375 | |
| Height to head guard(height to cab) | h6(mm) | 3000 | 3365 | |
| Overall height(with forks) | l1(mm) | 6055 | 7640 | |
| Fork front vertical surface to the rear end of the vehicle | l2(mm) | 4855 | 5840 | |
| Overall width | b1/b2(mm) | 2250 | 2750 | |
| Fork dimension | s/e(mm) | 1200X180X90 | 1800X180X90 | |
| Fork carriage width | b3(mm) | 2200 | 2380 | |
| Mast min ground clearance(with load) | m1(mm) | 225 | 265 | |
| Wheelbase center min ground clearance(with load) | m2(mm) | 350 | 325 | |
| Min.Turning radius | Wa(mm) | 4450 | 5800 | |
| Travel speed(with load/without load) | km/h | 23/26 | 26/30 | |
| Performance | Max.lifting speed(with load/without load) | mm/s | 220/270 | 250/260 |
| Max.Lowering speed(with load/without load) | mm/s | 450/300 | 430/330 | |
| Traction | N | 9000 | 15000 | |
| Gradeablity(with load/without load) | ％ | 20/22 | 20/22 | |
| Driving brake | Hydraulic clamp disc | Hydraulic clamp disc | ||
| Engine | Engine brand/model | Optional one | Yuchai engine | |
| YC6J175-T302 6.494L 129KW 2200rpm |
||||
| Optional two | Dongfeng Cummins | Dongfeng Cummins | ||
| QSB4.5-C130 4.5L 97KW 2200rpm |
QSB6.7-C190 6.7L 142KW 2200rpm |
|||
| Cylinder No. | 4 | 6 | ||
| Others | Transmission gears(Front/rear) | 2 | 2 | |
| Attachments working pressure | bar | 160 | 160 | |
| Attachments using oil amount | l/min | 40 | 60 |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
