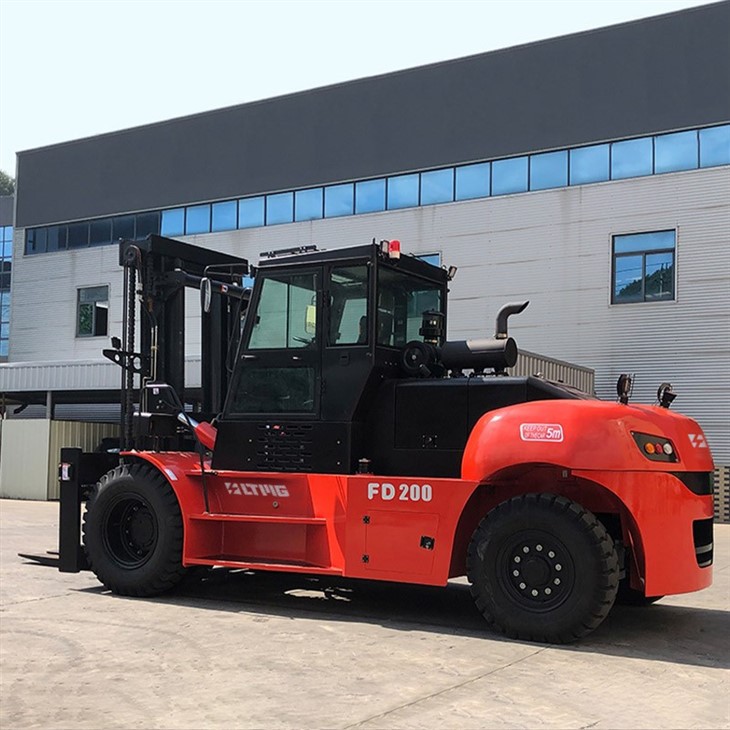

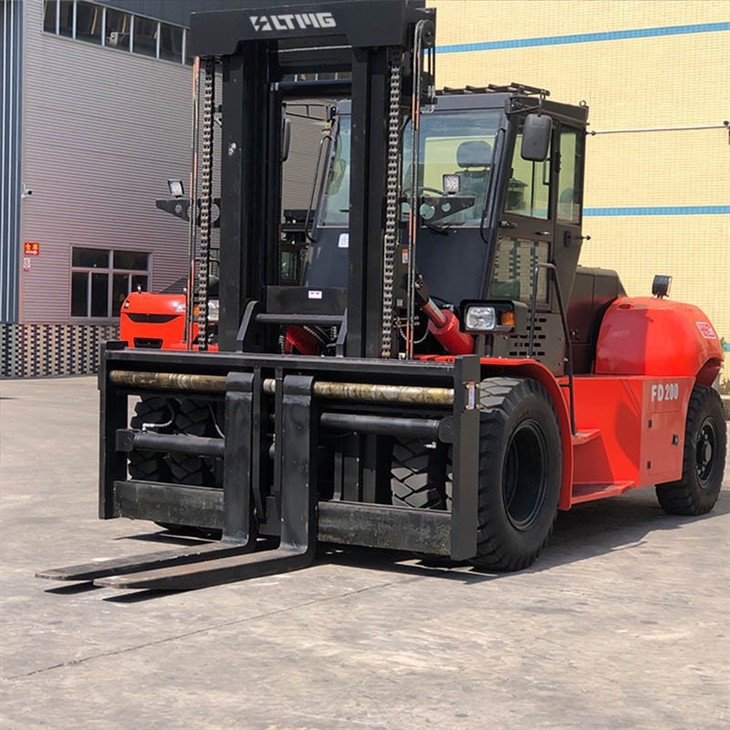

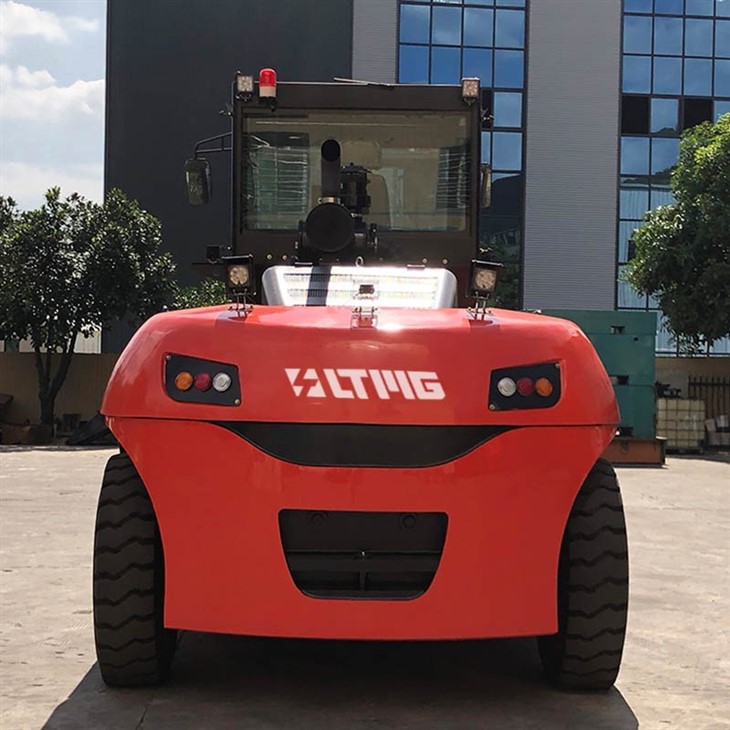

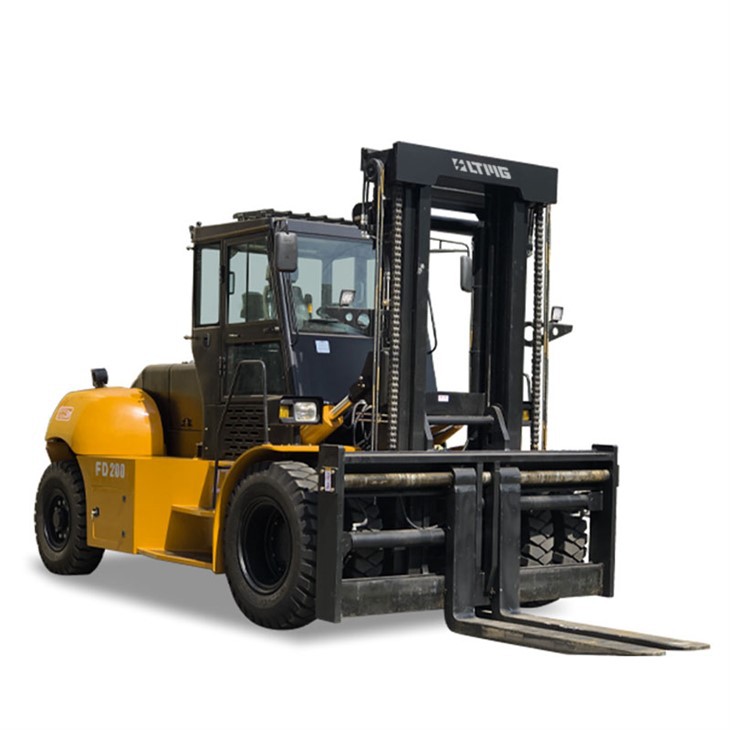

The 20 ton diesel lift truck, featuring the Intelligent Starting System coupled with the forklift hanging gear start prevent function, excels in both enhancing operational safety and extending gearbox service life. Equipped with the OPS Operator Sensor System as standard, it can effectively prevent accidents caused by the driver's incorrect operating position.
The optimized design of the full vision mast, coupled with an external pipeline layout, ensures the heavy duty diesel forklift driver enjoys optimal visibility, thereby boosting overall driving and operational safety. The inclusion of a key-type vehicle power outage and a lockable electrical cabinet, tailor-made for the diesel forklift, significantly contributes to the safety of outdoor parking.
The engine intake system adopts an external prefilter and an internal double filter element dry filter filting system with a filtering efficiency of 99.9%, improving the cleanliness of the intaking air to extend the engine life.
For enhanced safety during parking, the big forklift truck features an electric one-button parking brake, hydraulic power drive, and a separate design between the parking brake and the driving brake, providing a more reliable and secure parking brake.
The load sensing priority steering hydraulic system, coupled with the double pump flow fuel feeding design, not only improves mast working efficiency but also promotes energy savings.
The 20 ton diesel lift truck offers a range of customizable options to cater to diverse needs. Various choices include powerful engines from Wechai, Yuchai, Cummins, Deutz, or Volvo, along with options for solid tires, two-stage free lift mast, three-stage free lift mast, forklift positioner, side shifter, paper roll clamp, tyre clamp, carton clamp, fork clamp, rotator, drum clamp, push pull, and more.
Technical Specification
| Model | FD200 | ||
| Rated load | kg | 20000 | |
| Load center | mm | 900 | |
| Power type | Diesel | ||
| Drving type | seated/hydraulic | ||
| Tyre types | L.V | ||
| Tyre Qty(Front/Rear) | 4/2 | ||
| Lifting hight | mm | 4000 | |
| Fork size(height*width*length) | mm | 100X220X2200 | |
| Mast tilt angle (front/Rear) | drg | 6/12 | |
| Fork front sueface to the rear end of the vehicle | mm | 6030 | |
| Overall width | mm | 2930 | |
| Height to head guard | mm | 3400 | |
| Mast height(fork lowering) | mm | 3900 | |
| Mast Vertical max. height (mast lifting) | mm | 5880 | |
| Wheel base | mm | 3970 | |
| Wheel tread(front/Rear) | mm | 2070/2170 | |
| Ground Clearance) | mm | 270 | |
| Min turning radius | mm | 5600 | |
| Max.lifting speed(with load) | mm/s | 300 | |
| Max. Travel speed(with load) | Km/h | 26 | |
| Max gradeability(with load) | % | 20 | |
| service weight | kg | 29000 | |
| Tyres specs front/rear | 14.00-24-18PR/14.00-24-18PR | ||
| Tyre pressure front/rear | MPa | 1.3/1.0 | |
| Transmission | Atomactic transmission | ZL50 | |
| Brake distance | mm | ≤6000 | |
| Engine | Model | Weichai | WD10G220E21 |
| Rated output | kw | 162 | |
| Rated torque | r.p.m | 2200 | |
comprehensive service
As a famous manufacturer in China, LTMG Machinery is not only committed to providing high-quality products and performance, as well as competitive prices, but also to timely delivery and 24-hour after-sales service.
