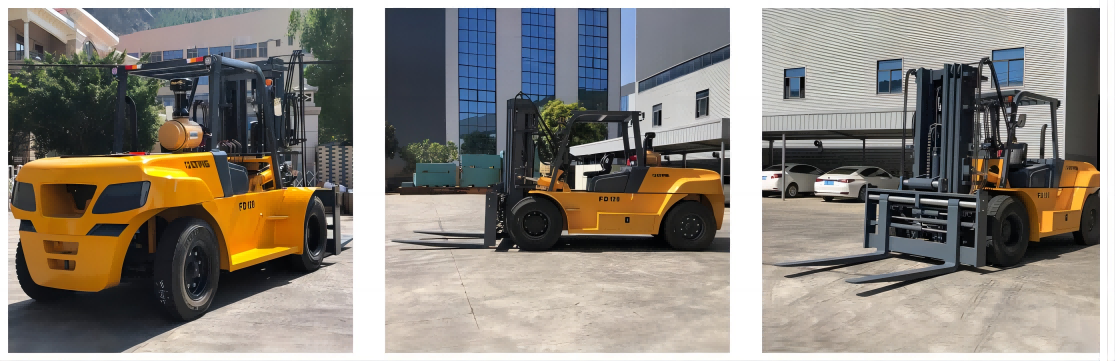

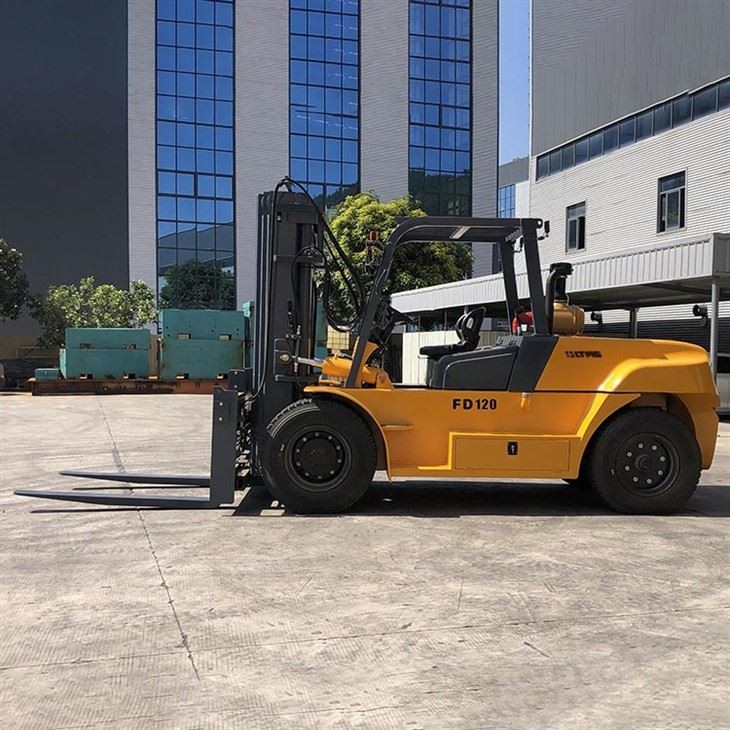

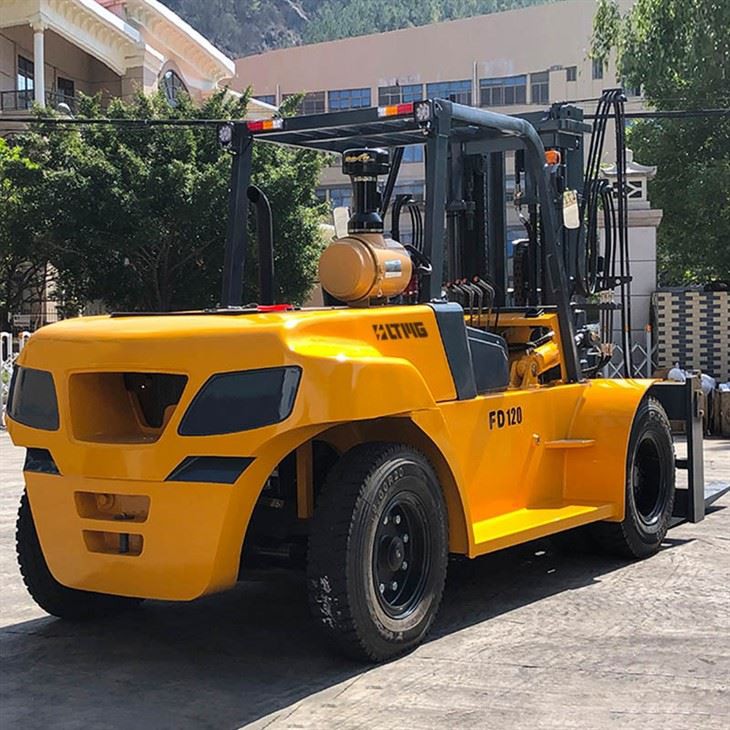

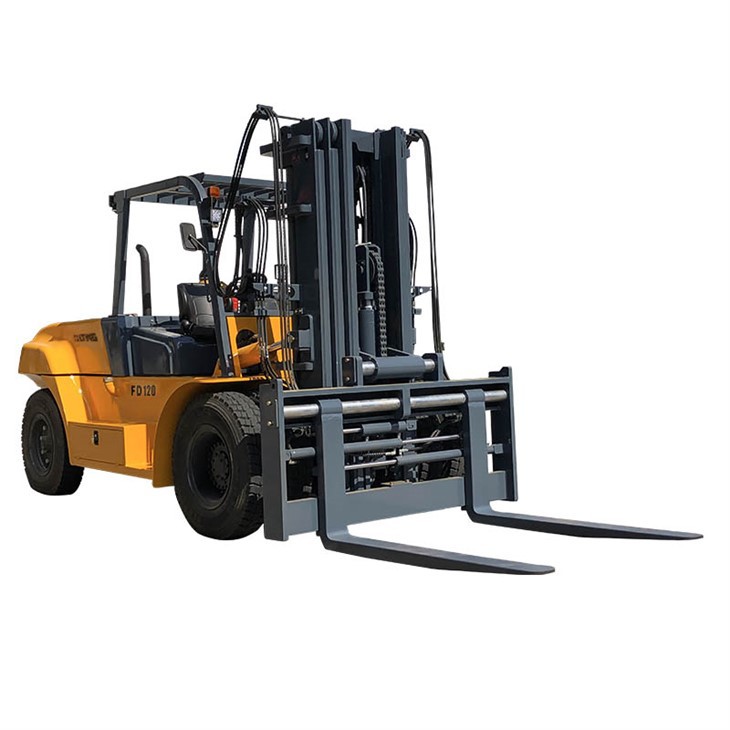

the features of FD120 diesel forklift
- Low oil consumption engine: ensures the vehicle runs efficiently while producing minimal emissions. This not only makes it a more good power performance, but it also helps to reduce fuel costs.

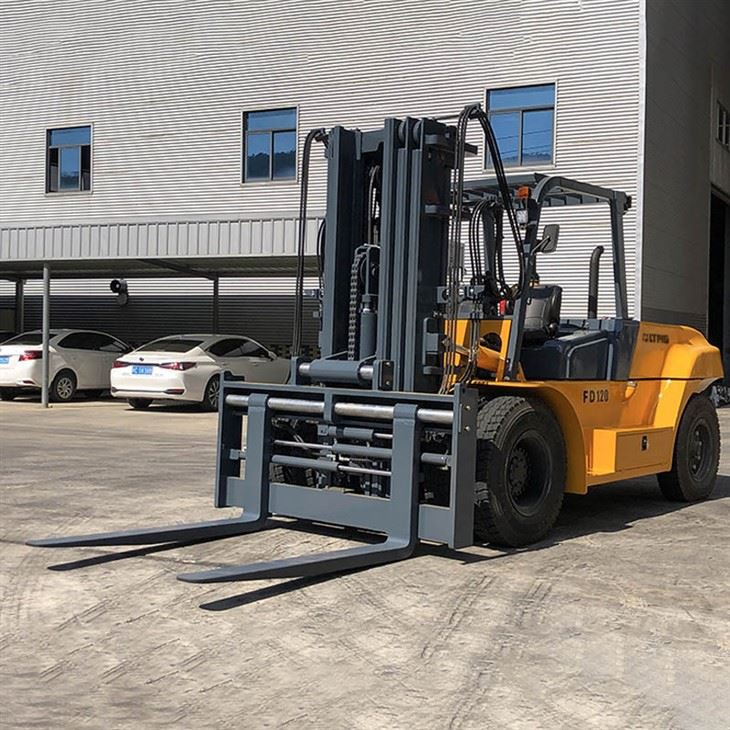

- Standard with hydraulic fork positioner: the 12 ton diesel forklift offers smooth and precise lifting and lowering of loads with reduced driver labor intensity , making it an essential tool for any warehouse or industrial setting.
- The full cab with AC provides a comfortable and safe working environment for the operator, ensuring maximum productivity and minimizing downtime due to operator fatigue.
- Fitted with box-type internal-external mast, the heavy diesel forklift is designed to provide optimal visibility and stability during operation, even at high elevations.
- The steering system is responsive and easy to control, allowing the operator to maneuver the forklift with precision and accuracy.
- The exquisite frame structure ensures the big diesel forklift can handle the toughest of tasks with ease. The structure is built to withstand the rigors of heavy-duty applications, while also providing a stable and reliable platform for the operator.
The specification of FD120 diesel forklift
| Model | FD120 | |
| Features | ||
| Rated Load | Q(Kg) | 12000 |
| Load Center | c(mm) | 600 |
| Wheelbase | y(mm) | 2950 |
| Weight | kg | 15500 |
| Chassis | ||
| Tire Specs:Front | 11.00-20-18PR | |
| Tire Specs:Rear | 10.00-20-18PR | |
| Tires Qty,front/rear(X-dreve wheels) | 4/2 | |
| Wheel tread:Front | b3(mm) | 1630 |
| Wheel tread:Rear | b4(mm) | 1780 |
| Dimensions | ||
| Mast/carriage tilt angle(front/rear) | Degree(°) | 6/12 |
| Mast height(fork lowering) | h1(mm) | 2940 |
| Mast lifting height | h2(mm) | 3000 |
| Max.height | h3(mm) | 4410 |
| Height to head guard(height to cab) | h4(mm) | 2670 |
| Overall height(with forks) | L3(mm) | 6070 |
| Fork front verticaal sueface to the rear end of the vehicle | L2(mm) | 4470 |
| Overall width | b1(mm) | 2230 |
| Fork dimension | (mm) | 1600*180*90 |
| Fork carriage width | b2(mm) | 2080 |
| Mast min ground(with load) | m1(mm) | 300 |
| Wheelbase center min ground(with load) | m2(mm) | 350 |
| Min.turning Radius | Wa(mm) | 4350 |
| Travel speed(with load/without load) | km/h | 23/28 |
| Performance | ||
| Max.lifting speed(with load/without load) | mm/s | 220/280 |
| Tractionn | KN | 100 |
| Gradeability(with load/without load) | % | 20/22 |
| Driving brake | Hydraulic clamp disvc | |
| Engine | ||
|
Engine brand/model |
Optional one |
Yuchai Engine |
| YC6B125-T21 | ||
| Optional two | Dongfeng cummins | |
| Rated Output | 110(Kw) | |
| Cylinder No | 6 | |
| Transmission gears(Front/rear) | 2/2 | |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
certificates
shipping plan
FAQ
Q: Does the 12 ton diesel forklift have low oil consumption?
A: Yes, the 12 ton diesel forklift comes with a low oil consumption engine that ensures efficient performance while producing minimal emissions.
Q: Could we request our own color for the large tonnage forklift?
A: Yes, of course, you just need to offer us the RAL code.
Q: Why choose us?
A: As a manufacturer, LTMG industrial is committed to offer not only products with high quality and performance and competitive price, such as diesel forklifts but also in-time delivery and comprehensive 7/24 after-sale services.
Q: What Certificates do we have?
A: All products meet with the ISO9001 Quality System and have acquired CE certificate. EPA approval will be available if needed.
