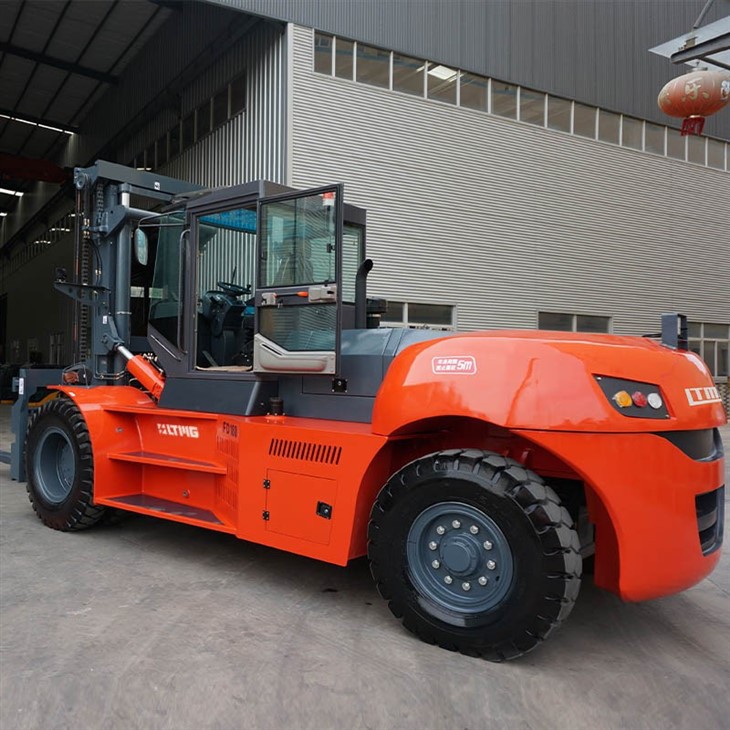

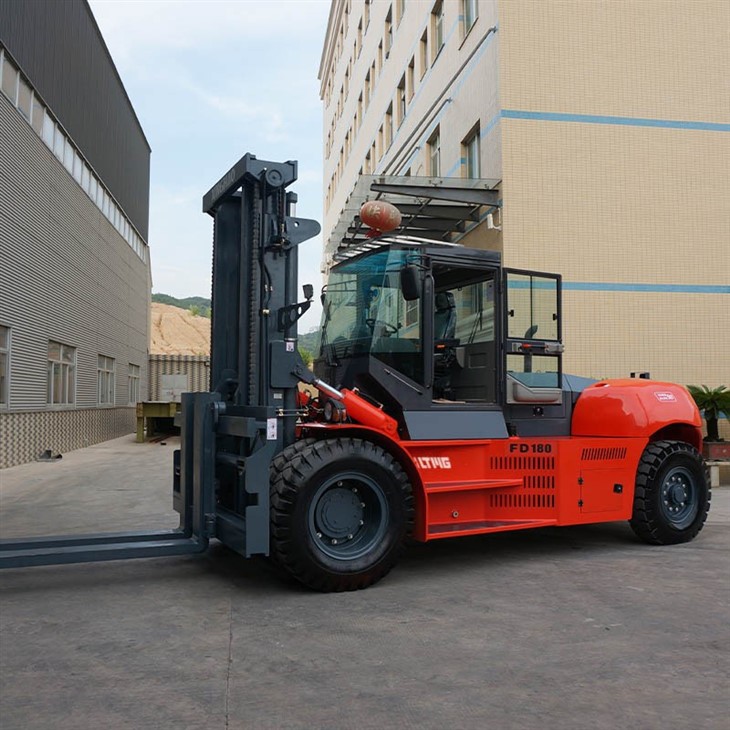

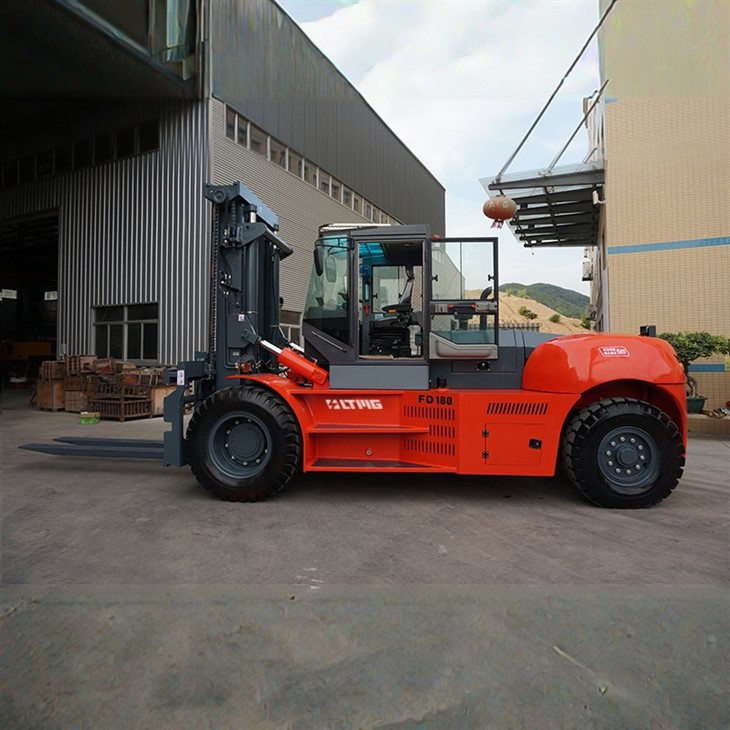

The 18 ton diesel fork truck stands out with a dependable power system that incorporates engines from renowned brands such as Yuchai, Weichai, and Cummins. This ensures not only top-tier quality but also robust power. Paired with advanced power matching and control technology, the performance has undergone significant optimization.
The unique transverse oil cylinder-type steering bridge of our big diesel forklift makes material handling effortlessly smooth. The full-hydraulic steering system ensures flexibility and reliability, enhancing operational ease. The transmission and torque converter, featuring imported technology, provide consistently reliable performance, easy maintenance, seamless transmission, and overall operational convenience.
Equipped with an Air-Conditioned Cabin, our heavy-duty diesel forklift creates a comfortable workspace. It is spacious, ergonomic, and designed for fatigue-free operation. The wide field of vision and clear dashboard further enhance comfort, ensuring that you remain productive even during long hours of use.
Crafted with precision, the frame structure of the 18 ton diesel fork truck boasts a sturdy box-type frame. Nondestructive testing at main welding points, combined with a reinforced structure, bridge, and box, ensures both transverse and longitudinal stability. Trust in the skilled craftsmanship of this forklift for reliable heavy lifting, meeting and exceeding your requirements.
Technical Specification
| Model | FD180 | ||
| Rated load | kg | 18000 | |
| Load center | mm | 900 | |
| Power type | Diesel | ||
| Drving type | Seated / Hydraulic | ||
| Tyre types | Pneumatic | ||
| Tyre Qty(Front/Rear) | 4/2 | ||
| Lifting hight | mm | (300) 3500 | |
| Fork size(height*width*length) | mm | 90X240X1800 | |
| Mast tilt angle (front/Rear) | drg | 6/12 | |
| Fork front sueface to the rear end of the vehicle | mm | 5760 | |
| Overall width | mm | 2750 | |
| Height to head guard | mm | 3240 | |
| Mast height(fork lowering) | mm | (3250) 3450 | |
| Mast Vertical max. height (mast lifting) | mm | (4970) 5170 | |
| Wheel base | mm | 3800 | |
| Wheel tread(front/Rear) | mm | 1950/2170 | |
| Ground Clearance) | mm | 300 | |
| Min turning radius | mm | 5800 | |
| Max.lifting speed(with load) | mm/s | 300 | |
| Max. Travel speed(with load) | Km/h | 26 | |
| Max gradeability(with load) | % | 20 | |
| service weight | kg | 27000 | |
| Tyres specs front/rear | 12.00-24/12.00-24 | ||
| Tyre pressure front/rear | MPa | 1/0.9 | |
| Transmission | Atomactic transmission | ZL50 | |
| Brake distance | mm | ≤6000 | |
| Engine | Model | Weichai | Weichai |
| Rated output | kw | 142 | |
| Rated torque | r.p.m | 2200 | |
After-sale service
At LTMG, we prioritize after-sale service over sales, underscoring our commitment to customer satisfaction. With a global network of over 50 agents, LTMG ensures access to professional after-sale service worldwide.
Every LTMG product comes with a one-year or 2000 working hours (which occurs first) quality warranty period. For specific clauses and policies, please refer to our website and product certificate for detailed information. Your satisfaction is our priority.
