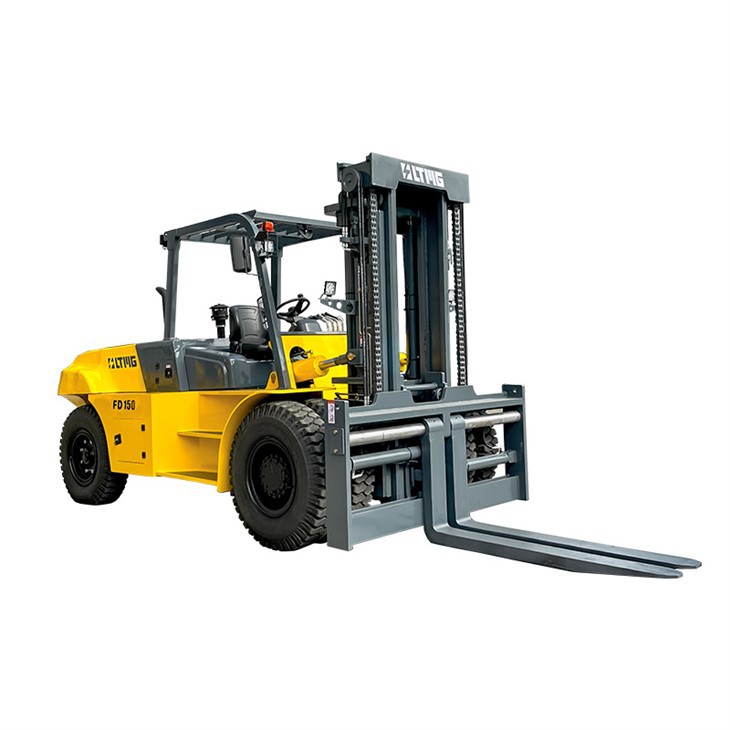

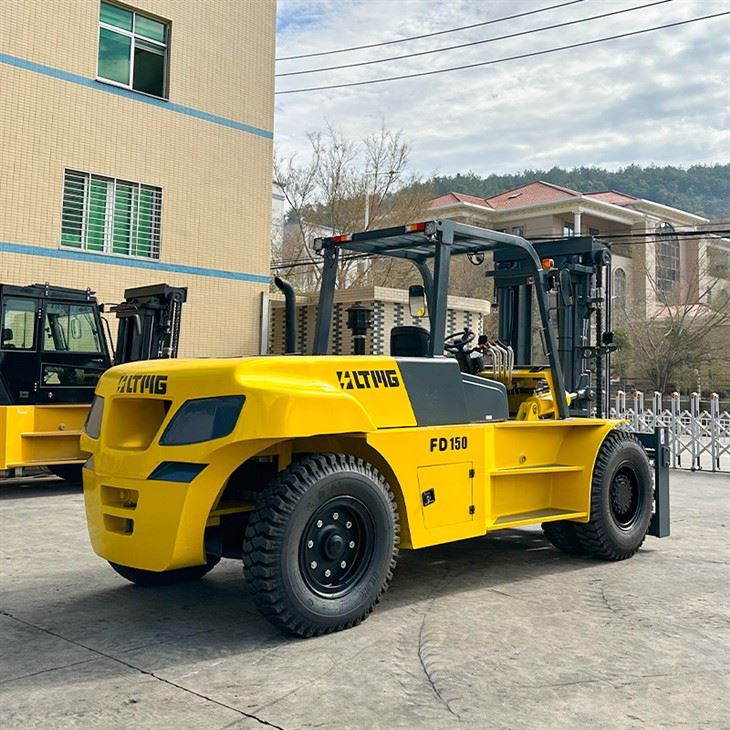

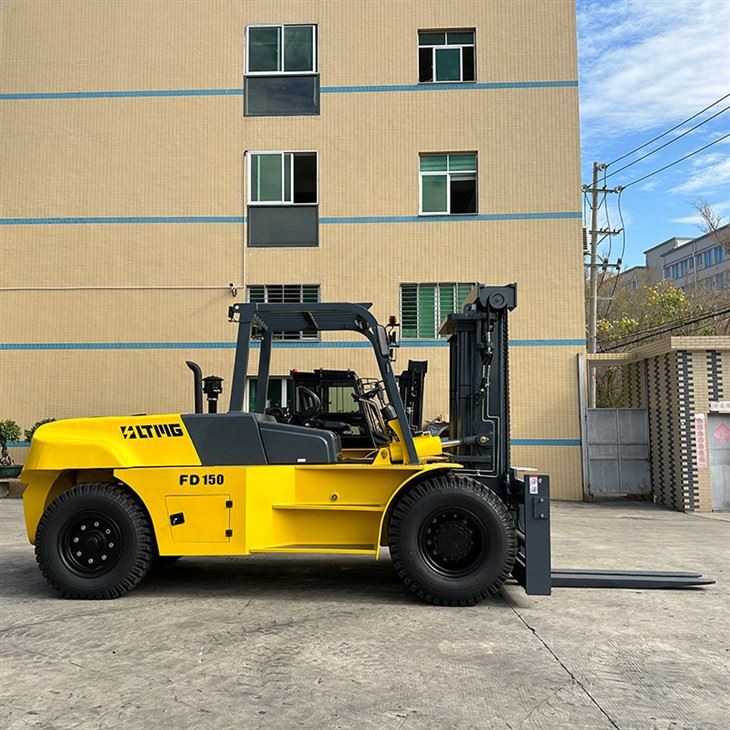

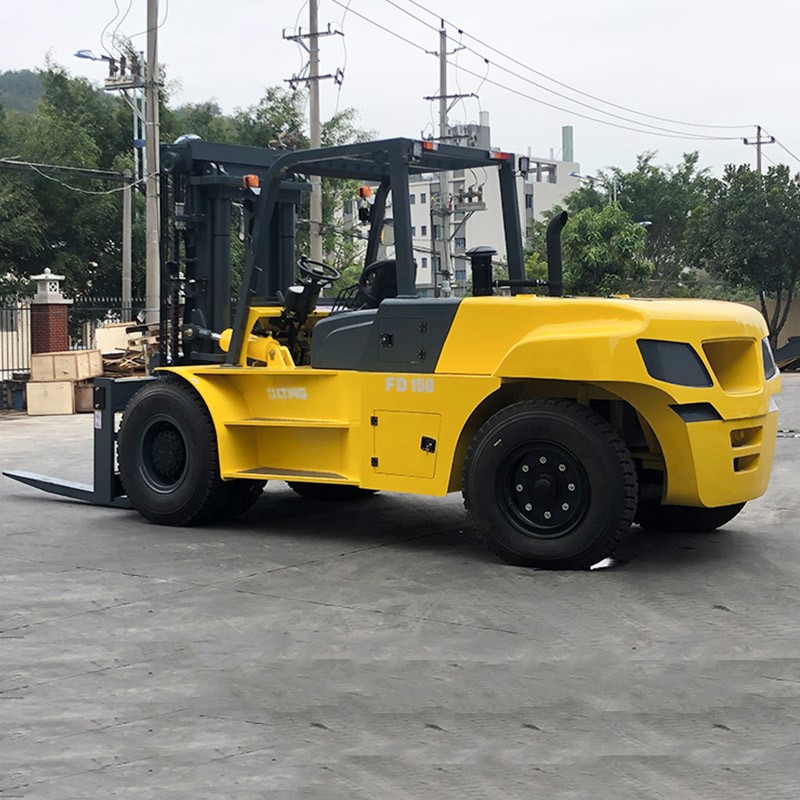

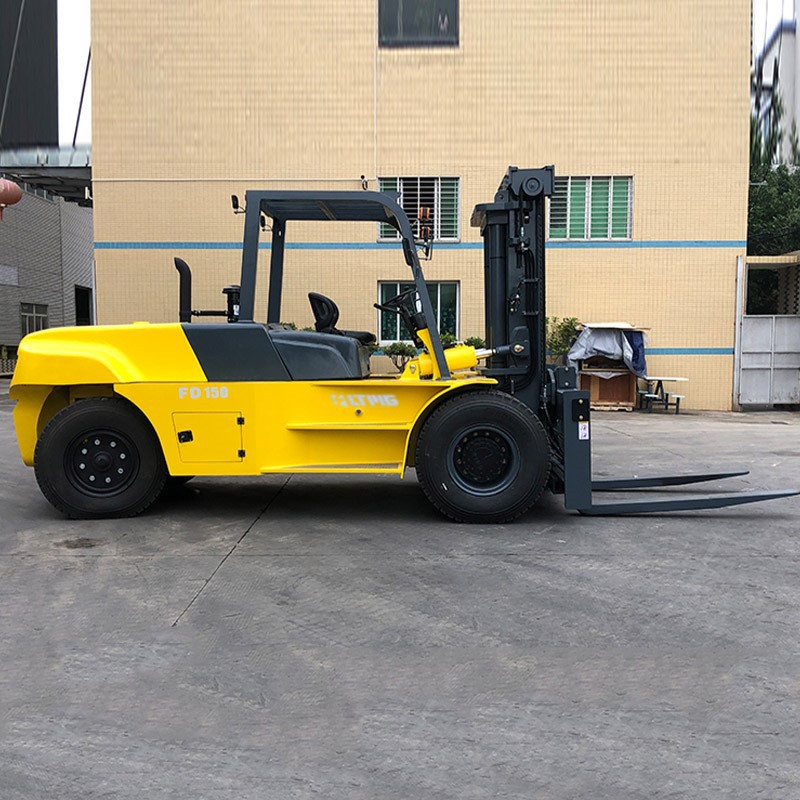

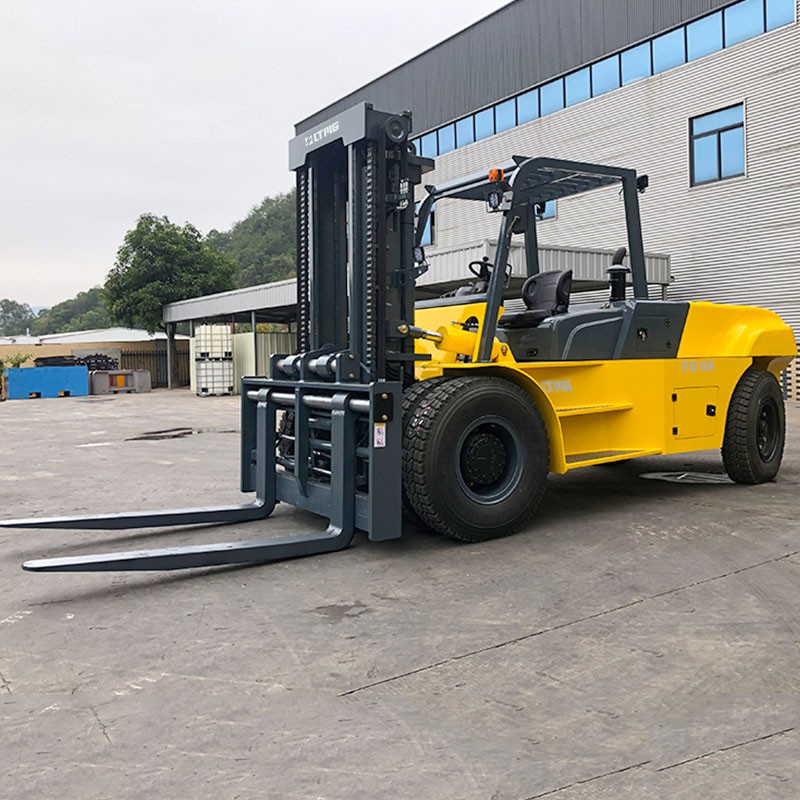

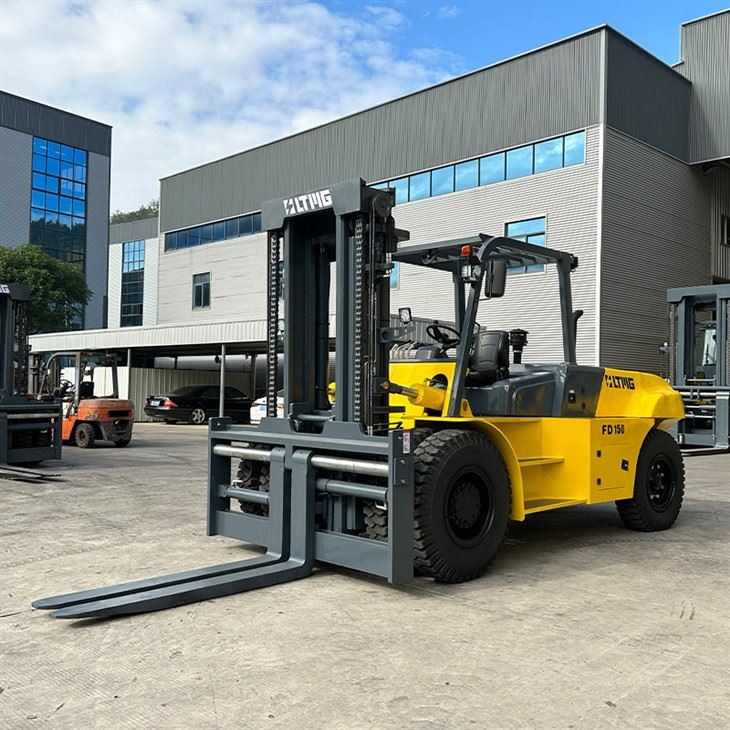

The 15 ton forklift diesel engine, a robust solution designed for heavy-duty tasks. This big diesel forklift boasts a high-quality turbocharged engine, ensuring low oil consumption and exceptional power performance. With big torque reserves, it delivers formidable strength to handle challenging loads with ease.
Equipped with a standard hydraulic fork positioner, this 15 ton forklift guarantees precise load handling, reducing drivers' labor intensity. The cozy operation enhances operator comfort, making it an ideal choice for demanding industrial environments.
Full cab with AC, heater, and rear-view display for a comfortable and efficient work environment. The box-type internal-external mast, featuring special all-round roller bearings, significantly enhances lifting performance, ensuring a smooth and reliable operation every time.
The LTMG Heavy Duty Diesel Forklift is built with imported technology, ensuring reliable performance and convenient maintenance. The transverse oil cylinder type steering bridge, with full-hydraulic steering, provides flexibility and lightness in operation, making it a reliable partner in any material handling scenario.
The frame structure of this big forklift truck is a testament to exquisite workmanship and a firm box-type frame. Nondestructive testing on main welding parts, coupled with effective coordination with the reinforced structure, bridge, and box, ensures both transverse and longitudinal stability, making the 15 ton forklift diesel engine a durable and reliable choice for your heavy lifting needs.
Technical Specification
| Model | FD150 | ||
| Rated Load | kg | 15000 | |
| Load Center | mm | 900 | |
| Power unit | Diesel | ||
| Operation type/transmission system | Seated type/Hydraulic | ||
| Tire type; Pneumatic rubber | L.V | ||
| Tires Qty,front/rear | 4/2 | ||
| Lifting height | mm | 3000 | |
| Fork dimension | mm | 2400 x 200 x 100 mm | |
| Mast/carriage tilt angle(front/rear) | drg | 6/12 | |
| Fork front verticaal sueface to the rear end of the vehicle | mm | 5000 | |
| Overall width | mm | 2300 | |
| height to head guard(height to cab) | mm | 2760 | |
| Mast height(fork lowering) | mm | 3200 | |
| Overall height(with forks) | mm | 4920 | |
| Wheelbase | mm | 3330 | |
| Wheel tread(front/rear) | mm | 1680/1740 | |
| Min.ground clearance | mm | 300 | |
| Min.turning Radius | mm | 4680 | |
| Max.lifting speed | mm/s | 300 | |
| Travel speed | Km/h | 26 | |
| Max.gradeability | % | 20 | |
| Self weight | kg | 17800 | |
| Tire Specs(front/rear) | 12.00-20/11.00-20 | ||
| Tire pressure(front/rear) | MPa | 1/0.9 | |
| Transmission | YQX120 | ||
| Braking distance | 20Km/h | mm | ≤6000 |
| Engine | Brand | Weichai | |
| Output power | kw | 92 | |
| Rated speed | r.p.m | 2200 | |
| Battery model/capacity | AHV | 2X6-Q-120 | |
Certification
At LTMG, our dedication lies in delivering customers top-tier, dependable products. Our extensive lineup of certifications, including ISO, CE, EPA, COC, COR, SABER, and CO, speaks to our position as a reputable and conscientious industry leader. We believe in setting high standards, and our commitment to excellence empowers customers with the confidence to make LTMG their preferred partner.
client case

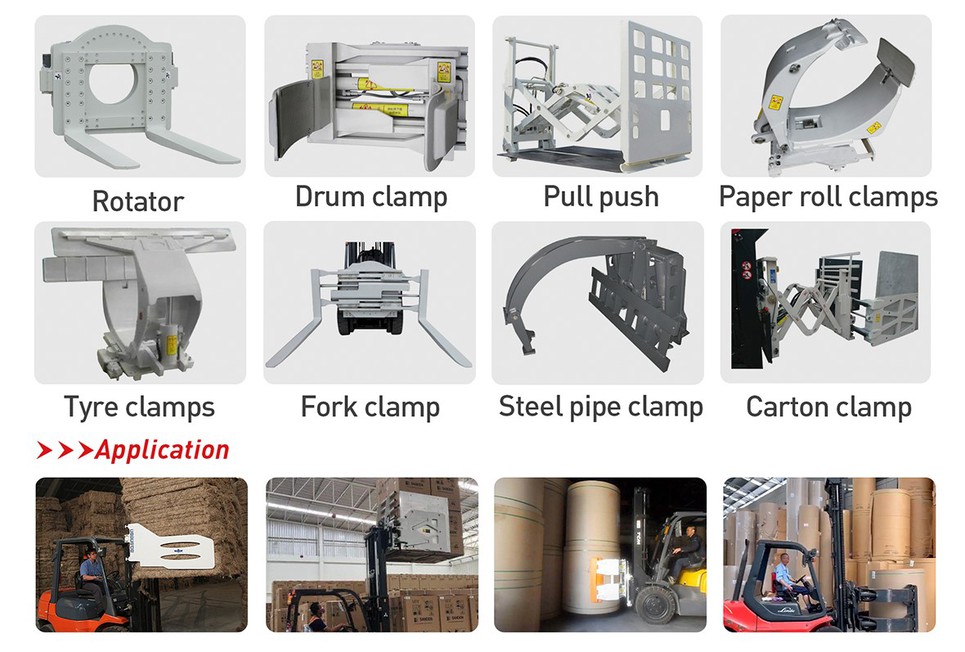

Attachment
FAQ
Q: What Certificate do you have?
Q: What about the after-sale service?
Q: When we receive your machine, are there any other accessories we will get?
Q: Can your products be customized?
Q: Can we visit your factory before placing the order?
