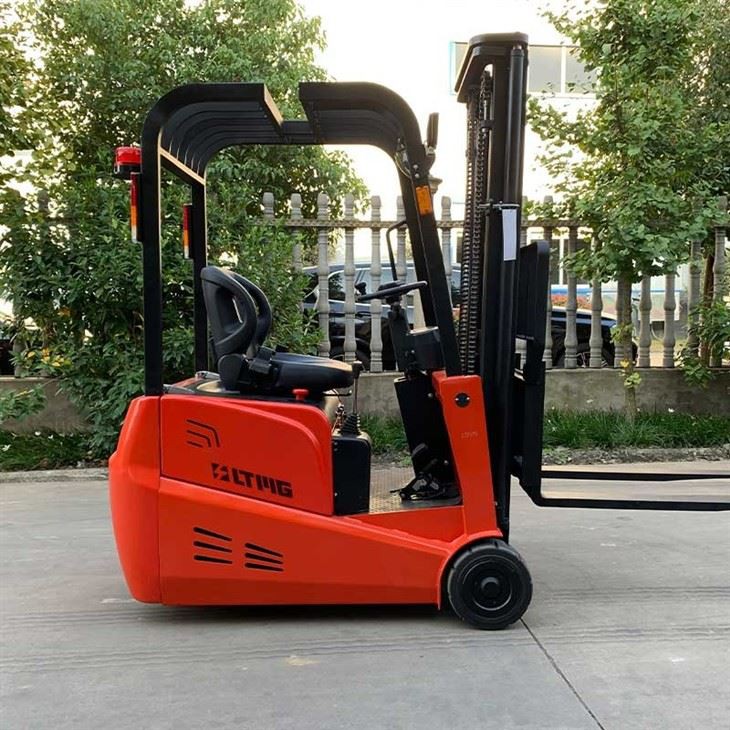

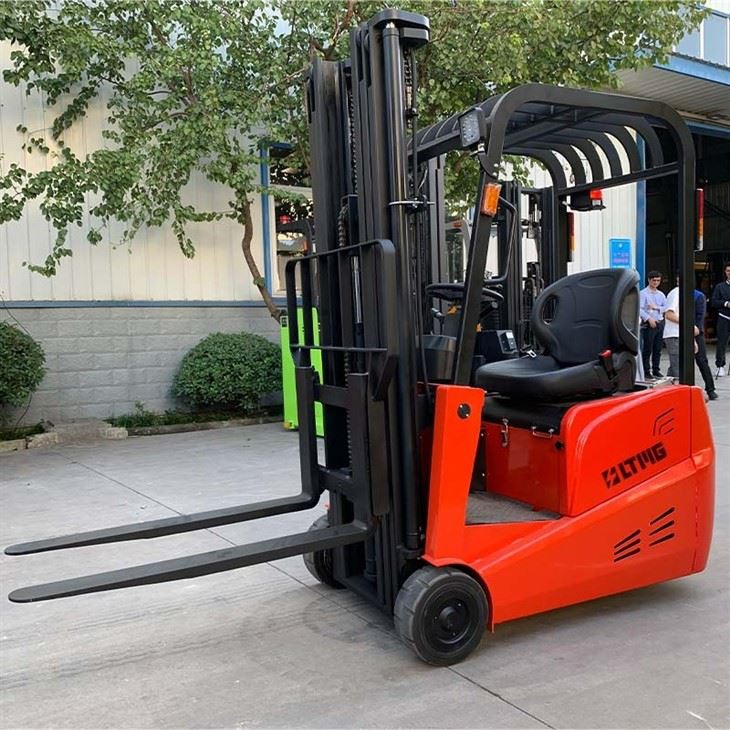

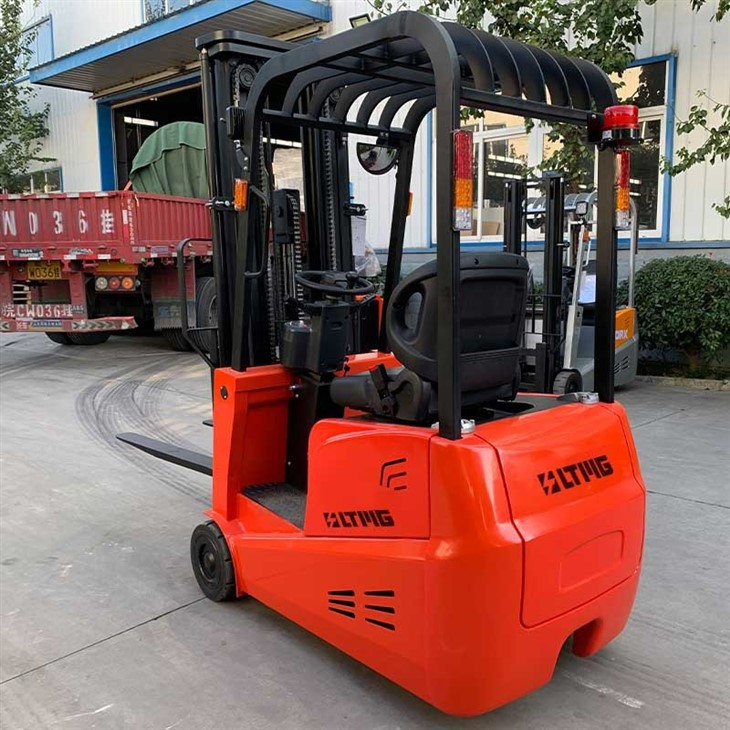

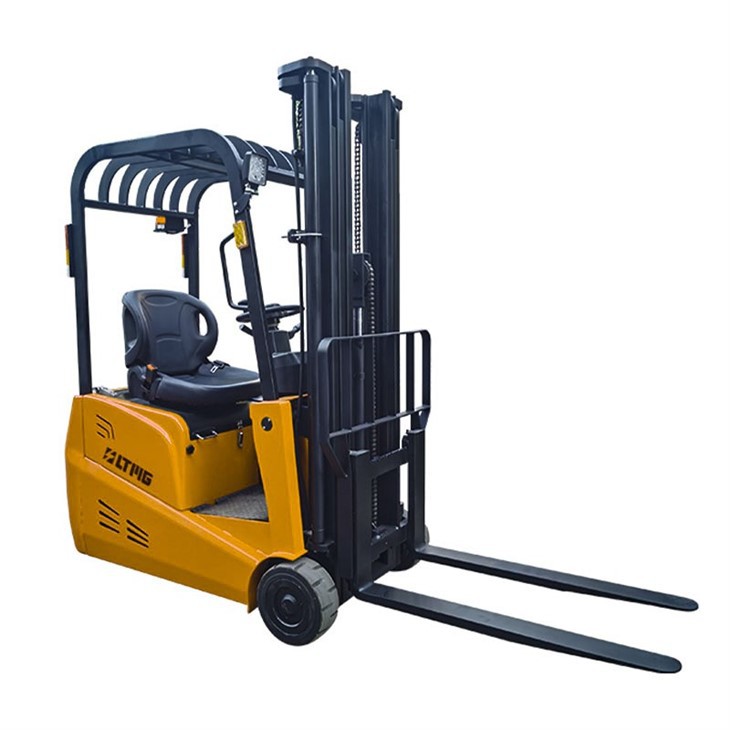

The 3 Wheel Electric Forklift Truck boasts a compact size, lightweight construction, and a small turning radius, making it perfect for easy access to elevators and well-suited for both floor and container operations. Its design aims to enhance passage and space utilization in various settings.
Equipped with a branded control system featuring multiple automatic protection mechanisms, this three wheel forklift ensures a higher level of functional safety. The branded vertical gearbox, coupled with a multi-functional solution and flexible construction module system, incorporates optimized gear meshing technology to reduce operating noise while delivering high performance and efficiency.
The Electric Power Steering (EPS) system can cut down energy consumption by 20%, ensuring precise operation, minimizing driver fatigue, and ultimately boosting productivity. The full AC drive system plays a role in maintaining this electric forklift's compact size, light weight, and high efficiency, all while being maintenance-free with no carbon brushes.
This small electric forklift comes with lifting overload protection and a hydraulic system explosion-proof design. Even in the event of tubing burst, the mast will not fall quickly, significantly improving safety standards. The solid rubber tire on the front wheel ensures strong grip and smooth running, while the mast's buffering system and tilting forward and backward function add another layer of operational flexibility.
Fitted with electric control automatic braking and a foot brake to ensure the vehicle's safety on ramps, these features complete the comprehensive safety of the 3 wheel electric forklift truck.
Technical parameters
| Operation type | Seated | |
| Model No. | FB15S | |
| Power type | Full-electric | |
| Load Capacity | KG | 1500 |
| Max. lifting height | H(mm) | 3000 |
| Load center | C(mm) | 500 |
| Wheel type | Front Wheel: Rubber Back Wheel: Polyurethane PU |
|
| Fork size | mm | 1070*100*35 |
| Fork spread range | mm | 210-566 |
| Overall length, no fork | L(mm) | 1760 |
| Overall Width | S(mm) | 875 |
| Height--Mast Lowered | H1(mm) | 2035 |
|
Maximum height when fork is lifting, block shelves included |
H2(mm) | 3918 |
| Mast tilt angle | '2/4 | |
| The height of overhead guards | H3(mm) | 1995 |
| Turning radius | Wa(mm) | 1608 |
| Min. stacking aisle | mm | 3095 |
| Min ground clearance | mm | 35 |
| Max travel speed | Km/h | 5.0/5.2 |
| Grade ability | % | '6/8 |
| Total weight | KG | 1950 |
| Drive wheel | mm | Ø230*75 |
| Front wheel | mm | Ø305*127 |
| Wheelbase, variable type | L1(mm) | 1295( gantry vertical) |
| Battery capacity | V/Ah | 24/300 |
| Charger-Intelligent | V/Ah | 24/30 |
| Driving motor | Kw | 2.5 |
| Lifting motor | Kw | 2.2 |
| Walkie brake | Pedal type/hydraulic | |
| Parking brake | Electromagnetic braking | |
company profile
LTMG Co., Ltd.was established in 2001, is a modern large-scale machinery manufacturing enterprise that produces logistics handling equipment and construction machinery products. Our company is headquartered in Xiamen and branched factories in Shandong, covering a total area of 100,000 square meters. The factory has 8 complete production lines for machinery, with a 20,000 unit yearly output.
perfect service & optional attachments
From the beginning of raw materials to the manufacturing process, as well as audit and inspection, everything is rigorous.
FAQ
Q: What certifications do you hold for your products?
Q: Can you accommodate customizations based on clients' requirements?
Q: How long is the warranty for your products?
Q: Do you offer products labeled with clients' brands?
