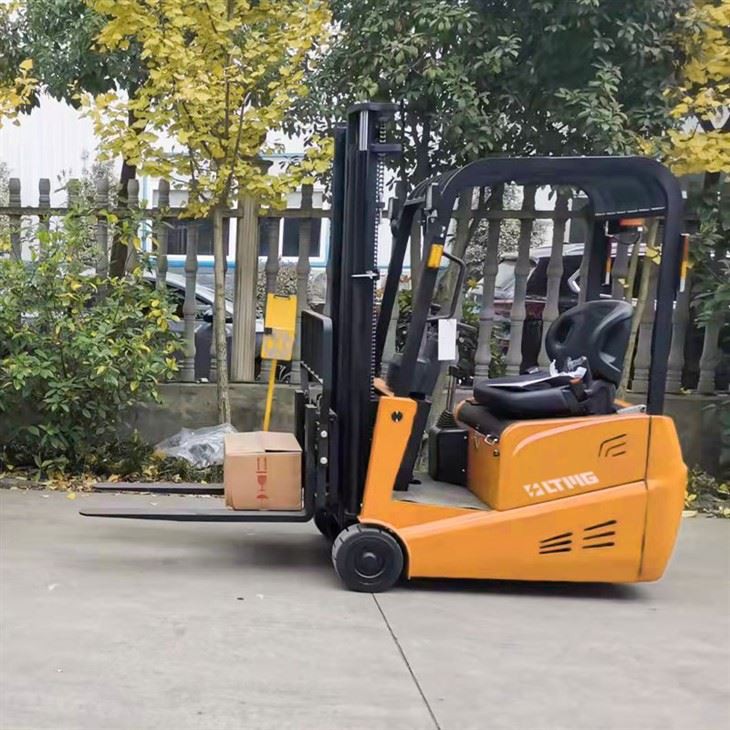

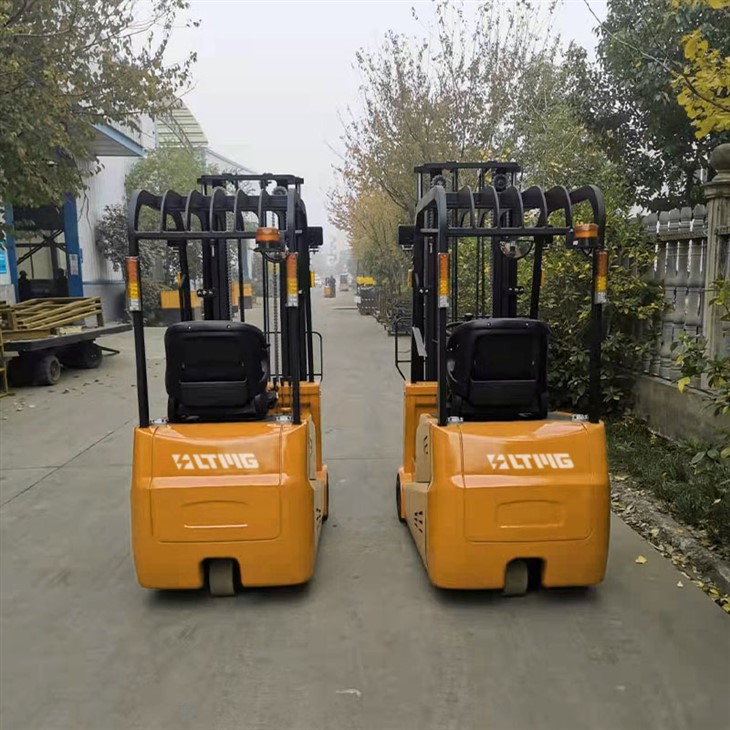

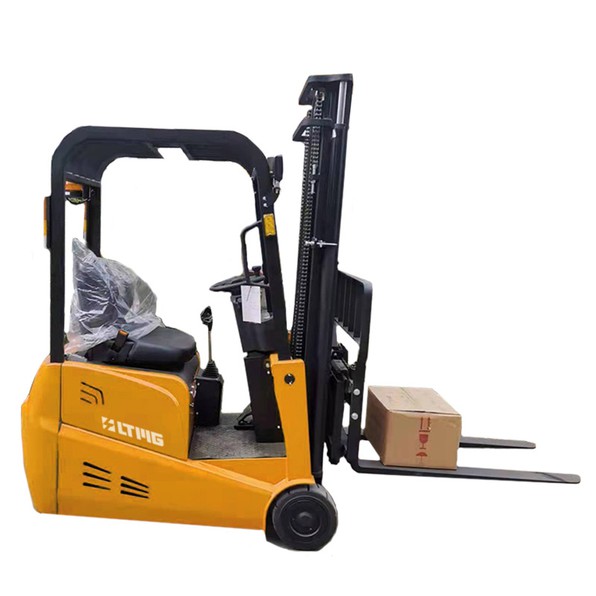

This 3 wheel electric truck, the controller for the Curtis electric control, controller multiple automatic protection system, electronic steering energy consumption reduced by 20%, work accurately, steering light and flexible, reduce driver fatigue, can greatly improve productivity. The front wheels are rubber solid tires for grip, smooth running and safety.
Mast is designed with cushioning system, tilt function, forklift ramp temporary parking using electronic control automatic and foot brake double insurance method, for the vehicle in the ramp parking to provide maximum safety protection. AC drive, maintenance-free, high-efficiency electromechanical, precise control, output strong power.
Specification
|
|
1.1 |
Model |
Unit |
FB10S |
|
|
1.2 |
Power type |
|
Electric |
|
1.3 |
|
|
Seated type |
|
|
Characteristic |
1.4 |
Load capacity |
kg |
1000 |
|
1.5 |
Load center |
C(mm) |
500 |
|
|
1.6 |
Front overhang |
X(mm) |
196 |
|
|
Weight |
1.7 |
Wheel base |
Y(mm) |
1130 |
|
2.1 |
Self weight including battery |
kg |
1780 |
|
|
3.1 |
Driving wheel size |
0xw(mm) |
0 230*75 |
|
|
3.2 |
Bearing wheel size |
0xw(mm) |
0305*1 27 |
|
|
Wheels |
3.3 |
Number of wheels (x= drive wheel, balance wheel/bearing wheel |
|
1X/2 |
|
Dimensions |
4.1 |
Height-Mast Lowered |
hi (mm) |
2035 |
|
4.2 |
Max.height when fork is lifting |
h2(mm) |
3918 |
|
|
4.3 |
Lifting height |
h3(mm) |
3000 |
|
|
4.4 |
Overail length |
11 (mm) |
2657 |
|
|
4.5 |
Length of body |
I2(mm) |
1587 |
|
|
4.6 |
Width of body |
b1 (mm) |
850 |
|
|
4.7 |
Fork dimensions |
s/e/l(mm) |
35/100*1 070 |
|
|
4.8 |
Fork spread |
b5(mm) |
210-566 |
|
|
4.9 |
Min ground clearance |
m2(mm) |
85 |
|
|
|
4.10 |
Channel width,pallet size 1000*1200mm |
Ast(mm) |
2931 |
|
Performance |
4.11 |
Minimum turn radius |
Wa(mm) |
1425 |
|
5.1 |
Driving speed, no load/full load |
km/h |
5.2/5 |
|
|
5.2 |
Lifting speed, no load/full load |
m/s |
135/95 |
|
|
5.3 |
Descending speed, no load/full load |
m/s |
85/120 |
|
|
5.4 |
Max climbing capacity, no load/full load |
% |
8/6 |
|
|
Motor |
5.5 |
Parking brake |
Hydraulic+ Electromagnetic |
|
|
6.1 |
Driving motor |
kw |
1.5 |
|
|
6.2 |
Lifting motor |
kw |
3 |
|
|
6.3 |
Battery voltage/capacitance |
V/Ah |
24/270 |
|
Certifications
Advantages
The advantages of our products are self-protection and self-diagnosis function, mature technology and high reliability, AC asynchronous motor, maintenance-free, body, battery box cover, controller box cover are all made of metal, strong and durable.
FAQ
1. Are you a manufacturer?
A: We are a manufacturer, at present the forklift production base has 120,000 square meters of production base, with an annual production capacity of 15,000 forklifts.
2. Can I visit your factory?
A: We warmly welcome your arrival. If possible, we will show you the way and arrange a time to pick you up.
3. Can you give me a discount?
A: We can give discounts, but we have to depend on the actual quantity, we have different prices according to different quantities, how much discount is determined by the quantity.
4. Are you looking for distributors?
Yes, we are looking for distributors worldwide, if you are interested in our products, please feel free to contact us.
