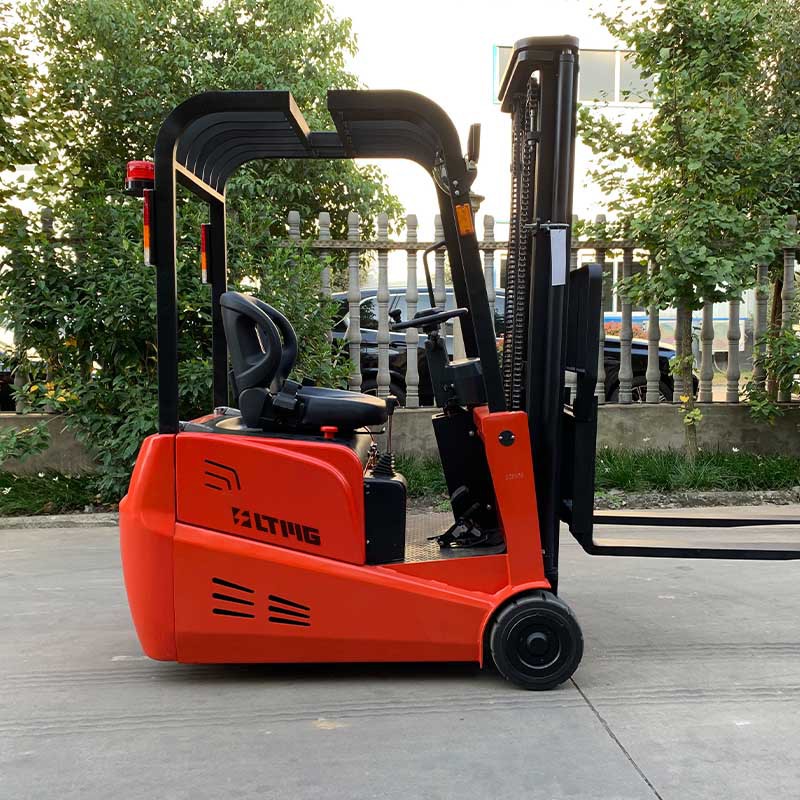

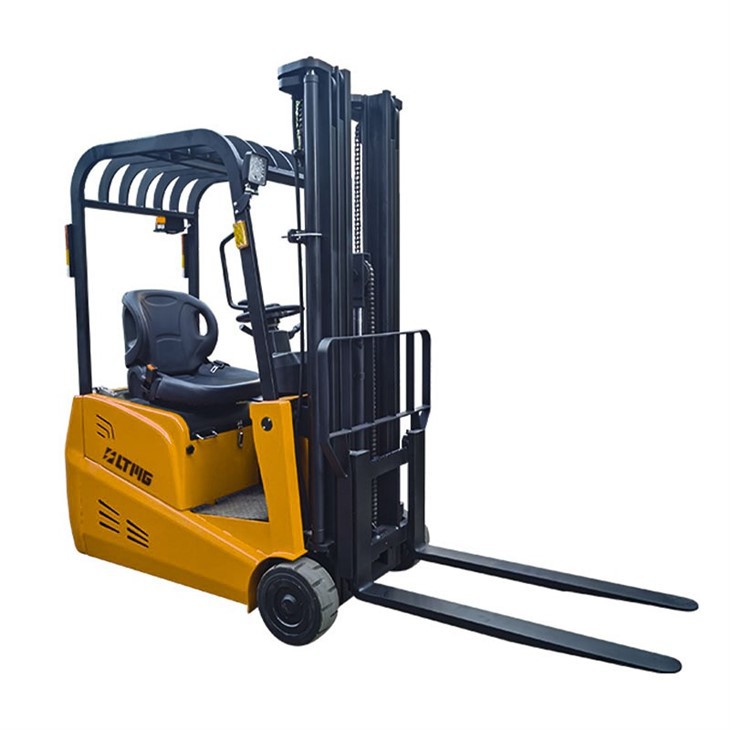

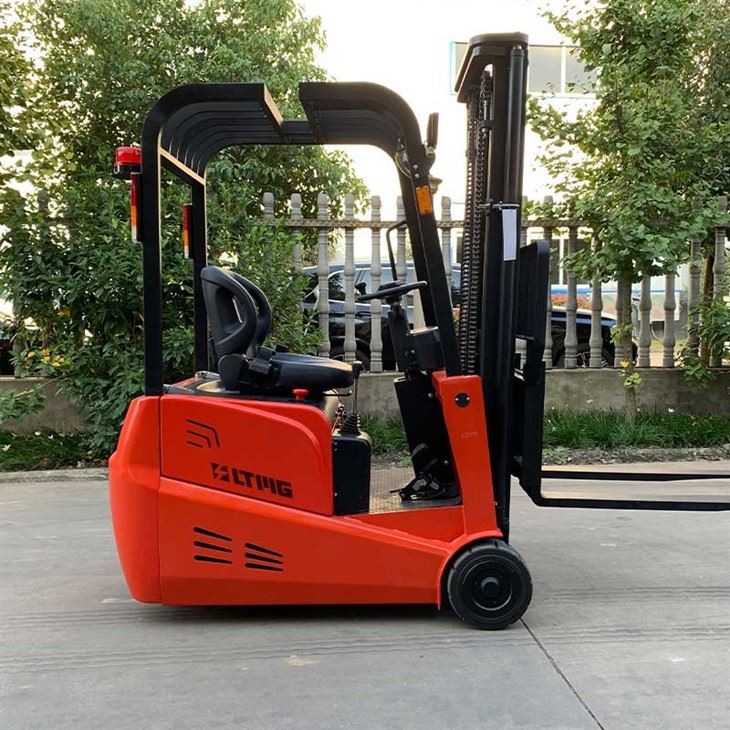

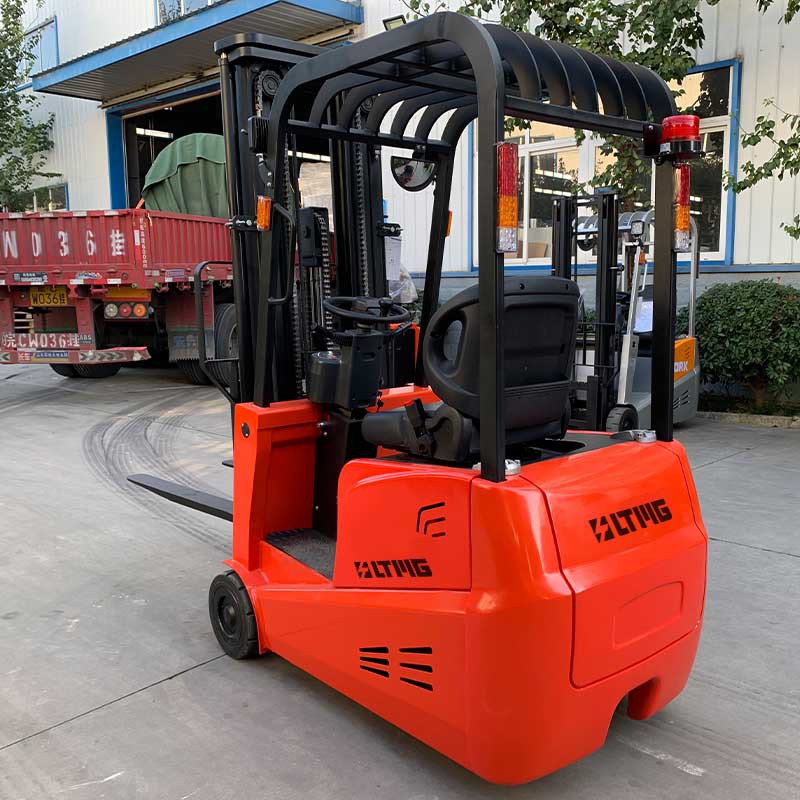

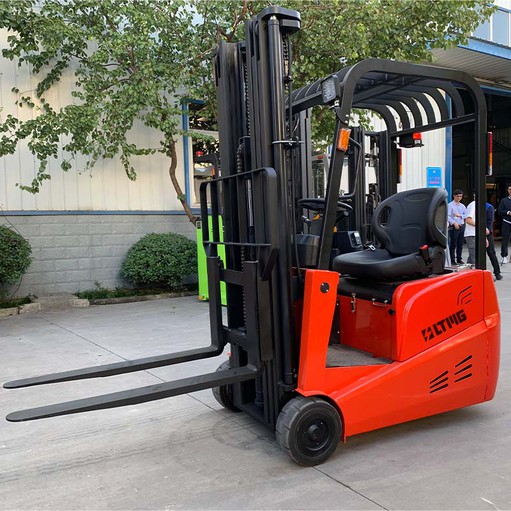

The mini electric forklift truck 3 wheel features a compact design, lightweight construction, and a small turning radius, making it ideal for easy access to elevators and well-suited for both floor and container operations. Its design is focused on improving passage and space utilization in various settings.
Equipped with a proprietary control system that incorporates multiple automatic protection mechanisms, the 1.5 ton electric forklift ensures a heightened level of functional safety. The branded vertical gearbox, along with a versatile construction module system and multi-functional solution, utilizes optimized gear meshing technology to reduce operating noise while delivering exceptional performance and efficiency.
The Electric Power Steering (EPS) system reduces energy consumption by 20%, ensuring precise operation, minimizing driver fatigue, and ultimately enhancing productivity. The full AC drive system contributes to maintaining the electric fork truck's compact size, lightweight construction, and high efficiency, all while being maintenance-free with no carbon brushes.
This 3 wheel electric forklift trucks includes features such as lifting overload protection and a hydraulic system explosion-proof design. Even in the event of tubing burst, the mast will not fall rapidly, significantly improving safety standards. The solid rubber tire on the front wheel ensures a strong grip and smooth running, while the mast's buffering system and tilting forward and backward function add another layer of operational flexibility.
All control devices within the mini electric forklift truck 3 wheel are configured with security settings to maintain weight balance at the rear of the vehicle. In consideration of various potential water flow scenarios, we include rubber seals to prevent water ingress into the vehicle interior through steam.
Technical parameters
| Operation type | Seated | |
| Model No. | FB15S | |
| Power type | Full-electric | |
| Load Capacity | KG | 1500 |
| Max. lifting height | H(mm) | 3000 |
| Load center | C(mm) | 500 |
| Wheel type | Front Wheel: Rubber Back Wheel: Polyurethane PU |
|
| Fork size | mm | 1070*100*35 |
| Fork spread range | mm | 210-566 |
| Overall length, no fork | L(mm) | 1760 |
| Overall Width | S(mm) | 875 |
| Height--Mast Lowered | H1(mm) | 2035 |
|
Maximum height when fork is lifting, block shelves included |
H2(mm) | 3918 |
| Mast tilt angle | '2/4 | |
| The height of overhead guards | H3(mm) | 1995 |
| Turning radius | Wa(mm) | 1608 |
| Min. stacking aisle | mm | 3095 |
| Min ground clearance | mm | 35 |
| Max travel speed | Km/h | 5.0/5.2 |
| Grade ability | % | '6/8 |
| Total weight | KG | 1950 |
| Drive wheel | mm | Ø230*75 |
| Front wheel | mm | Ø305*127 |
| Wheelbase, variable type | L1(mm) | 1295( gantry vertical) |
| Battery capacity | V/Ah | 24/300 |
| Charger-Intelligent | V/Ah | 24/30 |
| Driving motor | Kw | 2.5 |
| Lifting motor | Kw | 2.2 |
| Walkie brake | Pedal type/hydraulic | |
| Parking brake | Electromagnetic braking | |
company profile
LTMG Co., Ltd.was established in 2001, is a modern large-scale machinery manufacturing enterprise that produces logistics handling equipment and construction machinery products. Our company is headquartered in Xiamen and branched factories in Shandong, covering a total area of 100,000 square meters. The factory has 8 complete production lines for machinery, with a 20,000 unit yearly output.
perfect service & optional attachments
From the beginning of raw materials to the manufacturing process, as well as audit and inspection, everything is rigorous.
FAQ
Q: Are your products readily available?
For standard products, we can promptly check availability for you. In the case of customized products, we are dedicated to meeting your specific requirements. Our team will devote time and resources to ensure your order is fulfilled to your satisfaction, guaranteeing that it aligns perfectly with your needs. You can rely on us for timely and efficient delivery.
Q: Is your product of high quality?
LTMG takes implemented rigorous measures to ensure that each product meets stringent safety standards and undergoes thorough quality control checks. From the selection of high-quality materials to rigorous testing at every stage of production, we leave no stone unturned in delivering products of exceptional safety and superior quality. Rest assured, when you choose LTMG, you can trust in the reliability and durability of our offerings.
Q: How long is the warranty for your products?
Q: Are factory visits allowed?
LTMG warmly welcomes your visit to our factory. Please kindly inform us about your intended visit and provide us with your travel details,letting us have enough time to arrange your schedule.
