1.8 Ton Three Wheel Electric Forklift

Items: 1.8 Ton Small Three Wheel Forklift
Power type: Electric
Rated capacity: 1800kg
Lifting height: 3000mm
Send Inquiry
Chat Now

Product Introduction

Products Description

The 1.8 ton three wheel electric forklift is a riding style of driving, comfort and control, with comfortable ergonomic driving space design, clear and easy to see instrument control panel, contributing to the best work efficiency and comfortable operating space. This gives the forklift operator more sense of security, so that it is more at ease when operating



1. Suitable for Operations in Narrow Aisles and Limited Spaces:
Navigate through the tightest spaces with ease. This forklift is specifically engineered to operate in narrow aisles, maximizing storage space utilization in warehouses and storage facilities.

2. Small Turning Radius, Compact Size:
With a remarkably small turning radius and a compact design, this forklift ensures exceptional maneuverability. Maneuver around obstacles effortlessly, reducing the risk of collisions and increasing overall operational efficiency.

3. Electric, Green, Environmentally Friendly, and Safe:
Embrace a greener future with our electric forklift. Powered by electricity, it eliminates the need for traditional fuels, reducing carbon emissions and contributing to a cleaner environment. The electric operation not only promotes sustainability but also ensures a quieter and safer working environment for your team.





The 3 electric forklift truck is between the all-electric stacker truck and four-wheel forklift truck, it has three large rubber tires, so it is also called three-wheel forklift truck, suitable for outdoor work, and the ground requirements are not very harsh. It has a price advantage over four-wheel forklift, and it has many advantages of four-wheel forklift while meeting customers' economic requirements.

battery forklift

small electric forklift



Products parameter



Model



FB18S

Power type



Electric

Rated Capacity

kg

1800

Load Centre

mm

500

Lift Height

mm

3000

Ground Clearance(Bottom of mast)

mm

90

Fork Spread

Min./Max.

mm

240/970

Overall Dimension

Length to face of fork(Without fork)

mm

2105

Overall Width

mm

1100

 Mast Lowered Height

mm

2010

 Mast Extended Height(With backrest)

mm

3940

Overhead Guard Height

mm

2055

Turning Radius(outside)

mm

1690

Min. insecting aisle

mm

2300

Speed

Travel (Empty load)

km/h

14

Lifting (Full load)

mm/s

300

Wheelbase

mm

1460

Service Weight

kg

3760

Motor

Driven Motor

kw

2×4.5

Lift  Motor

kw

8.6

Battery

Voltage/Capacity

V/Ah

48/560

Controller

Manufacturer



CURTIS

Type



AC

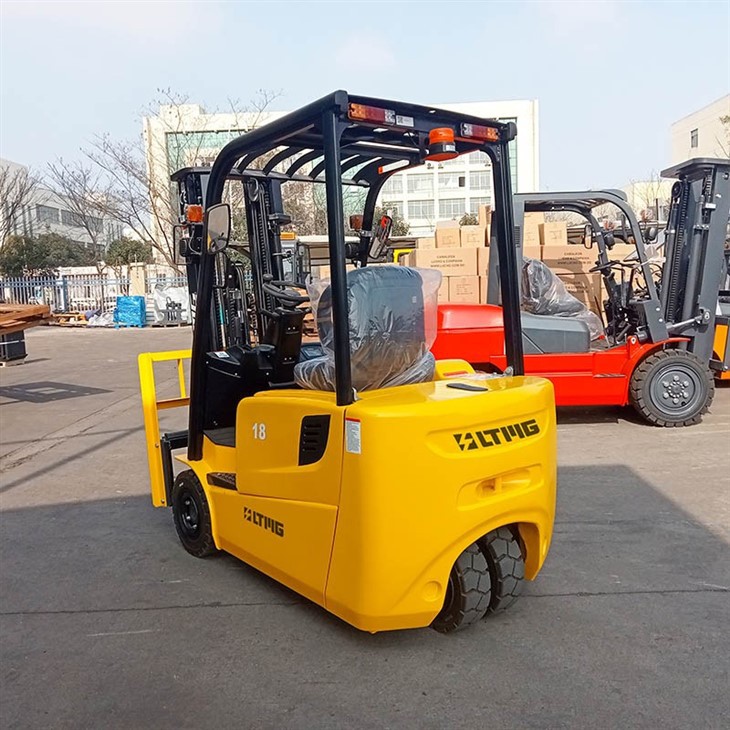

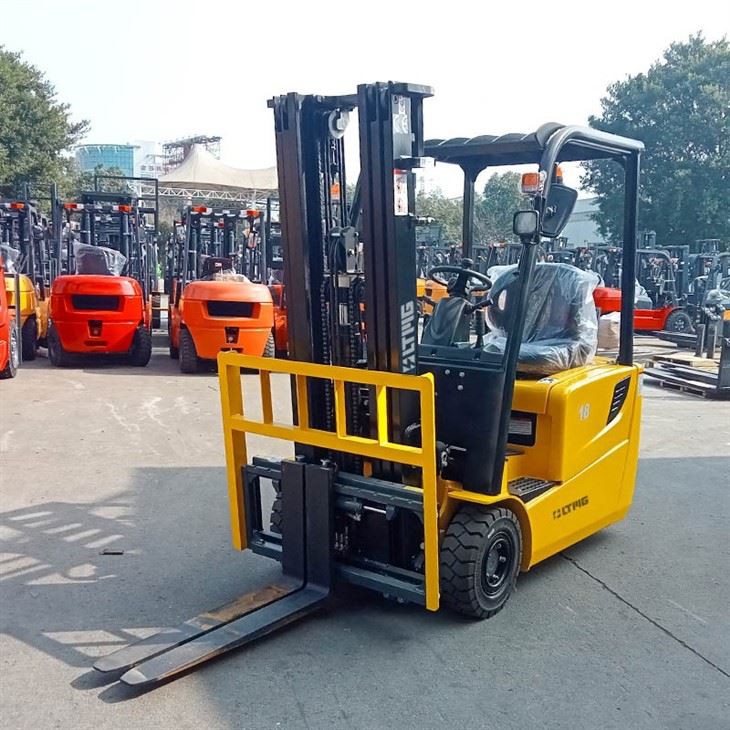

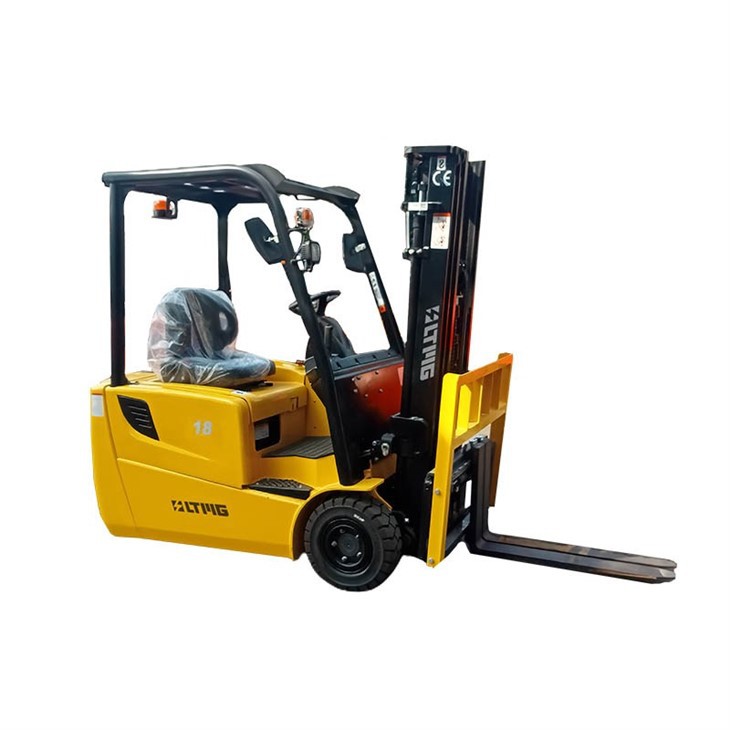

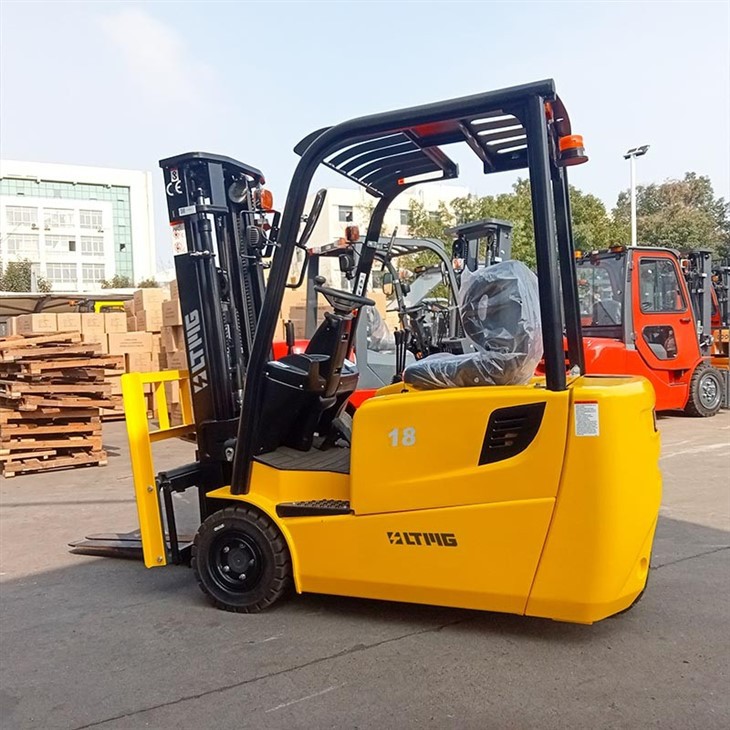

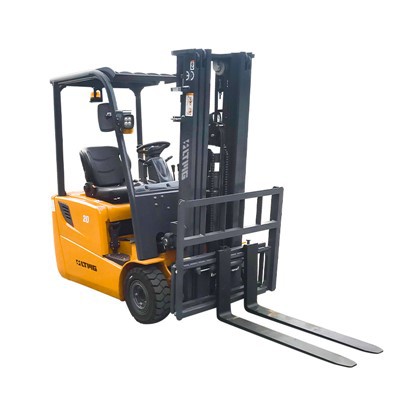

Products images



images of 3 wheel forklift truck



Products attachments



attachments of small electric forklift



shipping plan



shipping plan of electric forklift 3 wheel



FAQ

Q: Are Your Prices Competitive?

A: We only supply good quality machines. We will surely offer you the best ex-factory price on the basis of high quality products and services.

Q: How Can I Trust Your Company?

A: With 20 years of experience, we can offer you the right advice and the most economical price. All equipment is CE, ISO certified through third party evaluation.

Q: Can three-wheel battery forklifts be used in multi-shift operations?

A: Yes, many models are designed for multi-shift operations. Ensure that you choose a forklift with an adequate battery capacity to meet your specific operational needs.
