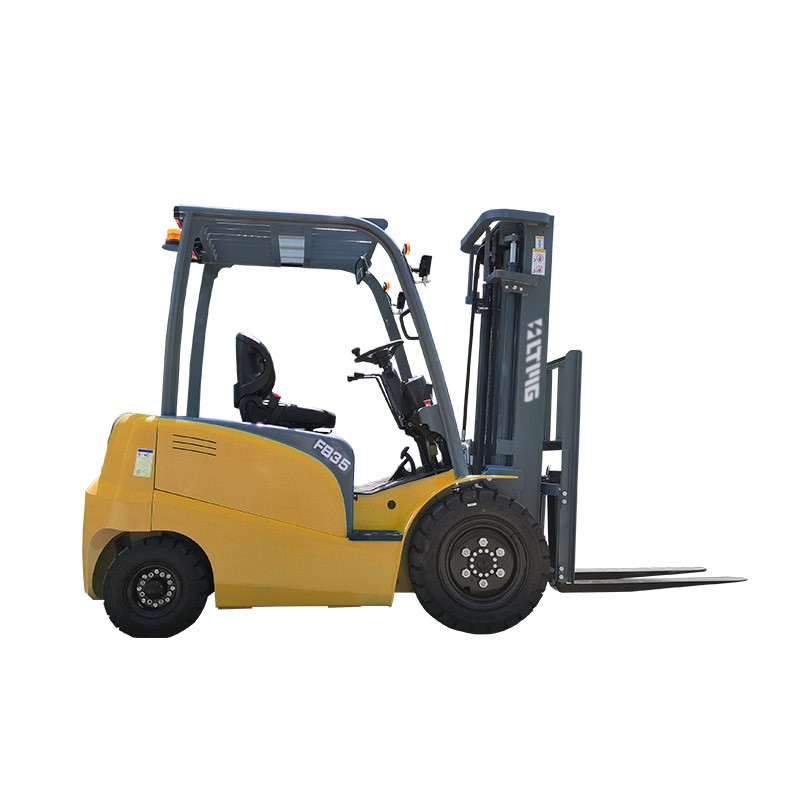

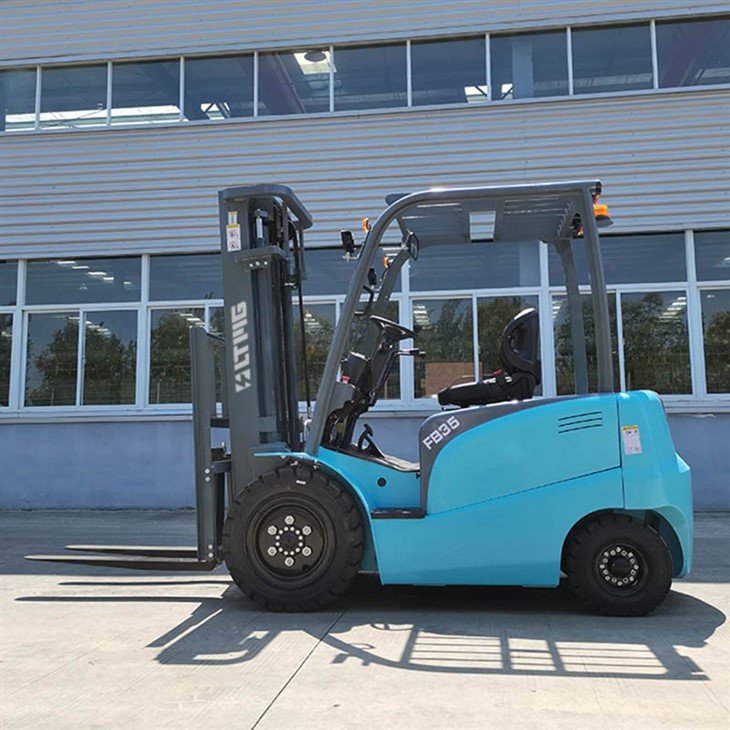

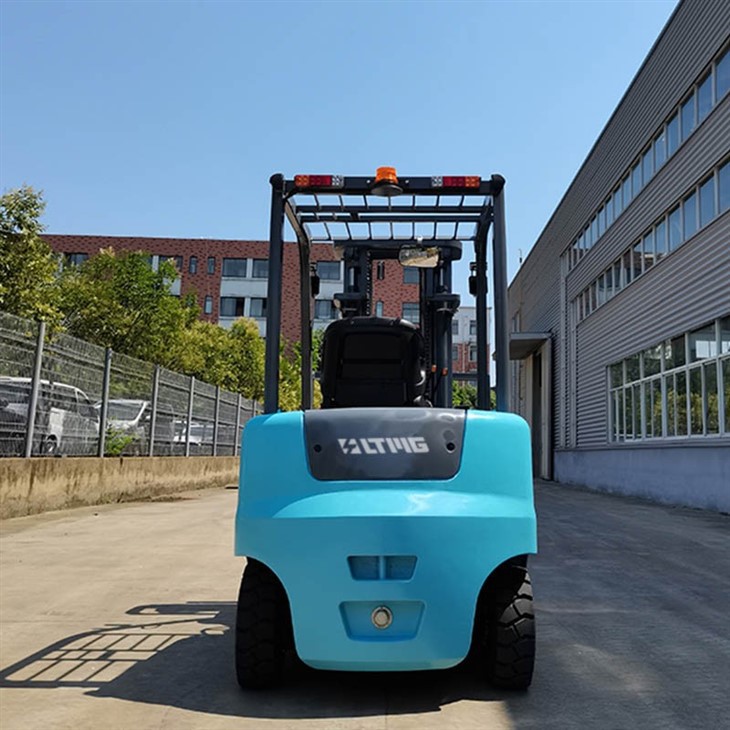

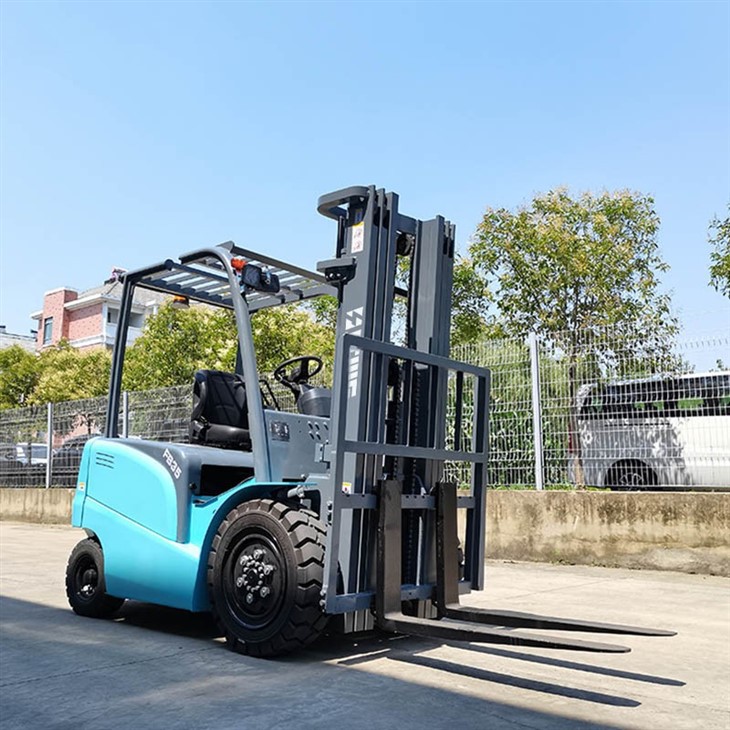

3.5 Ton Battery Forklift

Items: 3.5 Ton Battery Forklift
Power type: electric
Rated capacity: 3500kg
Lifting height: 3000mm
Send Inquiry
Chat Now

Product Introduction

Products detail

The 3.5 ton battery forklift can be equipped with lead-acid batteries, which offer great value for price due to their mature technology, excellent temperature resistance, stability, reliability, safety, and good recycling. Alternatively, lithium batteries can also be a choice with the advantage of no memory effect, fast charging, and high energy density. By applying load sensing and AC control energy regeneration technologies, the small electric forklift is more energy-efficient, and the maximum working cycle time of the battery can be extended by up to 15%. Imported motors and control units are used to ensure the high reliability of hydraulic components.The forklifts have high stability and remaining capacity, providing operators with a spacious and ergonomically designed working environment. The onboard step on the side of the electric lift truck is lower and wider than traditional designs, making it easier for women and those with smaller stature to get on and off the forklift. In addition, the wide step provides operators with great convenience and comfort. Overall, the 3.5 ton battery forklift are a versatile and efficient solution for various material handling tasks.

battery operated forklift
electric powered forklift
eletric power forklift
Products parameter
Model FB35
Power type electric
Rated capacity 3500
Load center 500
Operator Type seated
Tire type pneumatic
Tires Size 28X9--15-12PR/18X7-8-14PR
Driving brake hydraulic-pedal
Paking brake Mechanical - Manual
Tilting Angles α/β° 6/12
Height of mast mm 2120
Max.lift height of mast mm 4160
Free lift height mm 150
Max.lift height of fork mm
Front-wheel Overhead mm 2092
Length(without fork) mm 2507
Front overhang mm 475
Rear overhang mm 432
Wheelbase mm 1600
Min.ground clearance mm 110
Tread(front/rear) mm 1000/970
Overall width mm 1250
Fork size mm 1070×125×50
Minimum right Angle stacking channel width mm 4180
Min mum urn radius mm 2420
Max driving speed km/h 12~13
Max Lifting speed mm/s 300-400
Max lowering speed mm/s 260-390
Maxmum tractive force N 18000
Max.grade ability % 14-15
Drive motor power kw 16.6
Hoisting motor power kw 13.5
Level voltage/Capacitance V/Ah 80/500
Drive System full AC
Total weight KG 5250



Optional configuration

LTMG offers a wide selection of clamps that can be installed on electric forklifts, providing maximum convenience for completing tasks. These clamps are known for their exceptional quality and functionality, enabling operators to effortlessly handle a variety of tasks, thereby highlighting the forklift's versatility and adaptability. Whether the requirement is for lifting, transporting, stacking, or specialized applications, LTMG offers a diverse range of clamps tailored to meet the specific needs of customers.

attachment of electric outdoor forklift

shipping plan

LTMG excels in the field of packaging and transportation, placing a strong emphasis on meticulous packing to safeguard machines during container shipment, and employing wire ropes for added protection. We take great care in handling and delivering each item with the highest level of precision. Additionally, LTMG offers a comprehensive suite of services, which encompasses a complimentary toolbox, export qualification inspection and certificate, user manual and CD operating instructions, and even spare machine body paint, ensuring the utmost convenience for our customers.

shipping plan of all terrain electric forklift

Certificates

LTMG excels in providing reliable and trustworthy products to clients. Our commitment to excellence is demonstrated through a wide range of certifications, including ISO, CE, EPA, COC, COR, SABER, and CO, showcasing our unwavering dedication as an industry leader. By consistently upholding the highest standards, LTMG instills confidence in our customers, establishing us as the preferred and trusted partner of choice.

certificates of electric warehouse forklift

FAQ

Q: Have you ever sold your products abroad?

A: Yes, we have sold our products to Europe, North America, South America, Australia, the Middle East, etc.

Q: What machines do you have in your factory?

A: 1-42 ton forklift trucks(diesel, gasoline, LPG, battery), 1-30 ton rough terrain forklifts, side loader forklifts, warehouse equipment and port equipment (reach stacker & container handler), 1-10 ton wheel loaders, 10-45 ton forklift loaders,(as well as grapple loaders, side loaders), wheel excavators and so on.

Q: Would it be possible for me to visit your factory?

A: We are genuinely pleased to hear of your interest and please inform us ahead of time about your travel arrangements. Upon receiving your schedule, we will make arrangements for transportation to make your trip more comfortable.
