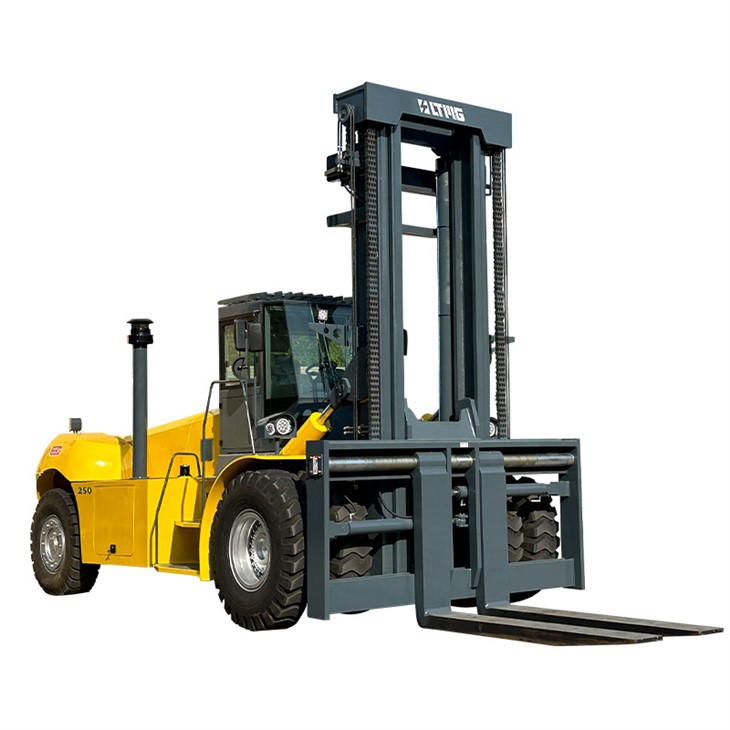

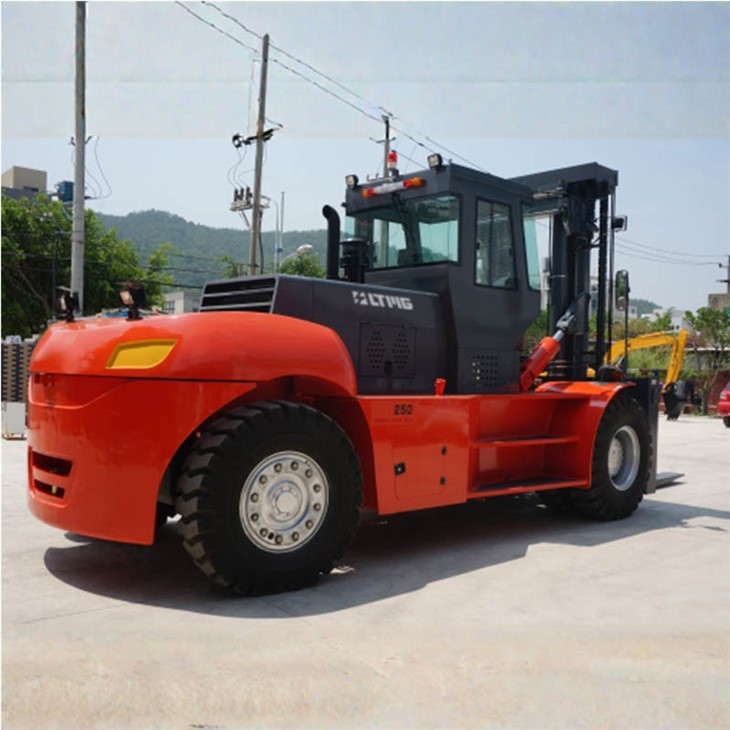

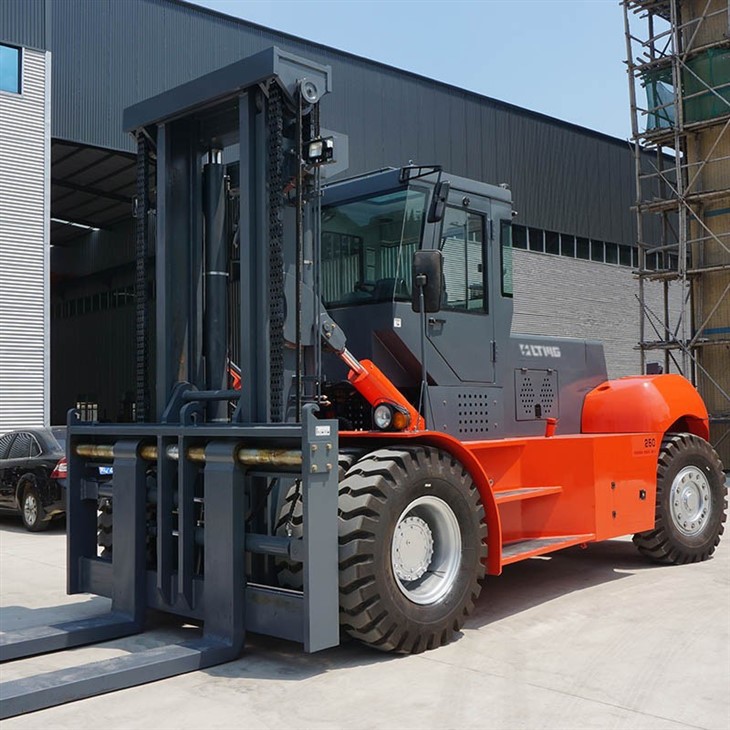

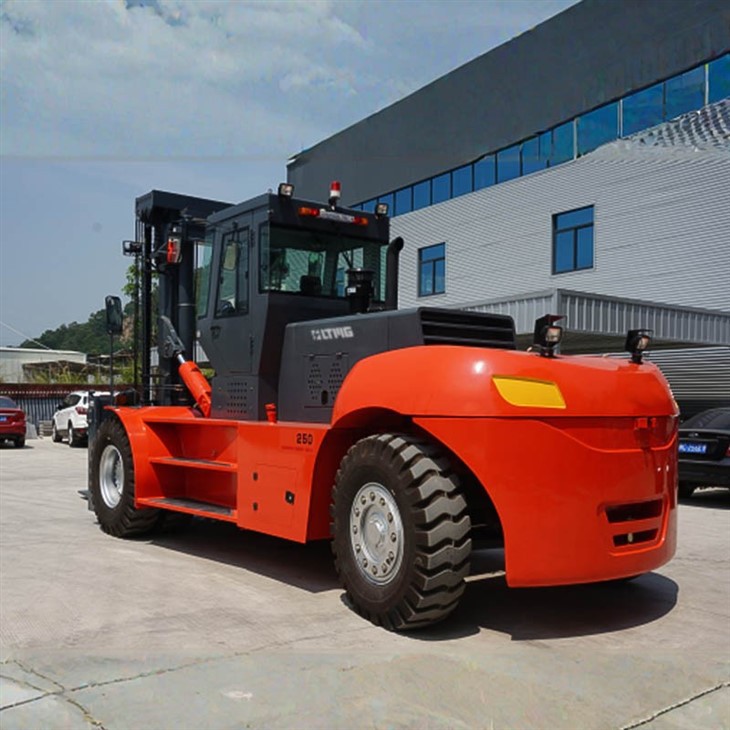

Name: 25 Ton Diesel Operated Forklift
Brand: LTMG
SKU: 223848963

The 25 ton diesel operated forklift, equipped with a Weichai Engine and the optional Cummins, ensures strong power, energy conservation, and environmental protection.

The steering system of this outdoor forklift features the adoption of a transverse oil cylinder type steering bridge, providing full-hydraulic steering that is flexible, light, and reliable.

With imported technology, the transmission and torque converter deliver reliable performance, convenient maintenance, smooth transmission, and easy operation.

The braking system utilizes mature products from professional manufacturers, incorporating disc brakes for faster heat dissipation, a light and simple structure, and easy adjustability. It particularly excels in thermostability performance under heavy loads, ensuring stable braking effects.

The explosion-proof safety valve for the pipeline prevents sudden bursts, ensuring the system's safety and reliability. The control system includes a pilot valve control device to enhance work efficiency and reduce drivers' labor intensity.

This big diesel forklift's frame structure of showcases exquisite workmanship and a firm box-type frame, improving the transverse and longitudinal stability of the vehicles. The vehicle undergoes 3D finite element analysis, ensuring a superior structure and reliable quality. The main welding parts undergo nondestructive testing, effectively coordinating with the reinforced structure, bridge, and box.

Featuring a standard hydraulic fork positioner, the fork provides easy operation and reduces drivers' labor intensity. The mast of the heavy duty diesel forklift is a box-type internal-external mast with special all-round roller bearings, enhancing lifting performance.

The cab of the 25 ton diesel operated forklift combines a sleek and stylish design with a wide filed of view. It features new composite decorative materials and comes equipped with air conditioning, ensuring a comfortable and cool environment even in hot working sites.

Technical Specification

	Model		FD250
Features	Rated Load	Kg	25000
	Load Center	mm	1220
	Wheelbase	mm	4400
Weight	Weight	kg	33500
Chassis	Tire Specs:Front		14.00-24
	Tire Specs:Rear		14.00-24
	Tires Qty,front/rear(X-dreve wheels)		4/2
	Wheel tread:Front	mm	2220
	Wheel tread:Rear	mm	2300
Dimensions	Mast/carriage tilt angle(front/rear)	Degree(°)	6/12
	Mast height(fork lowering)	mm	3970
	Mast lifting height	mm	4000
	Max.height	mm	5940
	height to head guard(height to cab)	mm	3440
	Overall height（with forks)	mm	8950
	Fork front verticaal sueface to the rear end of the vehicle	mm	6550
	Overall width	mm	3060
	Fork dimension	mm	2400300100
	Fork carriage width	mm	2800
	Mast min ground(with load)	mm	350
	Wheelbase center min ground(with load)	mm	420
	Min.turning Radius	mm	6160
	Travel speed(with load/without load)	km/h	25/30
Performance	lifting speed(with load/without load)	mm/s	260/270
	tractionn	KN	160
	gradeability(with load/without load)	%	20/22
	Driving brake		Hydraulic clamp disvc
	Engine	Engine brand	Dongfeng cummins
		Engine model	6CTA8.3-C215
		Rated Output	160(Kw)
		Cylinder No	6
Others	Transmission gears(Front/rear)		2/1

certification

LTMG takes great pride in delivering top-quality and dependable products to our esteemed customers. We demonstrate our commitment to excellence through an extensive array of certifications such as ISO, CE, EPA, COC, COR, SABER, and CO, solidifying our position as a trusted and respected leader in the industry. LTMG will continue to maintain the highest standards of quality to be a reliable partner for customers.

big diesel forklift Cummins weichai engine

advantage

25 ton forklift container lift

optional attachment

big forklift truck accessory

FAQ

Q: Would you offer a discount for a large order?

Yes, we could offer different discounts according to your order quantity.

Q: In which field are your products applied?

Our products are widely used in the automatic control industry, including cement plants, sugar refineries, steel mills, water treatment, boiler industry, and more.

Q: Do you accept custom designs in color?

Yes, we accept custom designs as long as the color is reasonable.

Q: How can equipment issues during usage be resolved?

Please email us with a description of the problem, and including pictures or a small video would be helpful. We will identify and resolve the issue. If the product is damaged, we will provide a new part free of charge within the warranty period.

Q: What main software do you use in your product drawings?

We use the most advanced industry valve designing and developing software, such as AutoCAD, and others.
