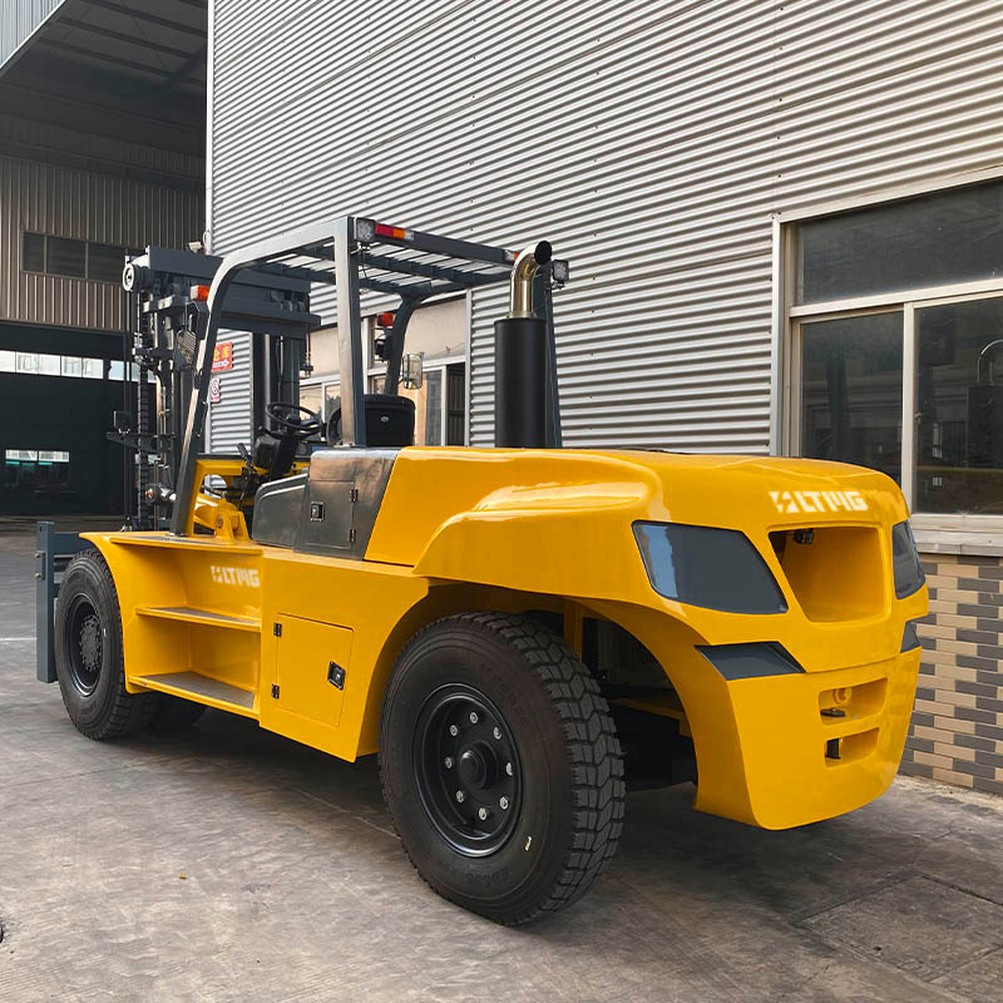

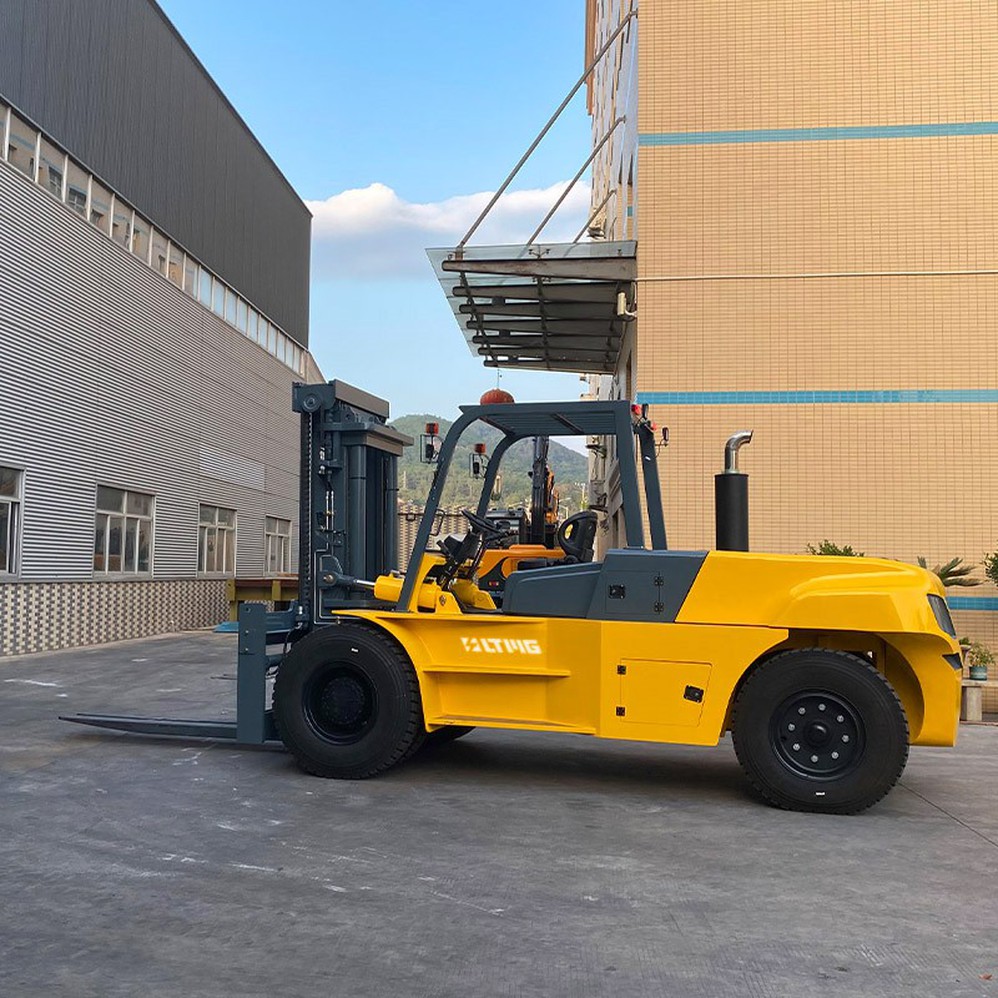

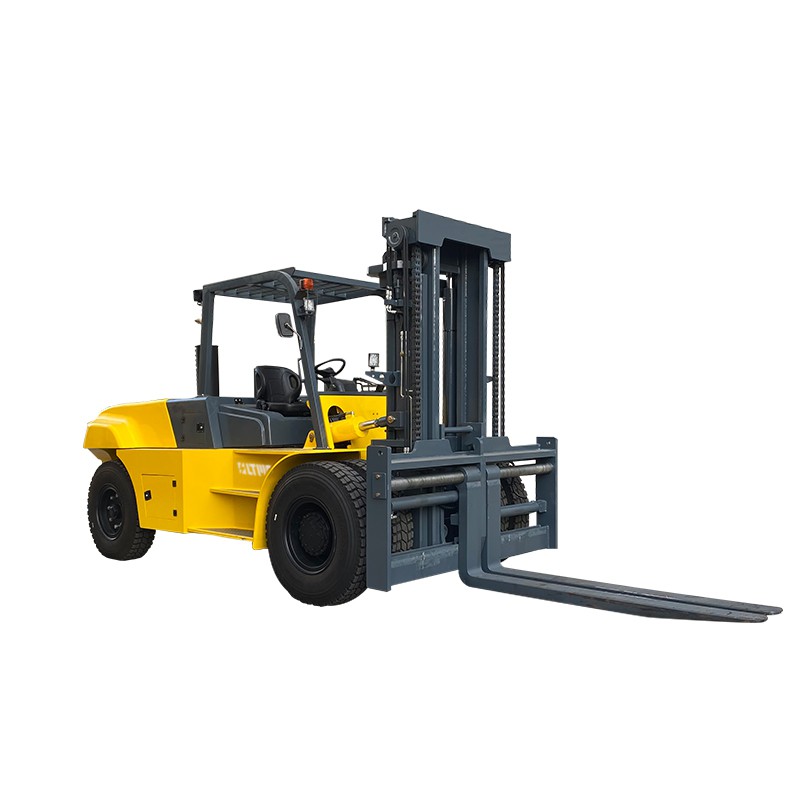

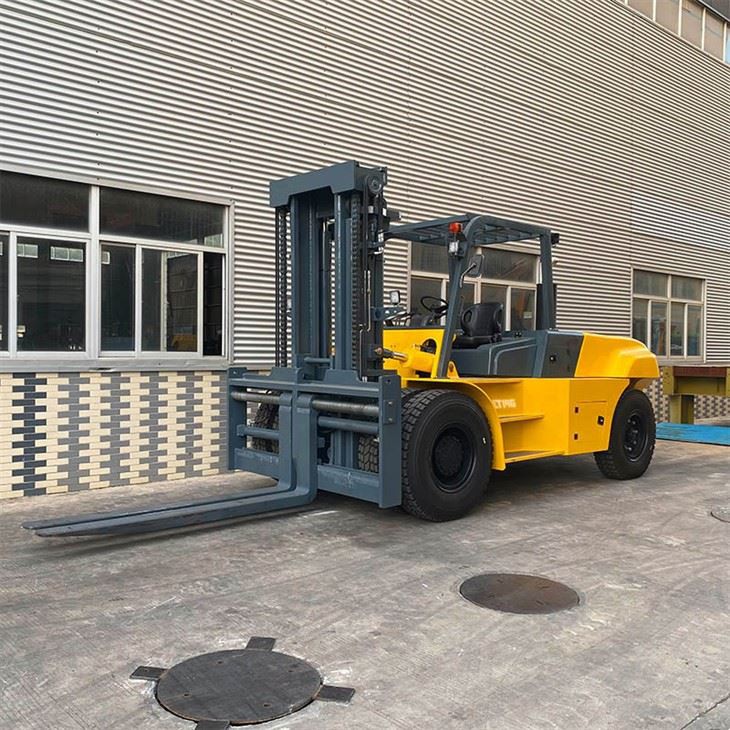

16T large capacity forklift is not only suitable for loading and unloading large-tonnage cargo, but also can undertake the auxiliary maintenance, disassembly and installation of important equipment; it can also be used for steel, stone, concrete, round wood, 20/40FT container loading and unloading and other materials.
LTMG self-developed counterbalanced large capacity forklift is characterized by stability, reliability, safety and efficiency. The small-diameter steering wheel is designed for easy angle adjustment, soft touch, and light and comfortable maneuvering. The lifting system is equipped with buffer function as standard, which makes the goods descend smoothly and the operation safer. Strong body hardness, solid and reliable, adapt to harsh working conditions, can be in dust, high and low temperatures and other conditions of normal operation. At present, LTMG has developed a series of products ranging from 10 tons to 35 tons of different load capacity, and provides a variety of attachments and various gantries. Customers are free to choose and strive to meet customer needs.
Specification
|
Model |
|
FD1600 |
|
|
Rated Load |
kg |
16000 |
|
|
Load Center |
mm |
600 |
|
|
Power unit |
|
Diesel |
|
|
Operation type/transmission system |
|
Seated type/Hydraulic |
|
|
Tire type Pneumatic/rubber |
|
L.V |
|
|
Tires Qty,front/rear |
|
4/2 |
|
|
Lifting height |
mm |
3500 |
|
|
Fork dimension |
mm |
90X200X1800 |
|
|
Mast/carriage tilt angle(front/rear) |
drg |
6/12 |
|
|
|
mm |
5000 |
|
|
Overall width |
mm |
2300 |
|
|
height to head guard(height to cab) |
mm |
2760 |
|
|
Mast height(fork lowering) |
mm |
3200 |
|
|
Overall height（with forks) |
mm |
4920 |
|
|
Wheelbase |
mm |
3330 |
|
|
Wheel tread(front/rear) |
mm |
1680/1740 |
|
|
Min.ground clearance |
mm |
300 |
|
|
Min.turning Radius |
mm |
4680 |
|
|
Max.lifting speed |
mm/s |
300 |
|
|
Travel speed |
Km/h |
26 |
|
|
Max.gradeability |
% |
20 |
|
|
Self weight |
kg |
17800 |
|
|
Tire Specs(front/rear) |
|
12.00-20/11.00-20 |
|
|
tire pressure(front/rear) |
MPa |
1/0.9 |
|
|
Transmission |
|
YQX120 |
|
|
braking distance |
20Km/h |
mm |
≤6000 |
|
|
Model |
|
YC6B125-T21 |
|
Engine |
Output power |
kw |
92 |
|
|
Rated speed |
r.p.m |
2200 |
|
Battery model/capacity |
AHV |
2X6-Q-120 |
|
|
Model |
|
FD1600 |
|
|
Rated Load |
kg |
16000 |
|

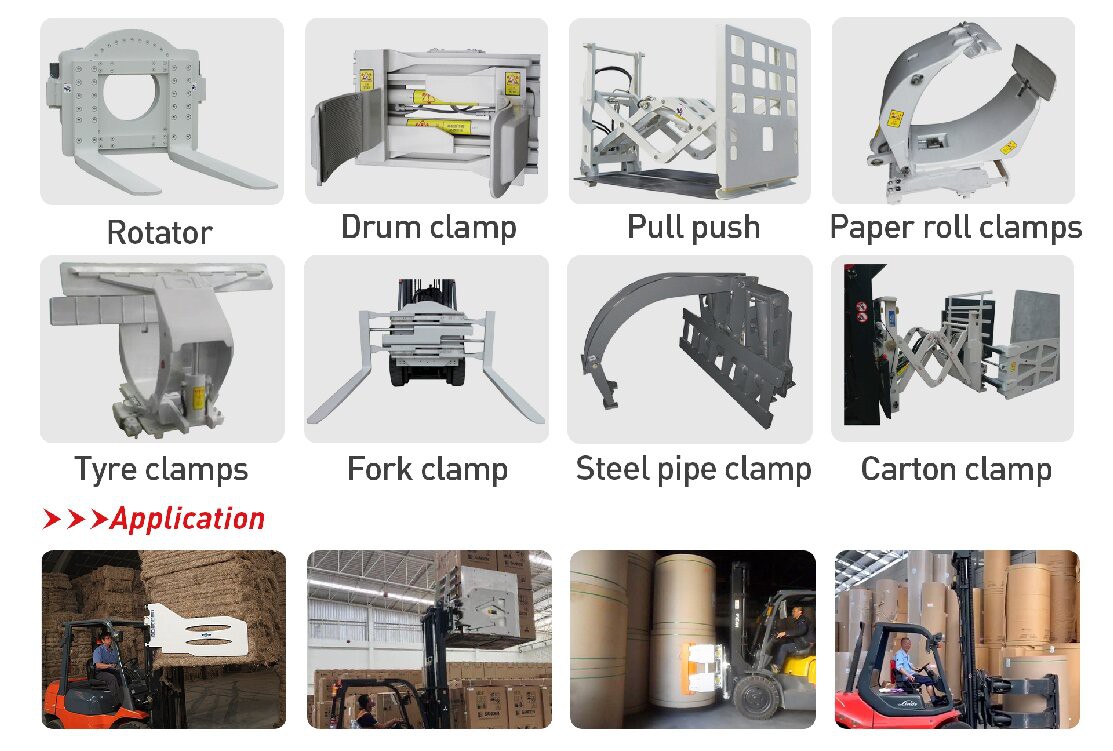

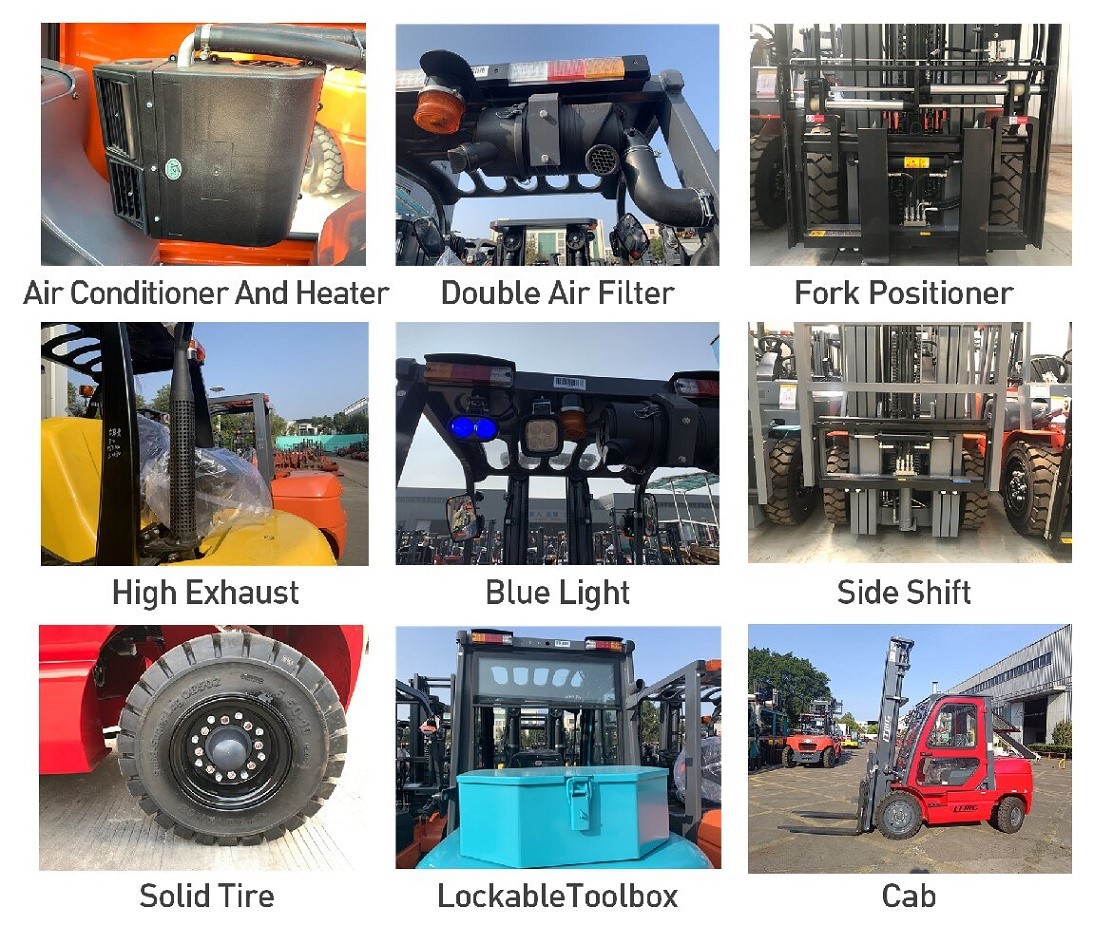

Optional accessory
OEM
FAQ
1. What is the key to your company's competitiveness?
A: LTMG, as a professional forklift manufacturer who has been deeply cultivating in the material handling industry for more than 20 years, has accumulated rich experience in production and sales. Our products are exported both at home and abroad, and we have accumulated a group of loyal customers.
2. What is the product range of your factory ?
A: LTMG INDUSTRIES is a leading machinery manufacturer that primarily supplies loaders, forklifts, excavators, all types of attachments and other construction equipment.
3. How can I solve the problem if the machine is in use?
A: We have a perfect after-sales service system. The after service department provides you with professional help. For the damage caused by non-man-made causes, we will provide one year warranty service, and we will provide free wearing parts during the warranty period.
4. Have your products received any certification?
A: Yes, our products have undergone certification with the ISO9001 Quality System and have been granted a CE certificate. We can also cater to your EPA approval needs.
5. Are you currently seeking agents to work with?
A: Yes, we are excited to collaborate with partners from around the world. If you are interested in teaming up, please feel free to contact us through various channels such as email or WhatsApp.
