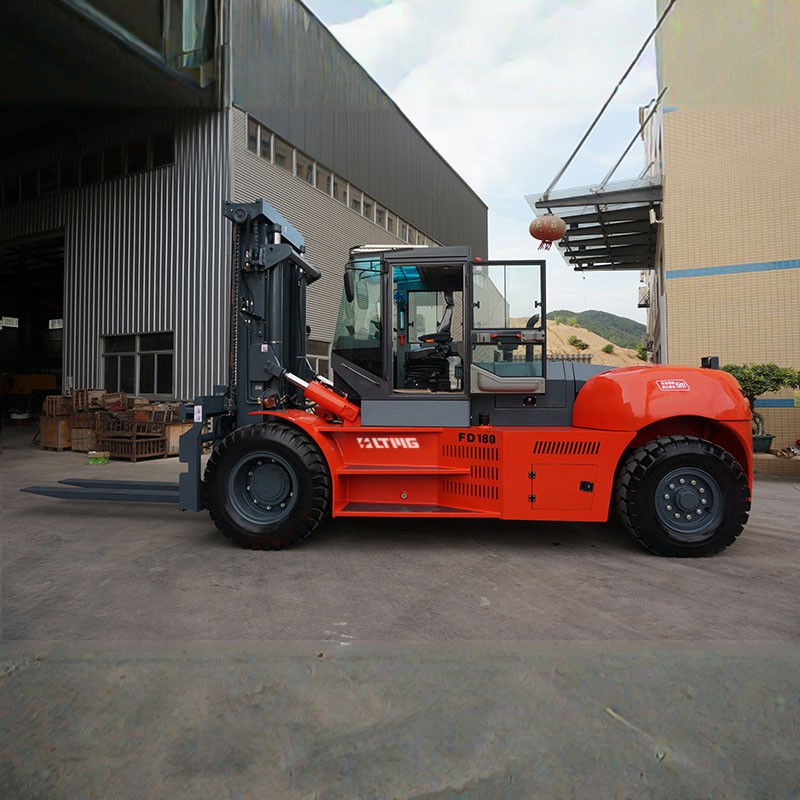

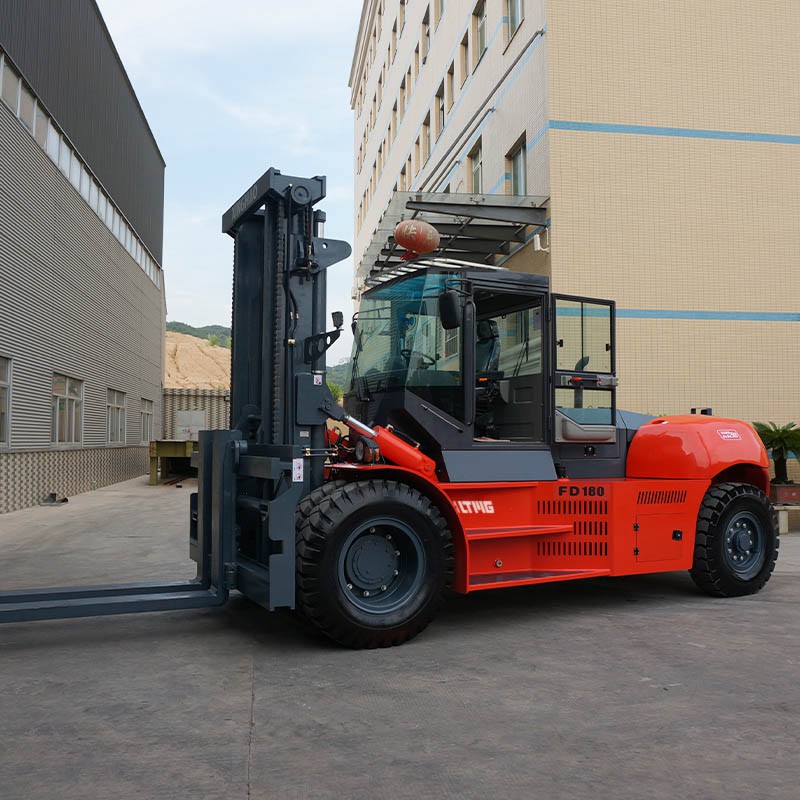

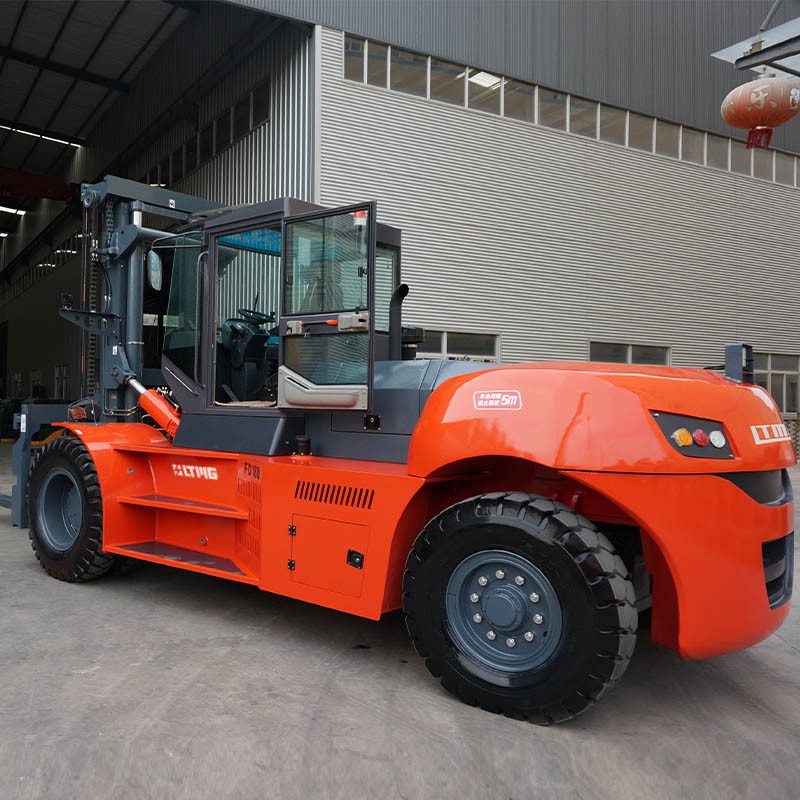

Equipped with a renowned brand engine, the 18 ton big diesel forklift with fork positioner boasts low oil consumption and features a high-quality turbocharged engine. The robust power train delivers exceptional dynamic performance, with a substantial torque reserve that ensures powerful and efficient operation.
The imported transmission technology of the heavy duty diesel forklift guarantees reliable performance, coupled with ease of maintenance. The smooth transmission and user-friendly controls enhance operational convenience, ensuring a seamless and efficient workflow. Whether navigating tight spaces or handling heavy loads, the transmission system of the big forklift truck excels in both reliability and user-friendly operation.
The steering system is a standout feature, featuring a lateral hydraulic cylinder steering bridge. The full hydraulic steering system provides exceptional agility and ease of maneuverability. The forklift diesel engine's steering is not only responsive but also offers high reliability, contributing to a smooth and controlled handling experience.
The mast design sets our 18 ton big diesel forklift with fork positioner apart, featuring a box-type internal and external mast. The incorporation of special full-circle roller bearings enhances lifting performance, ensuring stability and precision. Whether lifting heavy loads or handling materials with precision, the mast design contributes to an elevated level of lifting capability.
Technical Specification
| Model | FD180 | ||
| Rated load | kg | 18000 | |
| Load center | mm | 900 | |
| Power type | Diesel | ||
| Drving type | Seated / Hydraulic | ||
| Tyre types | Pneumatic | ||
| Tyre Qty(Front/Rear) | 4/2 | ||
| Lifting hight | mm | (300) 3500 | |
| Fork size(height*width*length) | mm | 90X240X1800 | |
| Mast tilt angle (front/Rear) | drg | 6/12 | |
| Fork front sueface to the rear end of the vehicle | mm | 5760 | |
| Overall width | mm | 2750 | |
| Height to head guard | mm | 3240 | |
| Mast height(fork lowering) | mm | (3250) 3450 | |
| Mast Vertical max. height (mast lifting) | mm | (4970) 5170 | |
| Wheel base | mm | 3800 | |
| Wheel tread(front/Rear) | mm | 1950/2170 | |
| Ground Clearance) | mm | 300 | |
| Min turning radius | mm | 5800 | |
| Max.lifting speed(with load) | mm/s | 300 | |
| Max. Travel speed(with load) | Km/h | 26 | |
| Max gradeability(with load) | % | 20 | |
| service weight | kg | 27000 | |
| Tyres specs front/rear | 12.00-24/12.00-24 | ||
| Tyre pressure front/rear | MPa | 1/0.9 | |
| Transmission | Atomactic transmission | ZL50 | |
| Brake distance | mm | ≤6000 | |
| Engine | Model | Weichai | Weichai |
| Rated output | kw | 142 | |
| Rated torque | r.p.m | 2200 | |
After-sale service
At LTMG, we prioritize after-sale service over sales, underscoring our commitment to customer satisfaction. With a global network of over 50 agents, LTMG ensures access to professional after-sale service worldwide.
Every LTMG product comes with a one-year or 2000 working hours (which occurs first) quality warranty period. For specific clauses and policies, please refer to our website and product certificate for detailed information. Your satisfaction is our priority.

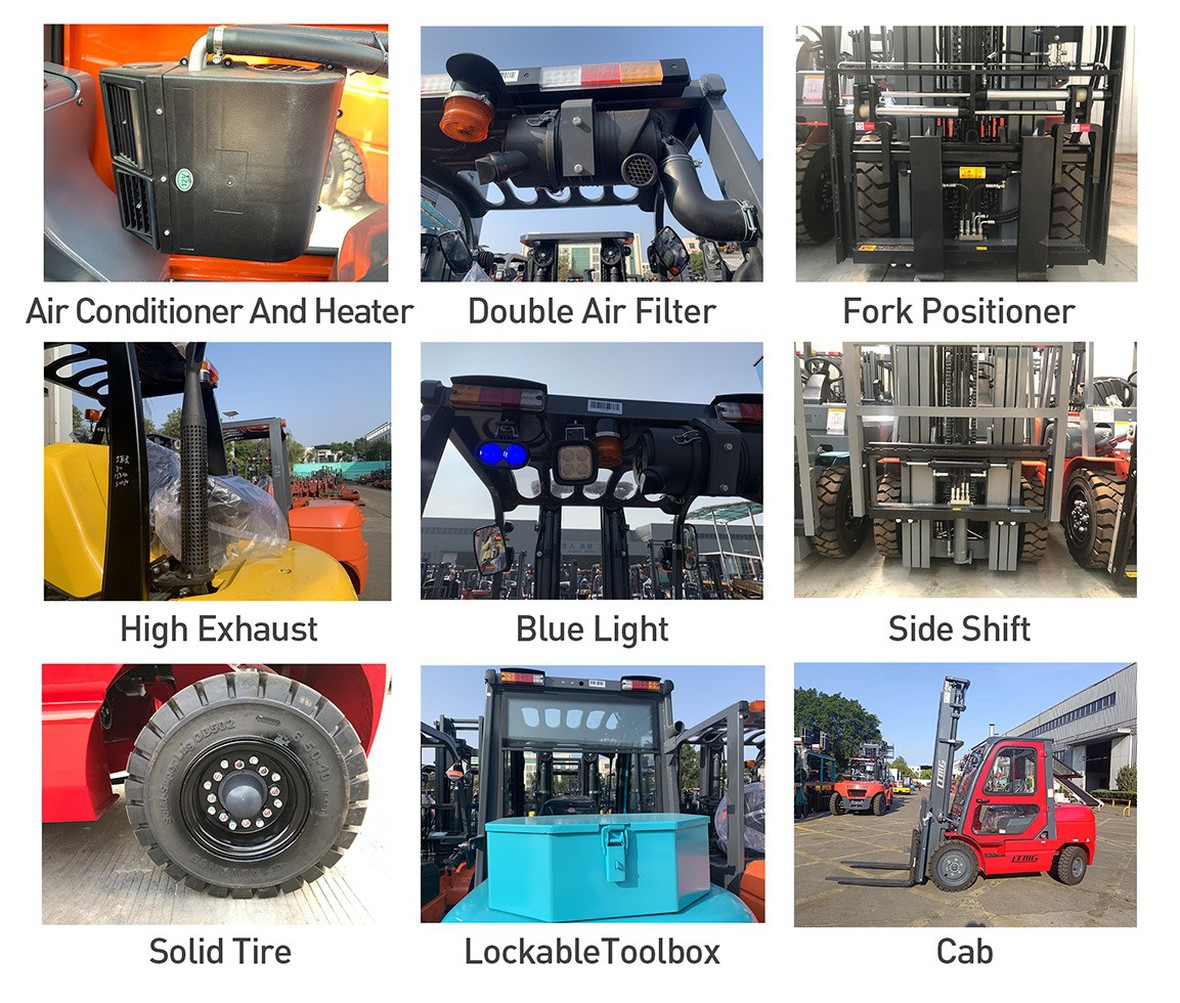

optional configuration
hot product
FAQ
Q: Is there any warranty or support provided with the purchase?
Q: If l don't know what kind of product I need, what should I do?
Q: Why should I trust your company?
