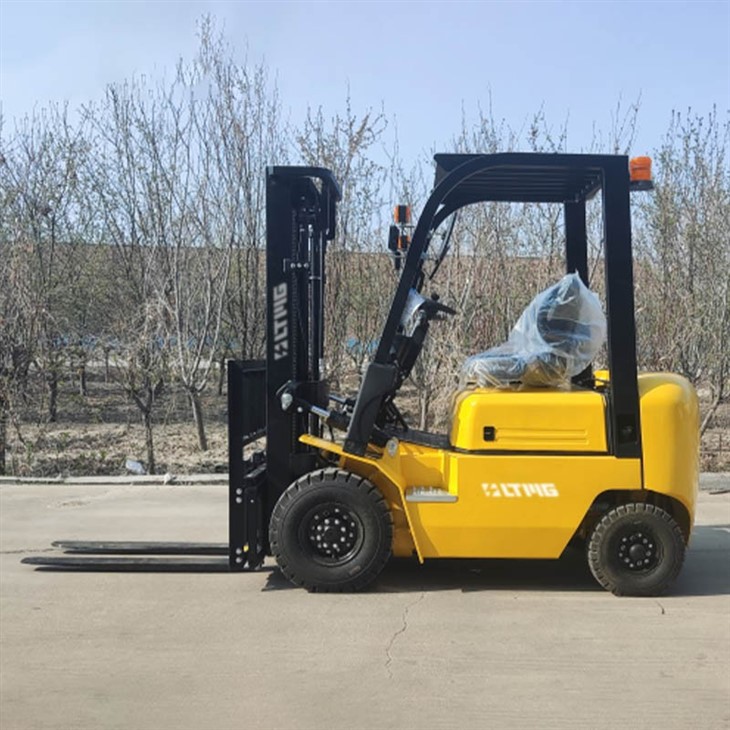

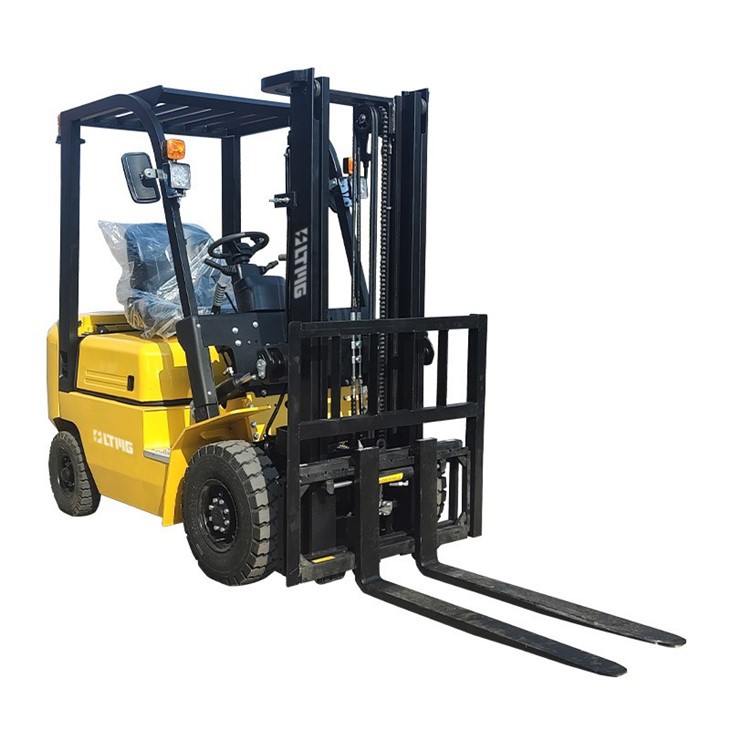

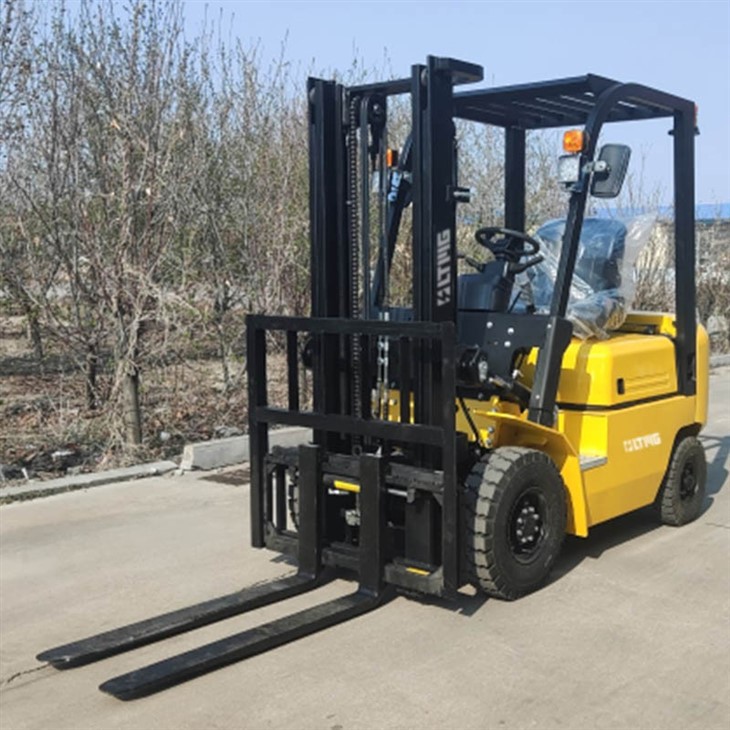

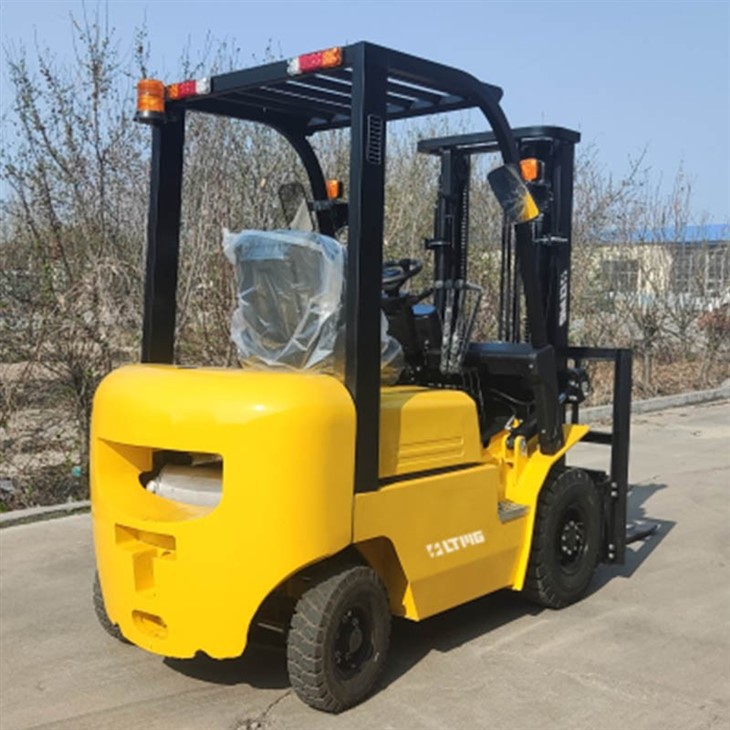

The 1.5 ton diesel forklift is meticulously designed to cater to all your industrial needs, it's a good helpler to ensure the efficient and reliable operations of your daily work.
Outfitted with wide-field gantry design: During driving, the driver can observe the surrounding environment more comprehensively, so as to better control the driving of the vehicle.
High-type large-diameter air intake system design: the air intake system can optimize the suction efficiency and keep the engine away from dust, thus improving the performance and use effect of the whole forklift.
Equipped with a LCD digital gauge and human-machine interface, which can realize the centralized monitoring and rapid response of the forklift data, simple and convenient operation, and improve the reliability and safety of the forklift.
Fitted with a high-performing diesel engine, the diesel forklift trucks boasts high-efficiency operation, lifting heavy loads with ease. The ergonomically designed operator seat and control panel ensure maximum comfort and ease of use, allowing your operators to work efficiently and safely throughout the day.
If your working site are in an outdoor setting and need the forklift for heavy loads, the 1.5-ton diesel forklift may be the best option for your operations. The small diesel forklift robust construction and durable components guarantee longevity and endurance, making it a valuable asset for your business.
specification
Model | FD15 | |
Rated lifting load | kg | 1500 |
Load center distance | mm | 500 |
Free lifting height | mm | 100 |
overall length (With fork/Without fork) | mm | 3180/2260 |
Width | mm | 1090 |
Overhead guard height | mm | 2050 |
Wheelbase | mm | 1400 |
Minimum ground clearance | mm | 110 |
Mast tilt angle (front/rear) | % | 6° /12° |
Tire no. (before) | mm | 6.5-10-10PR |
Tire no. (after) | mm | 5.00-8-1OPR |
Minimum turning radius (outer side) | mm | 1950 |
Minimum right angle aisle width | mm | 3630 |
Fork size | mm | 920*100*35 |
maximum working speed(Full-load/No-load) | km/h | 14/15 |
maximum lifting speed(Full-load/No-load) | mm/s | 500/480 |
maximum gradeability(Full-load/No-load) | % | 20/21 |
Forklift weight | kg | 2900 |
Engine model | Quanchai/B02-082 |
shipping plan
customer feedback
LTMG is a leading manufacturer in the Chinese material handling equipment and construction machinery industry. We specialize in the production of forklifts and related accessories, and we are committed to providing our customers with high-quality, reliable products that meet their specific needs.
more about LTMG Machinery
FAQ
Q: Is it easy to operate this forklift?
Q: How ergonomic is this forklift?
Q: Can we customize the machine to fit our unique requirements, and even incorporate our logo?
Q: Why Choose Us?
Q: Do you have after-sale service?
