Products Detail

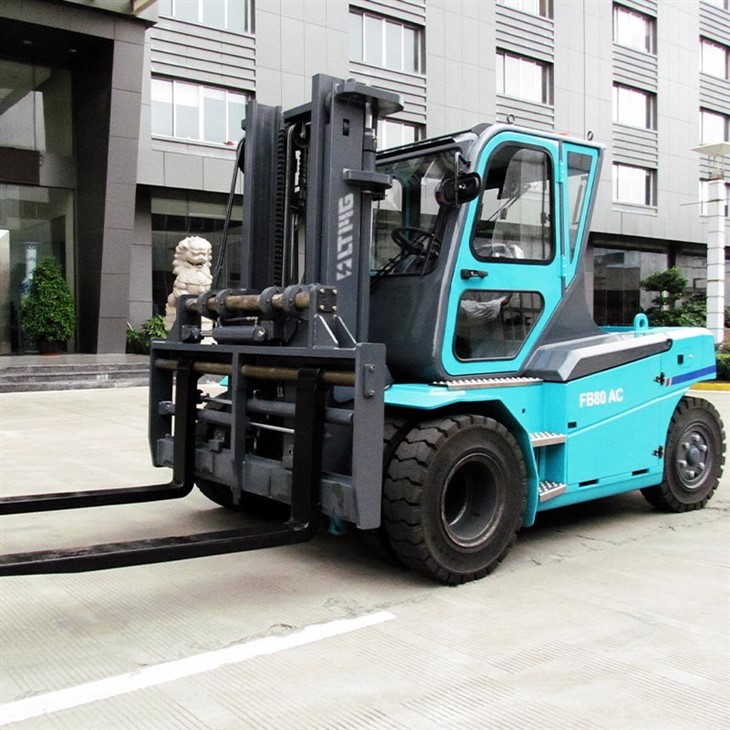

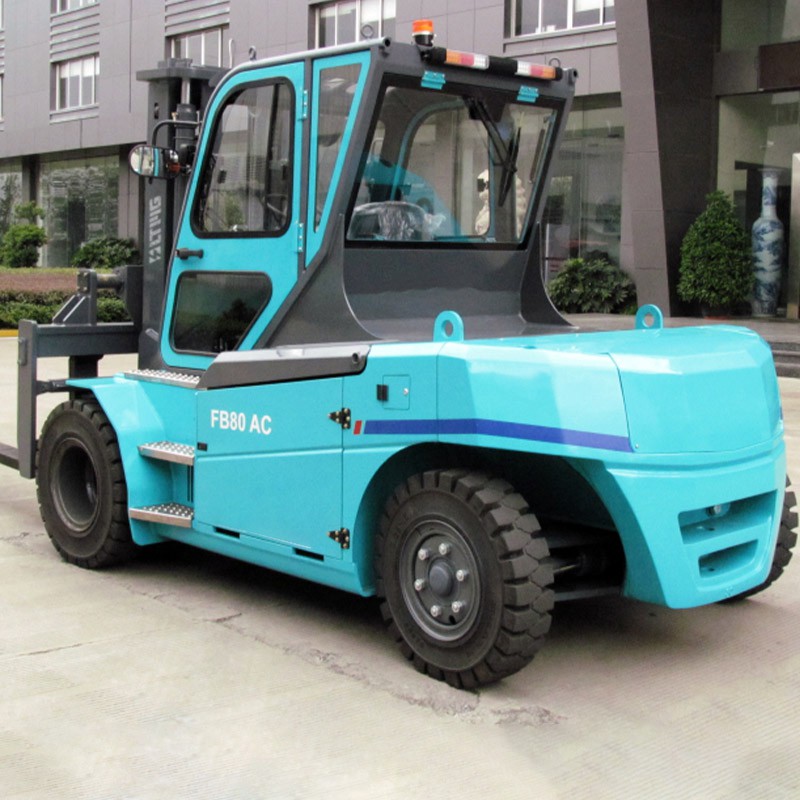

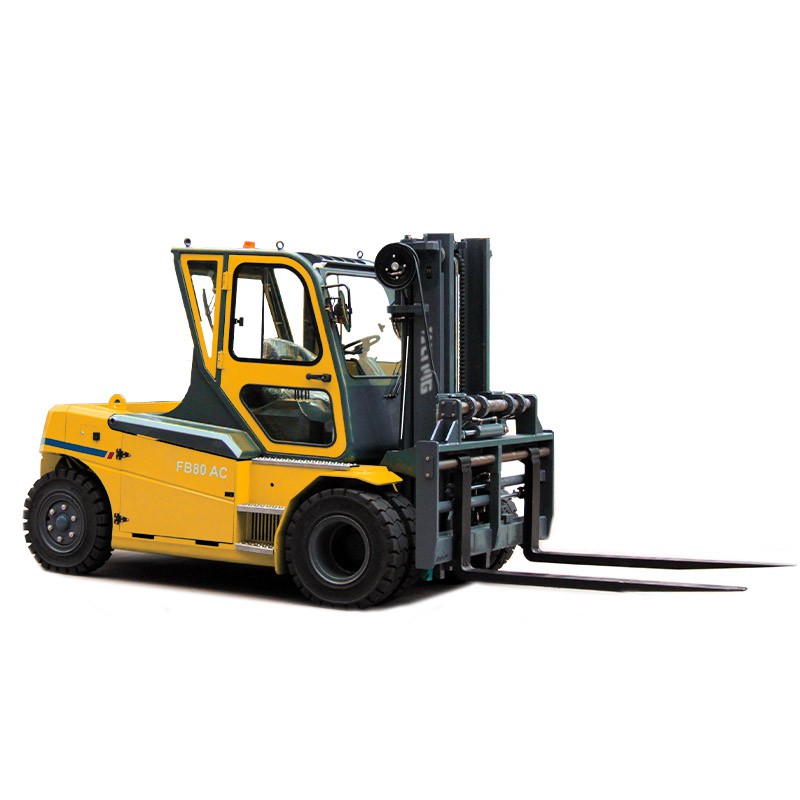

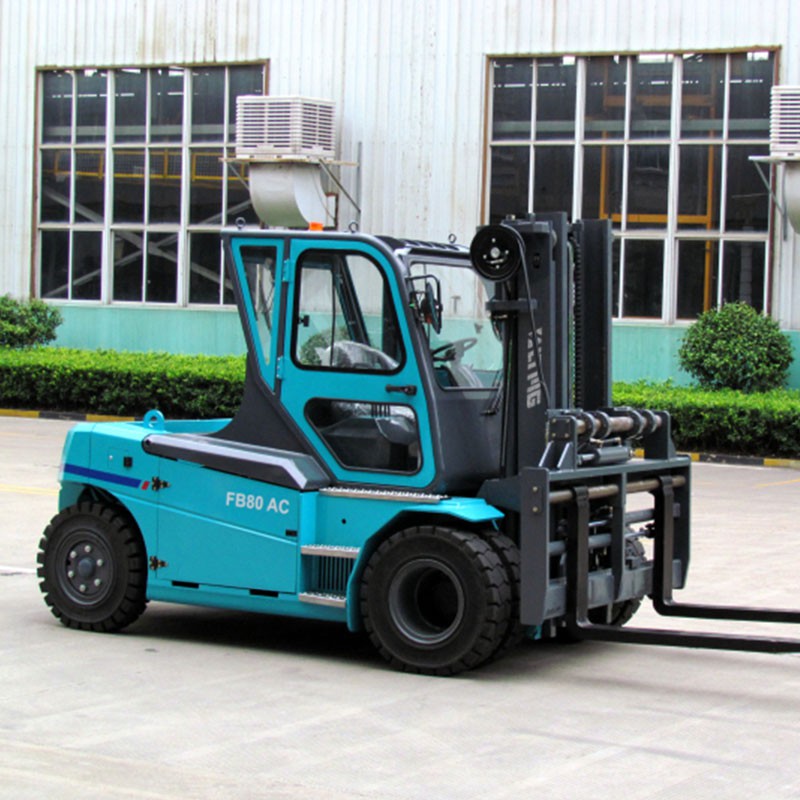

The 8 ton large electric forklift is equipped with the original imported world famous brand controller, INMOTION. The electric forklift also features an advanced dual motor driving and dual pump power system, contributing to its compact structure and enhancing its driving and climbing performance even in rugged places.
Unlike common forklifts, this battery forklift offers excellent visibility for the drivers. It achieves this through an optimized design of the whole view mast and piping on both external sides, ensuring a clear front view. Additionally, the innovative design of the two-battery-sink-type layout in the middle of the chassis provides an excellent rear view.
The electric lift truck incorporates an ergonomic design that the seat will be a good fit for the operator and maintain the best driving position. The seat has a good sense of stability to eliminate the uncomfortable feelings of the driver when operating the 8 ton large electric forklift. Furthermore, it offers stability and durability, even resistance to water damage.
Products parameter
| Model | FB80 | |
| Rated Capacity | kg | 8000 |
| Load Centre | mm | 600 |
| Lift Height | mm | 3000 |
| Fork Size (L×W×T) | mm | 1220×150×70 |
| Mast Tilt Angle F/R (α°/β°) | Deg | 6/10 |
| Length to face of fork (Without fork) | mm | 3780 |
| Overall Width | mm | 2200 |
| Mast Lowered Height | mm | 2600 |
| Mast Extended Height (With backrest) | mm | 4400 |
| Overhead Guard Height | mm | 2500 |
| Turning Radius (outside) | mm | 3350 |
| Front Overhang (Wheel center to fork face) | mm | 685 |
| Tread (Front/Rear) | mm | 1650/1718 |
| Ground Clearance (Bottom of mast) | mm | 200 |
| Wheelbase | mm | 2450 |
| Fork Spread (Min./Max) | mm | 300/2000 |
| Travel Speed | km/h | 14 |
| Lifting Speed (Full load) | mm/s | 300 |
| Max. Gradeability | % | 10 |
| Service Weight | kg | 12780 |
| Front Tire | 9.00-16-14PR | |
| Rear Tire | 8.25-15-14PR | |
| Driven Motor | kw | 14×2 |
| Lift Motor | kw | 25×2 |
| Battery Standard | V/Ah | 80/1150 |
| Controller Manufacturer | CURTIS AC | |
| Operating Pressure for Attachment | Mpa | 18 |
shipping plan
LTMG demonstrates exceptional expertise in packaging and transportation, especially focusing on packing detail and thoroughness to protect machines in containers by using wire rope. We ensure that each item is carefully handled and delivered with utmost care. Besides, we provide a comprehensive range of services, including a free toolbox, export qualification inspection and certificate, user manual and CD operating instructions, and even excess machine body paint to make it convenient for customers.
ODM
LTMG offers customization services that allow customers to customize the color, engine, and logo of their forklifts, making each forklift unique and tailored to meet specific requirements. If you want any other customization service, please contact our salesman to have a detailed discussion.
customer service
LTMG's 24-hour online customer service is commendable for delivering exceptional support to customers worldwide. Whether it's addressing inquiries, resolving issues, or providing guidance, the customer service team exhibits professionalism and promptness.
FAQ
Q: Will LTMG provide a customization service?
Q: Is your price competitive?
Q: How can I access the after-sales service?
Q: What is the warranty period for your products?
