Products Description

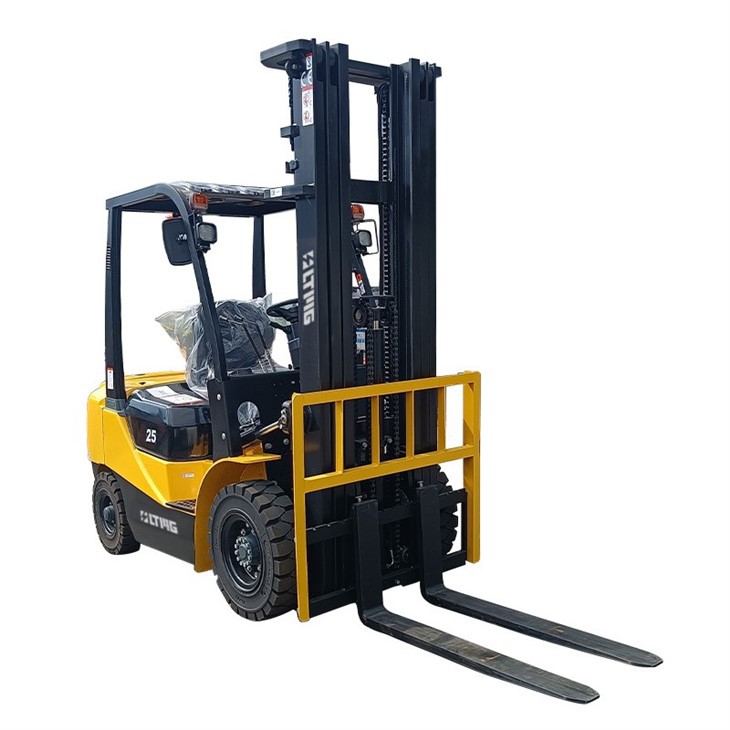

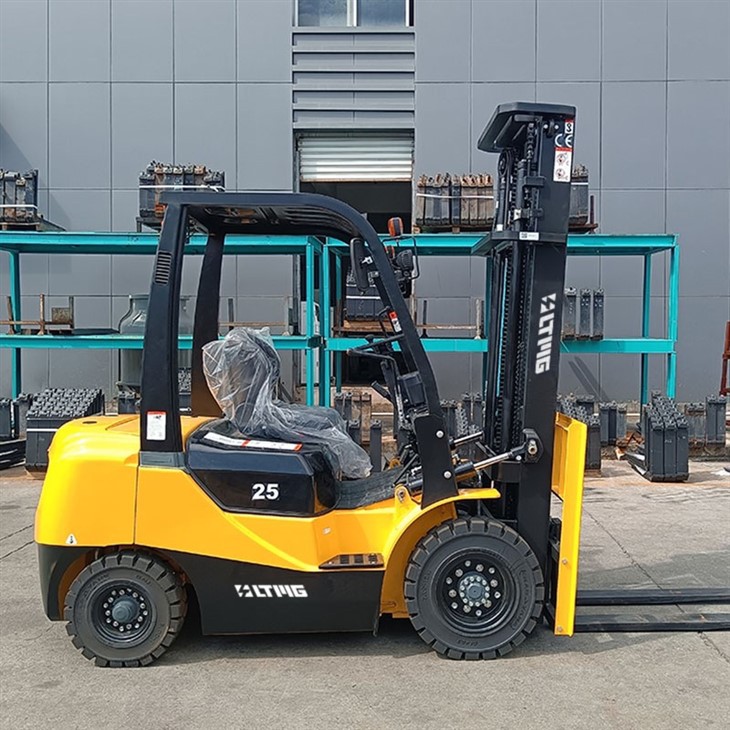

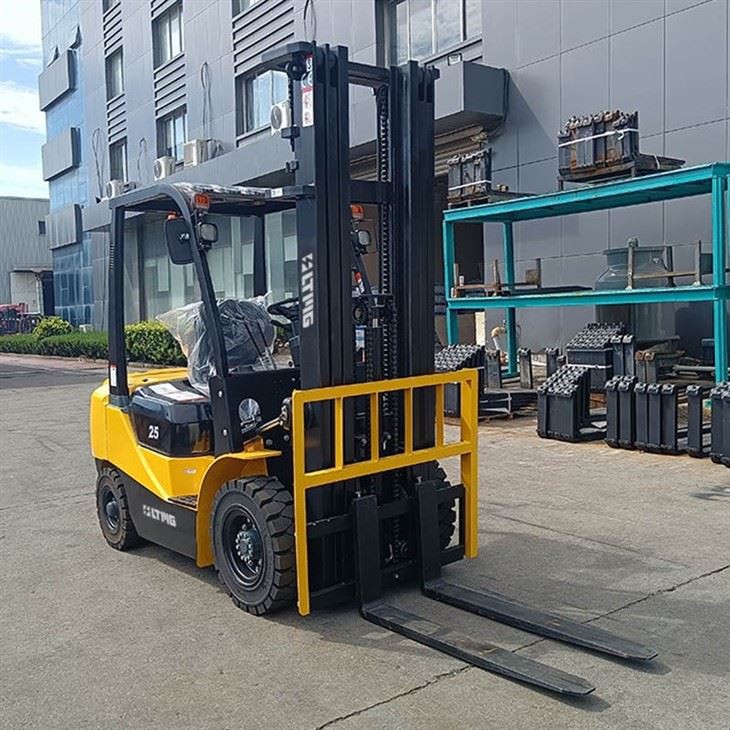

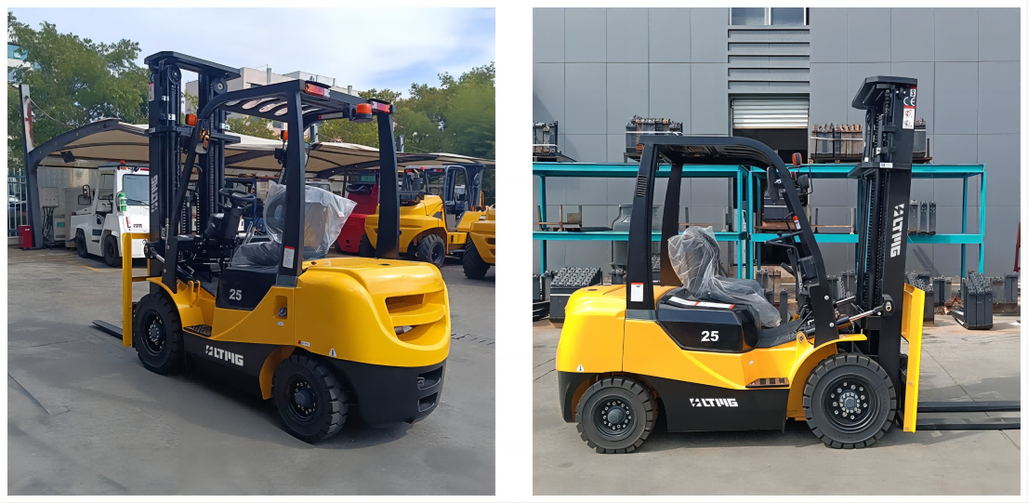

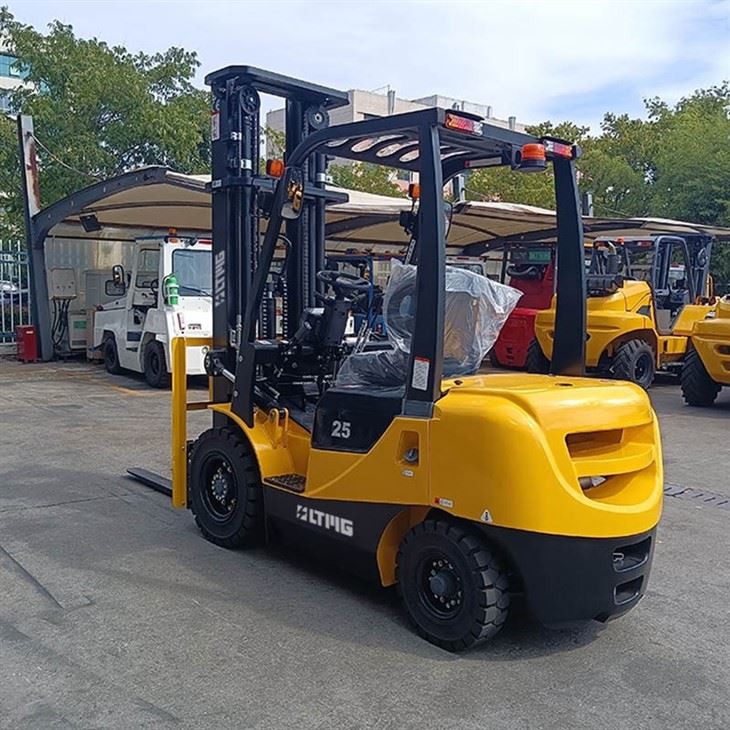

The 2.5 ton diesel forklift boasts advanced features that enhance productivity and safety. With its superior lifting height and excellent stability, it ensures efficient stacking and retrieval of goods, optimizing warehouse operations. The intuitive controls, conveniently placed at the operator's fingertips, enable effortless handling, while the sophisticated safety mechanisms guarantee utmost operational security. The diesel powered forklift adapts seamlessly to any environment, delivering outstanding performance with every task at hand.
The diesel forklift truck equipped with Toyota seat, ensuring not just comfort, but also an elevated experience for the operator. Designed with ergonomic perfection, it offers optimal support, alleviating operator fatigue during long hours of operation. The engine of the 2.5 ton diesel forklift is available in two options, namely ISUZU and MITSUBISHI. Both engines provide exceptional power, fuel efficiency, and durability, making them a smart choice for any operation.
In addition to features, the 2.5 tonne forklift also boasts low maintenance requirements, ensuring that you can focus your time and resources on critical operations. The durability, efficiency, and stability of this machine make it the perfect tool for any operation, from warehouses and distribution centers to industrial sites and heavy equipment depots.
specification
| Model | FD25 | ||
| Power Type | Diesel | ||
| Rated Capacity | kg | 2500 | |
| Load Centre | mm | 500 | |
| Lift Height | mm | 3000 | |
| Fork Size | L×W×T | mm | 1070×120×40 |
| Mast Tilt Angle | F/R | Deg | 6°/12° |
| Front Overhang (Wheel center to fork face) | mm | 465 | |
| Ground Clearance（Bottom of mast） | mm | 110 | |
|
Overall Dimension |
Length to face of fork(Without fork) | mm | 2595 |
| Overall Width | mm | 1150 | |
| Mast Lowered Height | mm | 2070 | |
| Mast Extended Height(With backrest) | mm | 4070 | |
| Overhead Guard Height | mm | 2070 | |
| Turning Radius (outside) | mm | 2310 | |
| Speed | Travel (Full load) | km/h | 19 |
| Lifting (Full load) | mm/s | 530 | |
| Max.Gradeability (No load/Full load) | % | 20 | |
| Tire | Front | mm | 7.00-12-12PR |
| Rear | mm | 6.00-9-10PR | |
| Wheelbase | mm | 1600 | |
| Service weight | kg | 3790 | |
| Battery | Voltage/Capacity | V/Ah | 12/80 |
| Engine | |||
| Model | C240 | S4S | |
| Manufacture | ISUZU | MITSUSHIBI | |
| Rated output/r.p.m. | kw | 35.4/2500 | 35.3/2250 |
| Rated torque/r.p.m. | N·m | 137.7/1800 | 177/1700 |
| No.of Cylinder | 4 | 4 | |
| Bore×Stroke | mm | 86×102 | 94×120 |
| Displacement | cc | 2369 | 3331 |
| Fuel Tank Capacity | L | 60 | 60 |
| Transmission Type | Hydraulic | Hydraulic | |
| Transmission Stage | FWD/RVS | 1/1 | 1/1 |
lTMG product transportation procedures

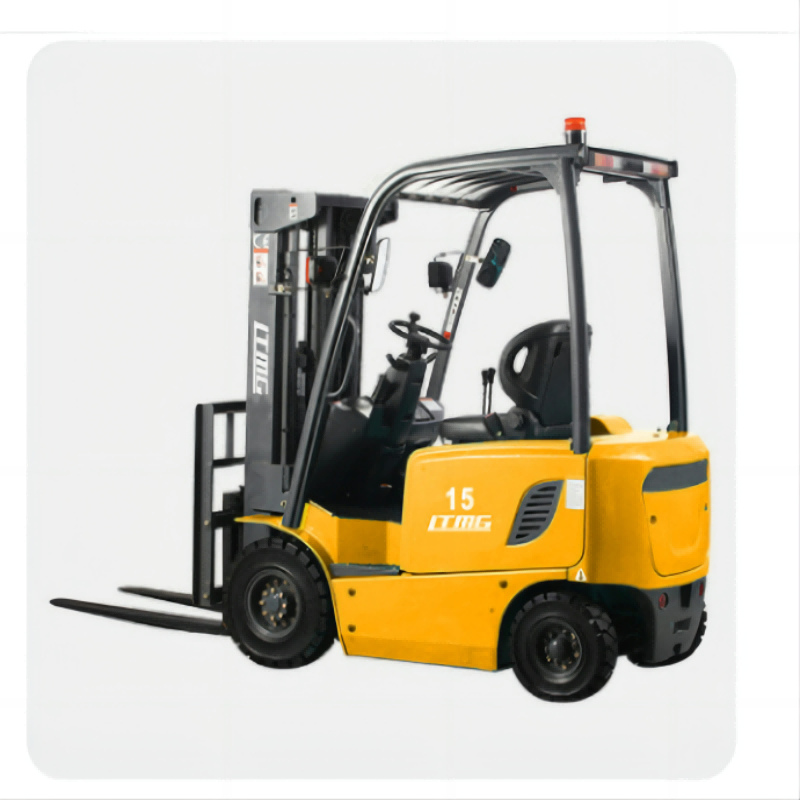

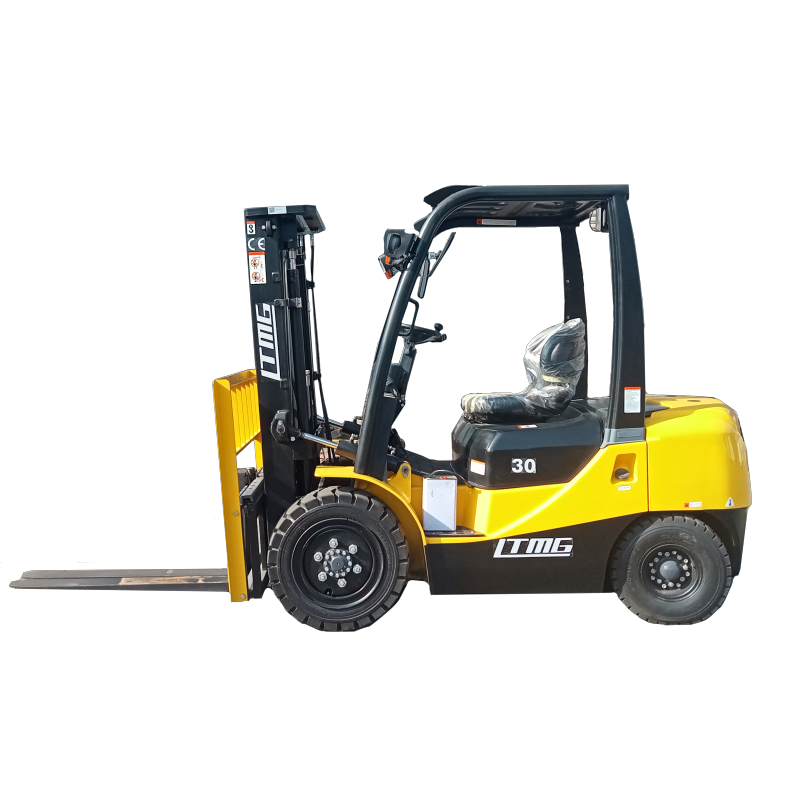

Other Type forklift equipments
LTMG is a professional manufacturer of material handling equipment, providing one-stop shopping service. We manufacture diesel forklifts, electric forklifts, lpg forklifts, rough terrain forklifts, side by side forklifts, telescopic boom forklifts, VNA forklifts as well as other warehousing equipment.
