Products Description

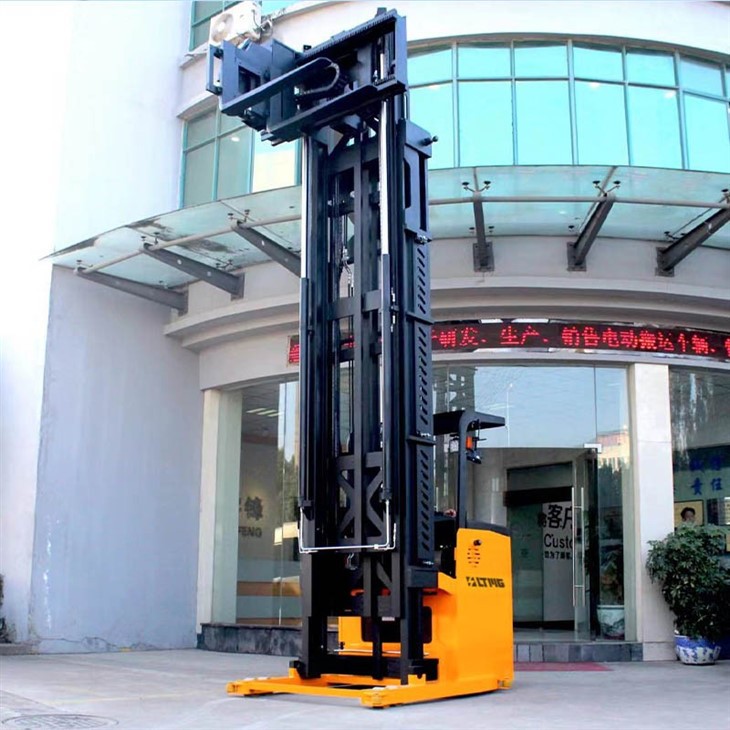

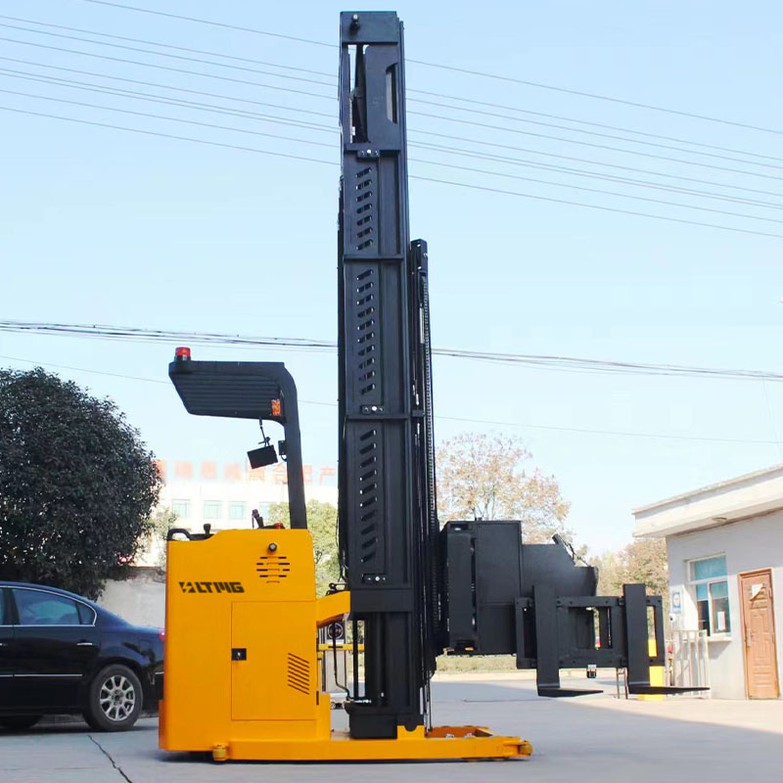

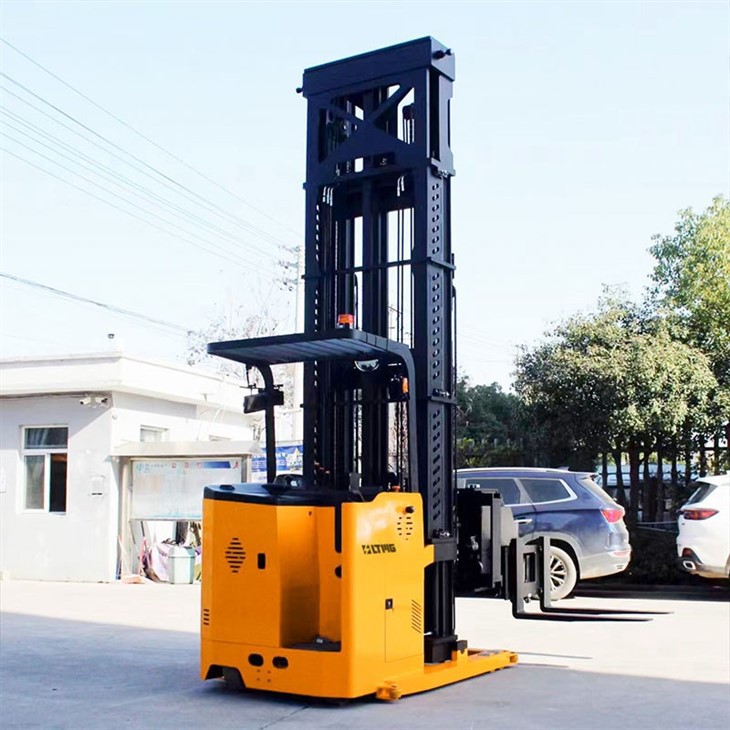

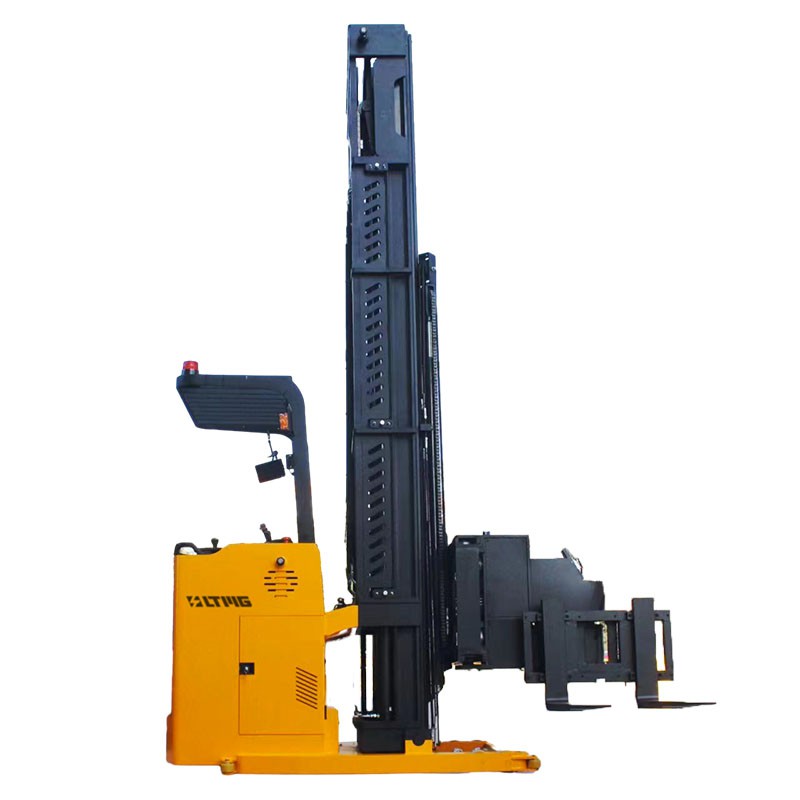

The LTMG 1.5 ton 3-way electric pallet stacker stand-on combines versatility, durability, and user-friendly features to optimize your operations and streamline productivity.
Featuring a unique 3-way stacking function, this pallet stacker is capable of moving loads vertically, horizontally, and rotating them for easy and precise positioning. With this functionality, you can navigate tight spaces and maximize storage capacity in your facility.
The imported reinforced three-stage mast ensures exceptional load-bearing performance and durability. This robust construction allows the pallet stacker to effortlessly handle heavy loads, making it ideal for demanding industrial environments and heavy-duty applications.
Designed for narrow aisle stacking, this 3-way electric pallet stacker boasts a high-lift design, allowing you to utilize every inch of available space in your warehouse. It effectively eliminates wasted aisle space, significantly increasing storage capacity and overall efficiency.
With shorter charging intervals, your operations can run smoothly without extensive downtime, keeping your productivity levels consistently high. Additionally, the enhanced battery lifespan ensures long-term cost savings for your business.
The adjustable dimensions of the fork carriage provide customization options to suit your specific needs. This versatility enables easy adaptation to various load requirements and ensures efficient handling of different pallet sizes.
Offers optional features such as magnetic navigation, one-touch layer height adjustment, and obstacle avoidance sensors. The magnetic navigation system simplifies navigation in complex warehouse setups, while the one-touch layer height adjustment feature allows for quick and accurate stacking at different shelf heights. The obstacle avoidance sensors enhance safety by automatically detecting and avoiding potential obstructions in the working environment.
The 3-way electric pallet stacker stand-on is an invaluable asset for businesses seeking to optimize their material handling processes. It is suitable for a wide range of applications in warehouses, distribution centers, and manufacturing facilities.
Products parameter
| 型号(Model) | FRB15-S | |
| 动力(Power type) | electric | |
| 操作方式(Operation type) | ||
| 额定载荷能力(Capacity) | Q(kg) | 1500 |
| 载荷中心距(Load center) | C(mm) | 600 |
| 含蓄电池时自重(Total weight including the battery) | kg | <6300 |
| 轮子种类(Wheel type) | Pu solid tire | |
| 驱动轮规格(Driving Wheel) | Øxw(mm) | Ø382*142 |
| 前轮规格(front wheel) | Øxw(mm) | Ø145*100 |
| 平衡轮规格(Balance wheel) | Øxw(mm) | Ø180*76 |
| 轮距(前轮)(Wheel tread:Front) | b1O(mm) | 1315 |
| 门架闭合高度(Height―Mast Lowered) | h1(mm) | 3165 |
| 自由提升高度(Free lift height) | h2(mm) | 1980 |
| 提升高度(Max Lifting Height) | h3(mm) | 6000 |
| 作业时门架最大高度Max.height | h4(mm) | 7185 |
| 护顶架高度Overhead guard height | h14(mm) | 2280 |
| 长度(车体/整体)Overall length (Fork back/forward) | I2(mm) | 2690/3920 |
| 车体宽度(Overall width) | b1(mm) | 1550 |
| 防撞护轨宽度(Channel guide width) | (mm) | 1600 |
| 货叉尺寸Fork dimension | s/e/l(mm) | 45/125/1220 |
| 货叉调节尺寸(Fork spread) | b5(mm) | 260-650 |
| 最小离地间隙(轴距中心)(Min ground clearance) | m2(mm) | 32 |
| 堆垛通道宽度(Channel shelf width) | Ast(mm) | 1760 |
| 通道导轨高度(Channel guide height) | (mm) | 120 |
| 最小可转弯半径(Turning radius) | Wa(mm) | 1910 |
| 主通道宽度(Main channel width) | mm | 3560 |
| 行驶速度,空载/满载(Max travel speed)(No load /Full) | km/h | 8/7 |
| 起升速度,空载/满载Lifting speed (No load /Full) | m/s | 0.275/0.215 |
| 下降速度,空载/满载Lowered speed (No load /Full) | m/s | 0.150/0.195 |
| 行车制动( Brake form) | ||
| 驱动电机功率(Driving motor) | kw | 6.5 |
| 提升电机功率(Lifting motor) | kw | 8.6AC |
| 蓄电池类型(Battery type) | Lead acid battery | |
| 蓄电池电压/电容(Battery capacity) | V/Ah | 48/400 |
| 充电机(Charger-Intelligent) | V/A | 48/50 |
| 驱动控制方式(Drive control mode) | communication | |
Shipping plan

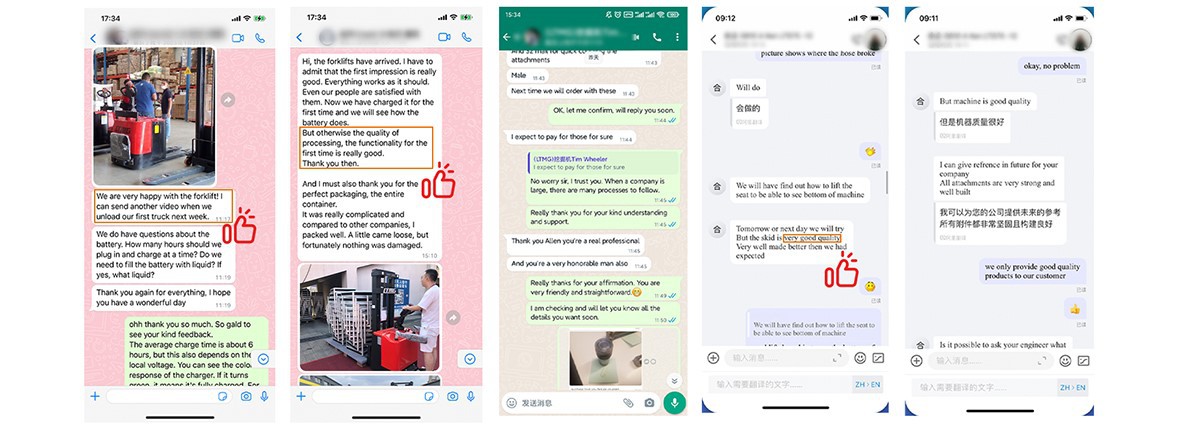

Products feedback
Products service
FAQ
Q: Can we provide OEM service?
Q: Why Choose Us?
Q: What types of products does LTMG specialize in?
