Products Description
Three-wheel forklifts are more maneuverable than four-wheel models. They are designed with a smaller turning radius, making them ideal for operating in tight spaces. They can easily navigate narrow aisles and small warehouses, making them a popular choice for businesses looking to maximize their storage space. Four-wheel forklifts are typically larger, which can make them difficult to operate in confined areas but provide more stability.
Load Capacity
The lift capacity of forklifts depends on the size of the truck and the type of load it is carrying. Generally, 4-wheel models have higher lift capacities than 3-wheel models, due to their larger size and wider wheelbase. If you frequently move large, heavy loads, then a 4-wheel forklift may be a better choice.
Three-wheel forklifts are designed with small, stripped-down operator compartments since they are smaller. On the other hand, four-wheel forklifts have a more comfortable operator's compartment that is more spacious. These forklifts provide a smoother ride due to their larger footprint and potential for stability issues, making it less stressful to operate for extended periods than three-wheelers.
Electric forklifts require less maintenance than their internal combustion engine counterparts. However, both 3-wheel and 4-wheel forklifts can have unique maintenance requirements. For example, maintenance for a 3-wheel electric forklift is typically more complicated than that of a standard 4-wheel counterbalance forklift. There are more parts to maintain, and with the turning capabilities, the moving parts have even more stress put on them.
Pricing differences between 3-wheel and 4-wheel forklifts vary depending on lift capacity, manufacturer, and other factors. Generally, 3-wheel models are less expensive than 4-wheel models. So if budget is a primary concern, or if you need a forklift for light to medium-duty work, a 3-wheel electric forklift might be a good option.
Products parameter
Model |
FB10S |
|
Power Type |
Electric |
|
Operation Type |
Seated Type |
|
Load Capacity |
Q(Kg) |
1000 |
Load Center |
C(mm) |
500 |
Load distance,centre of drive axle to fork |
X(mm) |
196 |
Wheelbase |
Y(mm) |
1130 |
Service Weight (with Battery) |
kg |
2120 |
Wheel Type |
Front Solid Tires/Rear PU Tires |
|
Driving Wheel |
②×w(mm) |
②230×110 |
Front Wheel |
②×w(mm) |
②305×127 |
Front Wheel Base |
mm |
752 |
Mast tilting angle(forward/backward) |
2/4 |
|
Mast Height, Lowered |
h1(mm) |
2035 |
Free Lift |
h2(mm) |
0 |
Lifting height |
h3(mm) |
3000 |
Max. Height When Lifting |
h4(mm) |
3918 |
Height of Overhead Guards |
h13(mm) |
1930 |
Fork Clearance when Mast Lowered |
h(mm) |
35 |
Overall Length(Without/with Fork) |
12(mm) |
1610/2680 |
Overall Width |
b1(mm) |
880 |
Fork Size |
s/e/l(mm) |
35/100/1070 |
Fork Spread |
b5(mm) |
210-580 |
Min. Ground Clearance |
m2(mm) |
60 |
Aisle Width for Pallet 1000*1200 crossways |
Ast(mm) |
2931 |
Min. Turning Radius |
Wa(mm) |
1425 |
Max. Travel Speed(Unladen/Laden) |
km/h |
5.2/5 |
Lifting Speed(Unladen/Laden) |
m/s |
0.135/0.095 |
Lowering Speed(Unladen/Laden) |
m/s |
0.085/0.120 |
Max.gradeability,Unladen/laden |
% |
6/4 |
Service Brake |
Hydraulic Electromagnetic |
|
Drive Motor |
kw |
1.5AC |
Lift Motor |
kw |
3.0DC |
Battery Type |
Lead Acid |
|
Batteryvoltage/nominal capacity |
V/Ah |
24/270 |
Charger |
V/Ah |
24/40 |
Type of Drive Control |
AC |

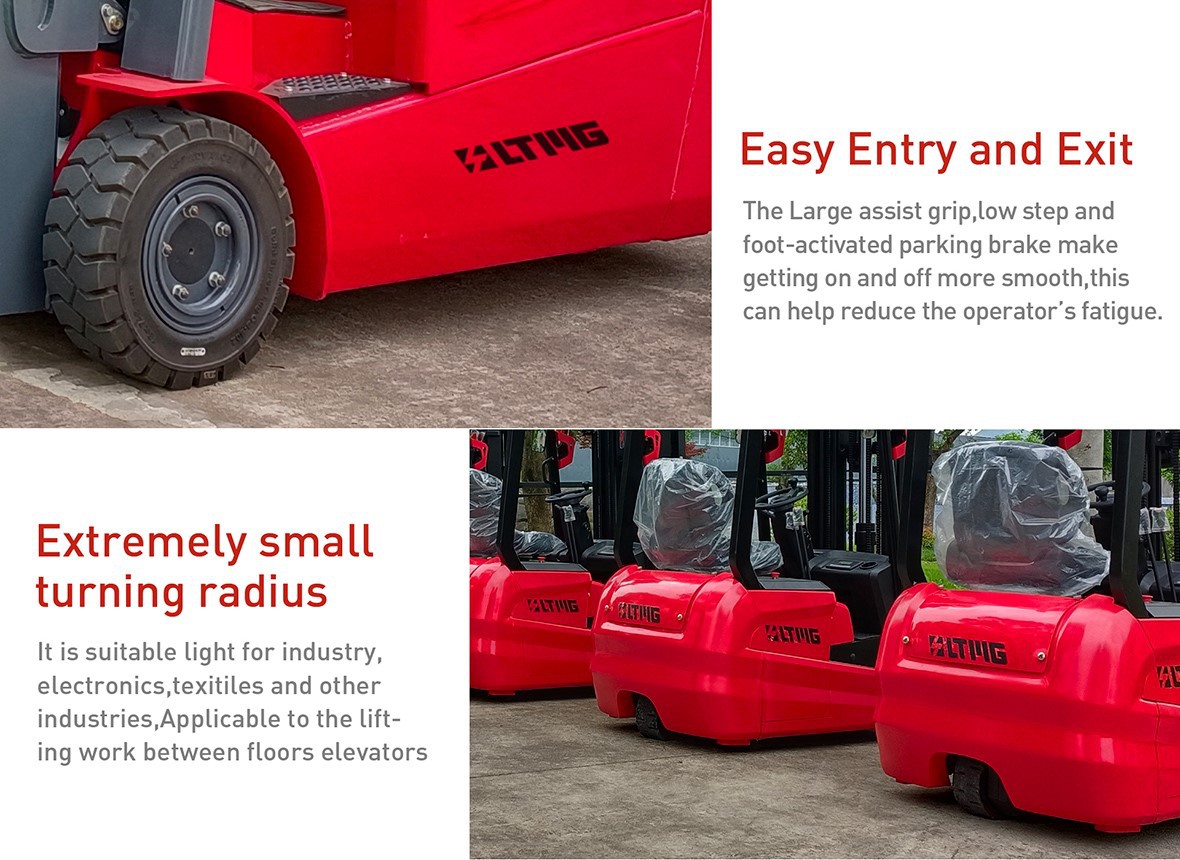

Products advantage

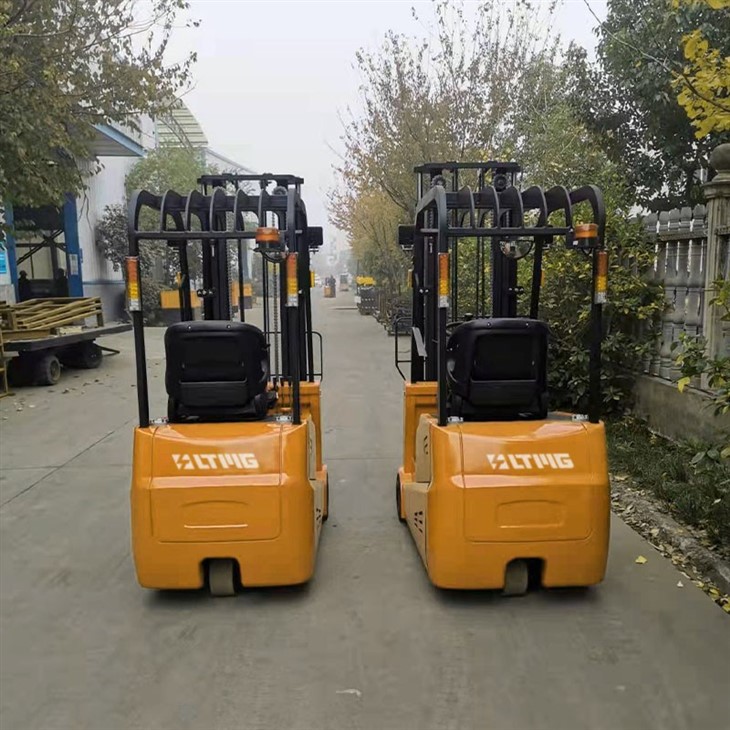

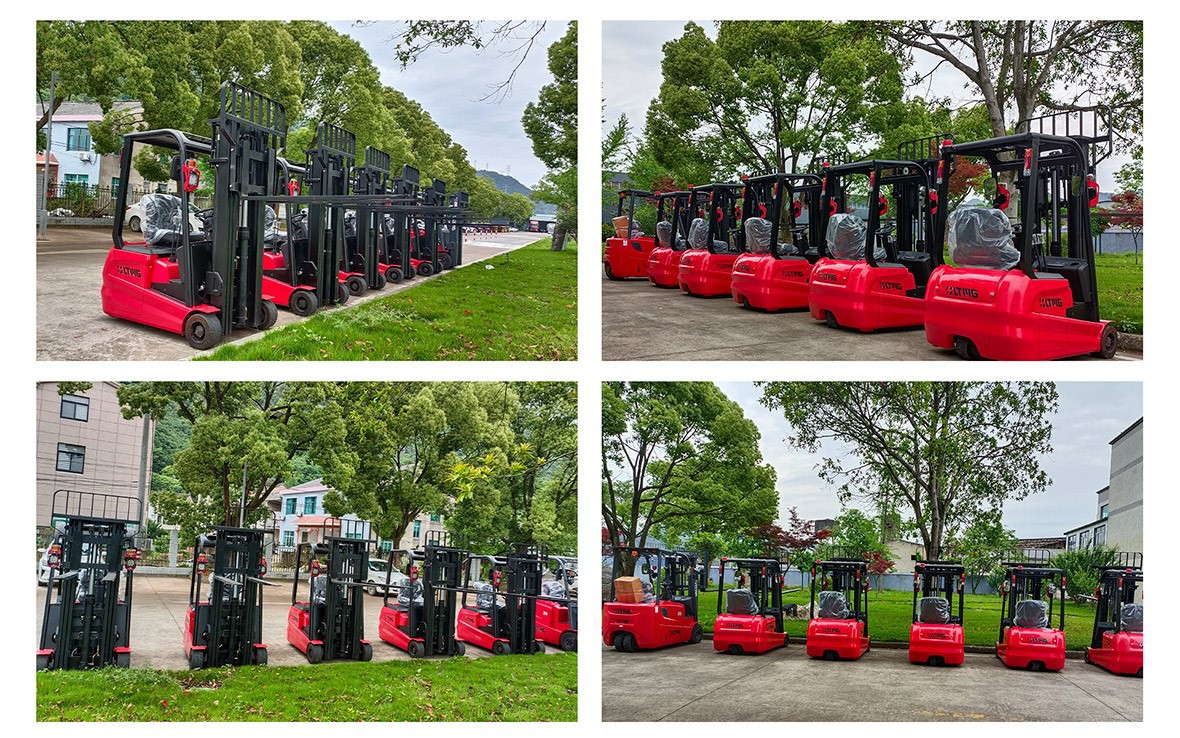

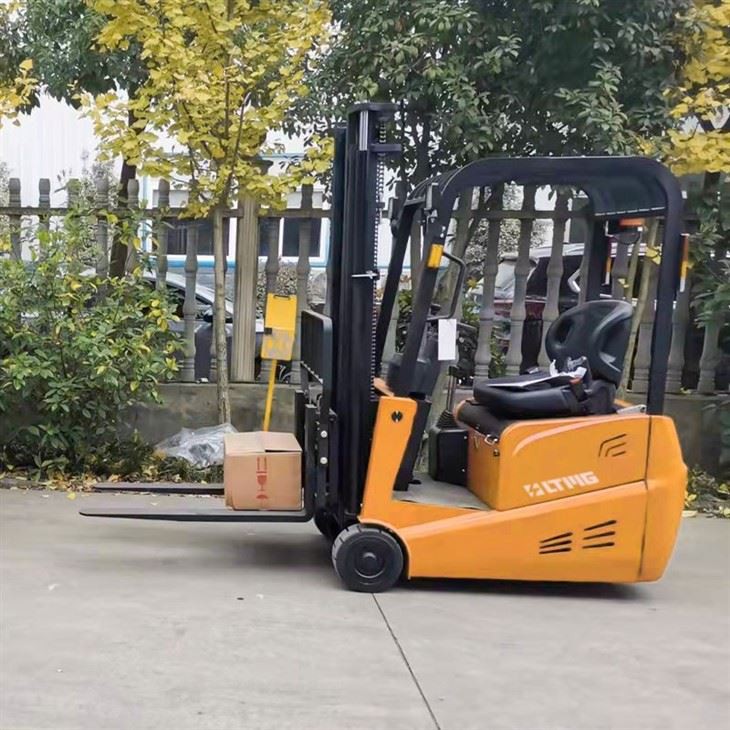

Products pictures

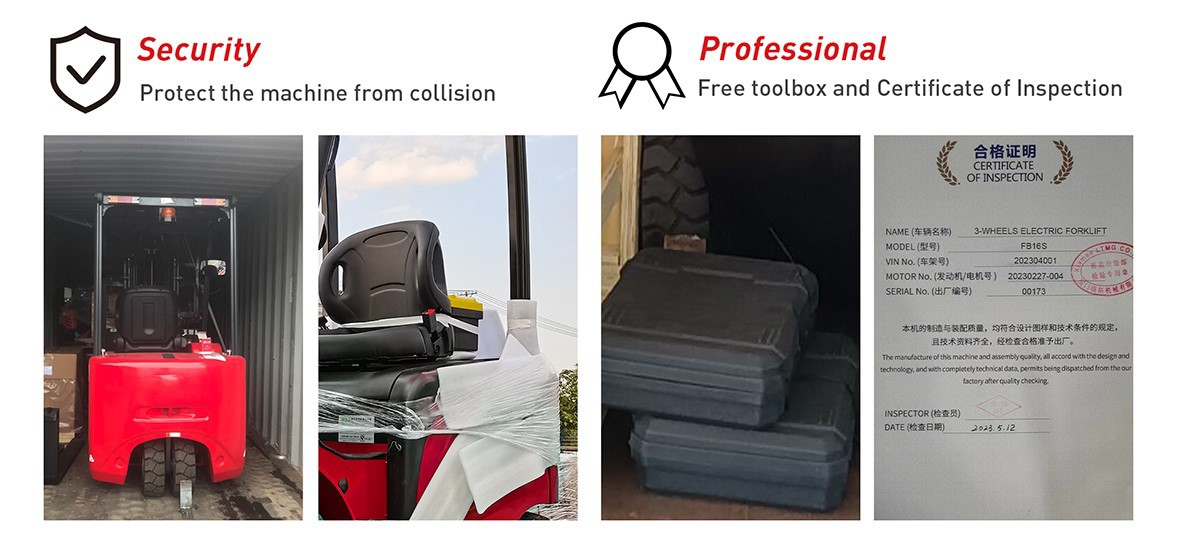

shipping plan
FAQ
Q: What should I consider when choosing a wholesale electric forklift?
Q: What type of battery should I choose for my electric forklift?
Q: How can I ensure the safety of my workers using the electric forklift?
