The reach truck is an excellent tool for working in narrow aisles, which is a common feature of most warehouses. It is capable of reaching up to great heights, which allows for efficient stacking of goods. This piece of equipment is ideal for sorting and moving goods from one part of the warehouse to another. Its design ensures that the load is secure at all times, preventing any accidents that may lead to damaged goods and equipment.
Turning limited speed, high level limited speed, mast buffer, slope anti slide and so on safety function to protect driver; Standard side pull battery, easy to replace battery and daily maintenance.
Long material handling, with the function of go forward ,backward , left, right and 360° center rotation with fork positioner to meet different requirements for long material handling. with solid rubber wheels, can be used,The OPS suspension seat is made from high-quality materials that guarantee durability and longevity. The seat cushion is thick and made from memory foam, which molds to the shape of your body, giving you a custom fit. The seat also comes with an adjustable headrest and armrest, allowing you to personalize your level of comfort.
Products parameter
| Model | FRB15 |
| Power (electric, diesel, petrol, LPG, manual) | ELECTRIC |
| Operating mode (manual, walking, standing, picking) | Seat |
| Rated load capacity | 1500kg |
| Load centre distance | 500mm |
| Front overhang | 180mm |
| Wheelbase | 1355mm |
| deadweight with battery | 2180kg |
| Wheel type | Polyurethane |
| Front wheel size | 254*104mm |
| Drive wheel specification | 230*75mm |
| Balance wheel specification | 150*50mm |
| Wheelbase, front | 976mm |
| Height with gantry retracted | 2120mm |
| Lift height | 4500mm |
| Maximum gantry height during operation | 5485mm |
| Height of top guard | 2090mm |
| Fork height when retracted | 35mm |
| Tilt angle front/rear | 3/5° |
| Overall length (incl. forks) | 2304mm |
| Body length (without forks | 1689mm |
| Body width | 1090mm |
| Fork size | 35/100/1070 |
| Fork adjustment dimensions | 210-705 |
| Drive motor power | 2.5kw |
| Lifting motor power | 3DCkw |
| Charger | 24/40 V/A |

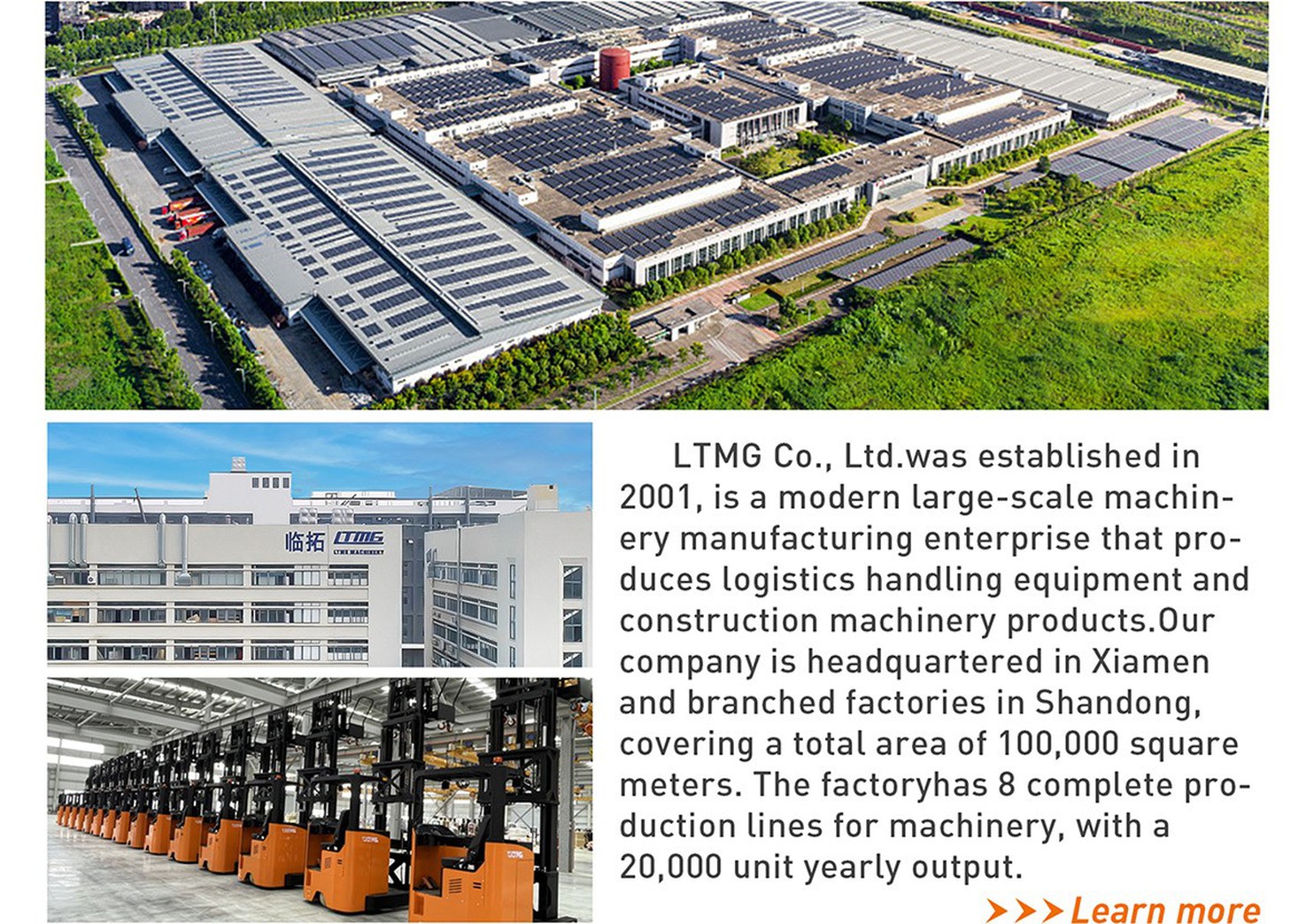

Company Profile
All the products were produced in our factory, showcasing a comprehensive production process that ensures reliability at every step. Beginning with laser cutting, cutting-edge technology sculpts each component with unparalleled accuracy. Skilled artisans then undertake the welding and assembly phase, ensuring meticulous integration. Our commitment to compliance and order extends to surface treatment, enhancing durability. The forklifts then enter the painting chamber for a meticulous spray-painting process, providing a protective finish. Following this, the products proceed through the production line where each unit undergoes rigorous testing, guaranteeing adherence to stringent quality standards. From laser-cutting to testing, every step is meticulously orchestrated to ensure that your LTMG product meets the highest standards of quality and reliability.
FAQ
Q:Are there customization options available for the electric reach forklift?
A:Yes, many models offer customization options, such as different fork lengths, side-shifters, and adjustable forks, allowing customers choose their specific material handling needs.
Q: What is the maximum lifting height of the Reach truck?
A: Our highest lifting height can reach 12 meters
Q: What is your warranty?
A: We provide you with a one-year warranty, and after one year, we will provide you with long-term online technical guidance.
Q: Can we become the agent for your products?
A: Of course, LTMG is looking for agents around the world, and we are honored to have established a partnership with you.
