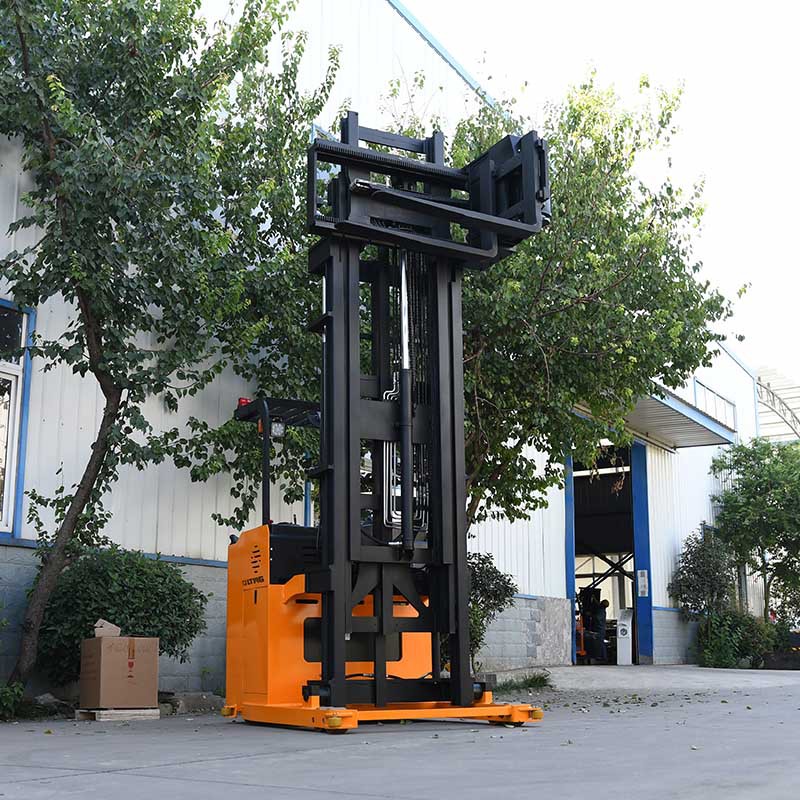

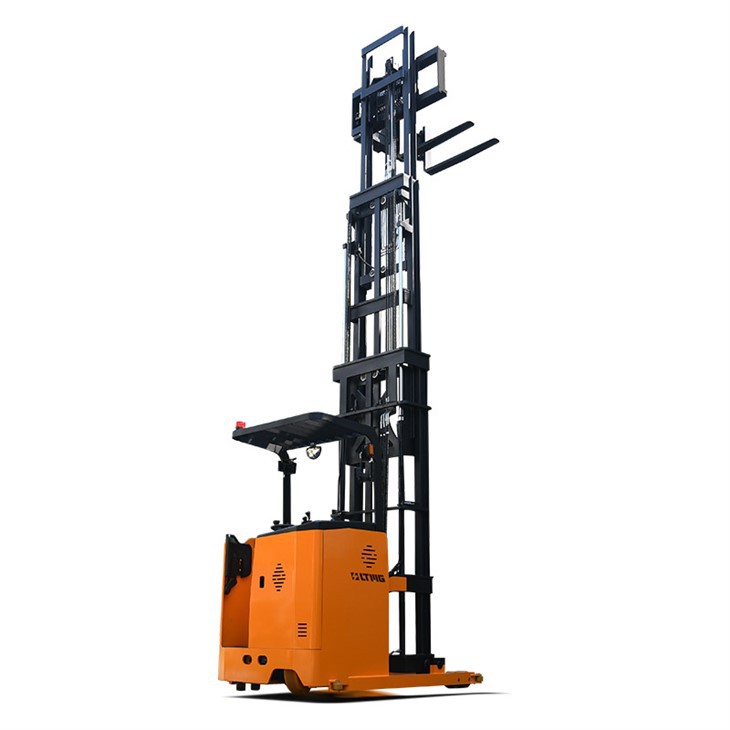

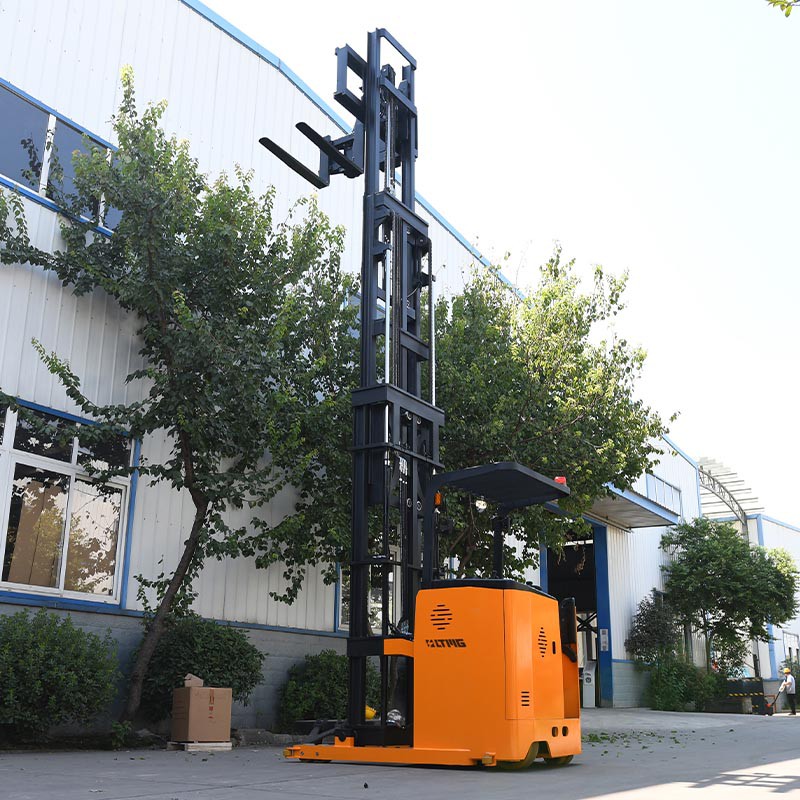

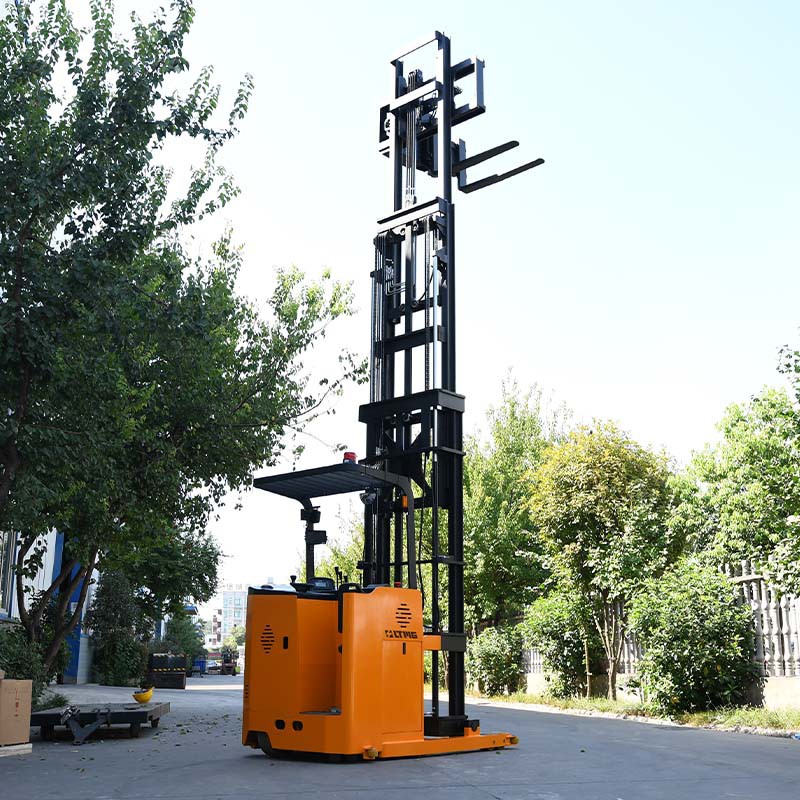

1 Ton 3-Way Pallet Stacker Side Standing Type

Items:1 Ton 3-Way Pallet Stacker Side Standing Type
Power type: electric
Rated capacity: 1000 kg
Color:customized
Send Inquiry
Chat Now

Product Introduction



The 3-Way Pallet Stacker Side Standing Type is a revolutionary material handling solution designed to optimize efficiency and productivity in various industrial settings, such as warehouse or distribution center.



One of the standout features of the 3 way pallet stacker is its wide-angle view. Equipped with advanced camera systems, this stacker provides operators with an unparalleled view of their surroundings, ensuring enhanced safety and improved maneuverability even in tight spaces.



This stacker is able to operate in ultra-narrow aisles. Its slim design and high-lifting capabilities allow for efficient stacking and retrieval of goods in congested storage areas. By utilizing the full height of your facility, you can maximize your storage capacity and reduce the need for additional warehouse space.



Enhancing productivity: It boasts a significantly shorter battery recharging time, allowing for minimal downtime and uninterrupted operations. Additionally, its longer battery lifespan ensures prolonged usage between replacements, resulting in increased uptime and reduced maintenance costs.



Furthermore, this versatile stacker offers customizable fork adjustments. The dimensions of the forks can be tailored to match your specific load requirements, ensuring safe and secure transportation of goods in various shapes and sizes. This customization option provides flexibility and adaptability for a wide range of applications, empowering you to handle diverse inventory with ease.



The applications for the 3-way pallet stacker side standing type are diverse and extensive. Whether it's in retail, manufacturing, logistics, or any industry that requires efficient material handling, this stacker excels. It can effortlessly handle pallets, boxes, and other goods, making it ideal for order picking, inventory replenishment, and general warehouse tasks.



3 way pallet stacker

3-way electric pallet stacker

narrow aisle truck


Technical parameters



Model FRB10-S
Power type electric
Operation type Side Standing Type
Capacity Q(kg) 1000
Load center C(mm) 500
Total weight including the battery kg <5200
Wheel type Pu solid tire
Driving Wheel Øxw(mm) Ø382*142
front wheel Øxw(mm) Ø145*100
Balance wheel Øxw(mm) Ø180*76
Wheel tread:Front b1O(mm) 1210
Height―Mast Lowered h1(mm) 3165
Free lift height h2(mm) 1980
Max Lifting Height h3(mm) 6000
Max.height h4(mm) 7165
Overhead guard height h14(mm) 2280
Overall length (Fork back/forward) I2(mm) 2680/3780
Overall width b1(mm) 1445
Channel guide width (mm) 1500
Fork dimension s/e/l(mm) 40/122/1070
Fork spread b5(mm) 260-650
Min ground clearance m2(mm) 32
Channel shelf width Ast(mm) 1600 (1000*1000)
Channel guide height (mm) 120
Turning radius Wa(mm) 1910
Main channel width mm 3410
Max travel speed(No load /Full) km/h 8/7
Lifting speed (No load /Full) m/s 0.275/0.215
Lowered speed (No load /Full) m/s 0.150/0.195
Brake form Electromagnetic braking
Driving motor kw 6.5
Lifting motor kw 7.5 DC
Battery type Lead acid battery
Battery capacity V/Ah 48/400
Charger-Intelligent V/A 48/50
Drive control mode communication
product detail



1 Ton 3-Way Pallet Stacker Side Standing Type 10m

About FRB10-S



3 way pallet stacker battery

advantage

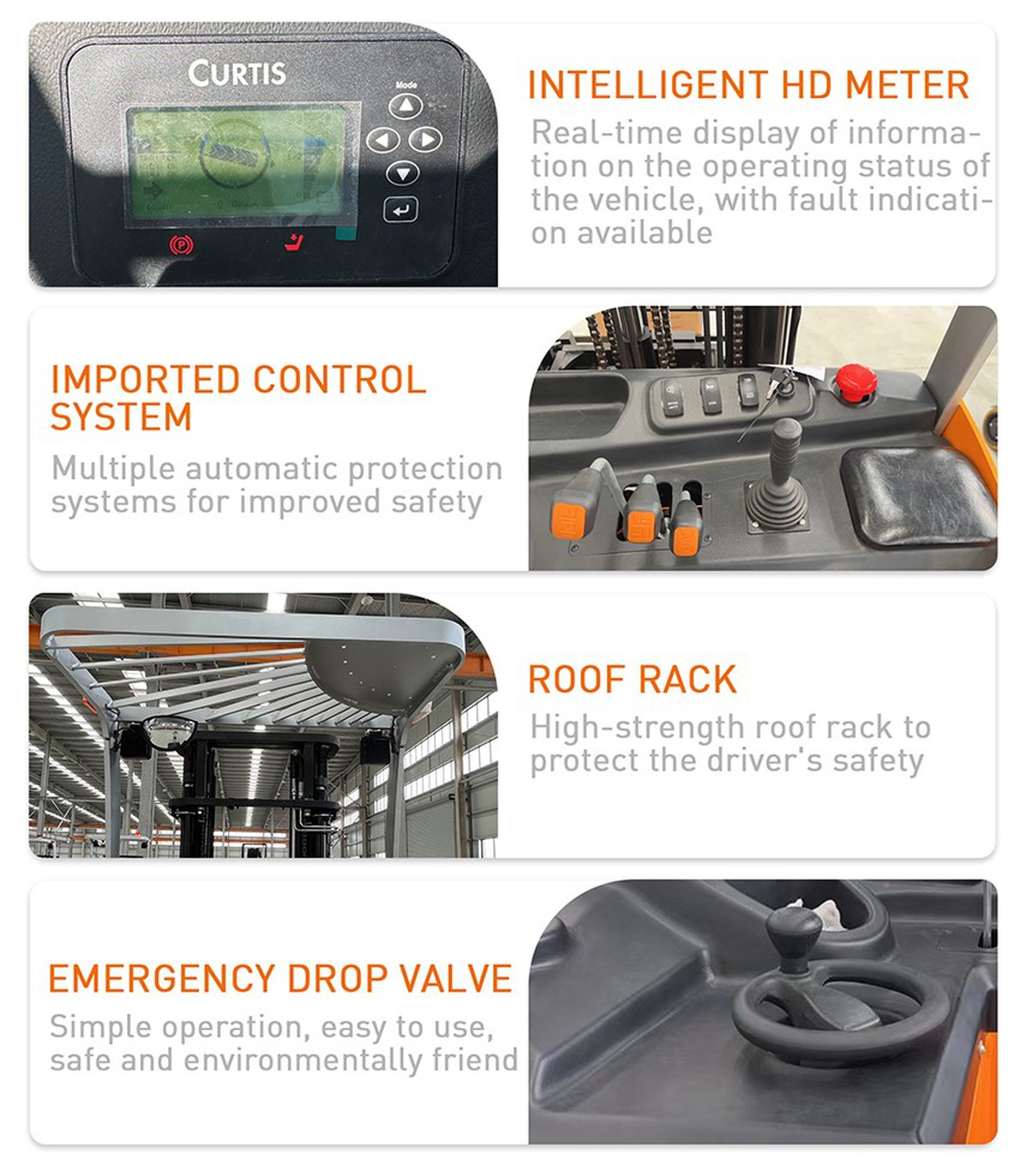

curtis controller






FAQ

Q: What is a 3 way pallet stacker?

A:A 3 way pallet stacker is a specialized lifting and stacking equipment used in warehouses and industrial settings. It is designed to lift and transport pallets in narrow aisles and has the ability to move in multiple directions.

Q: Can the fork size of the 3-way electric pallet stacker be customized?

A: Yes, the fork size of the 3-way electric pallet stacker can be customized to accommodate different pallet sizes. This customization option enhances the versatility of the stacker, enabling it to handle a wide range of load dimensions.

Q: What is LTMG payment term of the wheel loader machine?

A: T/T, L/C
