Products Description

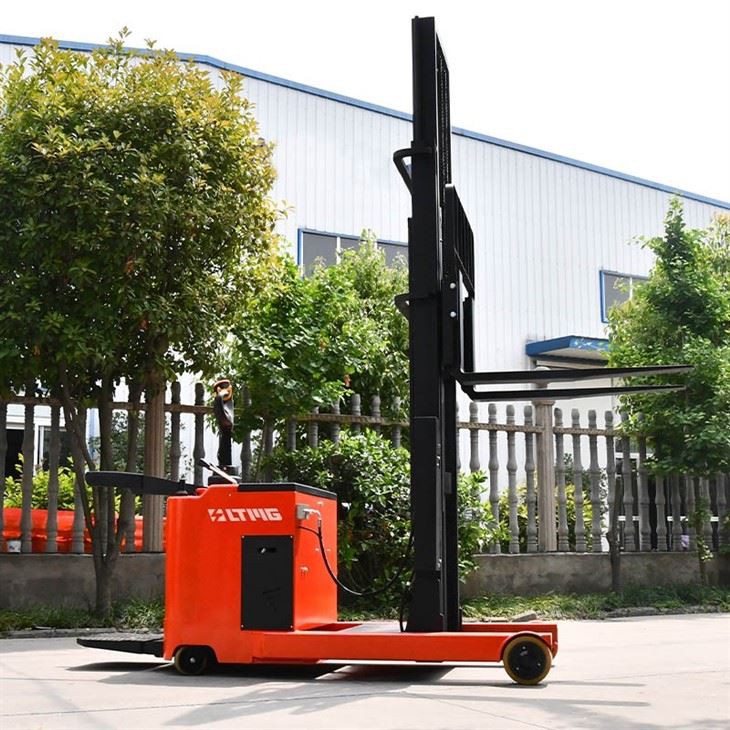

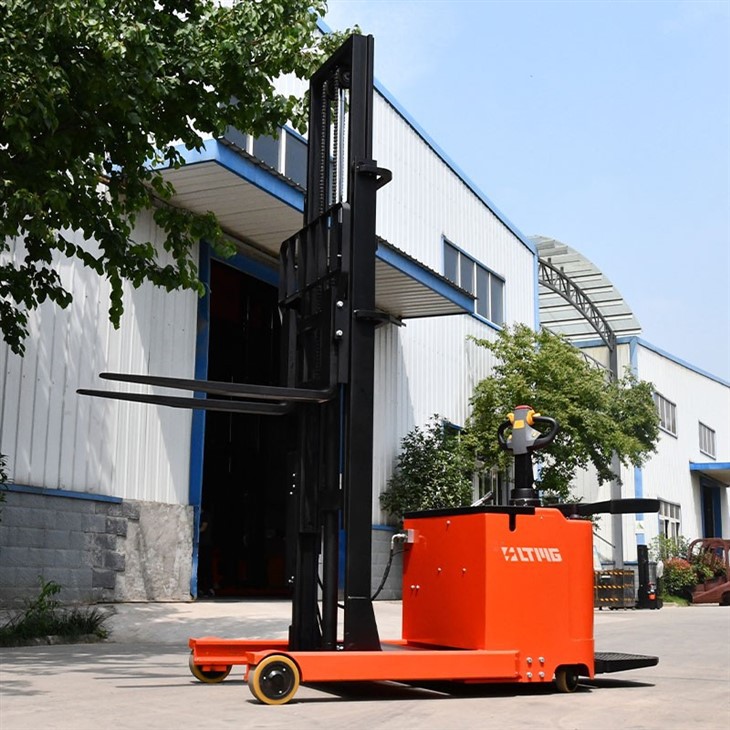

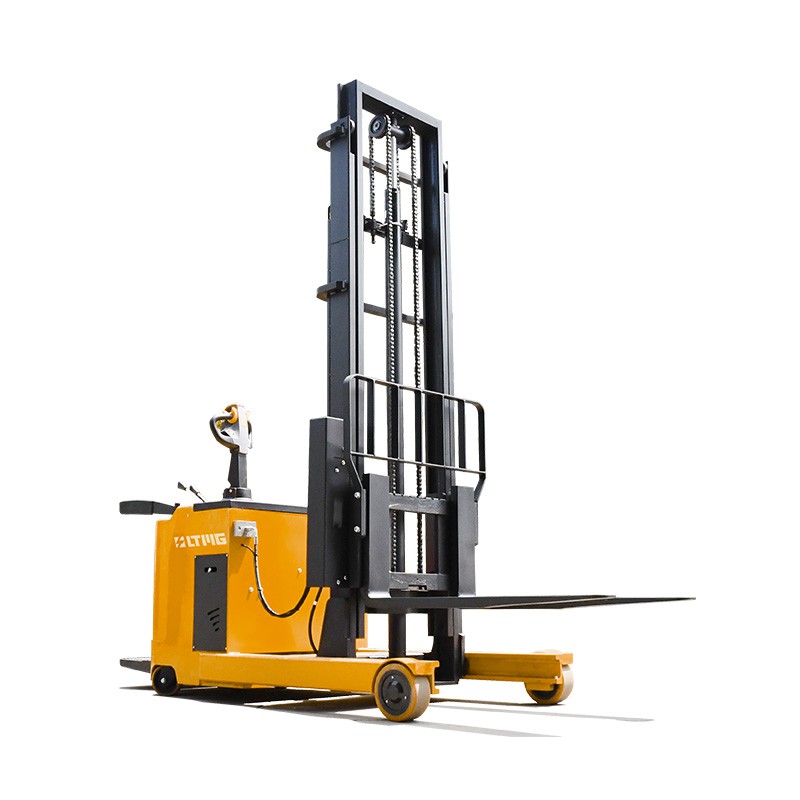

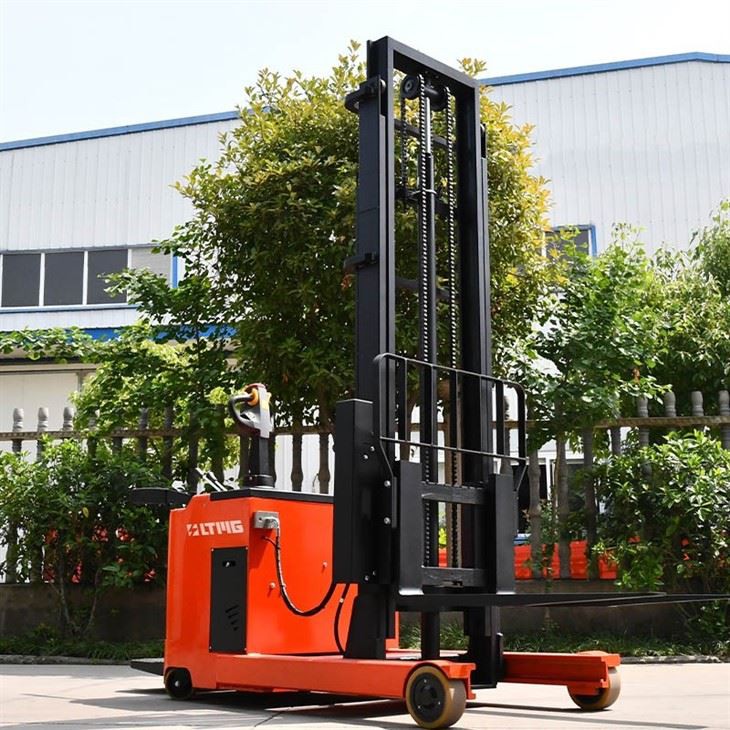

Introducing the LTMG 1-ton small electric reach truck stand type – your versatile and efficient solution for material handling tasks. This compact powerhouse combines a range of advanced features, state-of-the-art technology, and robust construction to enhance productivity in various applications.
Compact structure: the struture design making it ideal for maneuvering in tight spaces where conventional forklifts may struggle. Despite its small footprint, this reach truck does not compromise on capacity or reach. With an adjustable forged fork, the mast can effortlessly extend to reach great heights, allowing you to access and transport materials with ease.
Equipped with a branded control system, this reach truck ensures smooth and precise operation. The control system incorporates multiple automatic protection systems, guaranteeing the safety of both the operator and the surrounding environment. This intelligent system minimizes the risk of accidents and damage, providing peace of mind during operation.
Powered by an AC drive motor, ensuring efficient and reliable performance. With no carbon brushes, the motor operates silently and requires minimal maintenance, reducing downtime and maximizing productivity. This brushless design increases the truck's lifespan, delivering exceptional value in the long run.
Offering accurate control, this reach truck allows for precise positioning and handling of goods. You can effortlessly navigate through narrow aisles and crowded spaces, optimizing efficiency and saving valuable time. The intuitive controls and ergonomic design contribute to operator comfort and convenience, enhancing overall productivity.
With its strong power and robust build, this reach truck is capable of handling a diverse range of materials and loads up to 1 ton. From warehouses and distribution centers to manufacturing facilities and retail stores, it excels in various applications where space utilization and efficient material handling are paramount.
The small electric reach truck stand type is a compact powerhouse that combines a range of desirable features to enhance productivity. Its compact structure, adjustable forged fork, branded control system with automatic protection, AC drive motor, accurate control, and strong power make it a dependable and efficient solution for a wide range of applications. Invest in this reach truck today and experience increased efficiency, improved safety, and optimized material handling operations.
Products parameter
| Characteristics | Model | TRS10 | ||
| Power type | Electric | |||
| Operation type | stand Type | |||
| Load capacity | Q(kg) | 1000 | ||
| Load center | C(mm) | 500 | ||
| Load distance,centre of drive axle to fork | X(mm) | 155 | ||
| Wheelbase | Y(mm) | 1335 | ||
| Reach distance | L(mm) | 500 | ||
| Weight | Service Weight (with Battery) | kg | 1875 | |
| Wheels, Chassis |
Wheel type | PU | ||
| Drive wheel | の×w(mm) | φ230*75 | ||
| Front wheel | の×w(mm) | φ210*85 | ||
| Rear wheel | の×w(mm) | φ150*50 | ||
| Wheel tread,Front wheel | b10(mm) | 735 | ||
| Wheel tread,rear wheel | b11(mm) | 945 | ||
| Dimensions | Mast Height,Lowered | h1(mm) | 1845 | |
| Lifting height | h3(mm) | 2500 | ||
| Max.height when lifting | h4(mm) | 3470 | ||
| Fork face min.ground clearance | h13(mm | 35 | ||
| Fork tilting angle Front/rear | 3/5 | |||
| Bodylength | 12(mm) | 1615 | ||
| Overall Length | L1(mm) | 1734/2276 | ||
| Overall width | b1(mm) | 1034 | ||
| Fork size | s/e/l(mm) | 35/100/1070 | ||
| Fork Spread | b5(mm) | 210-680 | ||
| Min.ground clearance | m2(mm) | 70 | ||
| Aisle Width for Pallet 1000*1200 crossways | Ast(mm) | 2681 | ||
| Aisle Width for Pallet 1200*1000 crossways | Ast(mm) | 3083 | ||
| Min.turning radius(without/with platform) | Wa(mm) | 1652/2053 | ||
| Performance | Max.travel speed(Unladen/Laden) | km/h | 5/4 | |
| Lifting speed(Unladen/Laden) | m/s | 0.112/0.095 | ||
| Lowering speed(Unladen/Laden) | m/s | 0.094/0.110 | ||
| Max.Grade ability(Unladen/Laden) | % | 8/5 | ||
| Drive Motor | kw | 1.5 | ||
| Lift Motor | kw | 2.2 | ||
| BatteryType | Lead Acid | |||
| Battery voltage/nominal capacity | V/Ah | 24/210 | ||
| Charger | V/A | 24/30 | ||
| Other | Iype of drive control | AC | ||
| Sound level at the driver's ear acc.to EN12053 | dB(A) | 75 | ||
