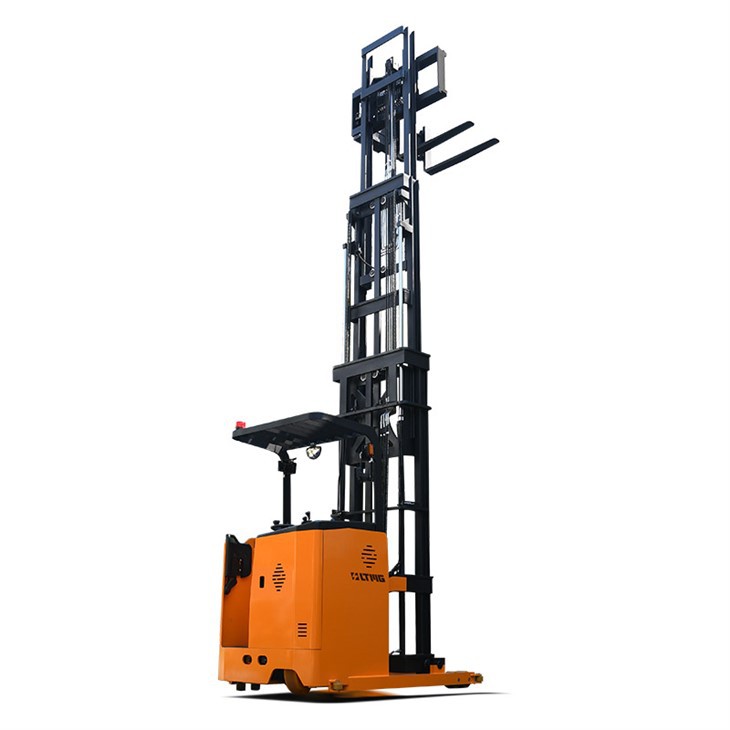

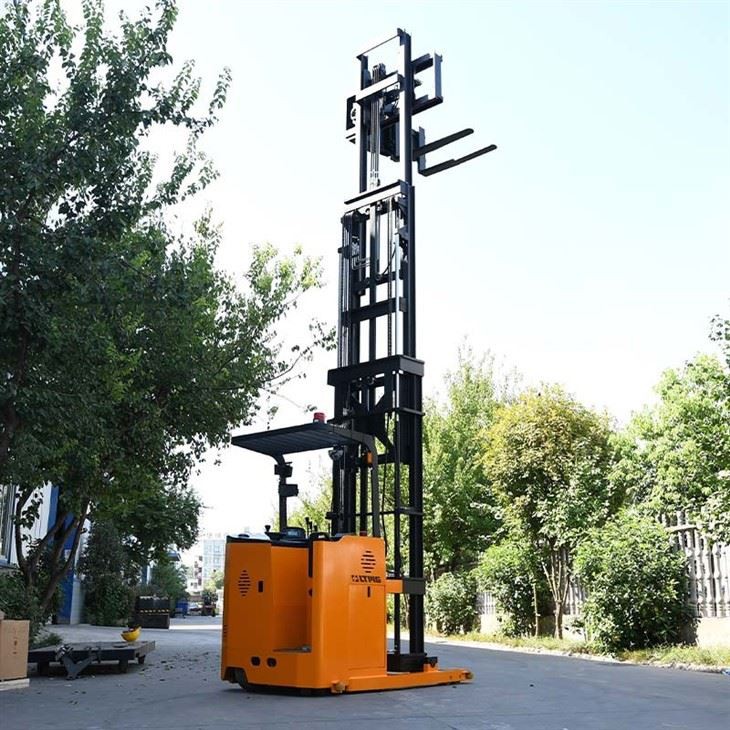

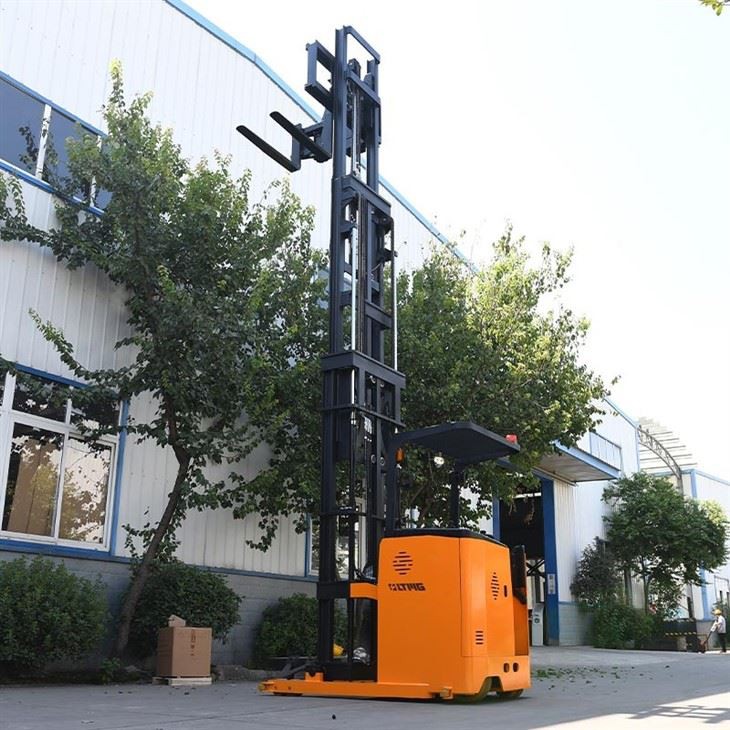

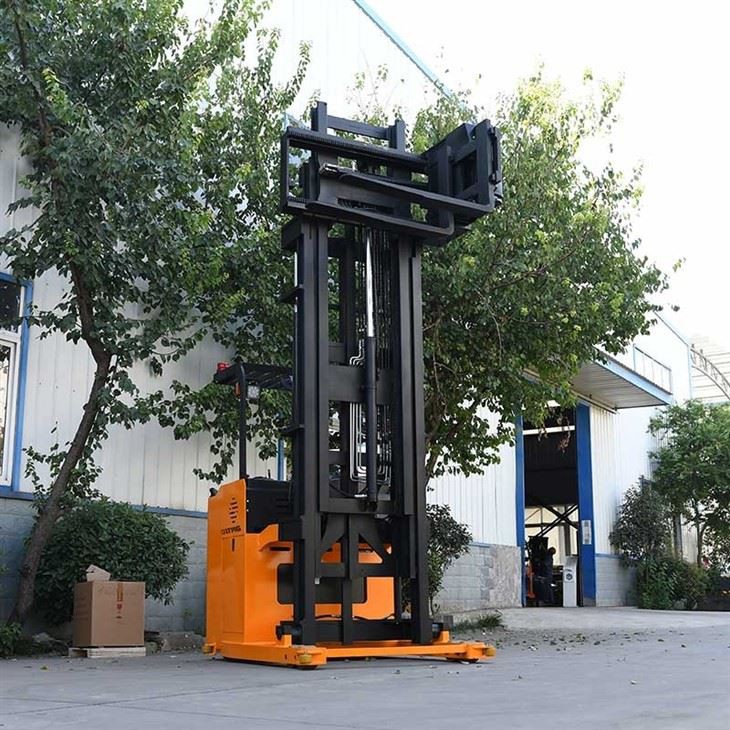

3-Way Pallet Stacker For Warehouse Lifting

Items:1 Ton 3-Way Pallet Stacker Side Standing Type
Power type: electric
Rated capacity: 1000 kg
Color:customized
Send Inquiry
Chat Now

Product Introduction



Looking for a reliable and efficient way to lift pallets in your warehouse? Look no further than our 3-Way Pallet Stacker For Warehouse Lifting! This versatile piece of equipment is designed to streamline your operations and increase productivity, all while keeping your workers safe and comfortable.


One of the key features of our 3-Way Pallet Stacker is its three-way functionality. With the ability to lift, lower, and move pallets in any direction, this stacker is ideal for a variety of warehouse applications. Whether you need to move pallets from one end of the warehouse to the other, or simply lift them up to a higher shelf, our stacker has you covered.


Another important feature of our 3-Way Pallet Stacker is its user-friendly design. With easy-to-use controls and a comfortable, ergonomic seat, your workers can operate the stacker with confidence and efficiency. That means less downtime, fewer accidents, and more throughput for your business.


But that's not all. Our 3-Way Pallet Stacker also boasts durable construction, with a rugged steel frame and powerful hydraulic system that can lift even the heaviest loads with ease. And with a range of safety features built in, including safety sensors and automatic shut-off, you can be sure that your workers and equipment are always protected.


So whether you're looking to streamline your warehouse operations, improve your productivity, or simply keep your workers safe and comfortable, our 3-Way Pallet Stacker is the perfect solution. Contact us today to learn more and to find out how we can help you take your business to the next level.

3 way pallet stacker

3-way electric pallet stacker

narrow aisle truck


Technical parameters



Model FRB10-S
Power type electric
Operation type Side Standing Type
Capacity Q(kg) 1000
Load center C(mm) 500
Total weight including the battery kg <5200
Wheel type Pu solid tire
Driving Wheel Øxw(mm) Ø382*142
front wheel Øxw(mm) Ø145*100
Balance wheel Øxw(mm) Ø180*76
Wheel tread:Front b1O(mm) 1210
Height―Mast Lowered h1(mm) 3165
Free lift height h2(mm) 1980
Max Lifting Height h3(mm) 6000
Max.height h4(mm) 7165
Overhead guard height h14(mm) 2280
Overall length (Fork back/forward) I2(mm) 2680/3780
Overall width b1(mm) 1445
Channel guide width (mm) 1500
Fork dimension s/e/l(mm) 40/122/1070
Fork spread b5(mm) 260-650
Min ground clearance m2(mm) 32
Channel shelf width Ast(mm) 1600 (1000*1000)
Channel guide height (mm) 120
Turning radius Wa(mm) 1910
Main channel width mm 3410
Max travel speed(No load /Full) km/h 8/7
Lifting speed (No load /Full) m/s 0.275/0.215
Lowered speed (No load /Full) m/s 0.150/0.195
Brake form Electromagnetic braking
Driving motor kw 6.5
Lifting motor kw 7.5 DC
Battery type Lead acid battery
Battery capacity V/Ah 48/400
Charger-Intelligent V/A 48/50
Drive control mode communication
product detail



1 Ton 3-Way Pallet Stacker Side Standing Type 10m

About FRB10-S



3 way pallet stacker battery

advantage



curtis controller






FAQ

Q: Is it easy to operate a 3-way pallet stacker?

A:Yes, most 3-way pallet stackers are designed to be easy to operate. They typically come with user-friendly controls and require minimal training to operate, making them ideal for use in busy warehouse environments.

Q: What are the main benefits of using a 3-way pallet stacker in a warehouse?

A: Some of the main benefits of using a 3-way pallet stacker in a warehouse include increased productivity, reduced labor costs, improved safety, and greater versatility when it comes to moving and storing goods.

Q: How do I choose the right 3-way pallet stacker for my warehouse needs?

A: When selecting a 3-way pallet stacker for your warehouse, consider factors such as weight capacity, maneuverability, lifting height, and overall durability. It's also a good idea to work with a reputable manufacturer or supplier who can help you find the right machine for your specific needs and budget.
