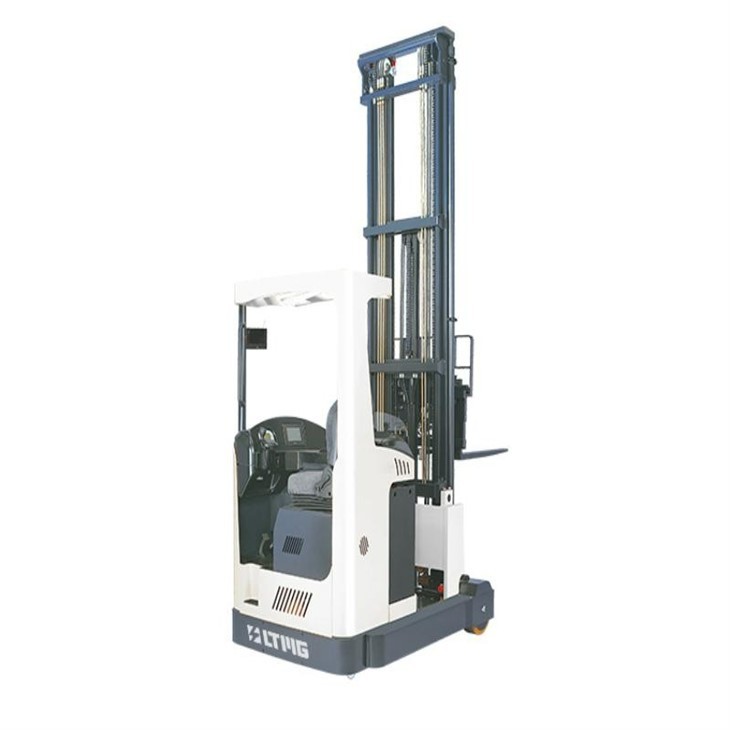

The 2 ton cold storage electric reach truck is a versatile and reliable solution for transporting and handling chilled goods. Designed with a focus on stability, efficiency, and operator comfort, this electric forklift truck provides exceptional performance in refrigerated environments.
1. Sturdy Chassis: The forklift truck is built with a robust and spacious chassis to ensure stability and durability even when handling heavy loads in challenging conditions.
2. High-Quality Imported Mast: Equipped with a premium imported mast, our forklift offers smooth and precise lifting operations, enabling efficient loading and unloading of refrigerated goods.
3. Comfortable Operator Cabin: The ergonomically designed cabin provides a comfortable environment for operators, reducing fatigue during long shifts. The adjustable seat ensures optimal seating position for enhanced productivity.
4. Dual Electric Controls: The forklift truck features dual electric controls, allowing seamless and stepless speed adjustment for both cargo lifting and forklift movement. This feature enhances operational efficiency and ensures precise control.
5. High-Level Speed Limit: With a built-in high-level speed limit setting, the forklift guarantees safe operations during high-level tasks, providing additional safety assurance for tasks performed at height.
6. Hydraulic Power Steering System: The fully hydraulic power steering system enables effortless maneuverability, enhancing operator control and reducing the physical strain on the operator.
7. Optional accessories such as electronic steering system, electronic multi-way valve, LED display panel, camera system, etc. are available to enhance the working efficiency.
The electric refrigerated forklift truck is suitable for a range of applications in cold storage environments, including:
- Warehouses and distribution centers handling refrigerated goods
- Food and beverage processing facilities
- Pharmaceutical and biomedical storage facilities
- Supermarkets and grocery stores with a need for efficient cold chain logistics
With its robust construction, precise controls, and operator comfort features, the 2 ton cold storage electric reach truck is an ideal solution for any cold storage operation that requires reliable, efficient, and safe handling of chilled goods.
Technical parameters
Model | FRB20 | |
Drive type | Electric | |
Driving mode | Seated | |
Rated load | Q(kg) | 2000 |
Load center distance | c(mm) | 600 |
Self-weight(with battery) | kg | 3440/3490/3520/3690/3810/3900 |
Wheel | PU | |
Gantry/forks - front/rear camber | ° | 2.2 |
Height with gantry retracted | m(mm) | 2240/2490/2740/2240/2740/3190 |
Free lift height | mm | 0/0/0/1700/2100/2500 |
Lifting height | ha(mm) | 3000/3500/4000/5000/6200/7400 |
Maximum height of gantry during operation | mm | 3800/4300/4800/5800/7000/8200 |
Height of roof rack (cab) | ha(mm) | 2200 |
Overall length | mm | 2450 |
Fork length | (mm) | 1380 |
Body width | mm | 1260/1260 |
Fork size | s/e/l(mm) | 40/120/1070 |
Fork width | mm | 928 |
Fork outer width | bs(mm) | 680 |
Inside leg width | mm | 900 |
Move forward distance | 4(mm) | 600 |
Ground clearance at center of wheelbase | mm | 80 |
Aisle width, pallet 1000x1200 (200 placed across the forks) | Ast(mm) | 2880 |
Aisle width seat, pallet 800x1200 (1200 along forks) | mm | 2930 |
Turning radius | Wa(mm) | 1820 |
Vehicle length | mm | 1950 |
Travel speed, full/no load | Km/h | 8/8.3 |
Lifting speed, full/no load | m/s | 0.24/0.3 |
Lowering speed, loaded/unloaded | m/s | 0.4/0.3 |
Forward speed, loaded/unloaded | m/s | 0.1 |
Climbing capacity, loaded/unloaded | % | 10 |
Acceleration time, loaded/unloaded | s | 5 |
Traveling brake | hydraulic brake | |
Battery voltage/rated capacity | V/Ah | 48/500 |
Battery dimensions (LxWxH) | mm | 1220x344x727 |
