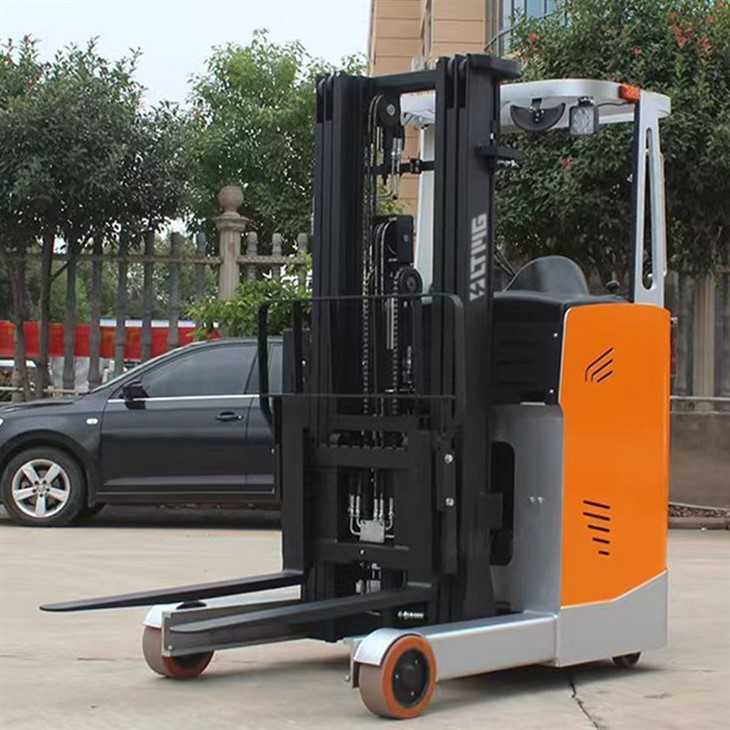

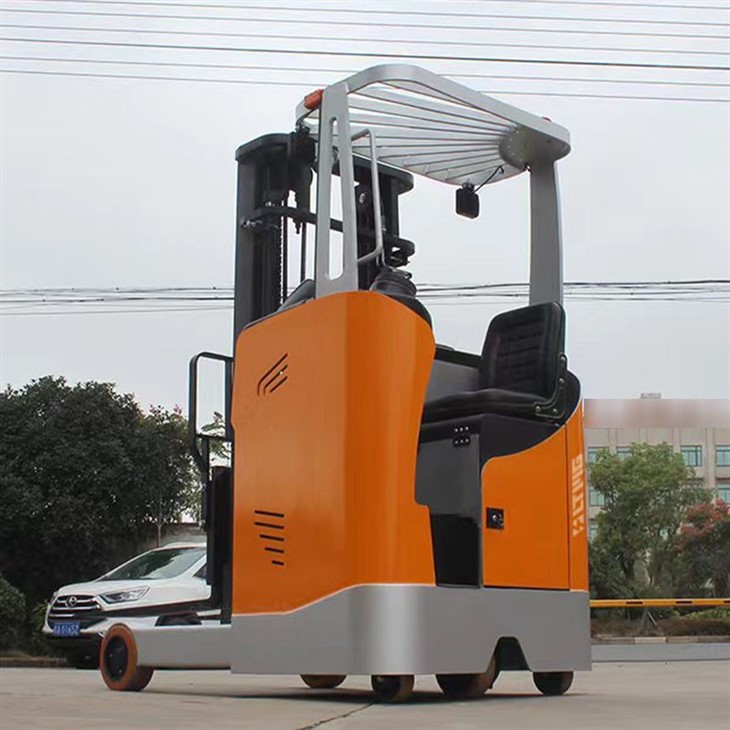

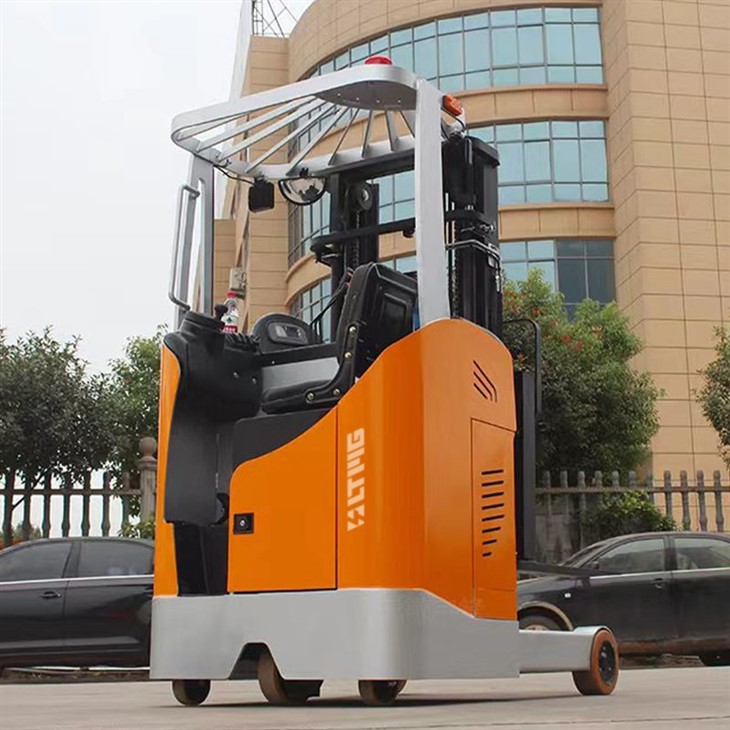

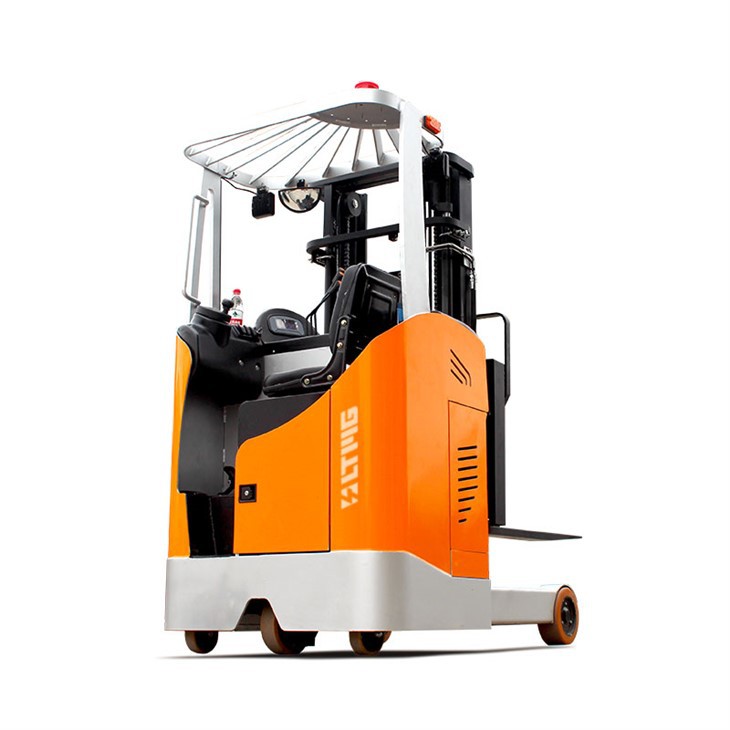

Sit-down Reach Truck Battery operated forklift and narrow aisle reach truck are two great innovations in the world of material handling equipment. These machines have revolutionized the way goods are stored and transported within a warehouse or distribution center.
The reach truck forklift offers increased maneuverability and versatility compared to traditional forklifts. Its compact design allows operators to navigate through narrow aisles and tight spaces with ease. This makes it ideal for use in warehouses with high-density storage and limited floor space. With its extended reach, it can also handle pallets and loads at greater heights.
Similarly, the narrow aisle reach truck has a narrow chassis that can move in even narrower aisles. This machine has a higher reach capability and can lift loads to a greater height. Its narrow design allows for more efficient use of space, allowing warehouses to store more goods in the same area.
Both reach truck forklifts and narrow aisle reach trucks are equipped with advanced safety features such as load sensors, anti-collision systems, and ergonomic controls to keep operators safe and make the work process easier. Additionally, these machines are environmentally friendly, with energy-saving features that reduce fuel consumption and emissions.
In conclusion, reach truck forklifts and narrow aisle reach trucks are innovative pieces of equipment that have transformed the material handling industry. They offer increased efficiency, safety, and environmental friendliness, making them an excellent investment for businesses looking to improve their operations.
Technical parameters
Model | FRB25 | |||
Performance | Maximum load capacity | kg | 2500 | |
Load center | Q | mm | 500 | |
Maximum lifting height | H3 | mm | 1600 | |
Reach Distance | E | mm | 640 | |
Tiltiing angle (up/down) | S | 3/5 | ||
Travel speed (without load) | km/h | 8 | ||
Travel speed (with load) | km/h | 7 | ||
Lifting speed (without load) | mm/h | 270 | ||
Lifting speed (with load) | mm/h | 150 | ||
Ascend slope ability (without load ) | % | 15 | ||
Ascend slope ability (with load ) | % | 8 | ||
Weight (without battery) | kg | ~3050 | ||
Dimensions | Overall length of frame(mast no reach) | L | mm | 1990 |
Overall length (mast no reach) | L1 | mm | 2520 | |
Overall length (mast reach) | L2 | mm | 3080 | |
Overall width of frame | B | mm | 1270 | |
Overhead guard height | mm | 2190 | ||
Mast lowered height | H1 | mm | 2200 | |
Max height(mast lifted with backrest) | H2 | mm | 2650 | |
Wheelbase | Y | mm | 1610 | |
Fork width | mm | 100/40/1070 | ||
Fork spread width | mm | 210-830 | ||
Fork lowered height | W1 | mm | 40 | |
Turning radius | Wa | mm | 1890 | |
Min intersecting aisle width | Asts | mm | 2790 | |
Tire | Front wheel | mm | 267*114 | |
Drive wheel | mm | 340*130 | ||
Wheel material | polyurethane | |||
Electrical components | Drive motor type | AC motor | ||
Rated output | kw | 5 | ||
Hoist motor type | DC motor | |||
Rated output | kw | 6.3 | ||
Battery | Voltage | V | 48 | |
Capacity | AH | 440 | ||
Weight | kg | 486 |
advantages
Original Curtis Controller:
The Curtis controller is a high-quality component that has proven to be reliable and durable, ensuring that the forklift operates efficiently and consistently. This feature has been designed with the operator in mind, providing a simple and intuitive user interface that ensures optimal performance and safety.
EPS:
The Sit-down Reach Truck Forklift equip with EPS steering+one switch change mode+multi-funtional instrument with driving wheel position display+soft cushion;
Battery:
Side-pull battery,easy to replace and repair the battery.
features
FAQ
Q: Why Choose Us?
Q: Can we customize machines to meet our unique requirements, or even add our logo?
Q: What is LTMG payment term of the reach truck ?
Q: Do you think your price is competitive
