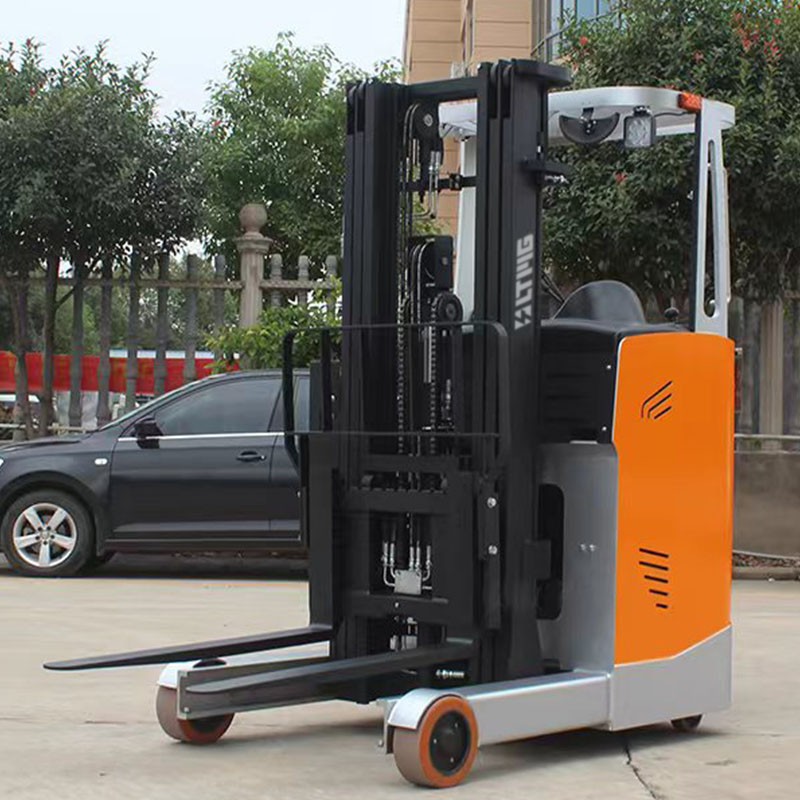

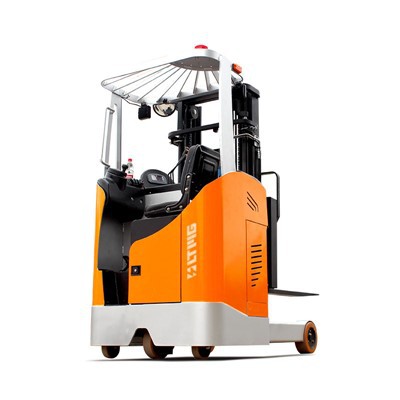

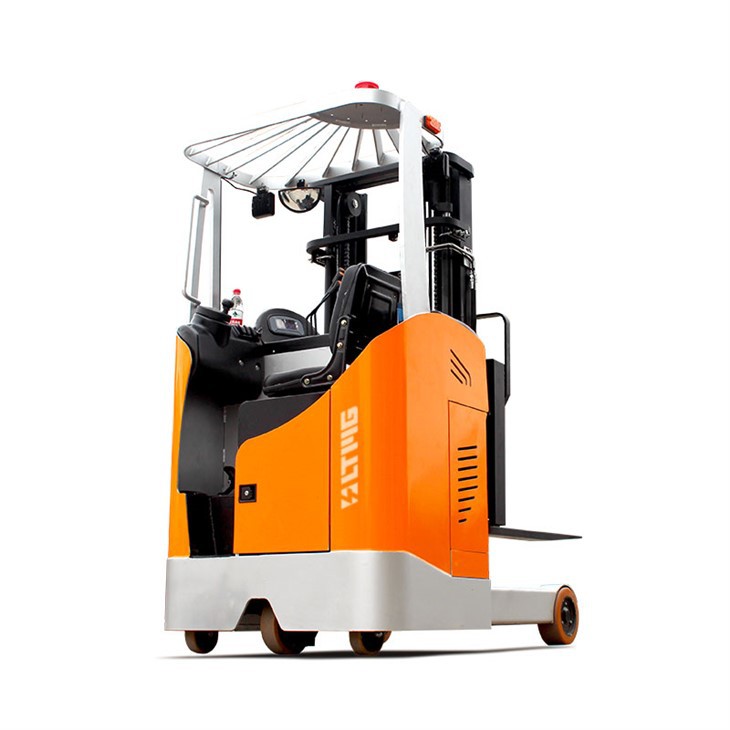

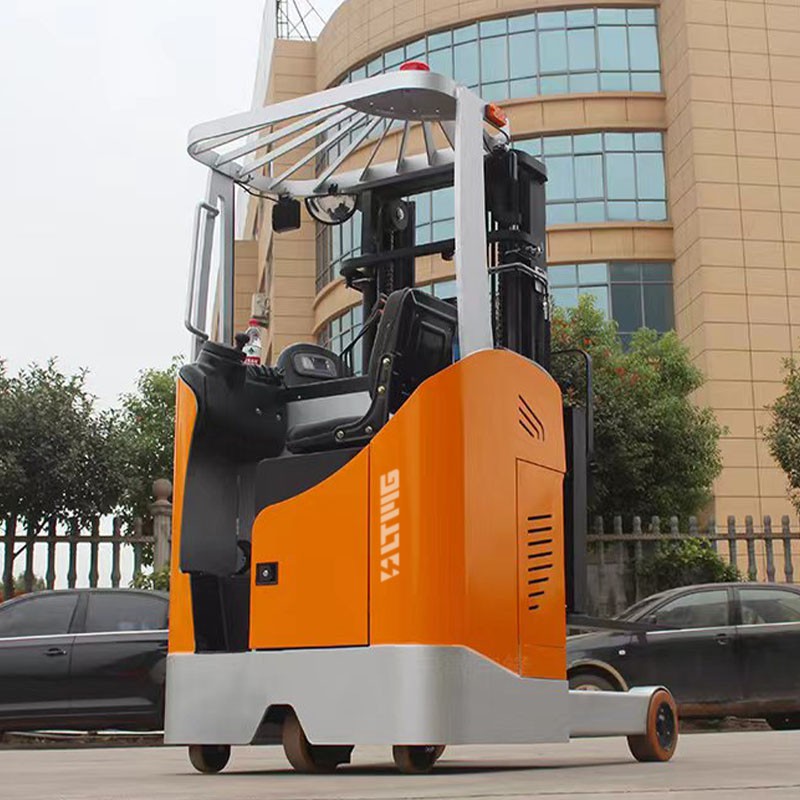

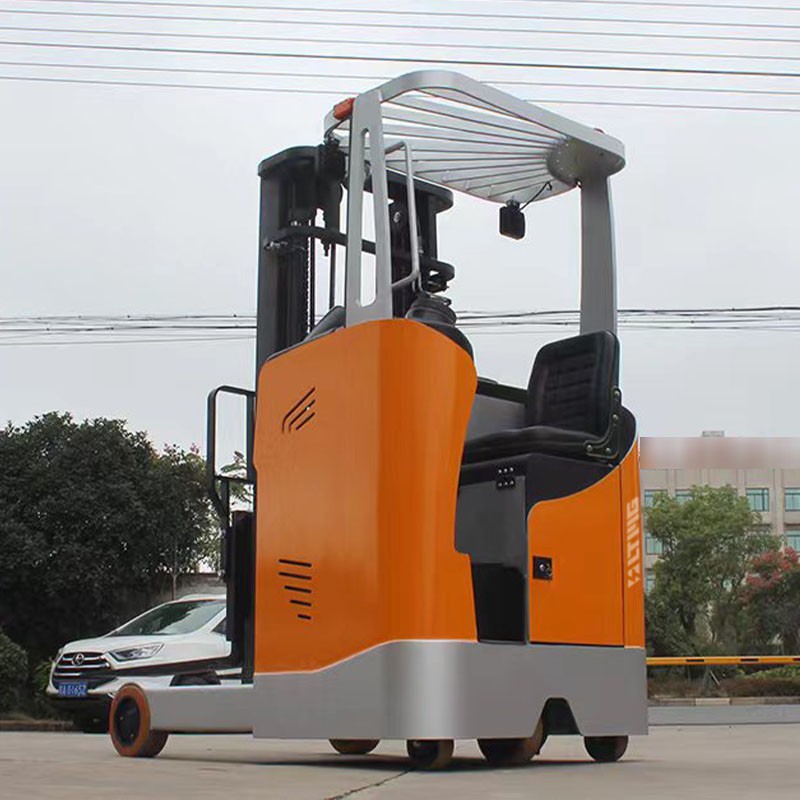

The 2.5 Ton Sit-down Reach Truck Forklift is one of the most efficient solutions for handling heavy goods in a warehouse or industrial environment. Its unique design and innovative features make it an ideal choice for various industries.
Technical parameters
| Model | FRB25 | |||
| Performance | Maximum load capacity | kg | 2500 | |
| Load center | Q | mm | 500 | |
| Maximum lifting height | H3 | mm | 1600 | |
| Reach Distance | E | mm | 640 | |
| Tiltiing angle (up/down) | S | 3/5 | ||
| Travel speed (without load) | km/h | 8 | ||
| Travel speed (with load) | km/h | 7 | ||
| Lifting speed (without load) | mm/h | 270 | ||
| Lifting speed (with load) | mm/h | 150 | ||
| Ascend slope ability (without load ) | % | 15 | ||
| Ascend slope ability (with load ) | % | 8 | ||
| Weight (without battery) | kg | ~3050 | ||
| Dimensions | Overall length of frame(mast no reach) | L | mm | 1990 |
| Overall length (mast no reach) | L1 | mm | 2520 | |
| Overall length (mast reach) | L2 | mm | 3080 | |
| Overall width of frame | B | mm | 1270 | |
| Overhead guard height | mm | 2190 | ||
| Mast lowered height | H1 | mm | 2200 | |
| Max height(mast lifted with backrest) | H2 | mm | 2650 | |
| Wheelbase | Y | mm | 1610 | |
| Fork width | mm | 100/40/1070 | ||
| Fork spread width | mm | 210-830 | ||
| Fork lowered height | W1 | mm | 40 | |
| Turning radius | Wa | mm | 1890 | |
| Min intersecting aisle width | Asts | mm | 2790 | |
| Tire | Front wheel | mm | 267*114 | |
| Drive wheel | mm | 340*130 | ||
| Wheel material | polyurethane | |||
| Electrical components | Drive motor type | AC motor | ||
| Rated output | kw | 5 | ||
| Hoist motor type | DC motor | |||
| Rated output | kw | 6.3 | ||
| Battery | Voltage | V | 48 | |
| Capacity | AH | 440 | ||
| Weight | kg | 486 | ||
advantages

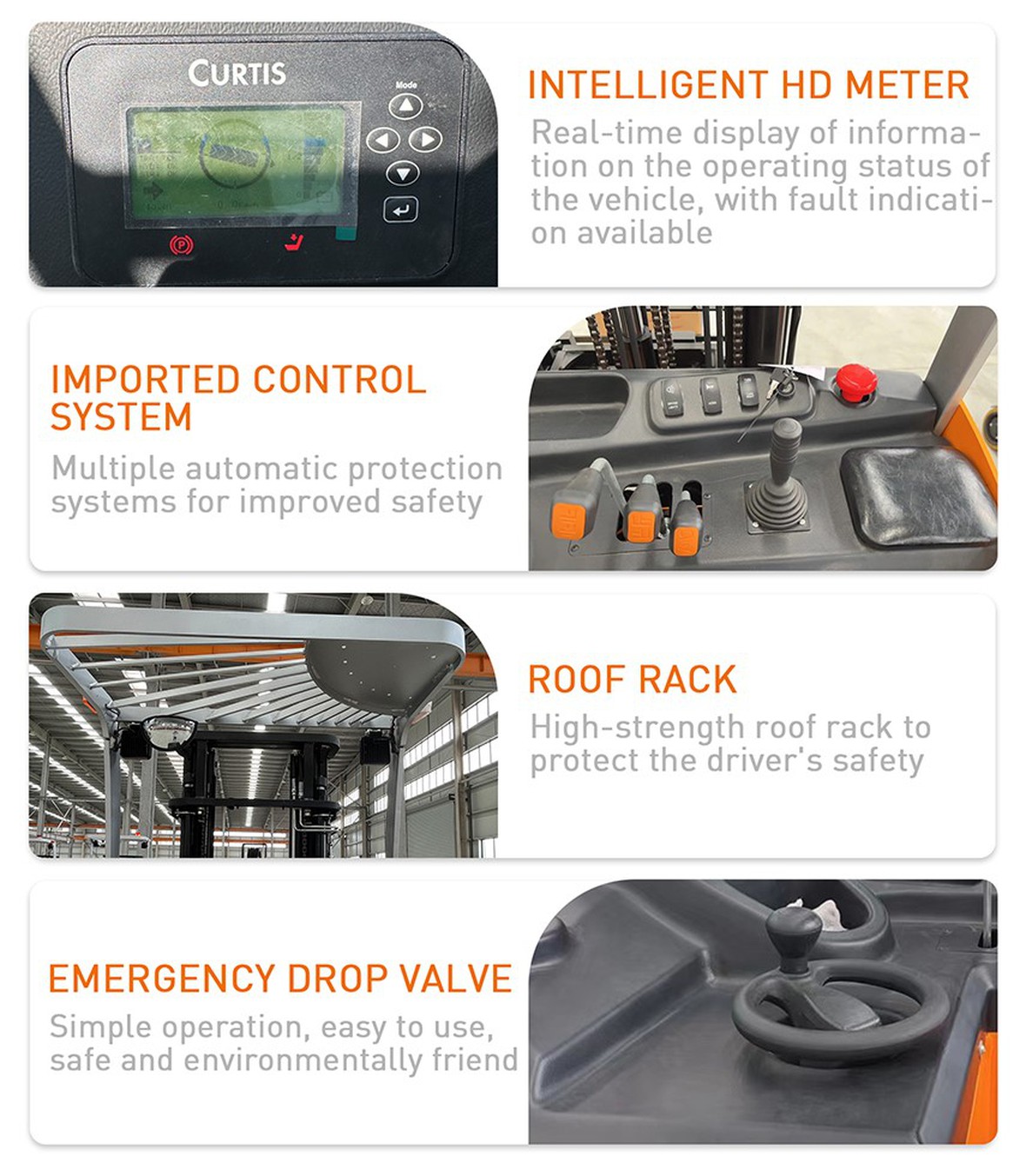

Original Curtis Controller:
The Sit-down Reach Truck Forklift is equipped with an original Curtis controller, which ensures smooth and precise control over the vehicle. The Curtis controller is a high-quality component that offers excellent performance, reliability and durability.
Good Field of View:
The Sit-down Reach Truck Forklift is designed with an excellent field of view, which allows the operator to have a clear view of the surroundings. This feature ensures safety during the operation of the vehicle and helps to prevent accidents.
LED Lights/Mirror/Battery/Charger are Including:
The Sit-down Reach Truck Forklift comes equipped with LED lights, a mirror, battery and charger. The LED lights provide better visibility in low-light conditions, while the mirror helps in better maneuverability. The battery and charger ensure that the vehicle is always ready for use.
features
Optional Side Shift, Lithium Battery:
The Sit-down Reach Truck Forklift comes with an optional side shift feature. This feature allows the operator to move the load left or right without making any adjustments to the vehicle. The Lithium battery ensures that the vehicle has a longer runtime and shorter charging cycles.
Color Can be Choose Per Your Request:
The Sit-down Reach Truck Forklift can be customized to suit your requirements. You can choose the color of the vehicle based on your preference.
EPS:
The Sit-down Reach Truck Forklift is equipped with an EPS (Electronic Power Steering) system. This feature ensures that the operator can easily maneuver the vehicle in tight spaces.
Imported German Mahle Pump Motor:
The Sit-down Reach Truck Forklift comes with an imported German Mahle pump motor. This motor is a high-quality component that offers excellent performance and durability.
In conclusion, the 2.5 ton sit-down reach truck forklift is aideal for various industries such as logistics, warehousing, manufacturing, and more. Its unique features make it an ideal choice for various industries. Its compact design makes it suitable for use in narrow aisles, while its excellent field of view ensures that the operator can safely navigate the vehicle.
