Products Description

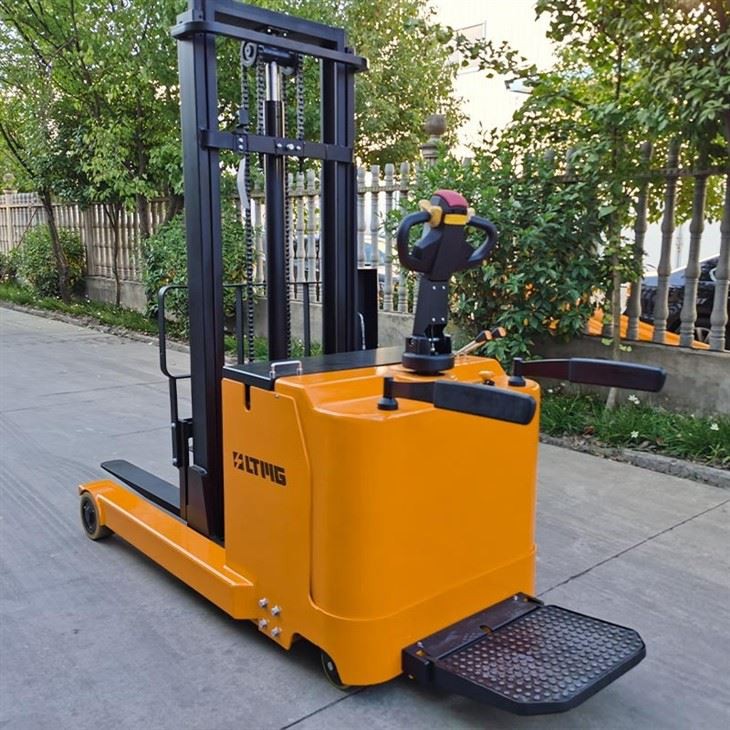

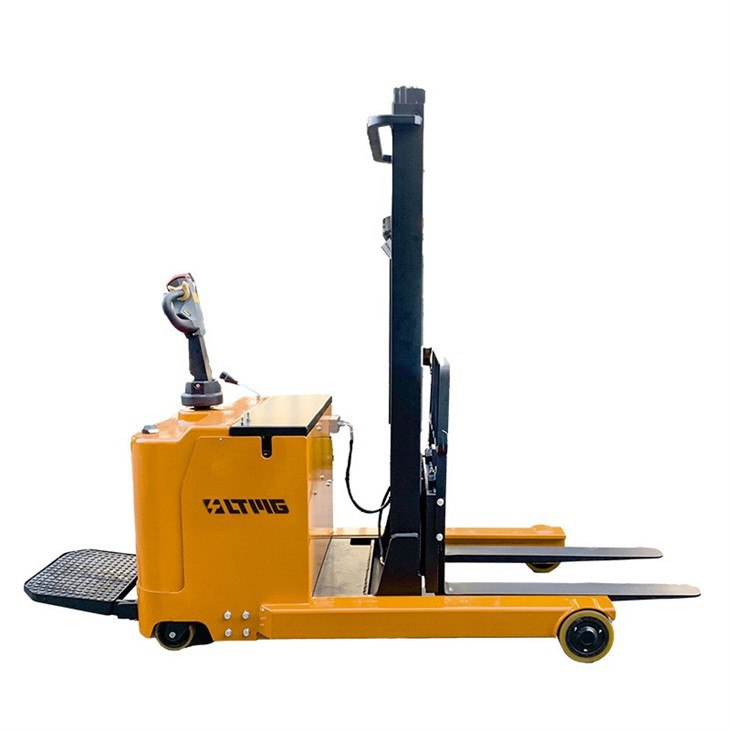

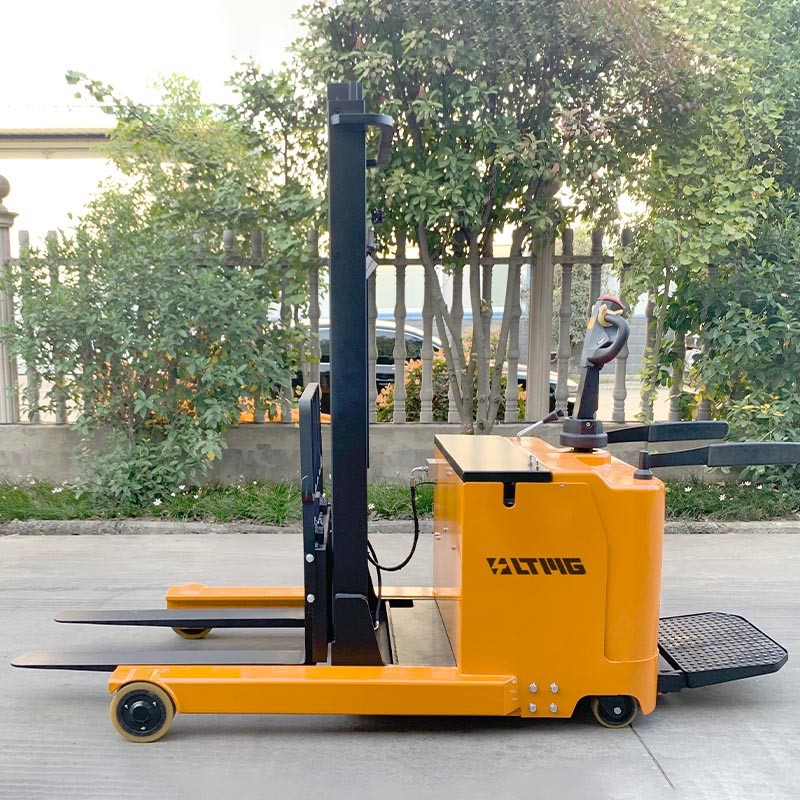

1. Compact Structure and Small Turning Radius: The narrow aisle small reach truck boasts a compact design, allowing it to navigate through tight spaces with ease. Its small turning radius ensures exceptional maneuverability, making it ideal for warehouses and distribution centers with limited aisle widths. With this reach truck, you can maximize your storage capacity without compromising on maneuverability.
2. Adjustable Mast with Forged Forks: Our reach truck features an adjustable mast that allows for efficient lifting and lowering of loads. The mast reaches to different heights, accommodating various racking systems and providing easy access to pallets at different levels. The forged fork design ensures high durability and enables the handling of different pallet sizes and types, making it suitable for a wide range of applications.
3. AC Drive Motor with No Carbon Brush: The reach forklift is equipped with an advanced AC drive motor. This motor technology offers several advantages over traditional DC motors, including enhanced efficiency, reduced maintenance requirements, and extended battery life. With no carbon brush system, the reach truck ensures smooth and quiet operations while eliminating the need for regular brush replacements, resulting in cost savings and increased uptime.
4. Ergonomic Design and Operator Comfort: The reach truck forklift is designed with ergonomics in mind, prioritizing operator comfort and safety. The controls are intuitively placed for easy operation, reducing operator fatigue during long shifts. The cabin provides excellent visibility for enhanced safety while operating in narrow aisles. Additionally, the reach truck incorporates adjustable seating and ergonomic features to minimize operator discomfort and optimize productivity.
5. Intelligent Control System: the reach truck comes equipped with an intelligent control system that provides precise and responsive handling. This system includes features such as regenerative braking, which helps to maximize energy efficiency, and advanced safety features like automatic speed reduction when steering and lifting.
6. Enhanced Safety Features: Safety is paramount in any material handling operation. The reach truck includes multiple safety features, such as sensors that detect obstacles and automatically slow down or stop the truck, ensuring the protection of goods, operators, and the surrounding environment. Additionally, the reach truck is equipped with stability control mechanisms that enhance stability during lifting and maneuvering operations.
Products parameters
| Characteristics | Model | TRS15 | ||
| Power type | Electric | |||
| Operation type | Stand Type | |||
| Load capacity | Q(kg) | 1500 | ||
| Load center | C(mm) | 500 | ||
| Load distance,centre of drive axle to fork | X(mm) | 155 | ||
| Wheelbase | Y(mm) | 1335 | ||
| Reach distance | L(mm) | 500 | ||
| Weight | Service Weight (with Battery) | kg | 1875 | |
| Wheels, Chassis |
Wheel type | PU | ||
| Drive wheel | の×w(mm) | φ230*75 | ||
| Front wheel | の×w(mm) | φ210*85 | ||
| Rear wheel | の×w(mm) | φ150*50 | ||
| Wheel tread,Front wheel | b10(mm) | 735 | ||
| Wheel tread,rear wheel | b11(mm) | 945 | ||
| Dimensions | Mast Height,Lowered | h1(mm) | 1845 | |
| Lifting height | h3(mm) | 2500 | ||
| Max.height when lifting | h4(mm) | 3470 | ||
| Fork face min.ground clearance | h13(mm | 35 | ||
| Fork tilting angle Front/rear | 3/5 | |||
| Bodylength | 12(mm) | 1615 | ||
| Overall Length | L1(mm) | 1734/2276 | ||
| Overall width | b1(mm) | 1034 | ||
| Fork size | s/e/l(mm) | 35/100/1070 | ||
| Fork Spread | b5(mm) | 210-680 | ||
| Min.ground clearance | m2(mm) | 70 | ||
| Aisle Width for Pallet 1000*1200 crossways | Ast(mm) | 2681 | ||
| Aisle Width for Pallet 1200*1000 crossways | Ast(mm) | 3083 | ||
| Min.turning radius(without/with platform) | Wa(mm) | 1652/2053 | ||
| Performance | Max.travel speed(Unladen/Laden) | km/h | 5/4 | |
| Lifting speed(Unladen/Laden) | m/s | 0.112/0.095 | ||
| Lowering speed(Unladen/Laden) | m/s | 0.094/0.110 | ||
| Max.Grade ability(Unladen/Laden) | % | 8/5 | ||
| Drive Motor | kw | 1.5 | ||
| Lift Motor | kw | 2.2 | ||
| BatteryType | Lead Acid | |||
| Battery voltage/nominal capacity | V/Ah | 24/210 | ||
| Charger | V/A | 24/30 | ||
Products details
Products feedback
Products Description
Q: What is a narrow aisle small reach truck?
Q: What is the advantage of a narrow aisle small reach truck over a conventional forklift?
Q: How does the mast reach function work?
