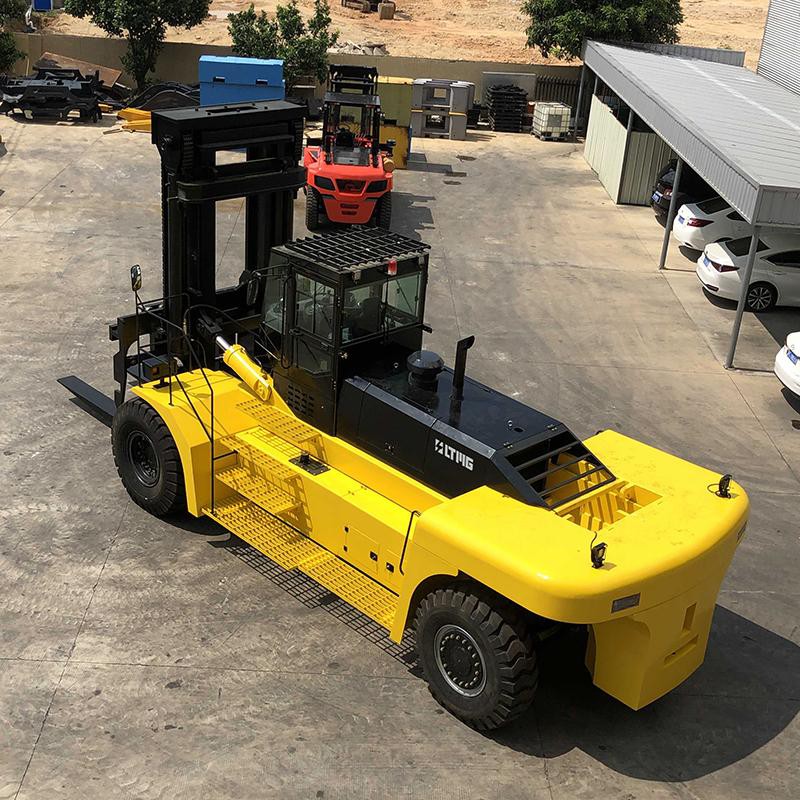

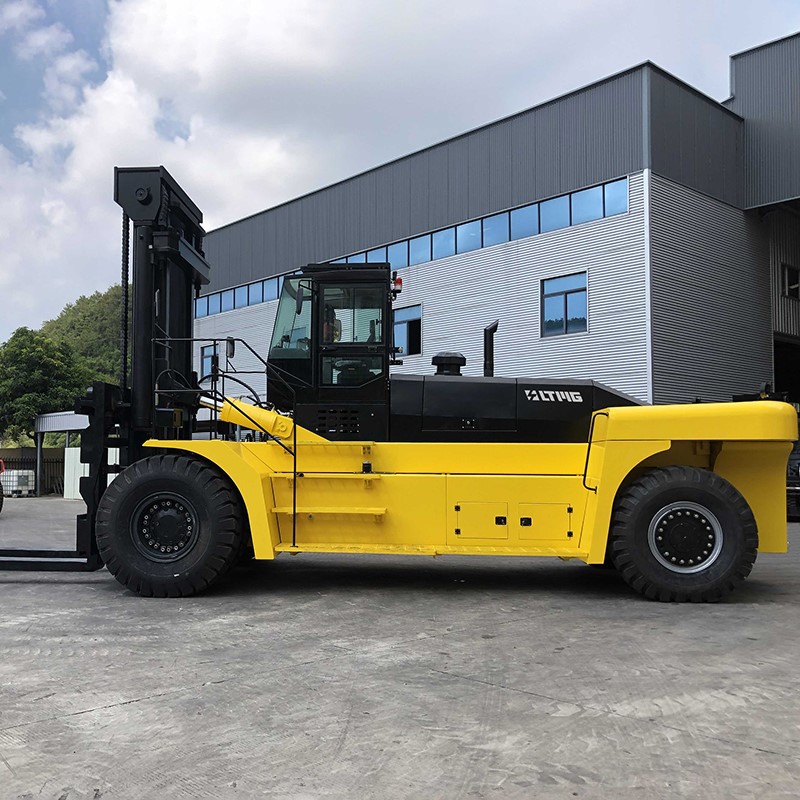

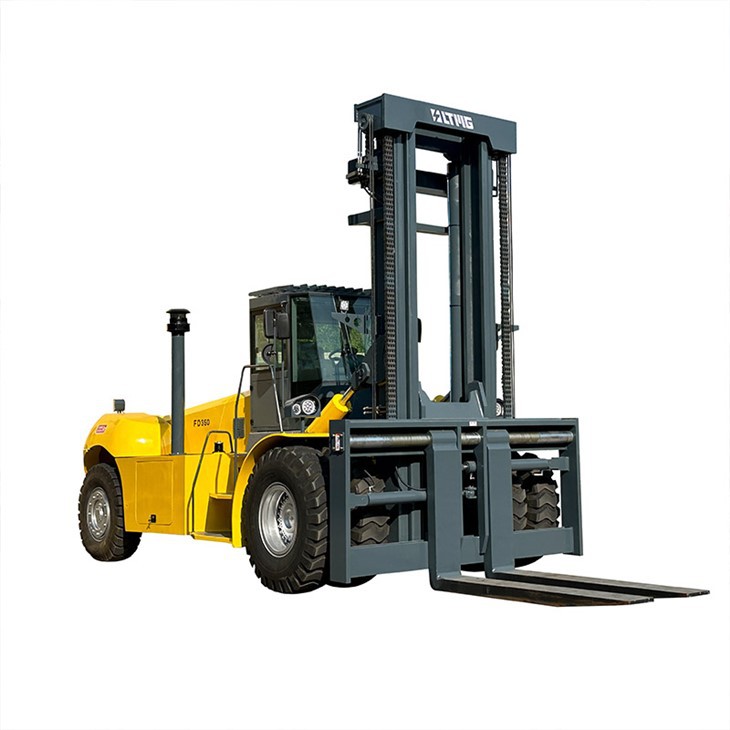

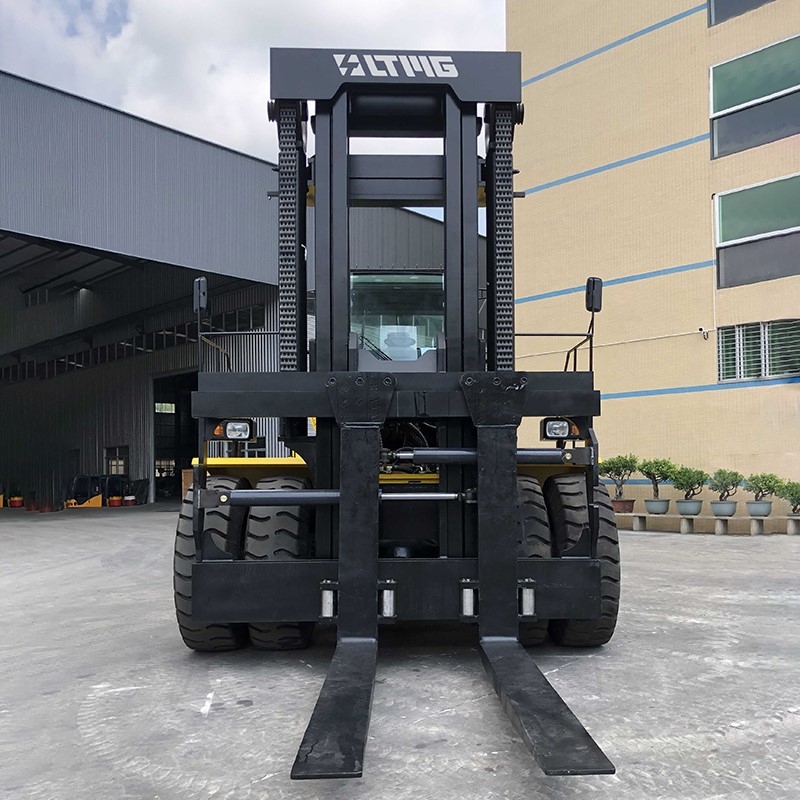

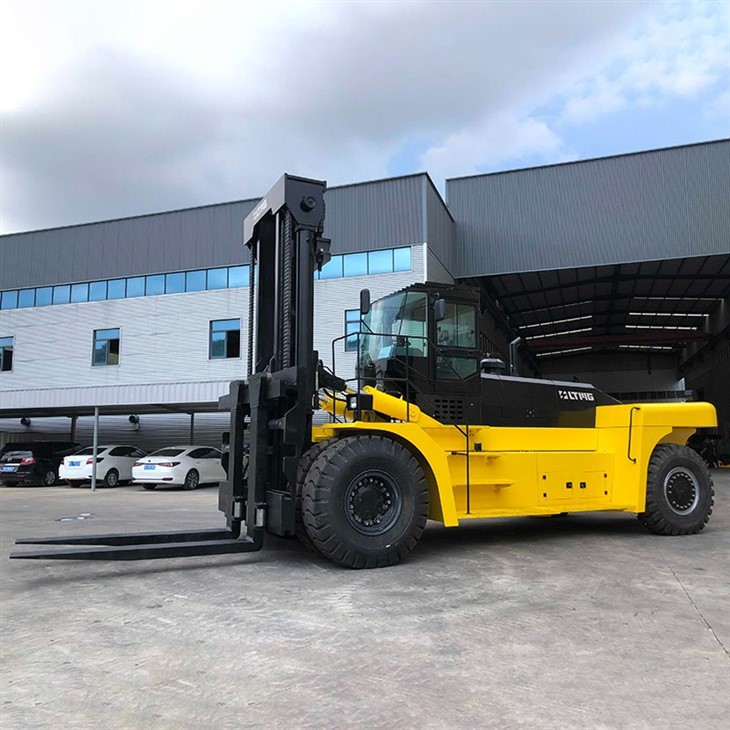

Name: LTMG Heavy Duty Forklift Trucks
Brand: LTMG
SKU: 229731970

1. Streamlined Body System: LTMG heavy duty forklift trucks feature a novel streamline shape body system, designed to enhance aerodynamics and improve overall maneuverability. This sleek design not only adds to the aesthetics but also contributes to the truck's efficiency and performance.

2. Sturdy Mast for Enhanced Visibility: The forklifts boast a robust mast structure that provides excellent durability and stability. This sturdy design ensures reliable lifting capabilities, even in demanding environments. Moreover, the mast design offers enhanced visibility for the operator, allowing them to maneuver the truck with confidence and accuracy.

3. Premium Imported Sealings for Hydraulic System: LTMG prioritizes quality, and that is exemplified in the choice of imported sealings for the hydraulic system. These sealings ensure outstanding sealing performance, reducing the risk of oil leaks and maintaining the hydraulic system's efficiency. By utilizing high-quality components, LTMG guarantees excellent reliability and longevity.

4. Multi-level Safety Protection: The vehicles come equipped with multi-level safety protection measures for the engine, transmission, and hydraulic system. These safety features prevent potential accidents and minimize risks, providing enhanced safety for both operators and the overall operation.

ltmg heli fork trucks

industrial vehicle

high capacity forklift

Products Parameter

Model	FD500
Power Type/model	Diesel
Rated Capacity	50000kg
Load Center	1250mm
Lift Height	4000mm
Fork Size(LxWxT)	2600×300×130mm
Fork Spread(outside)(Min./Max)	910/2830mm
Fork Overhang	6·/12·deg
Overall Width	8170mm
Mast Lowered Height	3600mm
Overhead Guard Height	5040mm
Max.gradeability(Load)	410mm
Maximum gradeability	20%
Max.drawbar pull(Load)	240KN
Ground Clearance(Under mast)	400mm
Voltage/Capacity(5HR)	2X12/150VA/H
Tread	891/920mm
Engine Rated output	276KW
Fuel tank capacity	49L

With technological innovation, our product configuration and parameters will continue to change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail;

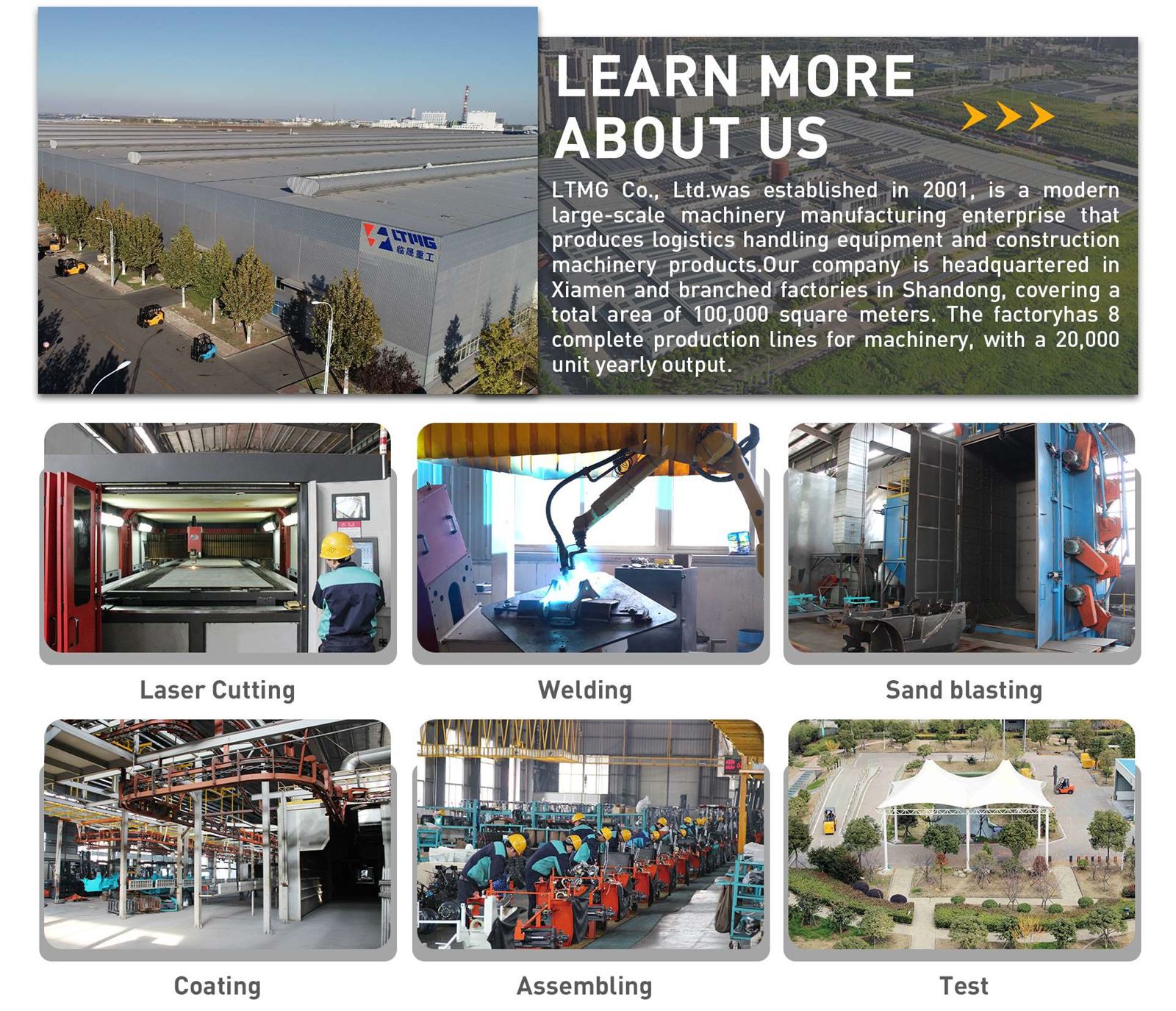

About LTMG machinery

LTMG forklift manufacturer

FAQ

Q: What types of attachments can be used with heavy-duty forklifts?

A: Heavy-duty forklifts can be equipped with various attachments to enhance their versatility and efficiency. Common attachments include side shifters, fork positioners, clamps, rotators, and extensions. These attachments allow forklifts to handle different types of loads, such as pallets, drums, coils, and containers.

Q: Are high capacity forklift safe to operate?

A: It often feature multiple safety systems, such as advanced braking systems, operator visibility enhancements, and stability control mechanisms. However, it's important to provide proper operator training and follow safety guidelines to minimize risks and ensure safe operations.

Q: HWhat is the global reach of LTMG's products?

A: Currently, LTMG products have been exported to more than 180 countries and have more than 50 agents, forming a perfect sales and after-sales service network around the world.

Q: What production equipment does LTMG have?

A: LTMG has professional production and assembly lines, as well as CNC flame cutting equipment, laser cutting machines, robot welding and other specialized equipment.
