lPG Advantage
LPG forklifts, which are fueled by propane and butane gas stored in pressurized tanks, are known for their relatively low emissions, making them a popular choice for indoor applications concerned about air quality. They emit fewer particulates and greenhouse gases than diesel vehicles and are therefore more compliant with stricter environmental regulations. In addition, LPG engines tend to start quickly and operate more quietly in cold weather, which is advantageous in noise-sensitive environments.
Fuel economy is another point of comparison. While diesel engines traditionally offer higher energy density, LPG forklifts can be more cost-effective over time depending on fuel prices and usage patterns. Maintenance costs also vary; diesel forklifts may require more frequent fluid changes and particulate filter replacement, whereas LPG forklifts focus more on gas cylinder inspection and upkeep.
Forklift Hydraulic Parts
Forklift hydraulic parts play a critical role in the functionality and performance of forklift trucks. The hydraulic system in a forklift constitutes the backbone of its lifting and moving capabilities. It is a closed-loop system composed of various interconnected components, including pumps, valves, hoses, actuators (cylinders), and reservoirs filled with hydraulic fluid.
The hydraulic pump generates the power needed to convert mechanical energy from the forklift's engine into hydraulic pressure. This pressure drives the hydraulic cylinders, which are responsible for extending and retracting the forks. When activated, the cylinders apply force to raise or lower the lifting carriage and forks, enabling the forklift to pick up, carry, and deposit loads of various weights and sizes.
certificate
Our Liquefied Petroleum Gas (LPG) forklift trucks have successfully secured CE certification, thereby guaranteeing their compliance with the rigorous European Union safety, performance, and environmental directives applicable to industrial machinery. This esteemed accreditation attests to the meticulous design, testing, and manufacturing processes of our LPG forklifts, ensuring that they meet the highest quality benchmarks required for operation within the European marketplace. With the acquisition of the CE mark, our forklifts explicitly demonstrate their fitness for purpose in Europe, catering to the diverse needs of clients who value compliance, safety, and efficiency in their material handling operations.

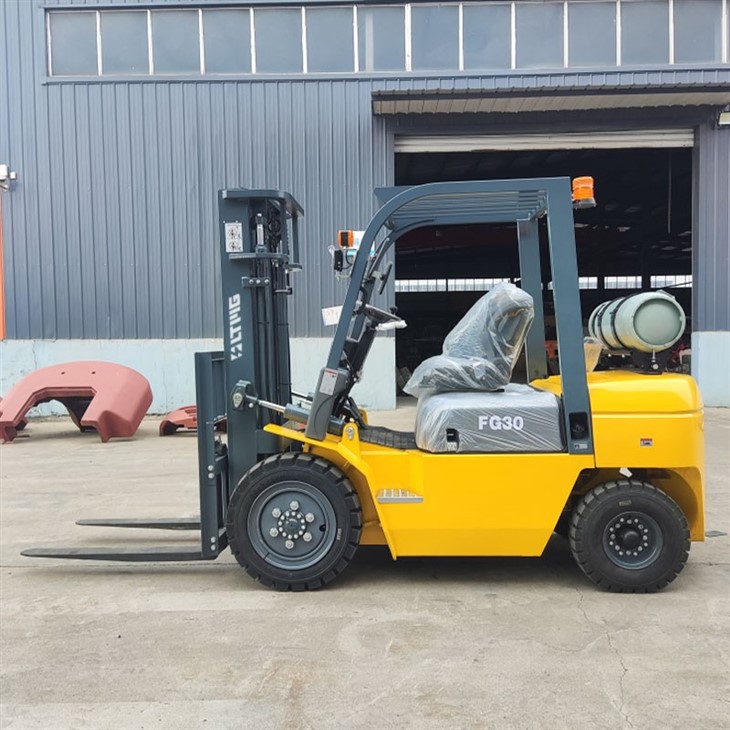

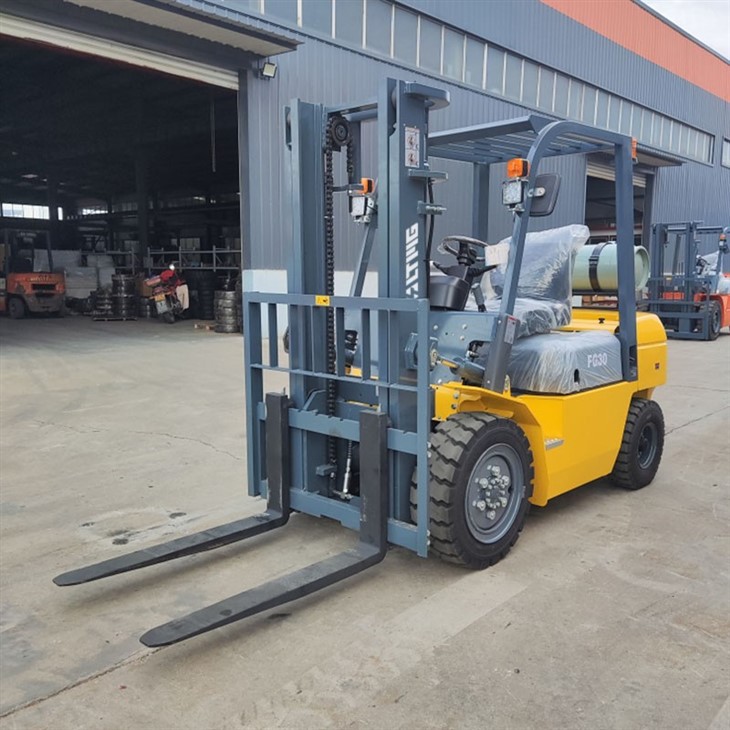

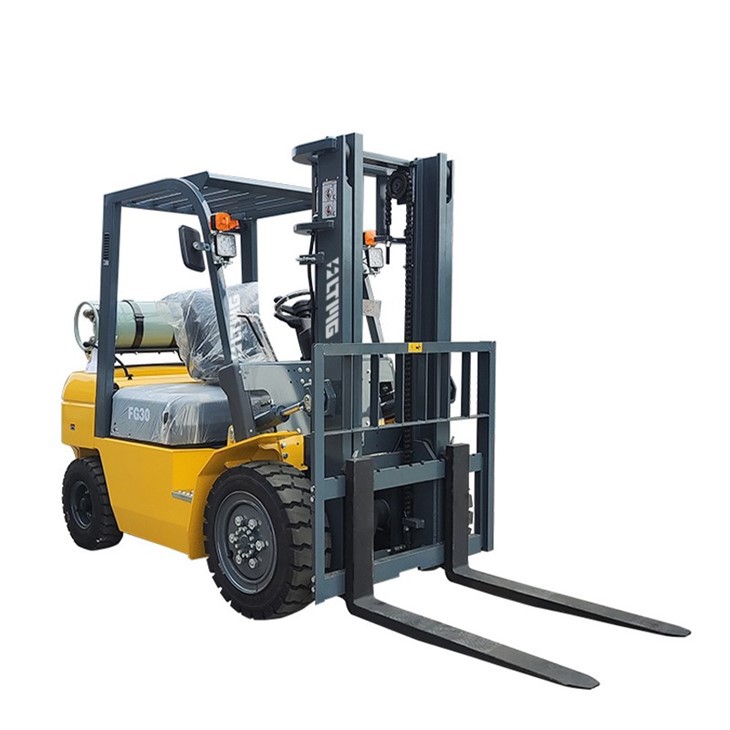

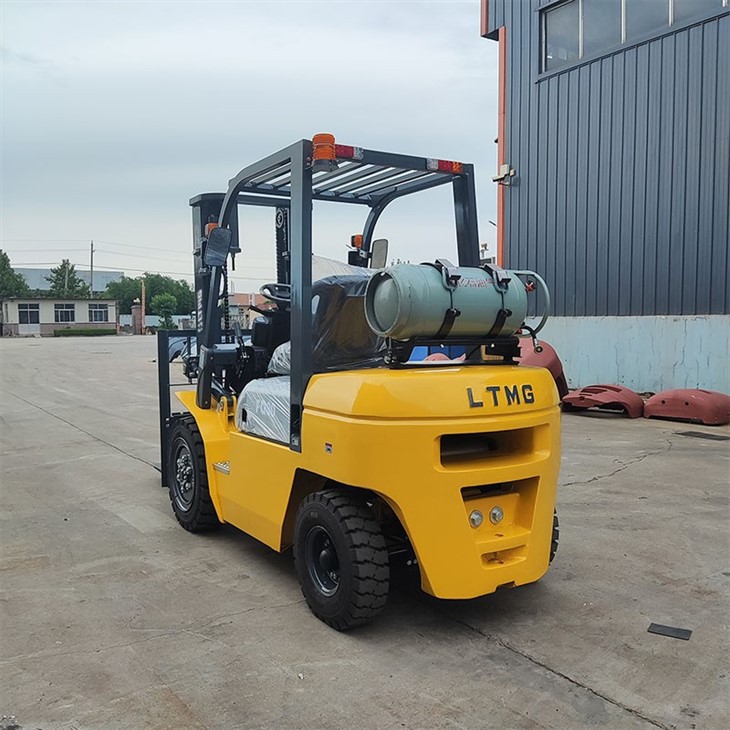

Model | FG30 | |
Rated lifting load | kg | 3000 |
Load center distance | mm | 500 |
Free lifting height | mm | 160 |
overall length (Withfork/Withoutfork) | mm | 3752/2682 |
Width | mm | 1225 |
Overhead guard height | mm | 2090 |
Wheelbase | mm | 1700 |
Minimum ground clearance | mm | 135 |
Mast tilt angle (front/rear) | % | 6° /12° |
Tire no. (before) | 28*9-15-14PR | |
Tire no. (after) | 6.5-10-1OPR | |
Minimum turning radius (outer side) | mm | 2400 |
Minimum right angle aisle width | mm | 4260 |
Fork size | mm | 1220*125*45 |
maximum working speed(Full-load/No-load) | km/h | 18/19 |
maximum lifting speed(Full-load/No-load) | mm/s | 440/480 |
maximum gradeability(Full-load/No-load) | % | 15/20 |
Forklift weight | kg | 4270 |
