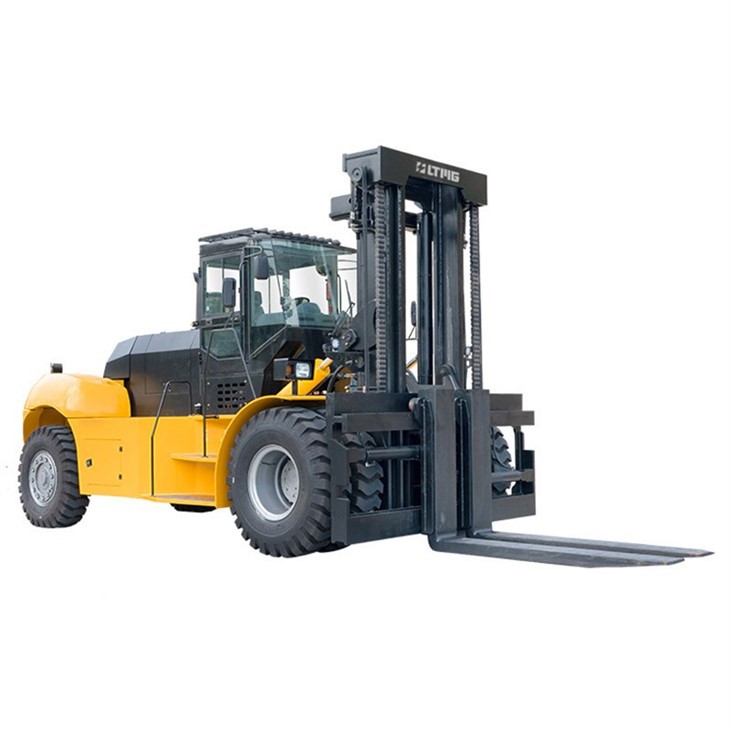

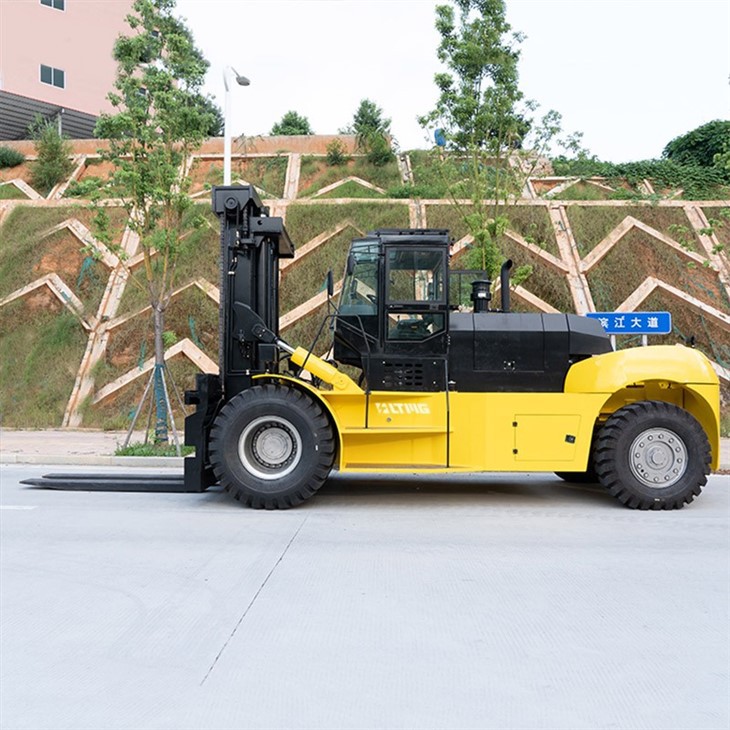

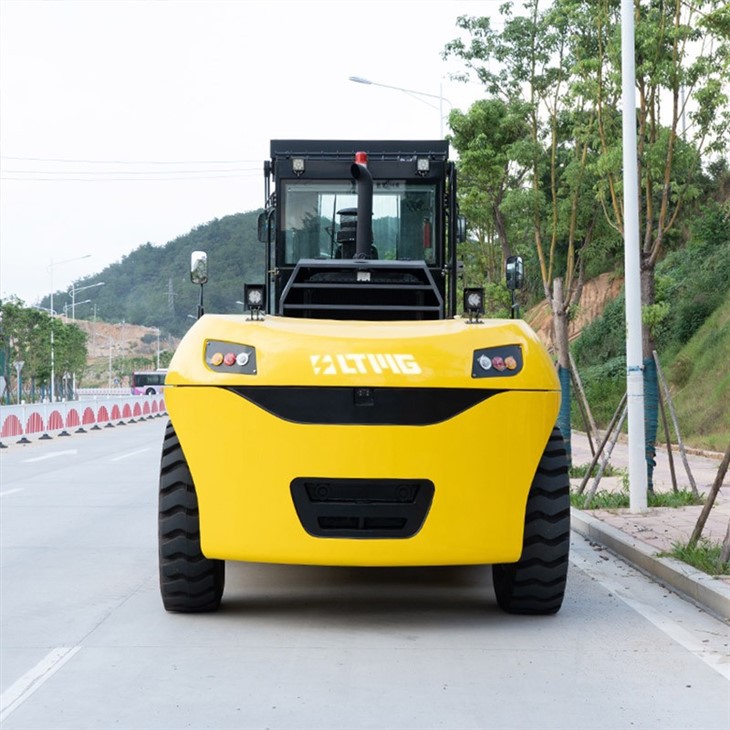

Diesel Forklift For Sale New South Wales

Powered type:diesel engine
lifting height:3000mm
Mast:2 stages mast
Send Inquiry
Chat Now

Product Introduction

Product Introduction



Each forklift in the range features a robust and durable design that includes high-strength frames, gantries, forks and supports.

The gantries with sturdy channels, rollers, short axles and chain anchors are designed to stand out in challenging conditions. And multi-purpose, hook-type, side-shift, fork-locating support frames are available for demanding applications and heavy loads. A wide variety of fork and front-end attachments are also available to suit almost every application.



Heavy-duty industrial engines are equipped with cast iron cylinder blocks and no high voltage wires, distributor caps or rotors. Ultra-fast electric heat plugs allow the engine to start quickly and reliably even in cold conditions, and the cold-start unit emits cleaner exhaust gases by advancing fuel injection at regular intervals based on water temperature. At the same time, emissions can be reduced by controlling timed fuel injection according to engine load.



Reasons for water High temperature Of forklift

     Factors such as temperature control switch, pump, sub-fan, rusted hose, bad water return, etc. can lead to such a phenomenon. But the high and low water temperature of internal combustion forklift engine is still mainly related to whether the thermostat is working properly, whether the water pump can establish enough pressure, and whether the cooling fan can reach the standard speed.

    Then how should we check whether the water temperature of the internal combustion forklift is normal? The first thing we should pay attention to is the cooling system of forklift, which is generally composed of cooling fan, radiator, thermostat and other components. The cooling fan is often driven directly by the engine, and the fan speed is consistent with the engine speed. The control of cooling water temperature mainly relies on the thermostat.



protection measures in transportation



Moisture and waterproofing: - For marine transportation, moisture and waterproofing measures must be taken, such as wrapping waterproof film or using waterproof cover, to ensure that the electrical components and precision parts are not affected by seawater erosion and humidity.For battery forklift trucks, the battery should be properly placed to ensure that it will not be damaged by shaking and bumping, and the battery liquid should not be spilled to avoid environmental pollution and fire hazards.



1.Dismantling of Sensitive Components: For fragile components that are easily damaged during transportation, temporary dismantling and separate packaging can be an option, e.g., removable forks, certain attachments, etc.



2. Thorough Record Keeping and Labeling: Record the condition of the forklift and the results of all pre-loading and shipping inspections, including a photographic record, labeled with information such as factory date, model number, and serial number. And make eye-catching markings on the forklift to remind the transporter of the precautions to be taken and the correct way of loading.



3. Insurance and Documentation Preparation: Apply for the appropriate freight insurance to ensure that the forklift can be financially compensated in case of loss during transportation. At the same time, prepare all necessary export documents and shipping documents.



4. Professional guidance and supervision: Professional and technical personnel can be invited to guide the loading process to ensure that all protective measures can be correctly implemented, and in the loading process of the whole process of supervision, to ensure that the forklift trucks in the loading, transportation and unloading of the various aspects of safety. Through the above measures, we can minimize the risk of damage to the forklift during the shipping process and ensure that the equipment can be delivered to the destination in good condition.

protection measures in Transportation









Products parameters



Technical Parameter
Item     FD300 FD320
Features Rated Load Q(Kg) 30000 32000
Load Center c(mm) 1220 1220
Wheelbase y(mm) 4400 4800
Weight Weight kg 38000 42000
Chassis Tire Specs:Front   14.00-24 16.00-25
Tire Specs:Rear   14.00-24 16.00-25
Tires Qty,front/rear(X-dreve wheels)   4/2 4/2
Wheel tread:Front b3(mm) 2220 2430
Wheel tread:Rear b4(mm) 2300 2230
Dimensions Mast/carriage tilt angle(front/rear) Degree(°) 6/12 6/12
Mast height(fork lowering) h1(mm) 3970 4150
Mast lifting height h2(mm) 4000 4000
Max.height h3(mm) 5940 6120
height to head guard(height to cab) h4(mm) 3440 3460
Overall height(with forks) L3(mm) 8950 9460
Fork front verticaal sueface to the rear end of the vehicle L2(mm) 6550 7060
Overall width b1(mm) 3060 3360
Fork dimension (mm) 2400*320*110 2400*320*120
Fork carriage width b2(mm) 3000 3000
Mast min ground(with load) m1(mm) 350 400
Wheelbase center min ground(with load) m2(mm) 420 460
Min.turning Radius Wa(mm) 6160 6600
Travel speed(with load/without load) km/h 24/28 25/28
Performance Max.lifting speed(with load/without load) mm/s 260/280 260/280
tractionn KN 180 200
gradeability(with load/without load) % 20/22 20/20
Driving brake   Hydraulic clamp disvc Hydraulic clamp disvc
Engine Engine brand/model Optional one WeiChai Engine WeiChai Engine
  WD10G240E WD10G240E
Optional two Dongfeng cummins Dongfeng cummins
Rated Output 178(Kw) 178(Kw)
Cylinder No 6 6
Others Transmission gears(Front/rear)   2/1 2/1





With technological innovation, our product configuration and parameters will continue to change without notice;



If there is any doubt, the specific confirmation of our international trade sales shall prevail;
