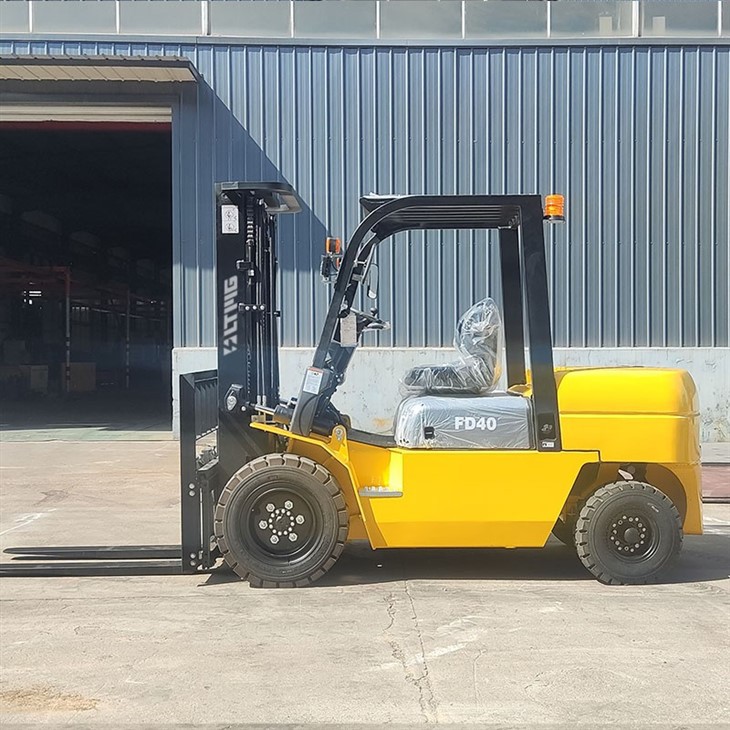

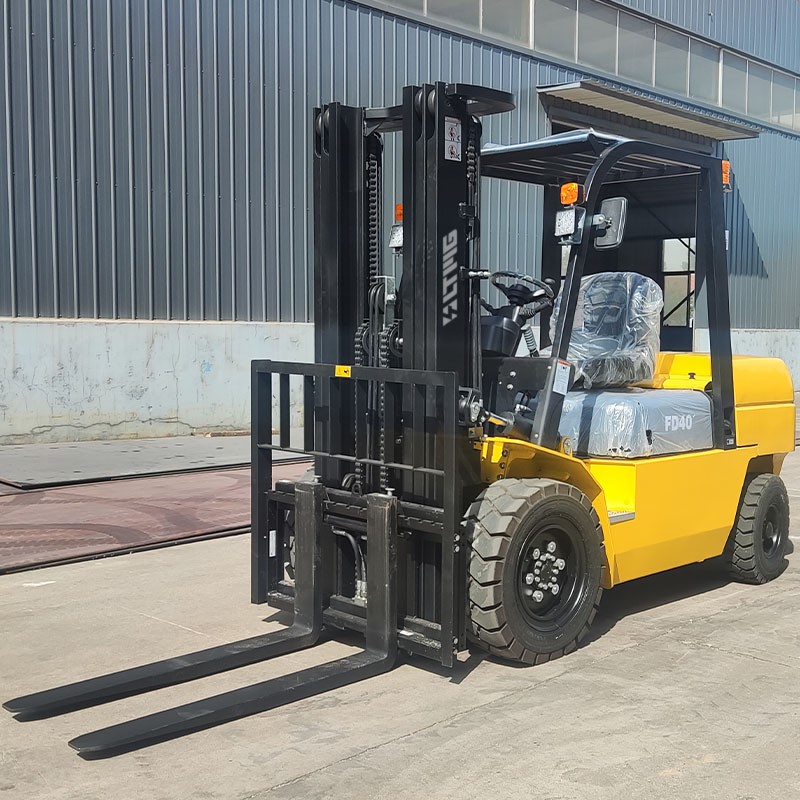

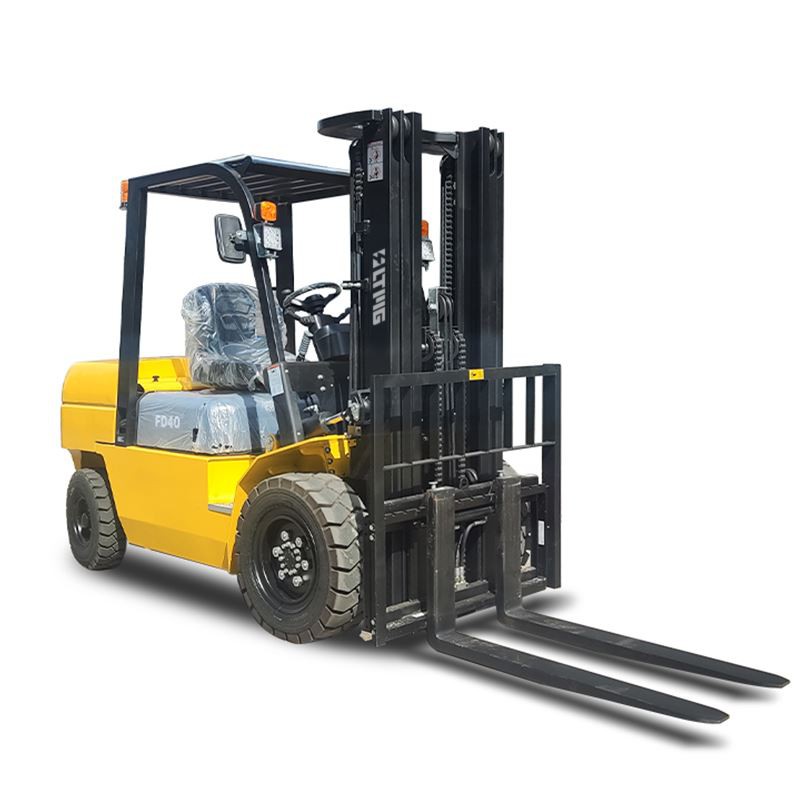

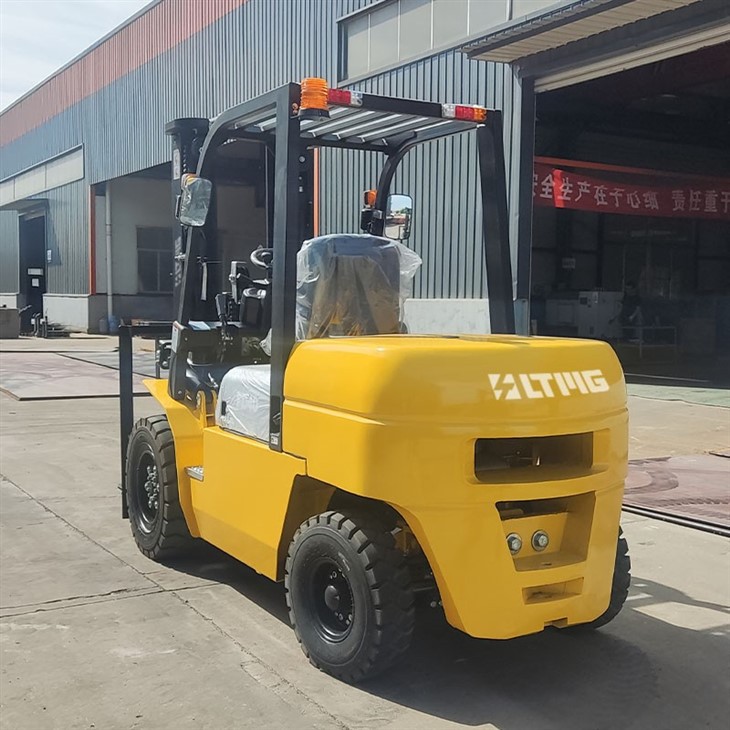

Products Appearance

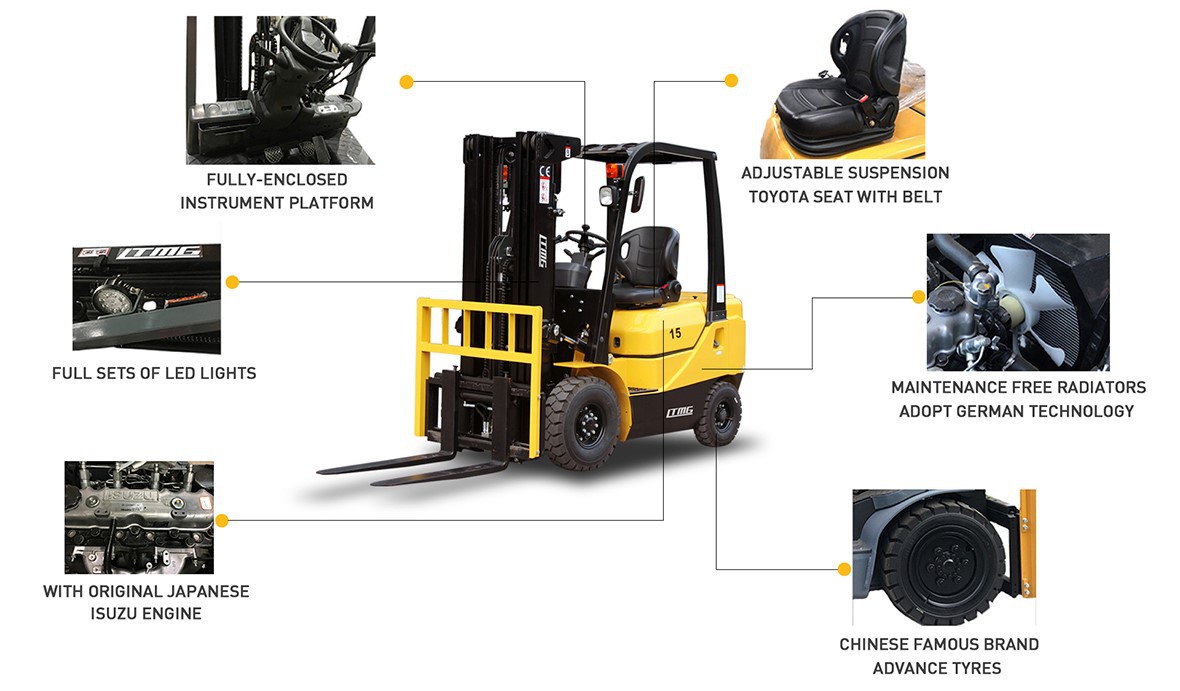

Advantage
1. New adjustable seat makes operator more comfortable.
2. Work lights and warning lights make it safer and more efficient even in poor lighting conditions.
3. New designed overhead guard protective device prevent the sudden accidents: The lifting system adopts buffering technology to reduce shock and vibration of the mast.
4. Equipped with Chinese powerful and reliable engines with excellent environmental performance; Original imported Isuzu, Mitsubishi and Cummins engines are optional.
5. High intake will help improve engine intake cleanliness; built-in air filter, making the car more beautiful.
Product parameter
| Model | FD40 | |
| Rated lifting load | kg | 4000 |
| Load center distance | mm | 500 |
| Free lifting height | mm | 150 |
| overall length (Withfork/Withoutfork) | mm | 4000/2930 |
| Width | mm | 1290 |
| Overhead guard height | mm | 2180 |
| Wheelbase | mm | 1900 |
| Minimum ground clearance | mm | 140 |
| Mast tilt angle (front/rear) | % | 6° /12° |
| Tire no. (before) | 250-15-16PR | |
| Tire no. (after) | 7.00-12-12PR | |
| Minimum turning radius (outer side) | mm | 2710 |
| Minimum right angle aisle width | mm | 4750 |
| Fork size | mm | 1070*150*50 |
| maximum working speed(Full-load/No-load) | km/h | 19/19 |
| maximum lifting speed(Full-load/No-load) | mm/s | 340/380 |
| maximum gradeability(Full-load/No-load) | % | 15/20 |
| Forklift weight | kg | 4950 |
| Engine model | Quanchai4C4-50V31 |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail.

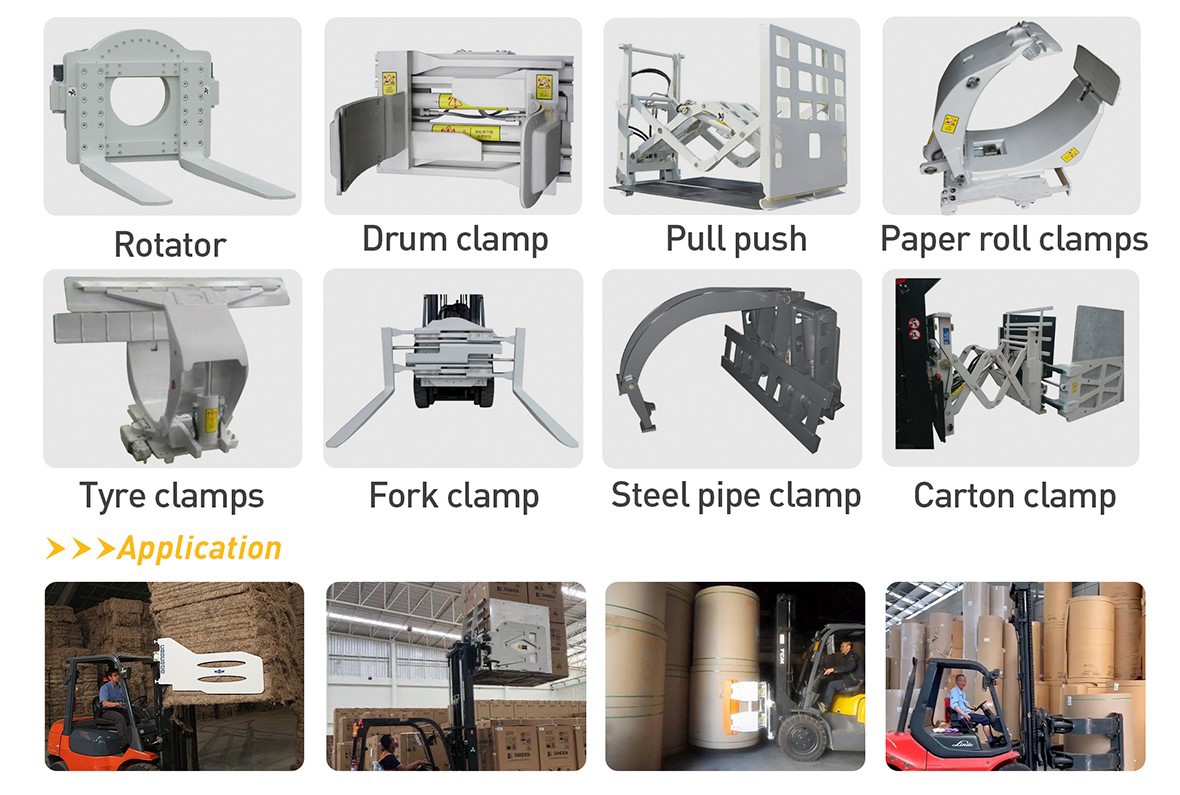

Product optional parts
