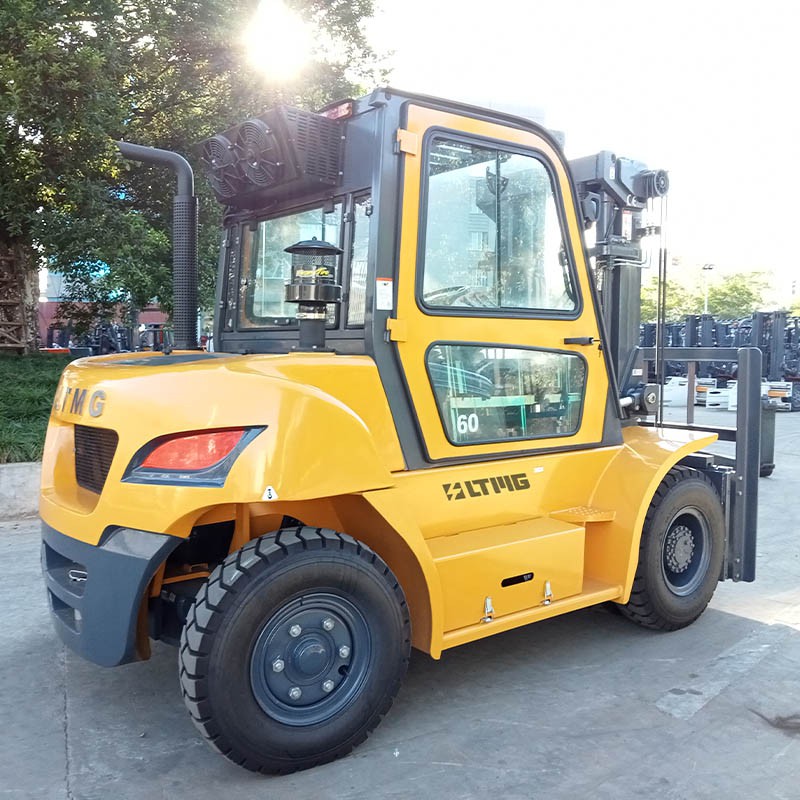

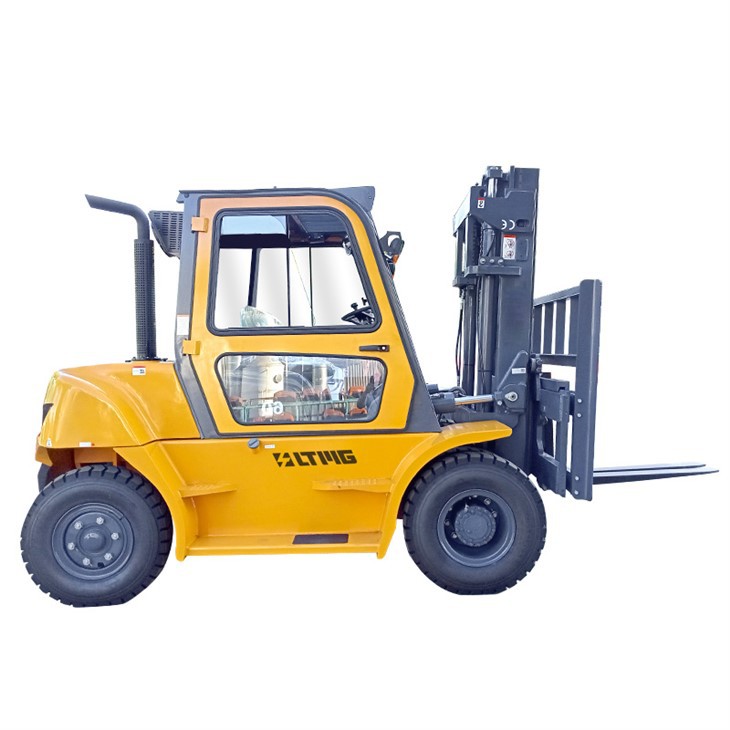

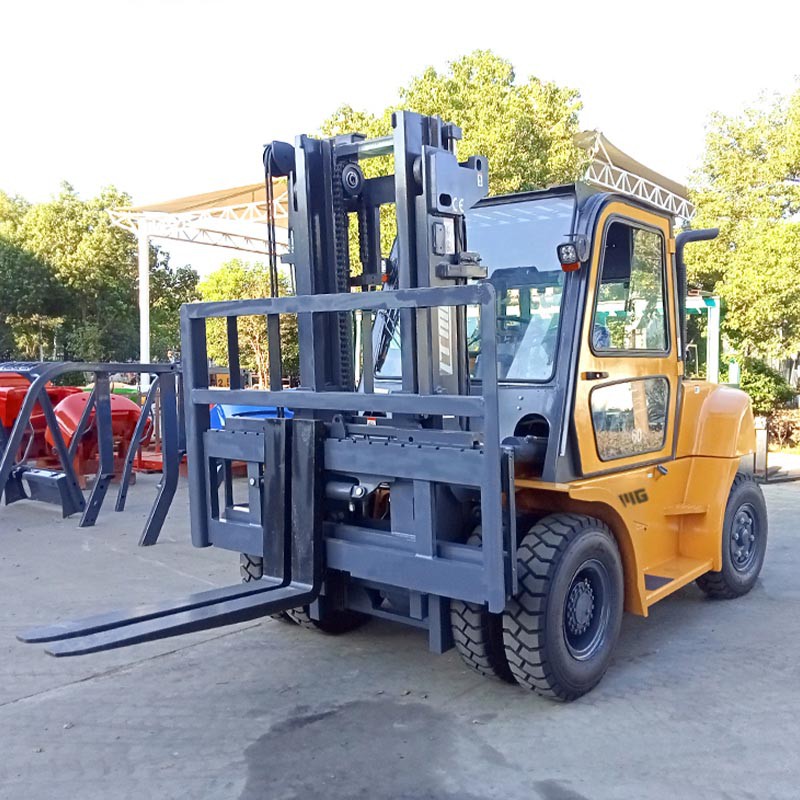

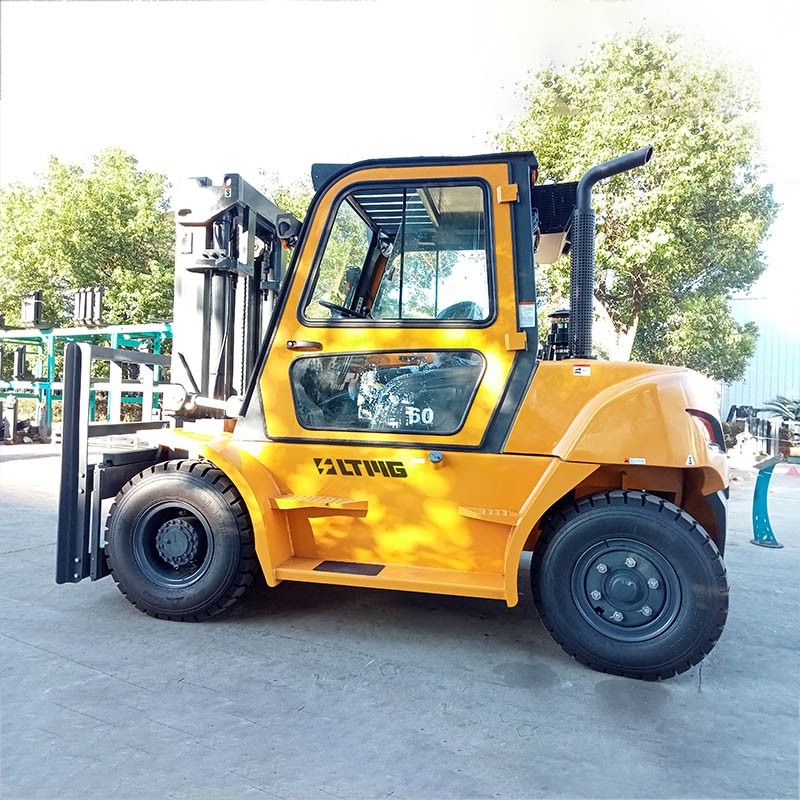

The 6-ton diesel forklift truck with enclosed cab is a heavy-duty and reliable machine designed for efficient material handling in industrial settings. It comes equipped with a range of advanced features that make it ideal for demanding applications requiring high lifting capacity and stability.
Optional equipped with enclosed cab, which provides excellent operator comfort and protection from hazardous working conditions. The cab comes fitted with a range of ergonomic controls, including a button-style parking brake and an electric-hydraulic shifting system that makes operation more efficient and less fatiguing.
Features a hydraulically powered braking system that ensures safe and smooth stopping under various loads and conditions. The roof and overhead guard are made of high-strength steel plate, which provides maximum protection against falling objects.
The intelligent start-up system: It prevents the engine from being started while the vehicle is in gear, helping to reduce accidents on the job site. The engine is equipped with a two-stage filter system, inclusive of a cyclone type filter and air dry filter, that provides efficient filtration of the engine oil and air.
The hood of the diesel operated forklift truck can be opened up to 70 degrees, which makes maintenance and repair tasks easier to perform. This provides easy access to the engine, radiator, and other key components.
The versatility of the 6-ton diesel forklift is unbeatable, making it ideal for handling heavy materials in various construction and industrial settings, including warehouses, ports and harbors, and factories.
Technical parameters
General |
Model |
FD60 |
|||
Power Type |
Diesel |
||||
Rated Capacity |
kg |
6000 |
|||
Load Centre |
mm |
600 |
|||
Characteristic&Dimension |
Lift Height |
mm |
3000 |
||
Fork Size |
L×W×T |
mm |
1220×150×60 |
||
Mast Tilt Angle |
F/R |
Deg |
6°/12° |
||
Fork Overhang (Wheel center to fork face) |
mm |
590 |
|||
Ground Clearance(Bottom of mast) |
mm |
200 |
|||
Overall Dimension |
Length to face of fork(Without fork) |
mm |
3440 |
||
Overall Width |
mm |
2010 |
|||
Mast Lowered Height |
mm |
2500 |
|||
Mast Extended Height(With backrest) |
mm |
4415 |
|||
Overhead Guard Height |
mm |
2430 |
|||
Turning Radius (outside) |
mm |
3250 |
|||
Performance |
Speed |
Travel (Full load) |
km/h |
30 |
|
Lifting (Full load) |
mm/s |
500 |
|||
Max.Gradeability |
% |
20 |
|||
Chassis |
Tyre |
Front |
mm |
8.25-15-14PR |
|
Rear |
mm |
8.25-15-14PR |
|||
Wheelbase |
mm |
2250 |
|||
Self weight |
kg |
8750 |
|||
Power&Transmission |
Battery |
Voltage/Capacity |
V/Ah |
(12/80) x 2 |
|
Engine |
Model |
6BG1-02 |
|||
Manufacture |
ISUZU |
||||
Rated output/r.p.m. |
kw |
82.4/2000 |
|||
Rated torque/r.p.m. |
N·m |
416/1600 |
|||
No.of Cylinder |
6 |
||||
Bore×Stroke |
mm |
105×125 |
|||
Displacement |
cc |
6494 |
|||
Fuel Tank Capacity |
L |
125 |
|||
Transmission |
Type |
Hydraulic |
|||
Stage |
FWD/RVS |
2/2 |

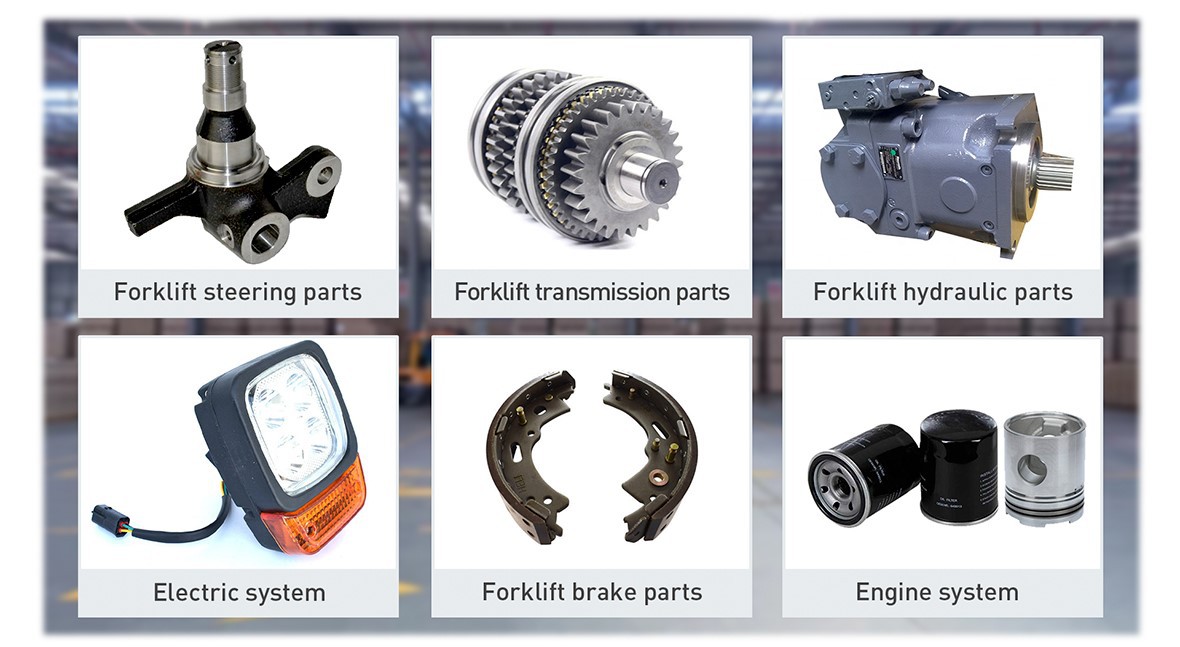

spare parts

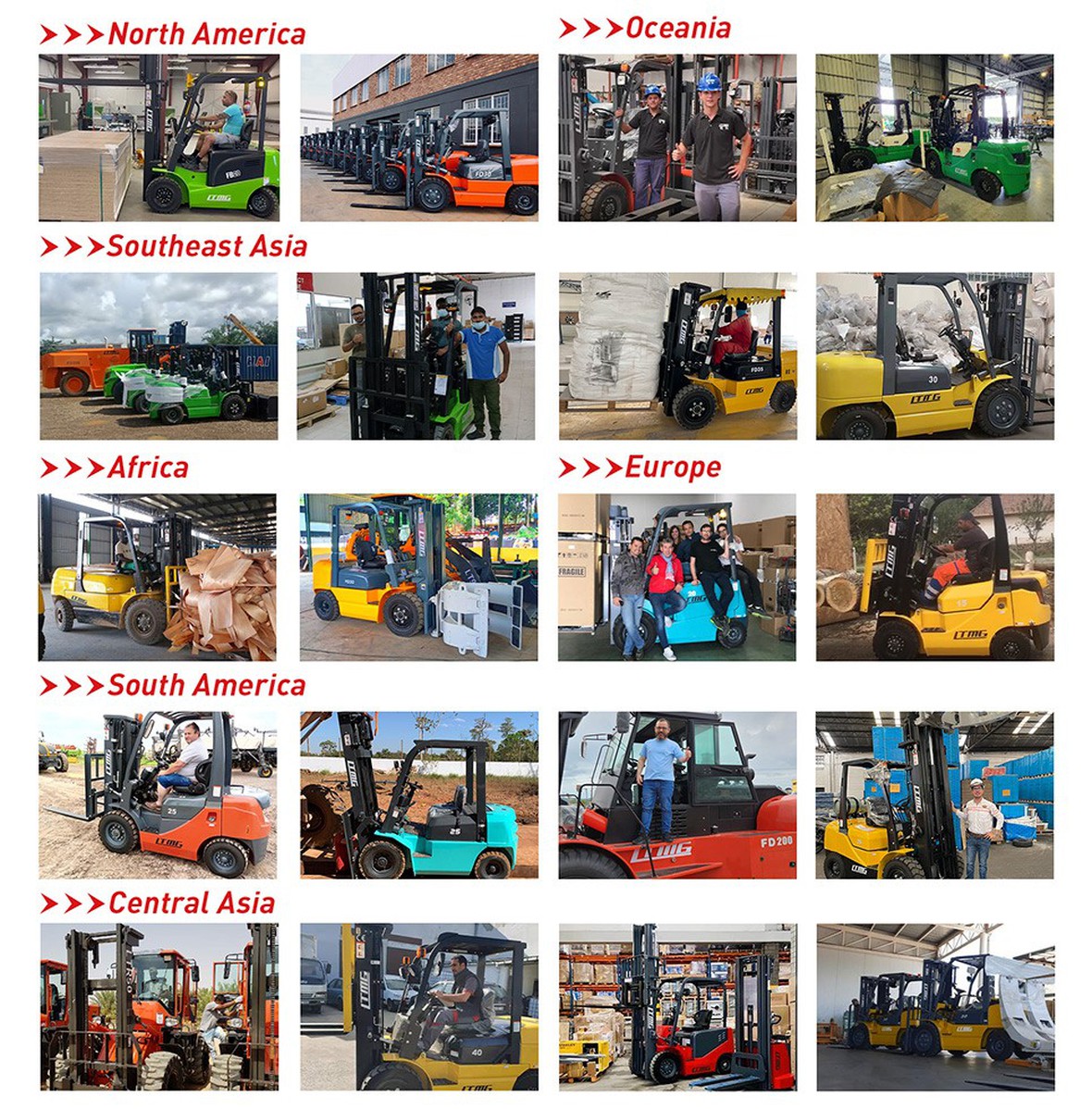

client feedback
