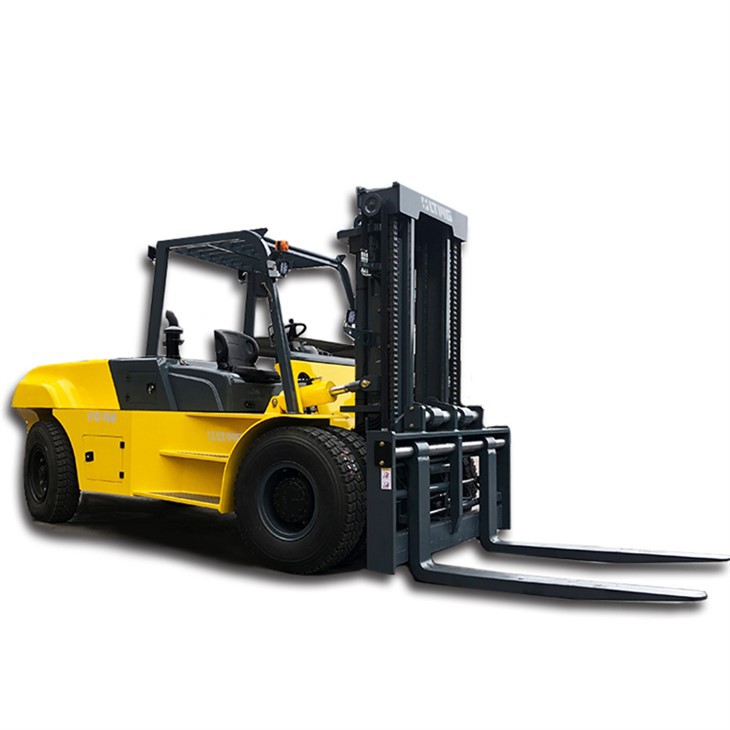

FD150 Heavy Duty Diesel Forklift

Model:FD150
Power type:Diesel
Rated capacity:15000kg
Lifting height:3000mm
Send Inquiry
Chat Now

Product Introduction

Heavy Duty Diesel Forklifts are powerful and reliable machines that are prized for their ability to handle heavy loads with ease. Designed with the needs of industrial and commercial applications in mind, these forklifts are built to withstand the demands of challenging work environments. They are highly versatile, making them an essential piece of equipment for a wide range of operations.



Heavy-duty diesel forklifts are essential equipment in a variety of industries such as warehousing, construction, and manufacturing. They are highly efficient, versatile, and reliable machines that offer numerous advantages, including:



1. High lifting capacity: Heavy-duty diesel forklifts have a strong lifting capacity compared to other types of forklifts. They can handle heavy loads of up to 50 tons, making them ideal for lifting and moving heavy machinery or construction materials.



2. Durability: Diesel engines are known for their durability and longevity. Heavy-duty diesel forklifts are designed to handle tough working conditions and are built to last. They require minimal maintenance and are capable of working for long periods without any breakdowns.



3. Fuel efficiency: Heavy-duty diesel forklifts are more fuel-efficient than most other types of forklifts. They consume less fuel per unit of work performed, which translates into cost savings for the operator.



4. Versatility: Heavy-duty diesel forklifts are suitable for a wide range of applications, both indoor and outdoor. They can be used for lifting and moving heavy loads, stacking goods in warehouses, loading and unloading containers, and excavating materials on construction sites.



5. Easy to operate: Diesel forklifts are easy to operate, even for novice operators. They have intuitive controls and are highly maneuverable, making them easy to navigate in tight spaces.



In conclusion, heavy-duty diesel forklifts offer numerous advantages over other types of forklifts, including high lifting capacity, durability, fuel efficiency, versatility, and ease of operation. They are an essential tool for industries that require heavy lifting and moving capabilities, and investing in a diesel forklift can result in increased productivity, cost savings, and improved efficiency.

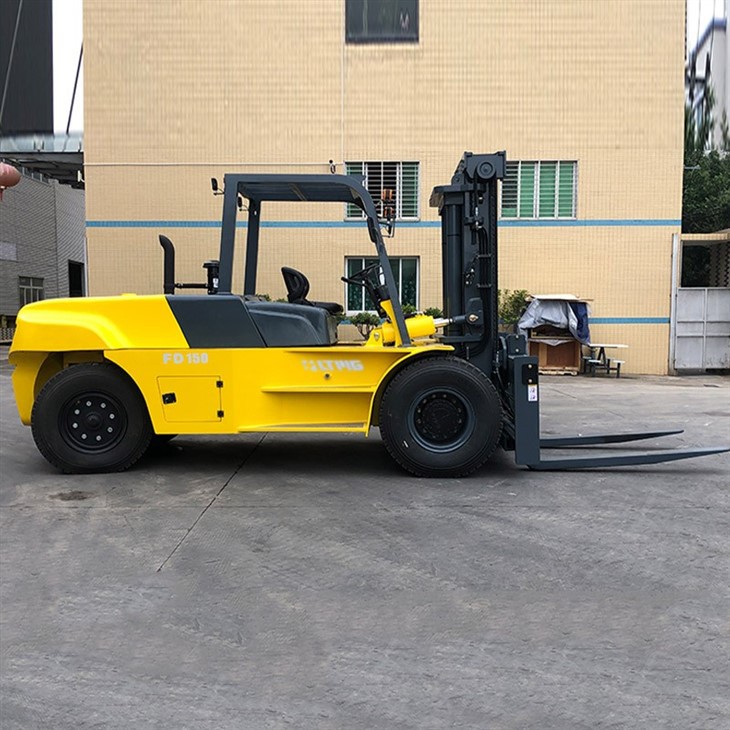

15 ton forklift

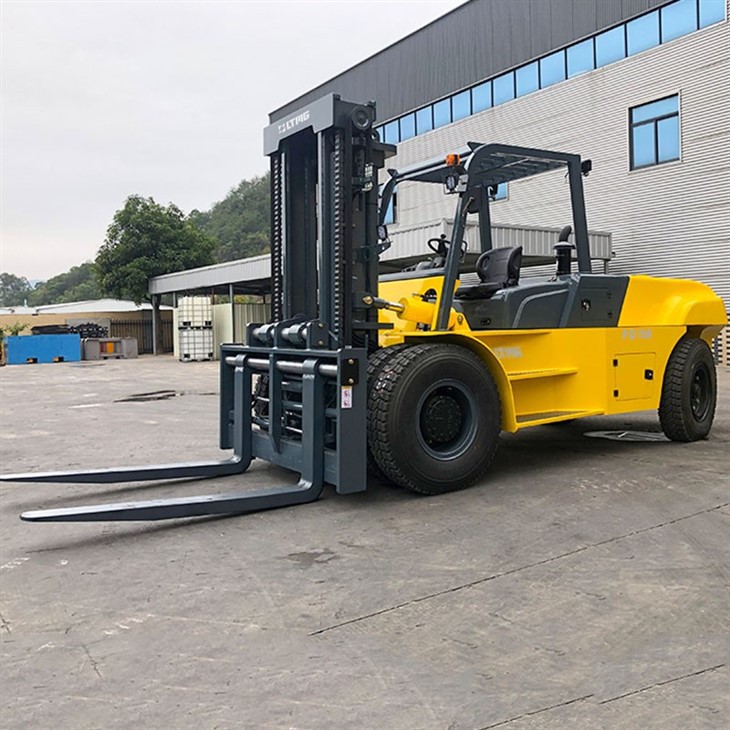

big forklift truck

big diesel forklift

The LTMG Heavy Duty Diesel Forklift is built with imported technology, ensuring reliable performance and convenient maintenance. The transverse oil cylinder type steering bridge, with full-hydraulic steering, provides flexibility and lightness in operation, making it a reliable partner in any material handling scenario.





The frame structure of this big forklift truck is a testament to exquisite workmanship and a firm box-type frame. Nondestructive testing on main welding parts, coupled with effective coordination with the reinforced structure, bridge, and box, ensures both transverse and longitudinal stability, making the 15 ton forklift diesel engine a durable and reliable choice for your heavy lifting needs.



Technical Specification
Model   FD150
Rated Load kg 15000
Load Center mm 900
Power unit   Diesel
Operation type/transmission system   Seated type/Hydraulic
Tire type; Pneumatic rubber   L.V
Tires Qty,front/rear   4/2
Lifting height mm 3000
Fork dimension mm 2400 x 200 x 100 mm
Mast/carriage tilt angle(front/rear) drg 6/12
Fork front verticaal sueface to the rear end of the vehicle mm 5000
Overall width mm 2300
height to head guard(height to cab) mm 2760
Mast height(fork lowering) mm 3200
Overall height(with forks) mm 4920
Wheelbase mm 3330
Wheel tread(front/rear) mm 1680/1740
Min.ground clearance mm 300
Min.turning Radius mm 4680
Max.lifting speed mm/s 300
Travel speed Km/h 26
Max.gradeability % 20
Self weight kg 17800
Tire Specs(front/rear)   12.00-20/11.00-20
Tire pressure(front/rear) MPa 1/0.9
Transmission   YQX120
Braking distance 20Km/h mm ≤6000
Engine Brand   Weichai
  Output power kw 92
  Rated speed r.p.m 2200
Battery model/capacity AHV 2X6-Q-120
Certification



At LTMG, our dedication lies in delivering customers top-tier, dependable products. Our extensive lineup of certifications, including ISO, CE, EPA, COC, COR, SABER, and CO, speaks to our position as a reputable and conscientious industry leader. We believe in setting high standards, and our commitment to excellence empowers customers with the confidence to make LTMG their preferred partner.



diesel forklift CE ISO EPA

client case



forklift diesel in Brazil

Attachment

outdoor forklift fork positioner

FAQ

Q: What Certificate do you have?

All products meet with the ISO9001 Quality System and have acquired CE certificate.

Q: What about the after-sale service?

We provide a 12-month quality warranty after dispatch, along with some free, easily replaceable machine parts. Additionally, we offer long-term free technical advisory services and consultations. If necessary, our engineers can be dispatched abroad to provide technical assistance.

Q: When we receive your machine, are there any other accessories we will get?

Yes, we include some easily replaceable spare parts for free, just in case minor issues arise.

Q: Do you support customized products?

A:Yes, we support customized products to meet the diverse needs of our customers.
