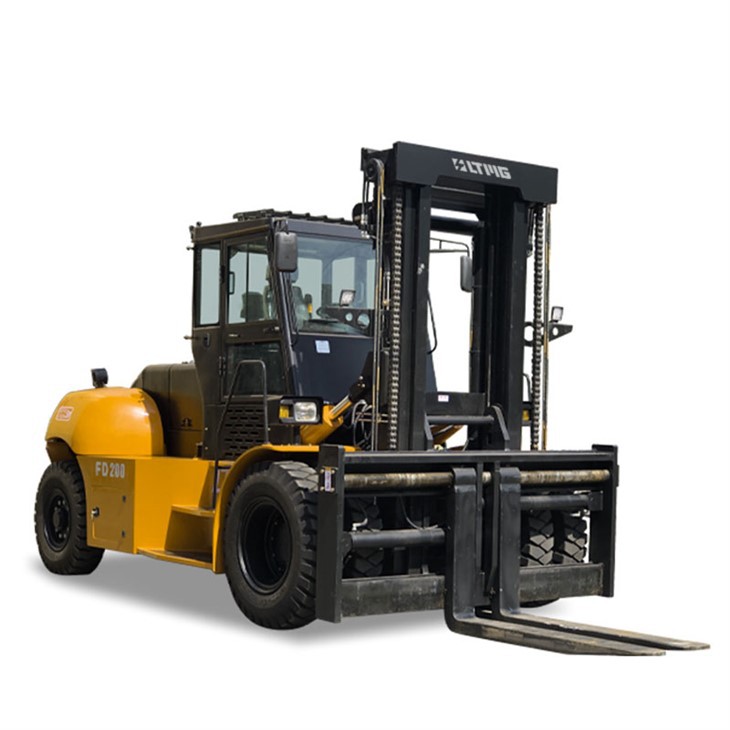

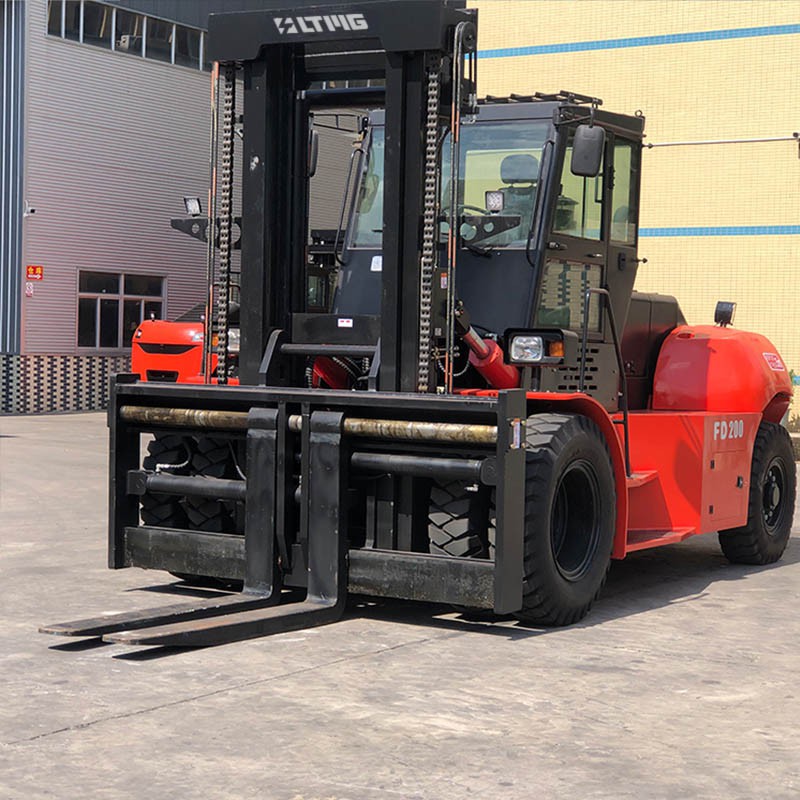

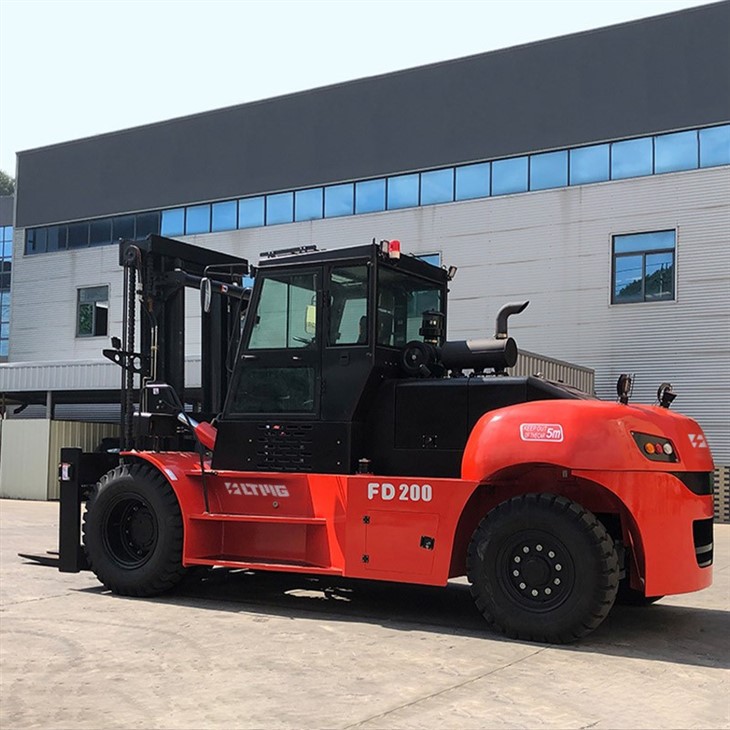

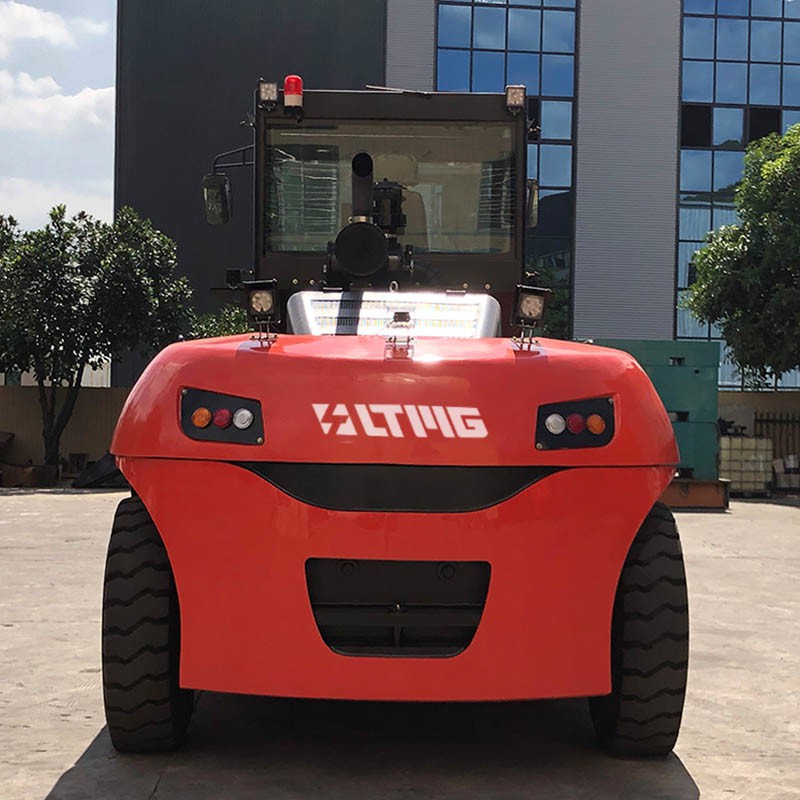

Our 20-ton diesel forklift features a robust engine that delivers high torque and low fuel consumption. The engine is compliant with the latest emission standards and has a long service life. The forklift also has a hydraulic transmission system that ensures smooth and stable operation.
The lifting height of our 20-ton diesel forklift can reach up to 6 meters, depending on the mast type. The forklift has a wide-view mast that offers excellent visibility and safety. The forklift also has a spacious and ergonomic cab that provides comfort and convenience for the operator. The cab is equipped with a digital display, a steering wheel, and a seat, that allow easy control of the forklift.
Our 20-ton diesel forklift is suitable for various outdoor applications, such as construction, mining, logging, port, and warehouse. It can handle large and heavy items, such as containers, steel coils, lumber, and concrete blocks. It can also work on uneven and rough surfaces, such as gravel, sand, and mud.
Our 20-ton diesel forklift is a big forklift truck that can help you improve your productivity and efficiency. It is a reliable and durable machine that can withstand harsh conditions and heavy workloads. It is a smart and cost-effective choice for your outdoor lifting needs.
Technical Specification
| Model | FD200 | ||
| Rated load | kg | 20000 | |
| Load center | mm | 900 | |
| Power type | Diesel | ||
| Drving type | seated/hydraulic | ||
| Tyre types | L.V | ||
| Tyre Qty(Front/Rear) | 4/2 | ||
| Lifting hight | mm | 4000 | |
| Fork size(height*width*length) | mm | 100X220X2200 | |
| Mast tilt angle (front/Rear) | drg | 6/12 | |
| Fork front sueface to the rear end of the vehicle | mm | 6030 | |
| Overall width | mm | 2930 | |
| Height to head guard | mm | 3400 | |
| Mast height(fork lowering) | mm | 3900 | |
| Mast Vertical max. height (mast lifting) | mm | 5880 | |
| Wheel base | mm | 3970 | |
| Wheel tread(front/Rear) | mm | 2070/2170 | |
| Ground Clearance) | mm | 270 | |
| Min turning radius | mm | 5600 | |
| Max.lifting speed(with load) | mm/s | 300 | |
| Max. Travel speed(with load) | Km/h | 26 | |
| Max gradeability(with load) | % | 20 | |
| service weight | kg | 29000 | |
| Tyres specs front/rear | 14.00-24-18PR/14.00-24-18PR | ||
| Tyre pressure front/rear | MPa | 1.3/1.0 | |
| Transmission | Atomactic transmission | ZL50 | |
| Brake distance | mm | ≤6000 | |
| Engine | Model | Weichai | WD10G220E21 |
| Rated output | kw | 162 | |
| Rated torque | r.p.m | 2200 | |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
comprehensive service
As a famous manufacturer in China, LTMG Machinery is not only committed to providing high-quality products and performance, as well as competitive prices, but also to timely delivery and 24-hour after-sales service.

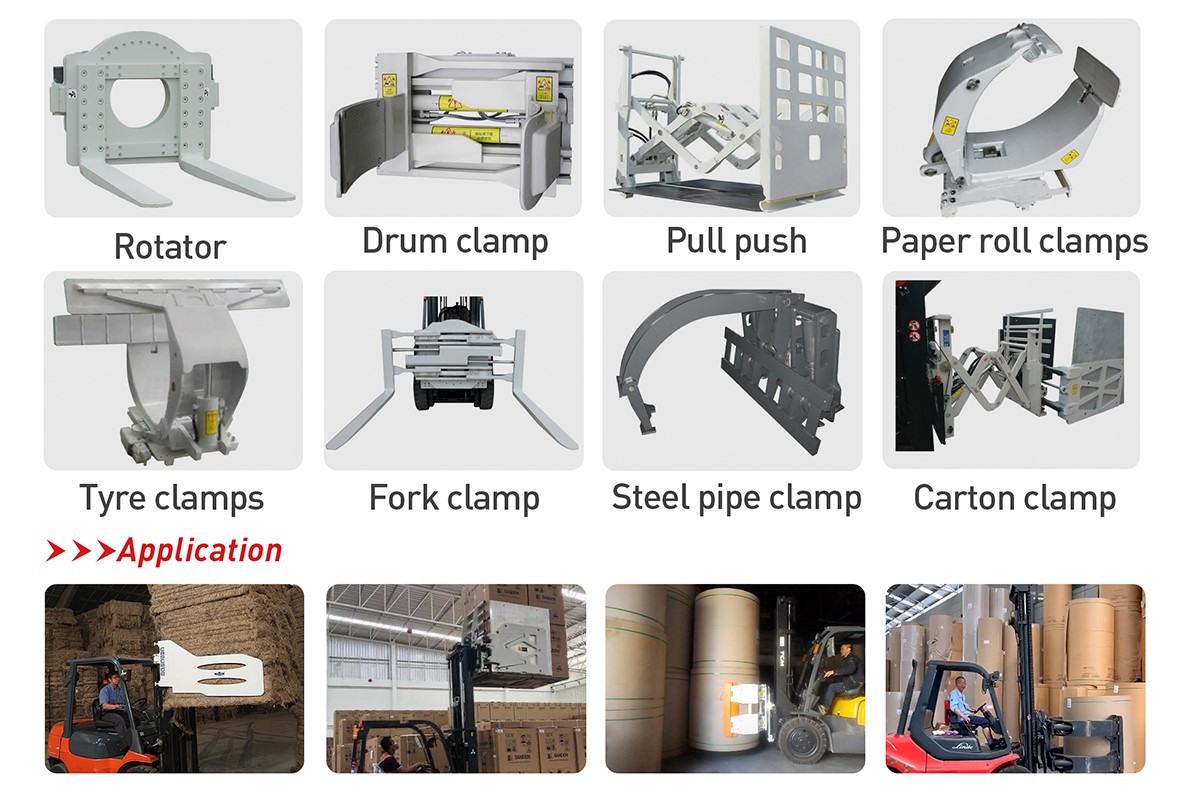

optional accessory
OEM
FAQ
Q: What are the common trade terms for forklifts?
Some of the common trade terms for forklifts are:
FOB (Free On Board): The seller delivers the goods to the port of shipment and clears them for export. The buyer bears all costs and risks of loss or damage to the goods from that point.
CIF (Cost, Insurance and Freight): The seller delivers the goods to the port of destination and pays for the freight and insurance. The buyer bears all costs and risks of loss or damage to the goods from the port of destination.
Q: How much does a LTMG 20-ton diesel forklift cost?
Q: What is the maximum lifting height of a LTMG20-ton diesel forklift?
Q: How can I arrange a factory visit to see the LTMG 20-ton diesel forklifts?
