Compact Design: With its small size and maneuverable build, this electric baggage tow tractor is perfect for navigating tight spaces, narrow corridors, and crowded environments with ease. Its compact design ensures maximum efficiency without compromising on power.
Electric Power: Say goodbye to noisy engines and harmful emissions. This tow tractor operates on clean electric power, making it environmentally friendly and suitable for indoor and outdoor use. Enjoy smooth and silent operation without the need for frequent maintenance.
Heavy-Duty Performance: Despite its small size, this tow tractor packs a punch when it comes to towing capacity. Built to handle heavy loads effortlessly, it can efficiently transport baggage carts, cargo containers, and other equipment, reducing manual labor and increasing productivity.
User-Friendly Controls: Equipped with intuitive controls, operators can easily maneuver the tow tractor with precision and accuracy. Whether navigating busy terminals or negotiating tight turns, users will appreciate the ergonomic design and responsive handling.
Safety Features: Safety is paramount, which is why this electric baggage tow tractor comes with advanced safety features to protect both operators and surroundings. From anti-collision sensors to emergency braking systems, every aspect is engineered with safety in mind.
Versatile Applications: From airport terminals to industrial warehouses, this tow tractor is versatile enough to handle a wide range of applications. Whether towing baggage carts, transporting goods, or assisting with maintenance tasks, its flexibility makes it an invaluable asset in any environment.
Low Maintenance: With its electric powertrain and durable construction, this tow tractor requires minimal maintenance, reducing downtime and operating costs. Enjoy reliable performance day in and day out, without the hassle of frequent repairs or servicing.
technical parameters

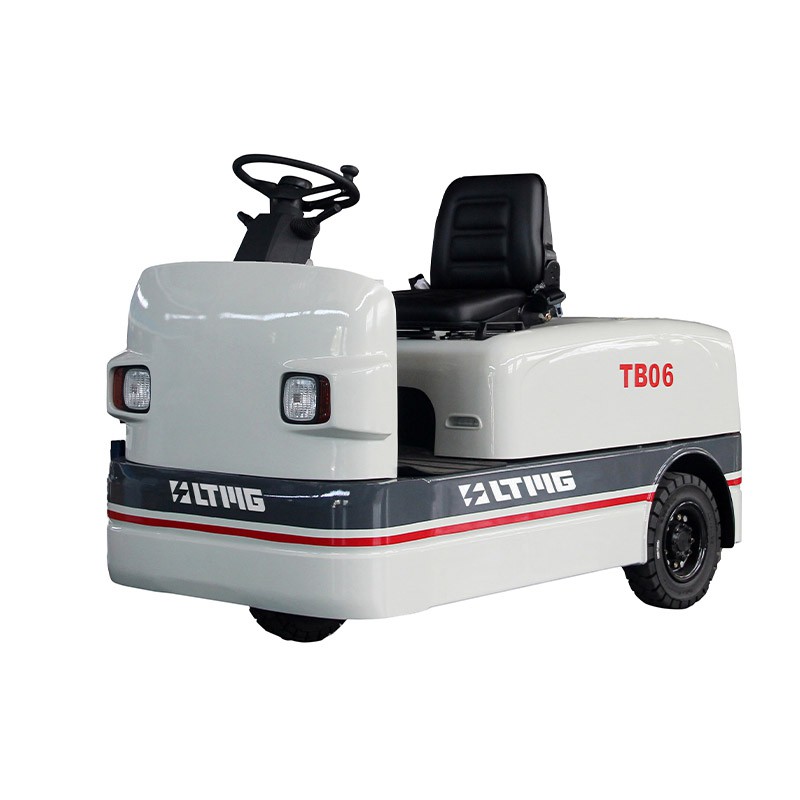

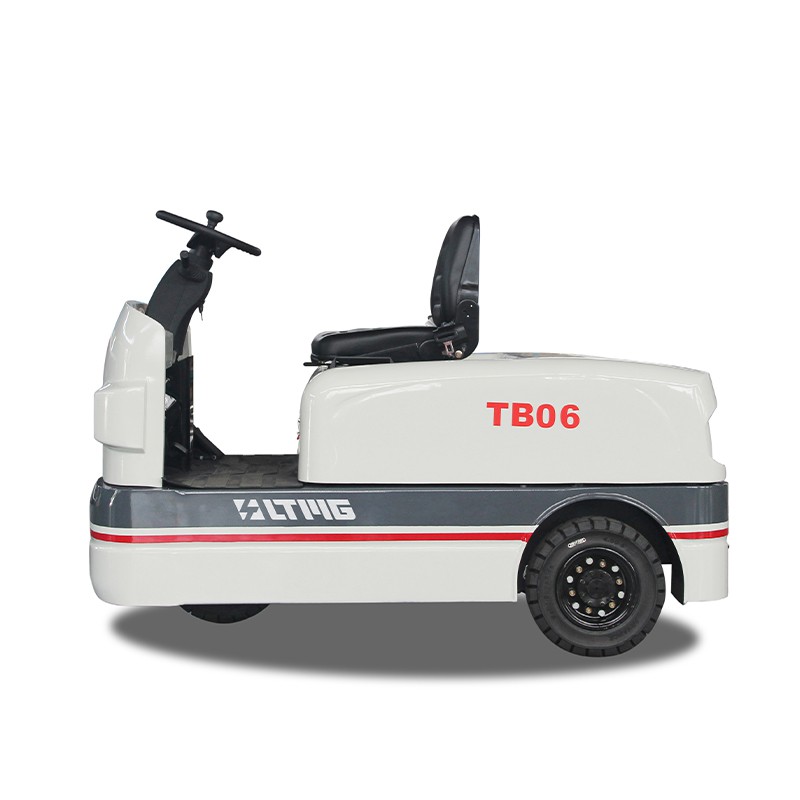

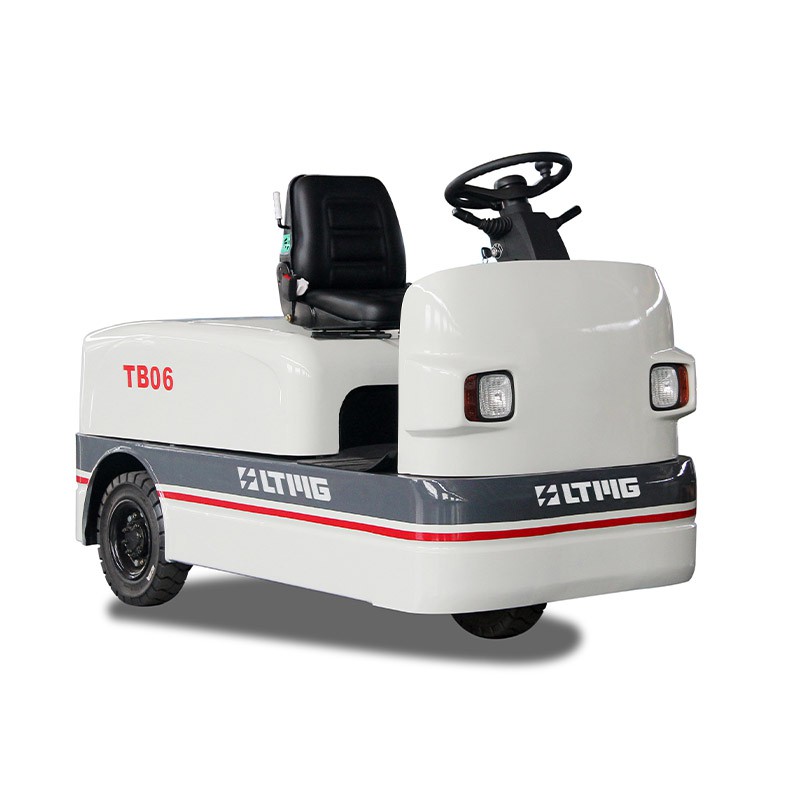

| Characteristic | Model | TB06 | |
| Power Type | Battery | ||
| Operator Type | Seated | ||
| Rated Capacity | kg | 6000 | |
| Rated Drawbar Pull | N | 1600 | |
| Wheelbase | mm | 1100 | |
| Service Weight | kg | 1150 | |
| Dimension Parameter |
Overall Length | mm | 1966 |
| Overall Width | mm | 1010 | |
| Overall Height | mm | 1300 | |
| Ground Clearance | mm | 60 | |
| Turning Radius | mm | 1850 | |
| Tyres | Tires | Solid rubber tyres | |
| Tire Size(Front) | mm | 4.00-8 | |
| Tire Size(Rear) | mm | 4.00-8 | |
| Wheel Number Front/Rear(x=driven wheels) | 1/2x | ||
| Tread Rear | mm | 820 | |
| Performance Parameter |
Travel(Loaded/Unloaded)Speed | km/h | 9.5/10.5 |
| Max.Drawbar Pull | N | 6500 | |
| Service Brake | electromagnetism + Hydraulic |
||
| Electric Motor | Drive moror Rating S2 60min | kW | 6(A/C) |
| Battery acc. to DIN43531/35/36A,B,C,no | DIN | ||
| Battery Voltage, Normal Capacity K5 | V/Ah | 48/275 | |
| Battery Weight | kg | 540 | |
| Additional Data | Type of Drive Control | MOSFET | |
| Sound level at driver's ear acc. to EN 12053 | dB(A) | <70 |
