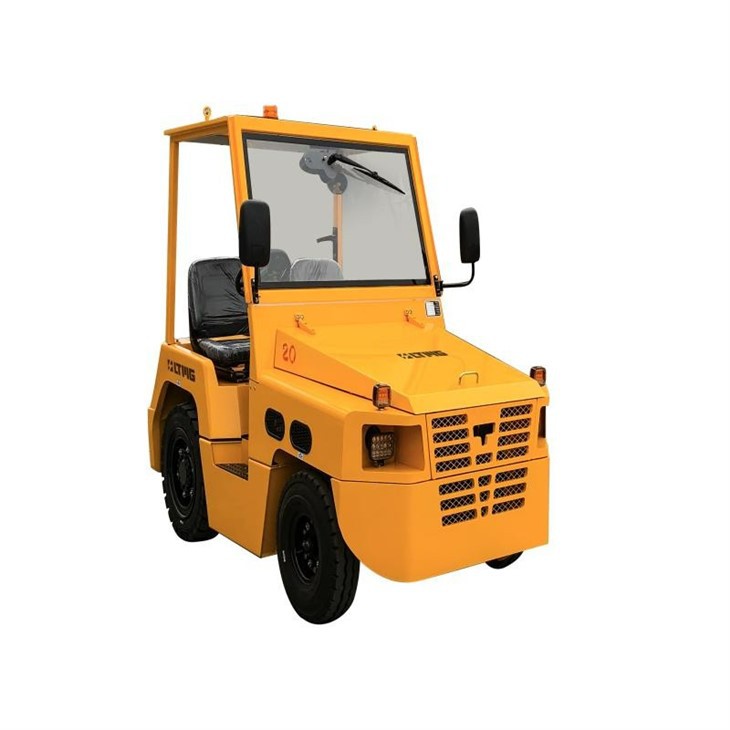

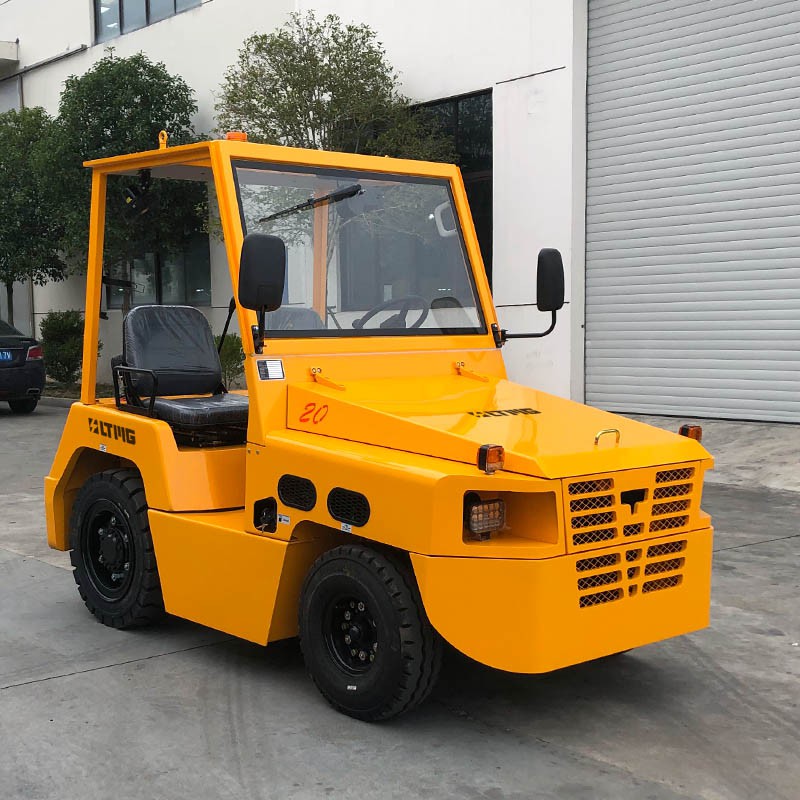

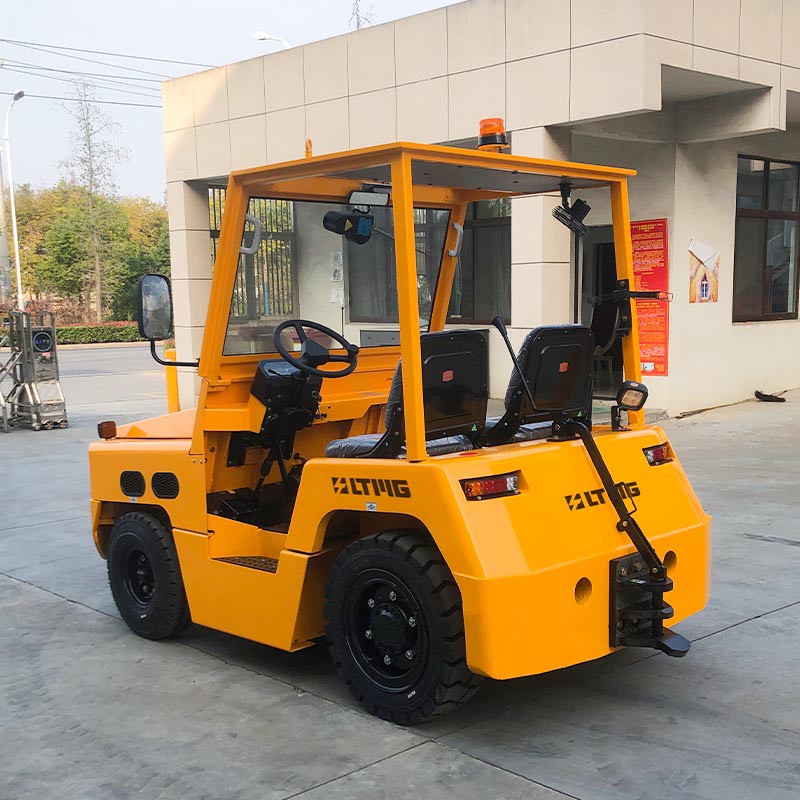

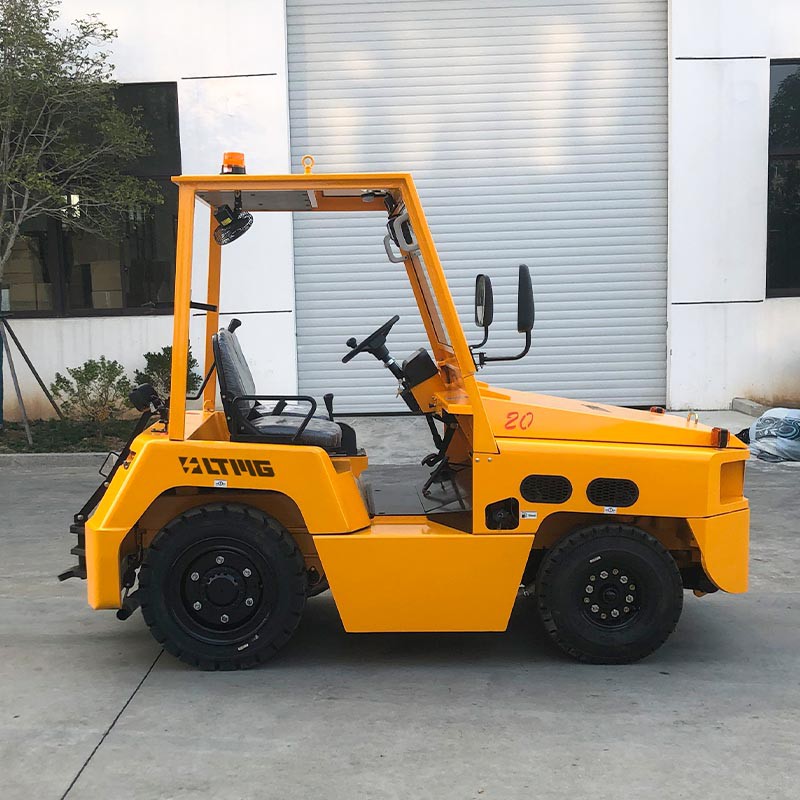

Name: Airport Baggage Tractor
Brand: LTMG
SKU: 230548520

Optional Configurations: Tailored to meet diverse needs, LTMG airport baggage tractor offers a range of optional configurations to enhance functionality and comfort. Choose from options such as a windshield, simple driving cab, or sealed cab for added protection against the elements. Stay comfortable in any climate with available air conditioning or a hot air blower. Custom-built traction pins ensure compatibility with various baggage carts, while a small loading platform offers convenience during loading and unloading operations. Plus, enhance safety and efficiency with a monitoring and recording system to track performance metrics.

High-Power Engine Options: Equipped with a high-performance Japanese Yanmar engine as standard, the baggage tractor delivers reliable power for demanding tasks. Additionally, customers have the flexibility to choose from other engine options such as Isuzu and Cummins to suit specific operational requirements.

Original Imported Automatic Transmission: Experience seamless operation with the original imported hydraulic automatic transmission system. Control vehicle speed effortlessly by manipulating the accelerator pedal, ensuring smooth and efficient maneuverability on the tarmac.

With its versatility, power, and advanced features, our airport baggage tractor is the ideal solution for optimizing baggage handling operations at airports of any size. Experience enhanced performance, comfort, and reliability with our state-of-the-art ground handling equipment.

airport baggage towing tractor

airport baggage tractor

baggage tractor airport

technical parameters

Model					TD25
Performance	Max. drawbar pull			KN	20
	Max. towed weight	With one trailer		Kg	26000
		With a train of trailers		Kg	39000
	Max. travel speed	Forward		Km/h	30
		Backward		Km/h	14
	Min. turning radius			mm	2950
	Max. gradeability with no load			%	38
Weight	Truck weight(no load)			Kg	3400
	Weight distribution	Front		Kg	1190
		Rear		Kg	2210
Dimensions	Wheelbase			mm	1600
	Wheelbase	Front		mm	1230
		Rear		mm	1170
	Front overhang			mm	630
	Rear overhang			mm	770
	Towing bar height			mm	304.8/405
	Min. ground clearance			mm	150
Engine	Model				Yanmar98
	Displacement			cm³	3319
	Rated output			KW/rpm	43.7/2300
	Max. torque			N.m/rpm	196.3/1700
	Max. speed			rpm	2625
Transmission	Model				Okamura
	Gearshift method				Automatic 2 speed
	Transmission gear ratio		Forward gear I		2.550
			Forward gear 2		1.241
			Backward gear 1		2.550

certificates

LTMG certificates

shipping plan

transportation experience

FAQ

Q: Are airport baggage tractors compatible with different types of baggage carts?

A: Yes, airport baggage tractors are designed to be compatible with a wide range of baggage carts commonly used in airport operations. Adjustable hitch heights and custom-built traction pins ensure a secure connection and smooth towing experience with various cart designs.

Q: How are airport baggage tractors powered?

A: Baggage tractors are typically powered by diesel engines for their high torque output and fuel efficiency. However, some models may offer alternative power sources such as electric or hybrid propulsion systems for reduced emissions and quieter operation.

Q: Are airport baggage tractors easy to operate?

A: It is designed with operator convenience and ease of use in mind. They typically feature intuitive controls and ergonomic cabins to minimize operator fatigue and maximize efficiency during long shifts.
