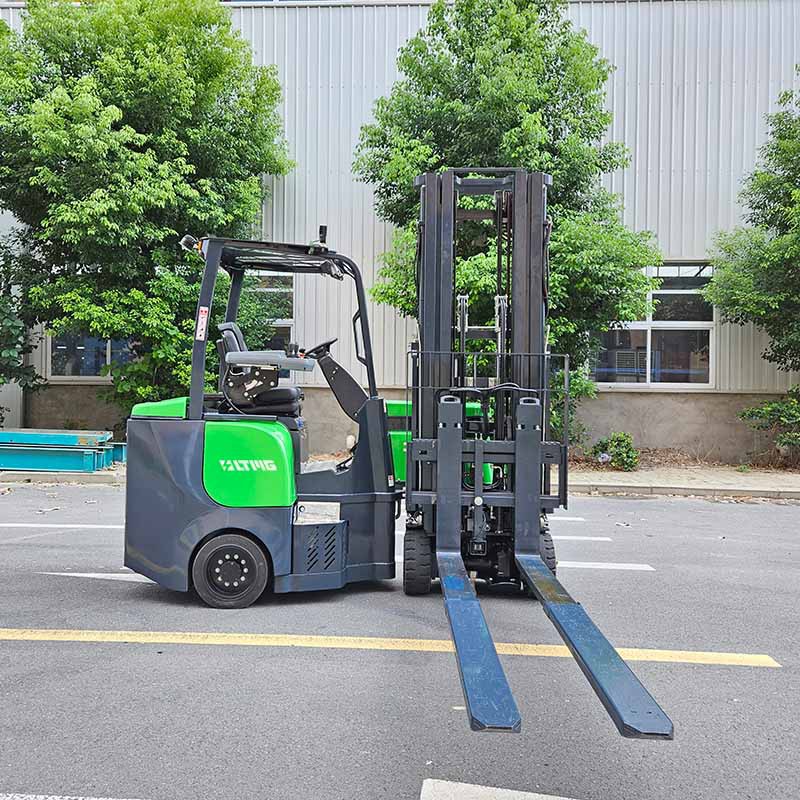

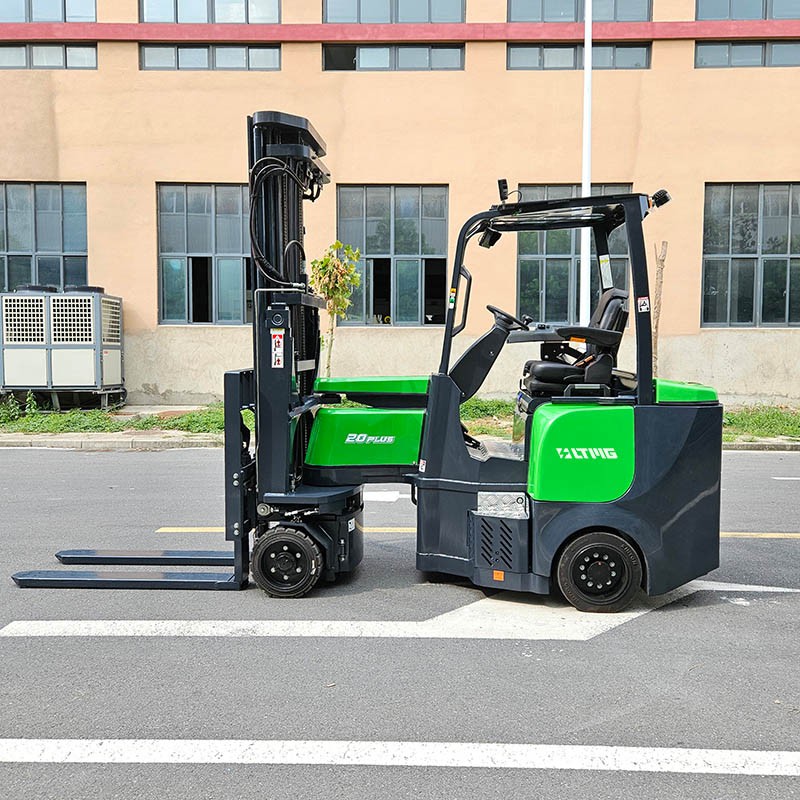

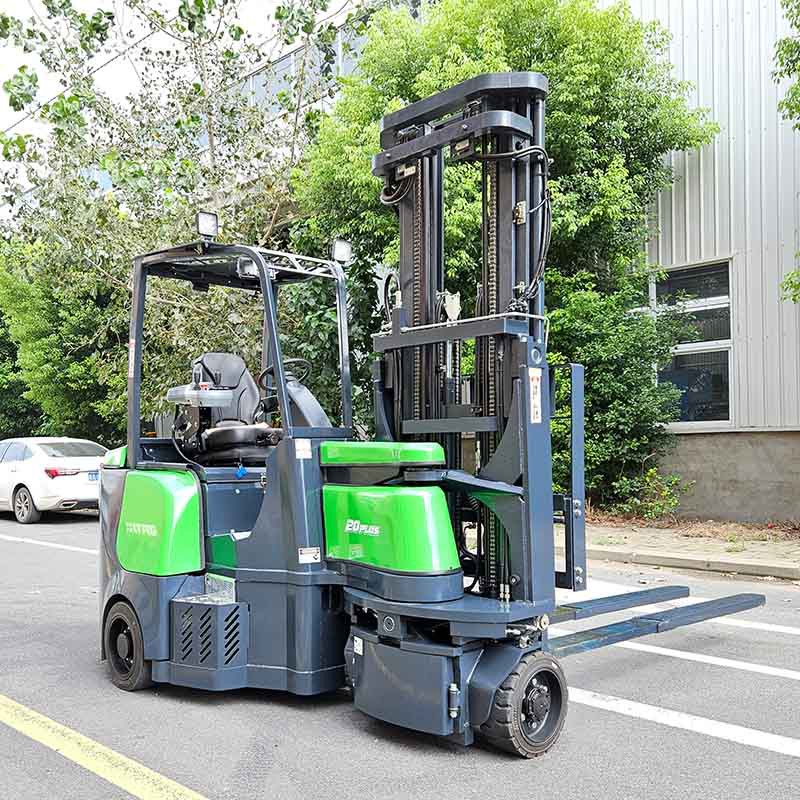

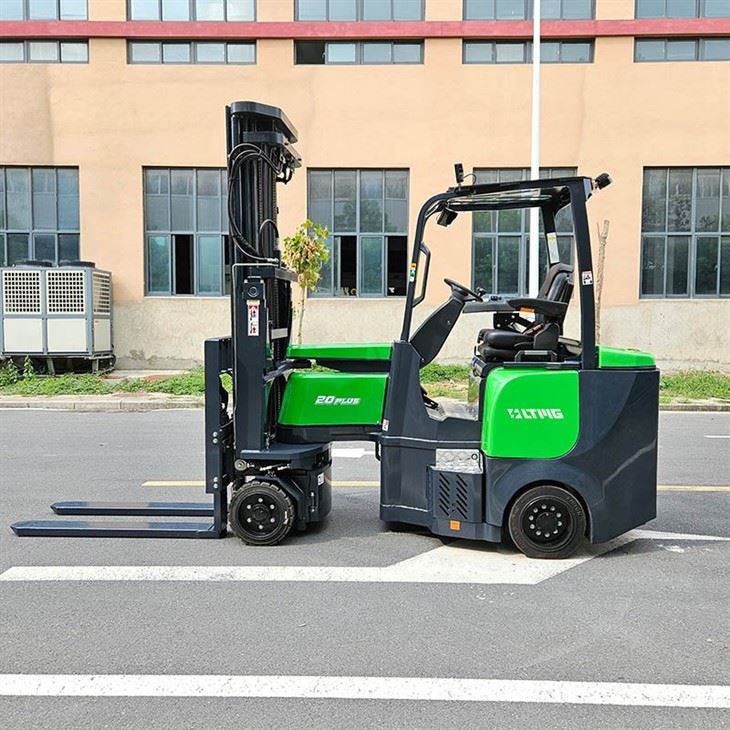

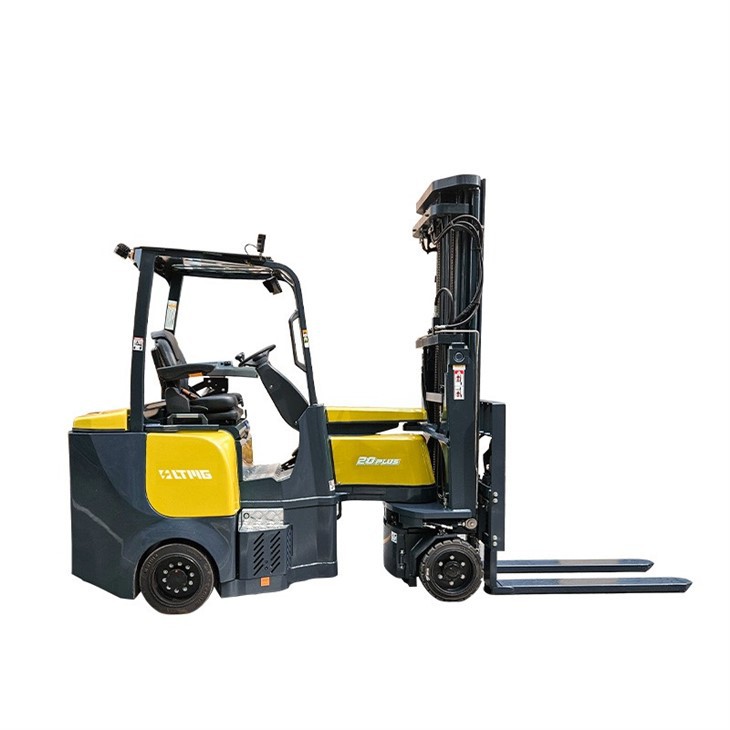

Introducing the Electric VNA Forklift with Telescopic Fork, an efficient and versatile solution for your material handling needs. With its advanced features and user-friendly design, this vna truck can help you achieve optimal productivity in your warehouse operations.
From fingertip control and special picking mode to better inching performance, this forklift offers a variety of control options to make your work easier and more efficient. The electric-hydraulic proportional feature provides smooth and precise lifting and lowering capabilities, while the ZAPI controller and panel ensure reliable performance and easy monitoring.
Equipped with a high visibility mast and standard guiding lasers, this forklift makes it easy to maneuver through narrow aisles and tight spaces. The telescopic fork adds another layer of versatility, allowing you to easily handle a variety of load sizes.
Applications for the battery VNA forklift include distribution centers, manufacturing facilities, and warehouses. Whether you're moving bulky items or small pallets, this forklift can help you handle the job with ease and efficiency.
The Electric VNA Forklift with Telescopic Fork can provide a significant boost to your material handling capabilities. With its advanced features and reliable performance, it is a smart investment for any business looking to enhance their warehouse operations.
technical parameters
| Model | FBZ20 | |
| Power Type | battery | |
| Operation Type | Seated | |
| Rated Capacity | Q(kg) | 2000 |
| Load Center | C(mm) | 600 |
| Front Overhang | x(mm) | 285 |
| Wheelbase | y(mm) | 1720 |
| Service weight(incl. battery) | kg | 7460 |
| Load axle,drive side/load side | kg | 1 |
| unload axle, drive side/load side | kg | 2250/5210 |
| Wheel type,drive side/load side | Solid rubber | |
| Tyre size,load side | mm | Φ457×178 |
| Tyre size, drive side | mm | Φ415×178 |
| Wheel quantity,front/rear(X= drive) | 2x/2 | |
| Wheel tread,drive side | b10(mm) | 800 |
| Wheel tread,load side | b11(mm) | 1090 |
| Tilt of fork, Forward/Backward | α/β(°) | 1/3 |
| Height of mast closed | h1(mm) | according to mast sheet |
| Full free lifting height | h2(mm) | according to mast sheet |
| Rated cpacity Lifting height | h3(mm) | 3300 |
| Lifting height | h3(mm) | 4600～10000 |
| Height of mast extend | h4(mm) | according to mast sheet |
| overhead guard height | h6(mm) | 2250 |
| Seat height | h7(mm) | 1230 |
| overall length | L1(mm) | 3830 |
| Length to the fork face | L2(mm) | 2730 |
| overall width | b1/b2(mm) | 980/1260 |
| fork dimentions | l/e/s(mm) | 1100/100/50 |
| fork carriage width | b3(mm) | 990 |
| Width across forks | b5(mm) | 250～890 |
| side move distance | mm | ±100 |
| Ground clearance of mast | m1(mm) | 70 |
| Ground clearance of body | m2(mm) | 100 |
| min Stacking aisle width(pallet800x1200 depth) | Ast(mm) | 1900 |
| efficiency aisle≥ (pallet to pallet distance) | mm | 2000 |
| rack to rack distance ≥ | mm | 2200 |
| min Stacking main aisle width(pallet | mm | 2650 |
| Turning radius | Wa(mm) | 2200 |
| Drive speed,load/unload | km/h | 13 |
| Lift speed.load/unload | mm/s | 400/420 |
| Lower speed, load/unload | mm/s | 280/200 |
| Max. climbing ability | %(tanθ ) | 12/13 |
| Brake type | mechanical hydraulic | |
| Driving motor power (S2-60min) | kw | AC18.5 |
| Lifting motor power (S3-15%) | kw | AC15 |
| Battery voltage/capacity | V/Ah | 48/900 |
| Battery weight | kg | 1400 |
| Steering system | Hydraulic | |
shipping plan
certificates
FAQ
Q: Why choose us?
A: As a manufacturer, LTMG industrial is committed to offer not only materials handling equipment with high quality and performance and competitive price, such as very narrow aisle forklift but also in-time delivery and comprehensive 7/24 after-sale services.
Q: Can we provide OEM service?
A: LTMG can provide customized products according to customers' requirements, both OEM and ODM are acceptable.
Q: Does LTMG offer technical advice?
A: Yes, LTMG offers friendly, patient and attentive technical advice as our promise.
