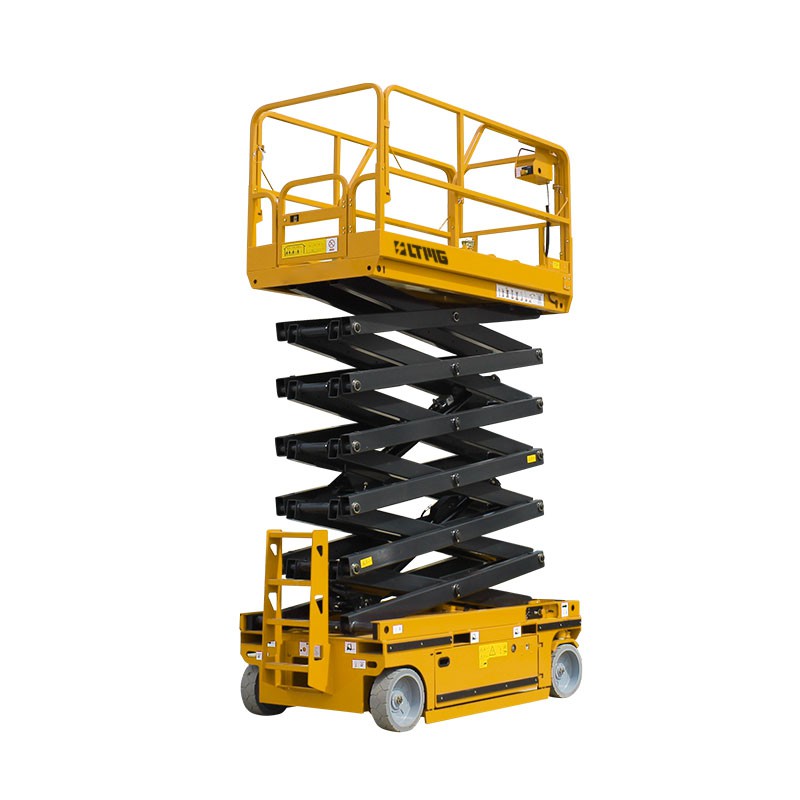

Name: 8m-16m Mobile Scissor Man Lift Platform
Brand: LTMG
SKU: 226220540

The 8m-16m mobile scissor man lift platform is a versatile and reliable equipment that can be used in a variety of industrial applications. With its unique features, this scissor platform offers many advantages and benefits, making it a valuable addition to any workplace.

Equipped with self-locking gate, ensuring safety and prevents accidents. The all-travel feature allows the platform to be moved at any height, increasing its flexibility and maneuverability. The non-marking tires are durable and leave no traces on the floor, while the 4X2 drive system provides maximum traction and stability.

In terms of safety, the automatic braking system, emergency descent system, emergency stop button, and tilt protection system offer multiple layers of protection and ensure that the platform is safe to use at all times. Additionally, the action buzzer and frequency flashlights provide visual and audio alerts to operators, ensuring that they are aware of any potential hazards or issues.

The portable platform lift is suitable for a range of applications, such as maintenance and repair work, warehousing and distribution, construction and demolition, and more. The platform can be used to lift heavy loads, transport materials, and provide access to elevated areas, making it an essential tool for many industries.

The 8m-16m mobile scissor man lift platform is a reliable and efficient solution that offers many advantages and benefits. Whether you are looking to improve safety, increase productivity, or enhance flexibility, this platform is sure to meet your needs and exceed your expectations. With its advanced features and intuitive design, the scissor lift is an investment that will provide long-term value and benefits to your business.

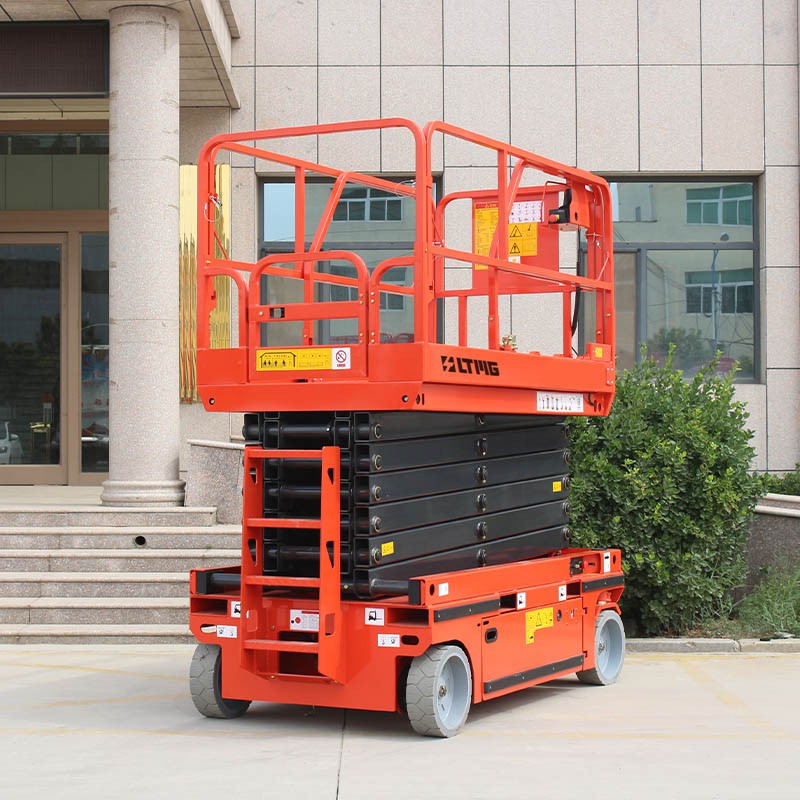

8m-16m Mobile Scissor Man Lift Platform

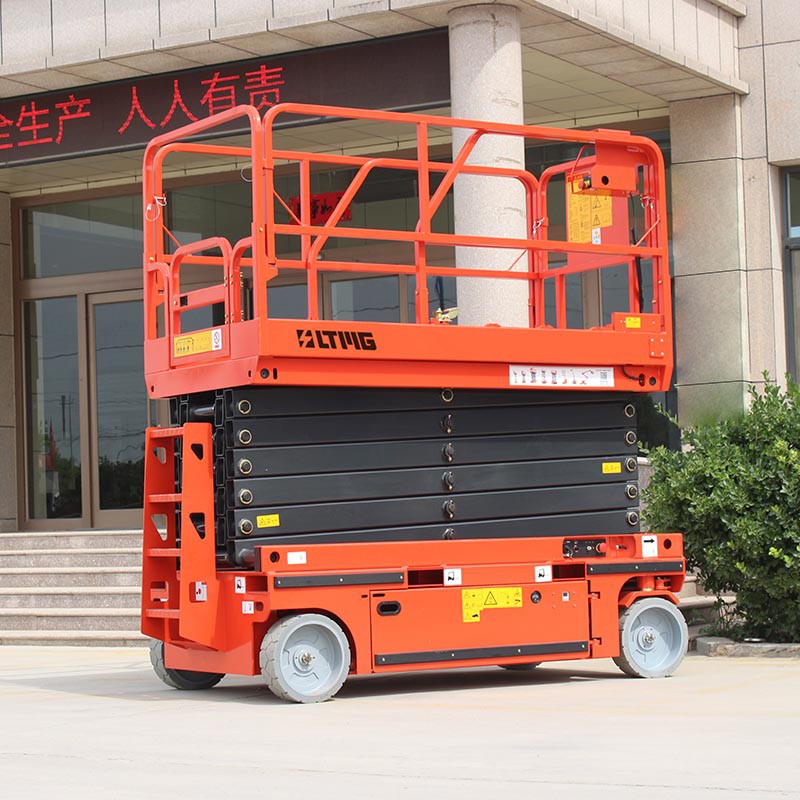

mobile scissor lift

scissor lift platform

Technical parameters

Model		LTWP0608	LTWP0810	LTWP1012	LTWP1214	LTWP1416
Platform Floor Height	mm	6000	8000	10000	11800	13800
Working Height	mm	8000	10000	12000	13800	15800
Platform Extension Size	mm	900	900	900	900	900
Overall Length	mm	2450	2450	2450	2450	2450
Overall Width	mm	1150	1150	1150	1150	1350
Overall Height	mm	2180	2310	2420	2550	2750
Platform Size	mm	2290*1150	2290*1150	2290*1150	2290*1150	2790*1270
S.W.L	kg	380	320	320	230	230
S.W.L On Extension	kg	113	113	113	113	100
Grade ability	%	25	25	25	25	25
Turning Radius(Min)	mm	2100	2100	2200	2200	2600
Travel Speed(Stowed)	km/h	3.5	3.5	3.5	3.5	3.5
Travel Speed(Raised)	km/h	0.8	0.8	0.8	0.8	0.8
Ground Clearance(Min)	mm	100	100	100	100	100
Driving Wheels	mm	381*127	381*127	381*127	381*127	381*127
Lifting Motor	V/KM	24/3.0	24/3.0	24/3.0	24/3.0	24/4.5
Maintenance free battery	V/Ah	4*6/225	4*6/225	4*6/240	4*6/240	4*6/300
Integrated Charger	V/A	24/25	24/25	24/25	24/25	24/25
Weight	kg	1945	2175	2468	2830	3575

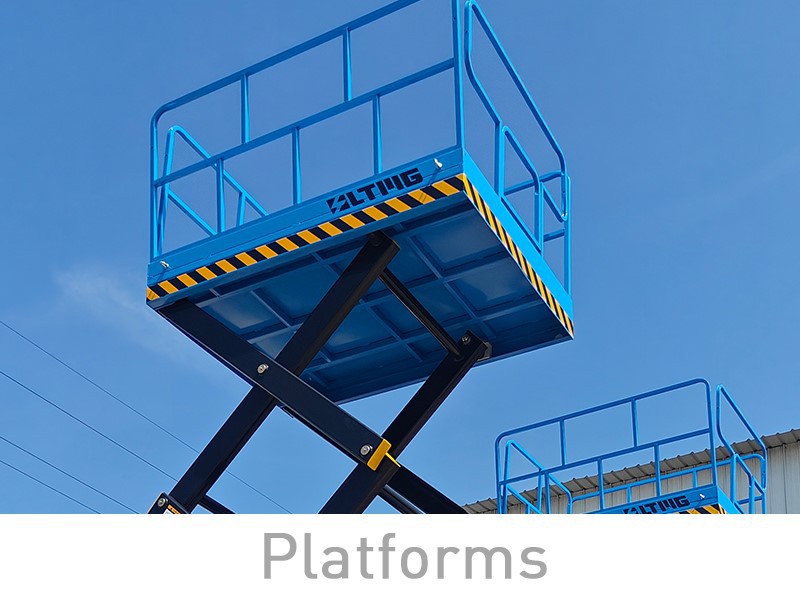

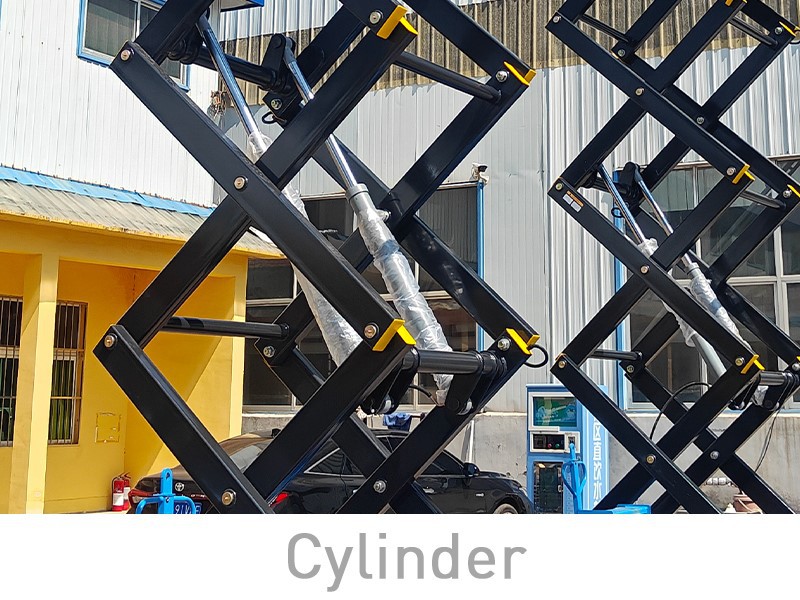

advantages

portable man lift platform

portable platform lift

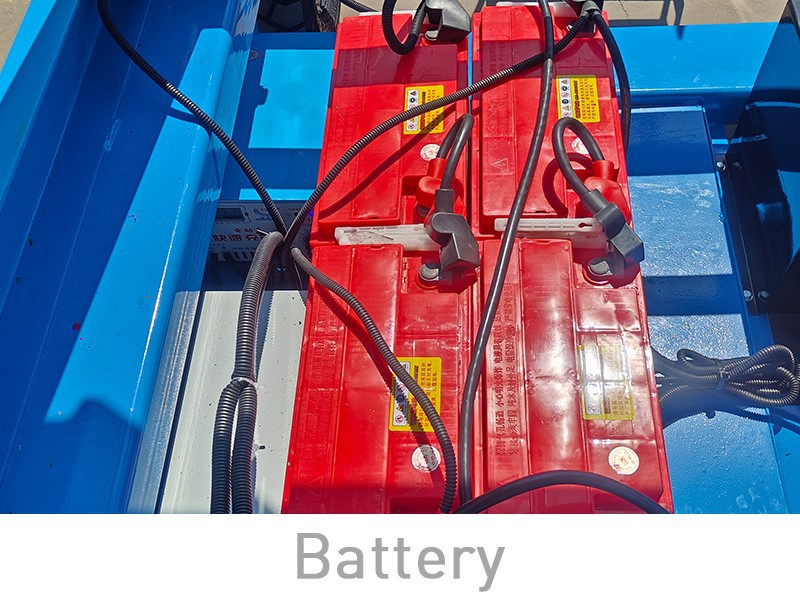

scissor platform battery

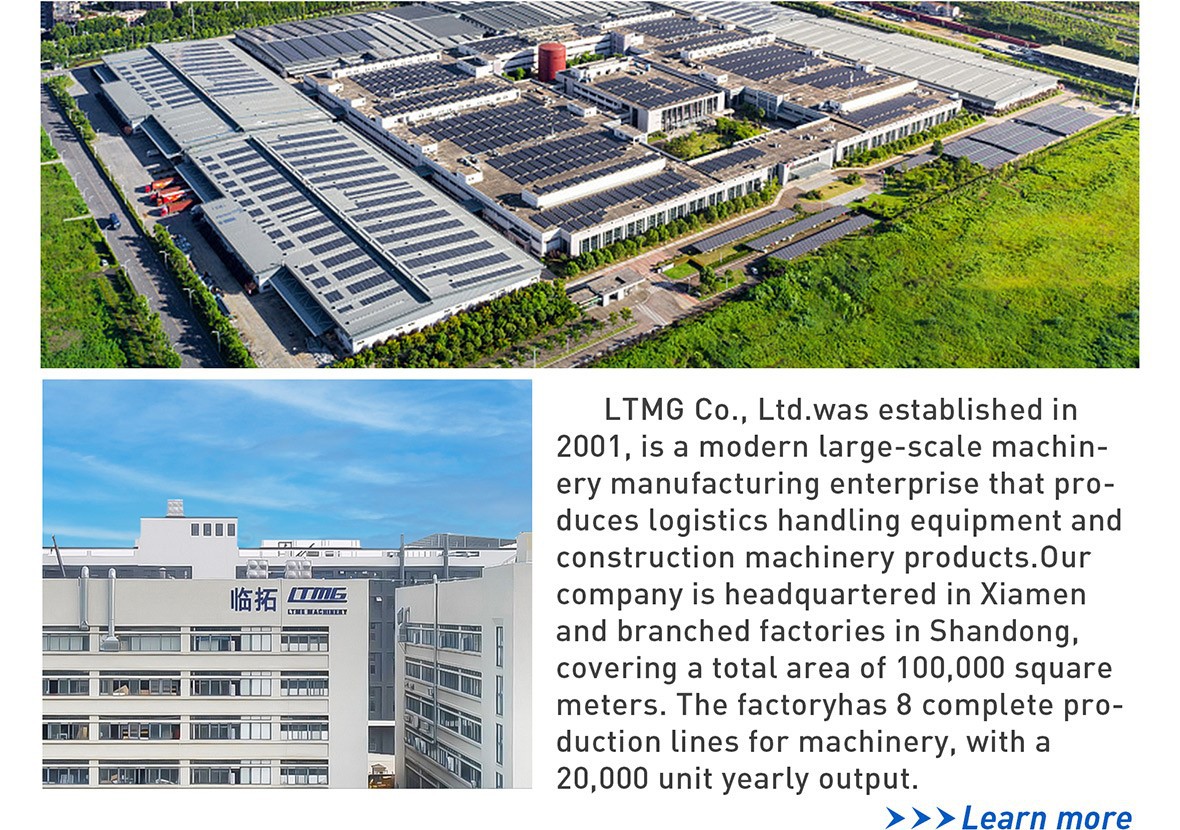

About LTMG

single man scissor lift factory

FAQ

Q: What safety features does the 8m-16m mobile scissor man lift platform have?

A: The safety features of this lift platform may include emergency stop buttons, automatic overload protection, safety rails or gates, and non-slip surfaces.

Q: What are the typical applications for the 8m-16m mobile scissor man lift platform?

A: This lift platform is commonly used for maintenance and repair work in warehouses, factories, construction sites, and other high-ceilinged areas. It may also be used for stocking or retrieving goods on higher shelves or racks.

Q: Are you a manufacturer, trading company or a third party?

A: We are a manufacturer, and we have builded up our company since 2001, and we have been in the construction machinery and material handling equipment industry for 22 years
