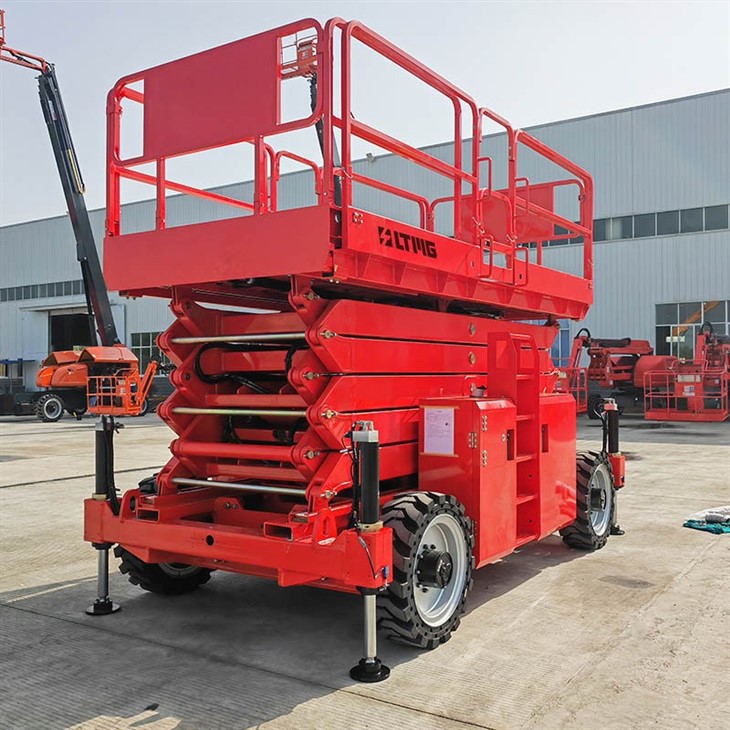

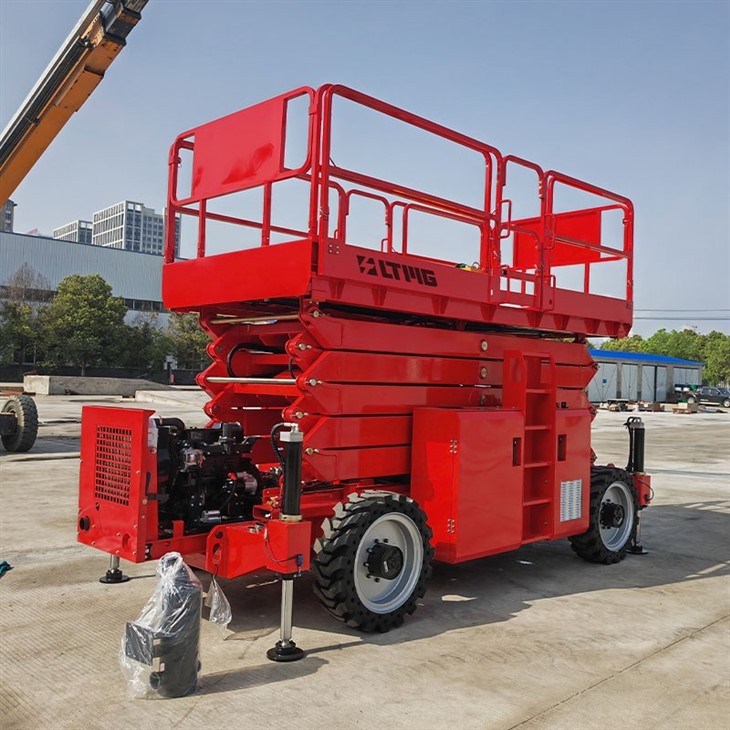

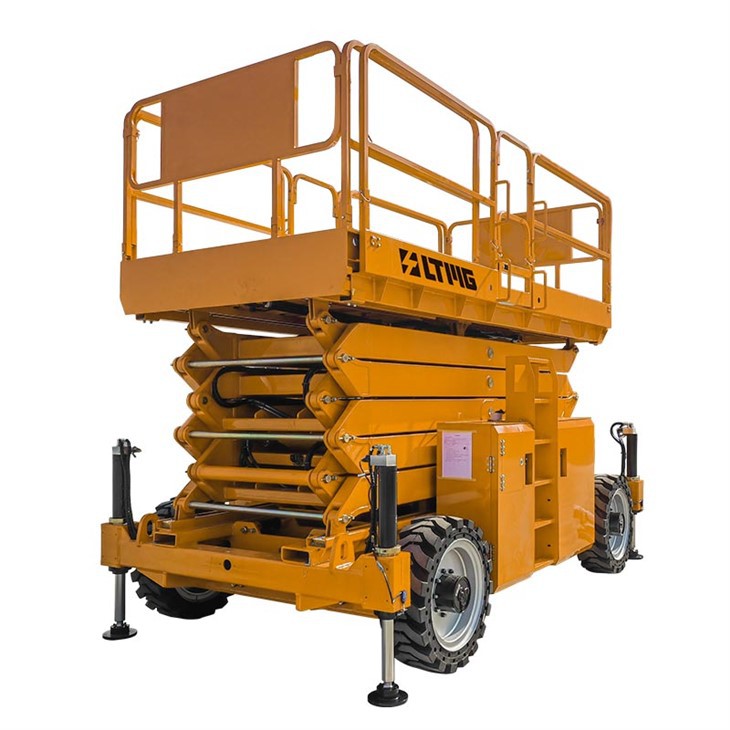

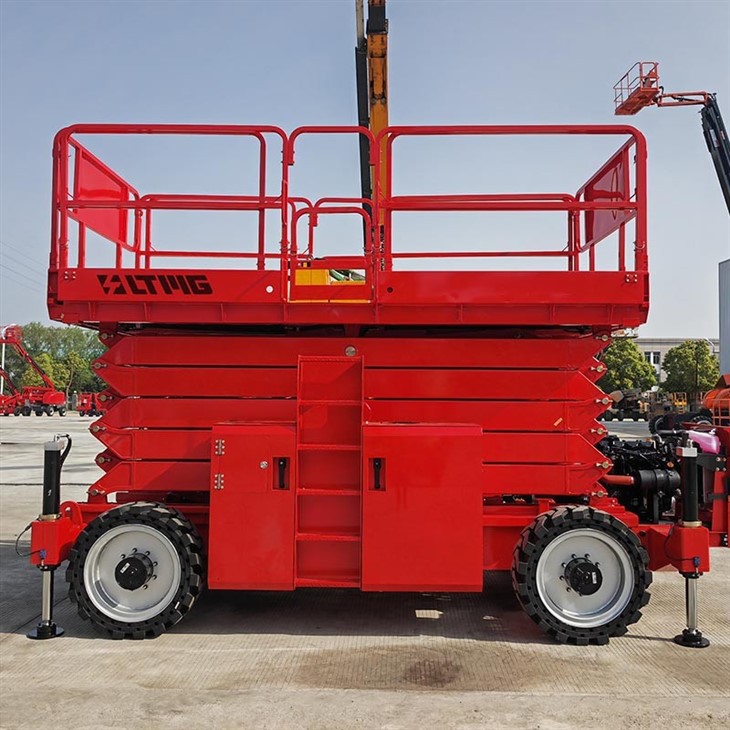

The 10 m Off Road Scissor Lift is a versatile and robust piece of equipment that is specially designed for off-road applications. It comes with a range of features, making it an ideal solution for a variety of applications, including construction, maintenance, and industrial purposes.

The scissor lift offers enhanced safety features to ensure that operators are protected during use. With its compact structure, it can operate efficiently in tight and restricted areas, making it an ideal solution for working in confined spaces. It is also built with a durable framework that can withstand harsh off-road environments, ensuring a long-lasting service life.

The Scissor Lift platform comes with larger up clearance and horizontal reach, making it possible to access areas that are hard to reach using other equipment. This feature makes it ideal for use in a range of applications, including maintenance work on buildings, bridges, and other infrastructure.

mobile scissor lift

scissor lift platform

scissor platform

Technical parameters

Model		LTWP1012RTS
Measurements
Working height maximum	m	12
Platform height maximum	m	10
(LxW) Platform dimensions	m	2.9x1.5
Extension deck measurement	m	1.1
Length(stowed)	m	2.9/3.57
Width(stowed)	m	1.75
Height(stowed)	m	2.63
Height stowed folding guardrails	m	2.17
Platform height minimum	m	1.47
Wheelbase	m	2.2
Ground clearance (center)	m	0.2
Productivity
Lift capacity maximum	kg	450/120
Platform occupancy maximum		2
Drive speed (stowed)	km/h	4
Drive speed (raised)	km/h	0.8
Gradeability		35%
Working angle maximum		3°/3°
Turning radius inside	m	1.83
Turning radius outside	m	4.25
Drive & steer mode		4x4x2
Tire type		26x12-16.5
Power
Engine		Yanmar4TNV88
Power	kW	25.2kW@2200rpm
Fuel tank volume	L	82
Hydraulic tank volume	L	62
Control voltage		12 VDC
Weight	kg	4500
Standards Compliance		EN280:2013+Al:2015 GB25849-2010

advantages

portable platform lift red yellow

Application

The all-terrain tires offer excellent grip and traction in muddy, rocky, and other challenging terrains, ensuring that it can operate in harsh environments. With the ability to traverse over different obstacles, it can undertake a range of activities that otherwise would not be possible.

When it comes to the applications of this equipment, the possibilities are endless. Its robust design makes it an ideal choice for construction work at heights, while its off-road capabilities mean it can efficiently work in remote and challenging locations, such as mining sites. It can also be utilized in the maintenance and inspection of industrial facilities, including factories, warehouses, and power plant facilities.

The 10 m Off Road Scissor Lift offers an ideal solution for those looking for a durable and versatile piece of equipment. With its safety features, compact structure, and all-terrain capabilities, it is a reliable and efficient solution for a range of applications.

portable man lift high

single man scissor lift orange

FAQ

Q: What is an Off Road Scissor Lift?

A:An Off Road Scissor Lift is a type of machinery that is designed for use in harsh terrain environments. It is primarily used in outdoor settings where traditional scissor lifts cannot operate properly due to rough surfaces such as sand, gravel, or mud.

Q: How does an Off Road Scissor Lift work?

Q: What are the benefits of using an Off Road Scissor Lift?

A: The primary benefit of using an the scissor lift is its ability to operate effectively in challenging environments that other scissor lifts cannot navigate. It enables workers to reach high heights safely and efficiently in areas where traditional lifts cannot be used. Additionally, it is specifically designed for outdoor use, making it durable and long-lasting.

Q: What kind of jobs is an Off Road Scissor Lift suitable for?

A: The scissor platforms are suitable for a variety of jobs, including construction, excavation, forestry, mining, and agriculture. They are commonly used in tasks such as installing power lines, painting buildings, or cutting trees. They are an ideal choice for any job that requires a high lift that can operate in difficult terrain.
