Products Description

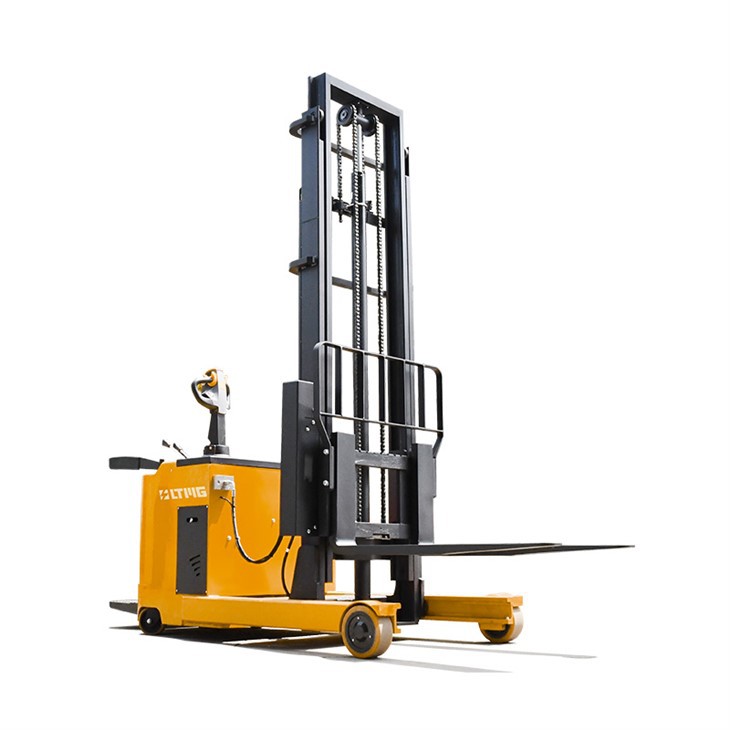

Introducing the Mini 1 Ton Reach Forklift Standing Type – a powerful and compact solution for all your material handling needs! This forklift is ideal for warehouses with limited space and narrow aisles, as it features a compact design that allows for easy maneuverability in tight spaces.
This forklift boasts a one-ton capacity, making it suitable for a wide range of applications, including moving pallets and other heavy loads. Whether you're working in a warehouse, a factory, or a distribution center, the Mini 1 Ton Reach Forklift Standing Type is an excellent choice for all your material handling needs.

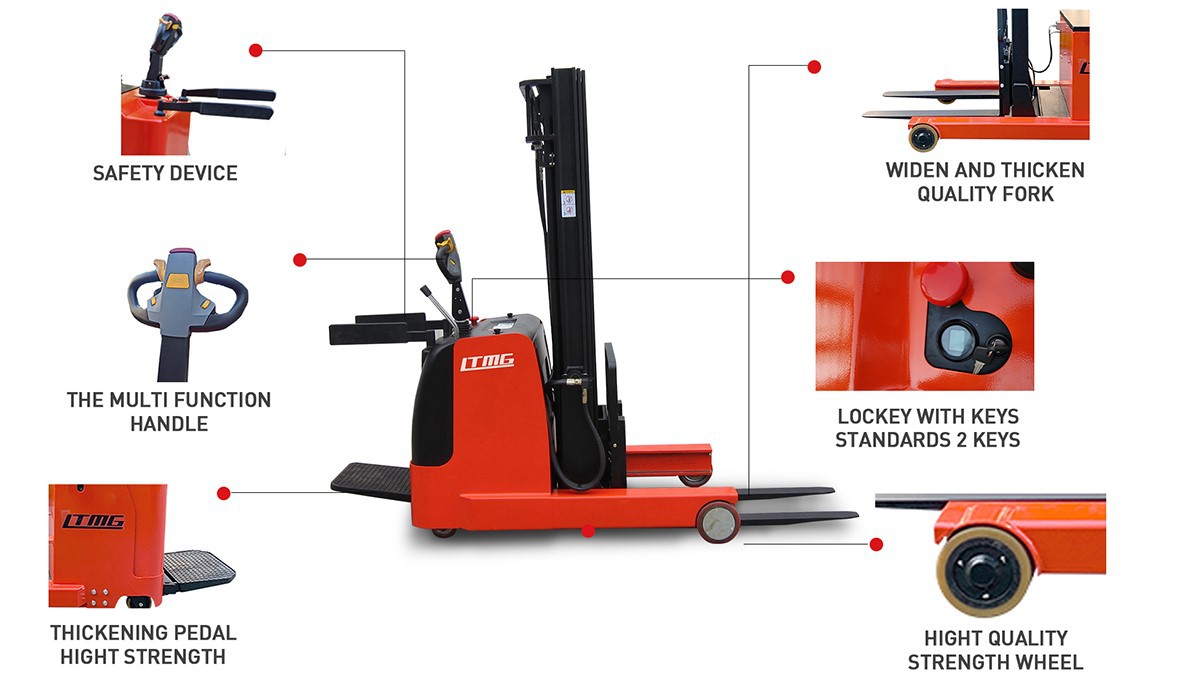

One of the standout features of this forklift is its convenience and ease of use. The standing type design means that the operator can easily step on and off the forklift, making it perfect for tasks that require frequent dismounting. Additionally, the forklift's intuitive controls ensure smooth and easy operation, even for those who are new to forklifts.
The Mini 1 Ton Reach Forklift Standing Type is also equipped with a range of safety features to ensure that the operator and everyone in the vicinity are safe at all times. From the emergency stop function to the horn and the safety lights, this forklift is designed with safety in mind.
In summary, the Mini 1 Ton Reach Forklift Standing Type is a versatile and reliable solution for all your material handling needs. With its compact design, one-ton capacity, and user-friendly controls, this forklift is perfect for warehouses, factories, and distribution centers. Whether you're moving pallets, heavy loads, or other materials, the Mini 1 Ton Reach Forklift Standing Type is the perfect tool for the job.
Products parameter
| Characteristics | Model | TRS10 | ||
| Power type | Electric | |||
| Operation type | stand Type | |||
| Load capacity | Q(kg) | 1000 | ||
| Load center | C(mm) | 500 | ||
| Load distance,centre of drive axle to fork | X(mm) | 155 | ||
| Wheelbase | Y(mm) | 1335 | ||
| Reach distance | L(mm) | 500 | ||
| Weight | Service Weight (with Battery) | kg | 1875 | |
| Dimensions | Mast Height,Lowered | h1(mm) | 1845 | |
| Lifting height | h3(mm) | 2500 | ||
| Max.height when lifting | h4(mm) | 3470 | ||
| Fork face min.ground clearance | h13(mm | 35 | ||
| Fork tilting angle Front/rear | 3/5 | |||
| Bodylength | 12(mm) | 1615 | ||
| Overall Length | L1(mm) | 1734/2276 | ||
| Overall width | b1(mm) | 1034 | ||
| Fork size | s/e/l(mm) | 35/100/1070 | ||
| Fork Spread | b5(mm) | 210-680 | ||
| Min.ground clearance | m2(mm) | 70 | ||
| Aisle Width for Pallet 1000*1200 crossways | Ast(mm) | 2681 | ||
| Aisle Width for Pallet 1200*1000 crossways | Ast(mm) | 3083 | ||
| Min.turning radius(without/with platform) | Wa(mm) | 1652/2053 | ||
| Drive Motor | kw | 1.5 | ||
| Lift Motor | kw | 2.2 | ||
| BatteryType | Lead Acid | |||
| Battery voltage/nominal capacity | V/Ah | 24/210 | ||
| Charger | V/A | 24/30 | ||
Products details
Products certificates
Products feedback
Products Description
Q: Can the Mini 1 Ton Reach Forklift Standing Type be used in narrow spaces?
Q: Is the Mini 1 Ton Reach Forklift Standing Type easy to maneuver?
Q: What kind of maintenance is required for the Mini 1 Ton Reach Forklift Standing Type?
