Name: 3 Ton Hand Pallet Truck
Brand: LTMG
SKU: 220074939

Products Description

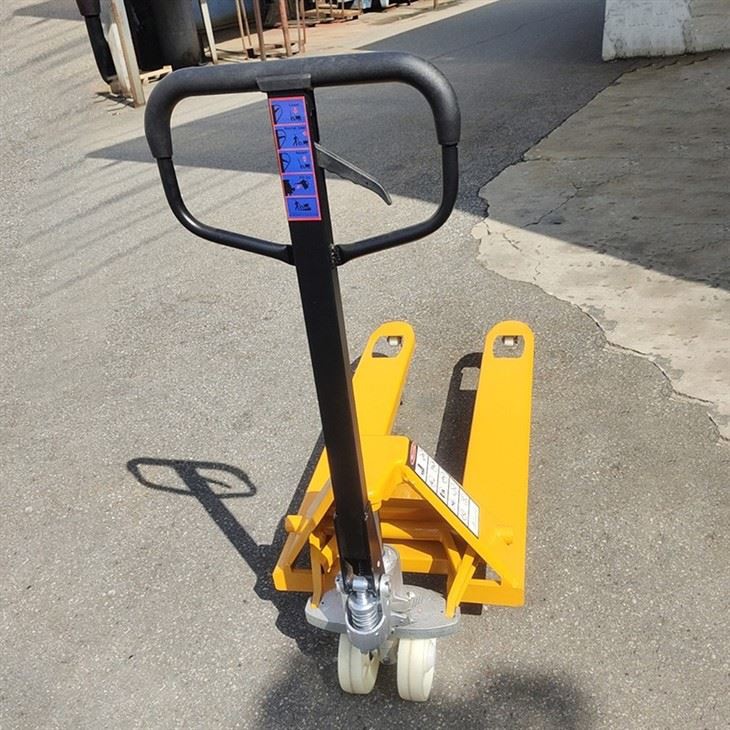

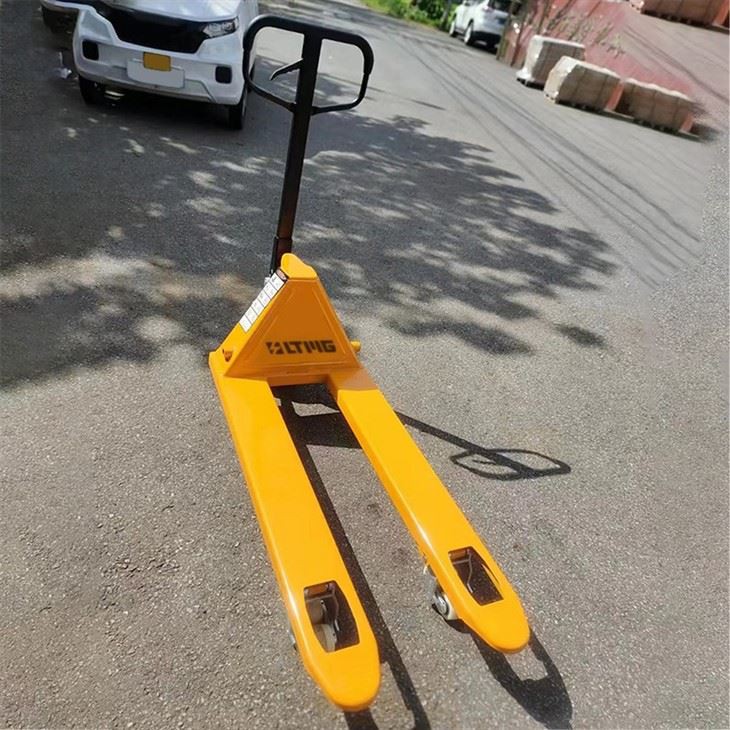

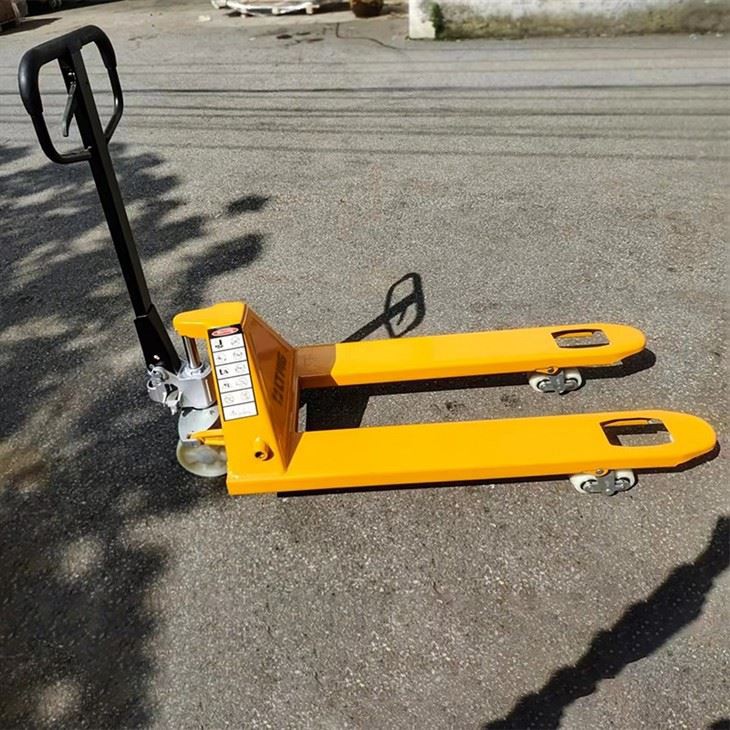

This 3-ton hand pallet truck from LTMG is ruggedly constructed. The body of the truck is made of high quality steel (especially for the critical load bearing parts) and is built to last. The structure and design of the control handle and joystick release the tension on the handle, effectively reducing operator fatigue and improving work efficiency.

hand pallet truck for sale

The handwheel and load wheel are equipped with high-quality components and bearings to minimize rolling resistance. The handwheel can be rotated freely, which is easy to operate in a narrow space and expands the scope of application of the product. The metal adjusting parts and rollers at the end of the forks can be better positioned for easier and quicker pallet access.

3000kg manual pallet truck

In addition, the simple and clear structural design of this 3-ton hand pallet truck can facilitate the late maintenance of the machine. It has an easy-to-replace pump spool and a pump valve design that greatly reduces contamination. Reduced maintenance requirements through self-lubricating bushings also make maintenance easier and more.

specifications

Model		HF30
Capacity	Q(kg)	3000
Lowered fork height	h13(mm)	85
Steering wheel	mm	Φ180x50
Fork wheel	mm	Φ80x70
Max. lift height	h3(mm)	200
Total height	h14(mm)	1214
Overall length	l1(mm)	1603
Fork length	l(mm)	1150/1220
Width Overall forks	b5(mm)	550/685
Ground clearance, center of wheel base	m2(mm)	40
Aisle width for Pallet 1000*1200 crossways	AST(MM)	1803
Aisle width for Pallet 800*1200 lengthways	AST(MM)	1803
Turning radius	Wa(mm)	1336
Fork dimension	mm	1150/1220x160x51

Factory process of hand pallet truck

Factory process of hand stacker

warehouse equipment collection of LTMG

Hand Pallet Truck

Electric Pallet Truck

Hand Pallet Stacker

Electric Pallet Stacker

LTMG offers a full line of storage equipment products. This includes manual pallet trucks, electric pallet trucks, manual pallet stackers, electric pallet stackers , order pickers, reach trucks, self-loading pallet stackers, VNA forklifts and more. You can contact our staff for more information!

FAQ

Q: What are the advantages of LTMG?

A: LTMG is a professional forklift truck manufacturer established in 2001. We have a complete production and sales team, and our products cover all kinds and tonnages. So far, LTMG has formed its own sales network around the world, exporting products to more than 180 countries and developing more than 50 agents, which is highly praised by customers in different countries.

Q: What types of products does your company handle?

A: LTMG Industries is known for its high-quality material handling equipment and construction machinery equipment, and carries a wide range of forklifts, warehousing equipment, construction machinery equipment, and airport equipment.

Q: I want to customize the product to my needs. Do you offer that service?

A: LTMG supports personalized products and offers OEM and ODM customization options to create the right individual solution for you.

Q: Are your products guaranteed with relevant certificates?

A: Of course, all our products comply with the highest standards of the ISO9001 quality system and CE marking, and EPA certification can be arranged upon your request. You can find this information on the Certificates page of our website.

Hot Tags: 3 ton hand pallet truck, China 3 ton hand pallet truck manufacturers, 2000kg Pallet Truck, Hand Pallet Truck, Warehouse Equipment
