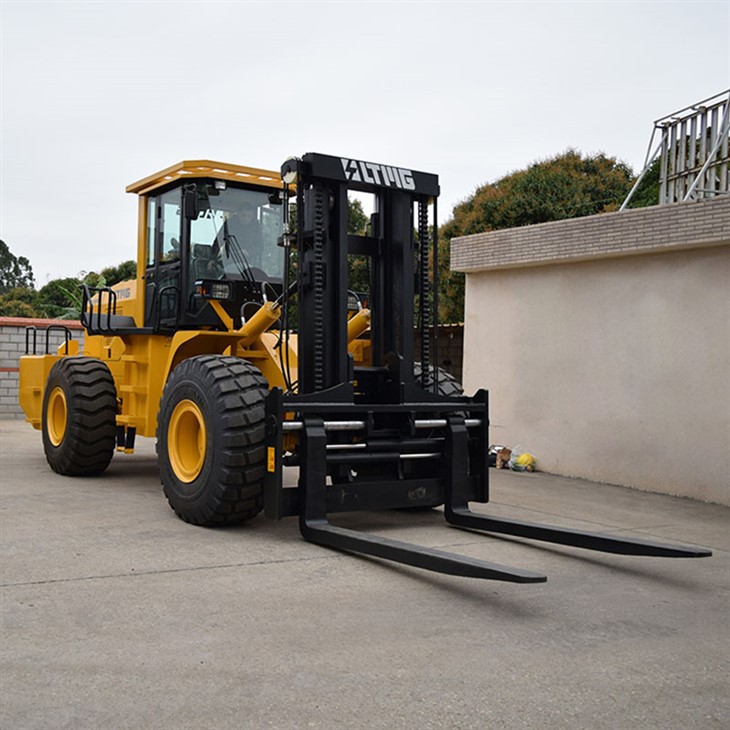

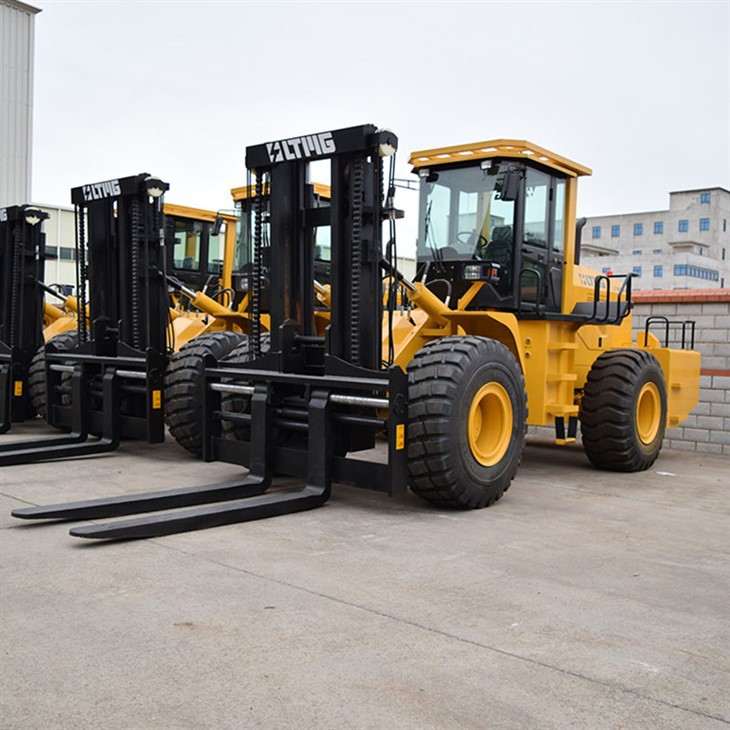

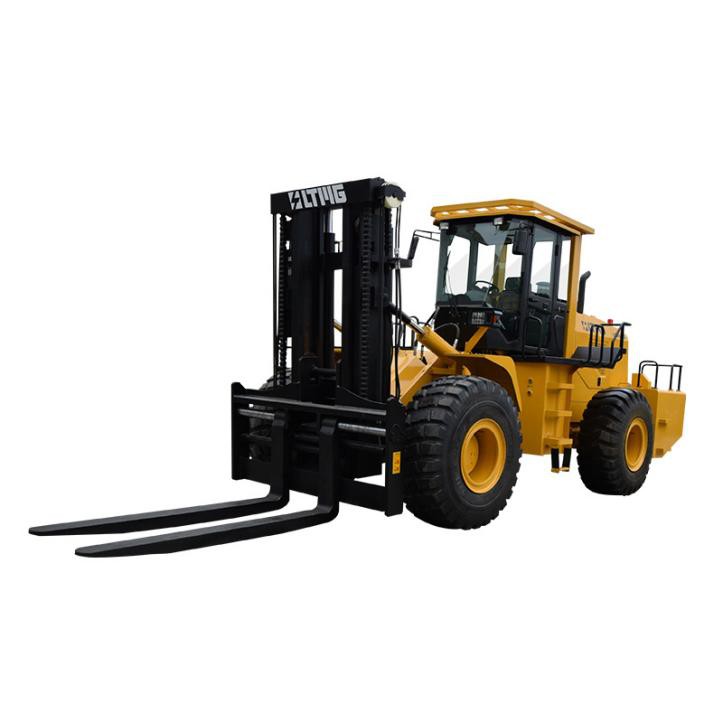

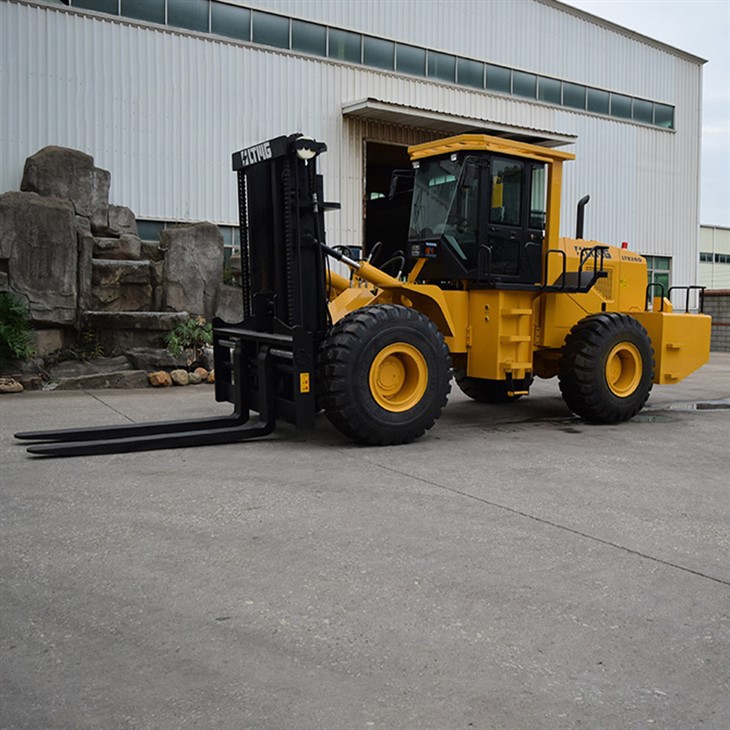

Name: Articulated Forklift Rough Terrain
Brand: LTMG
SKU: 219108482

This fourarticulated forklift rough terrain is widely used in mines, farmland, orchards and other field work occasions.Strong power, equipped with domestic and foreign famous brand engine. The whole vehicle is equipped with extra wide cross-country tires, good cross-country performance, high exhaust design, to ensure a good working environment, seat with armrests, seat belt, to ensure the operation of comfortable and safe.

New load-sensing hydraulic steering system, the system is more energy-saving, improve the efficiency of the whole vehicle; new energy-saving lighting system, energy-saving and power-saving, at the same time greatly improve the performance and service life of the lamps and lanterns; environmentally friendly engine, so that the whole vehicle to meet the European Ⅲ and EPA Ⅲ emission standards; the whole vehicle adopts environmentally friendly materials, reduce the harm to the environment. Two-piece front bottom plate design makes maintenance and inspection more convenient; water tank cover can be manually disassembled and installed, which is convenient for quick maintenance and inspection.

Specification

specification
General	Manufacture					LTMG
	Model					LTR150/LTR200
	Fuel type					diesel oil
	Rated capacity				kg	15000/20000
	Load center				mm	800
Dimensions	Lift height				mm	3000
	Free lift height				mm	100
	Fork size				mm	2400×200×100
	Shelf Side Shift Distance		Left / Right		mm	205/205
	Fork spacing adjustment		Min./Max.		mm	280/2320
	Mast tilt angle		Before / After		deg	8/10
	Front overhang				mm	1380
	Overall dismensions	Length to face of fork			mm	9700
		Overall width			mm	3040
		Mast lowered height			mm	3350
		Mast extended height			mm	4850
		Safety rack height			mm	3700
	Turning radius				mm	7800
	Min.right angle aisle width				mm	8500
Performance	noload/full load	Travel speed			Km/h	30/28
		Lifting speed			mm/sec	320/270
	Max.grade ability				º	≥21
	Max.Pull force(full load)				KN	180
	Self weight				kg	24200/26000
Chassis	Tyres	Front				2×23.5-25-32PR
		Rear				2×23.5-25-24PR
	Tread	Front			mm	2380
		Rear			mm	2380
	Wheelbase				mm	3710
	Min.Ground clearance (no load/full load)			Mast	mm	450/400
				Frame	mm	500/450
Power Unit and Control	Battery				V/AH	24/100×2
	Engine	Model				6CTA8.3-C240
		Manufacture				Cummins
		Rated output			Kw/rpm	179/2200
		Rated torque			N.m/rpm	1028/1500
		Fuel tank capacity			L	220
	Transmissions	Type				Hydraulic
		Shift		Front/rear		2/1

Certificate

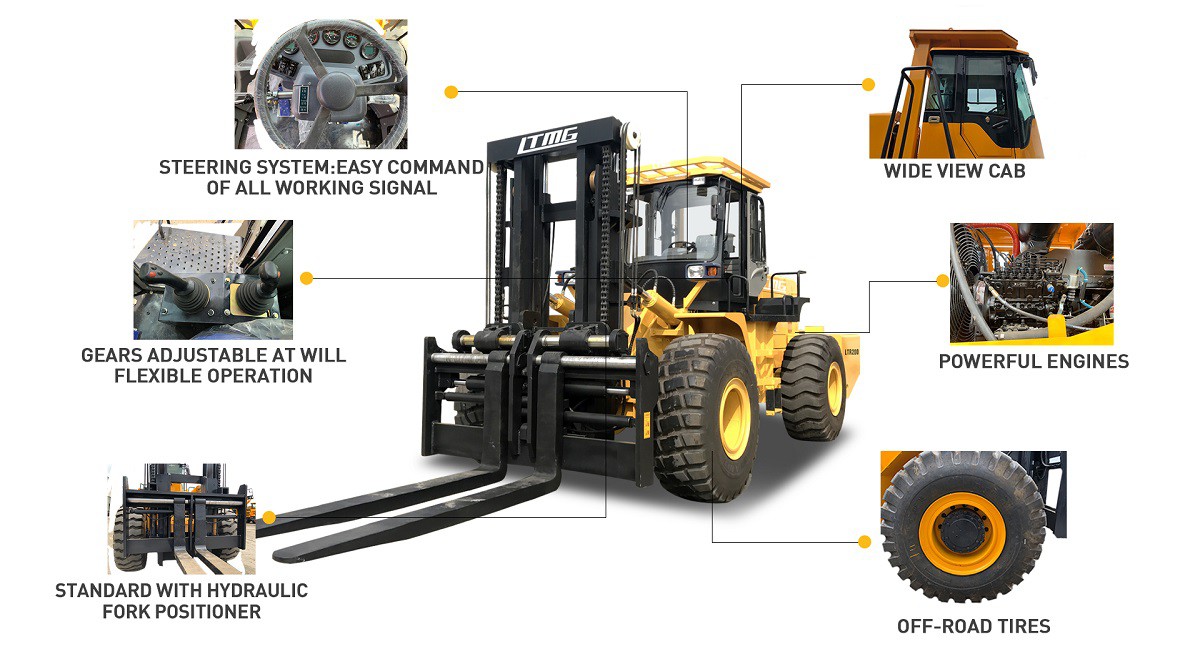

Advantages

Rough terrain forklift trucks are widely used in mines, farms, orchards and other field work occasions, strong power, equipped with domestic and foreign well-known brands of engines, equipped with extra-wide off-road tires, cross-country performance is good.

FAQ

1. Q: How can I trust your company?

A: With 20 years of experience, we can offer you the right advice and the most economical price. All equipment is CE, ISO certified through third party evaluation.

2. Q: Are your prices competitive?

A: We only supply good quality machines. We will surely offer you the best ex-factory price on the basis of high quality products and services.

3. Q: Why choose us?

A: We have 20 years experience in construction machinery industry, ranked No.1 in Alibaba, and all our products have CE and ISO certificates.

4. Q: Why Choose Us?

A: As a manufacturer, LTMG Idustry is not only committed to providing high-quality products and performance, as well as competitive prices, but also to timely delivery and 24-hour after-sales service.
