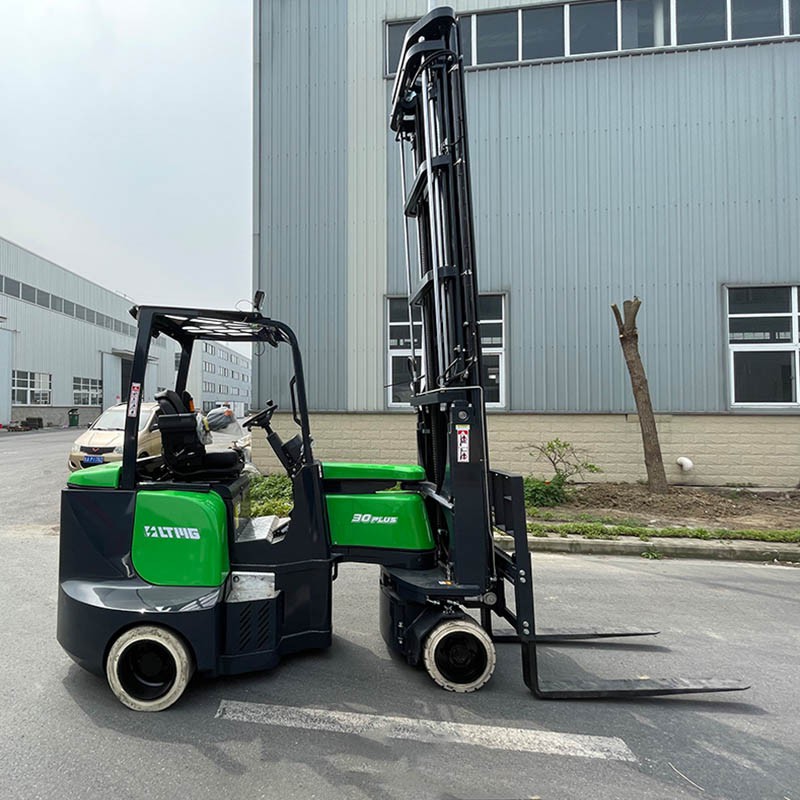

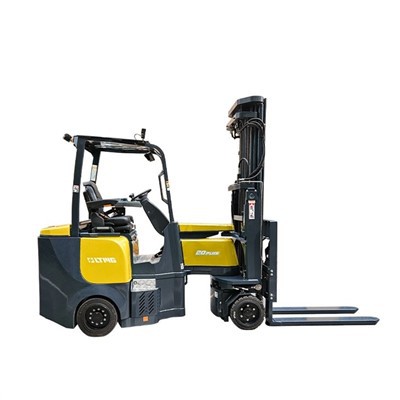

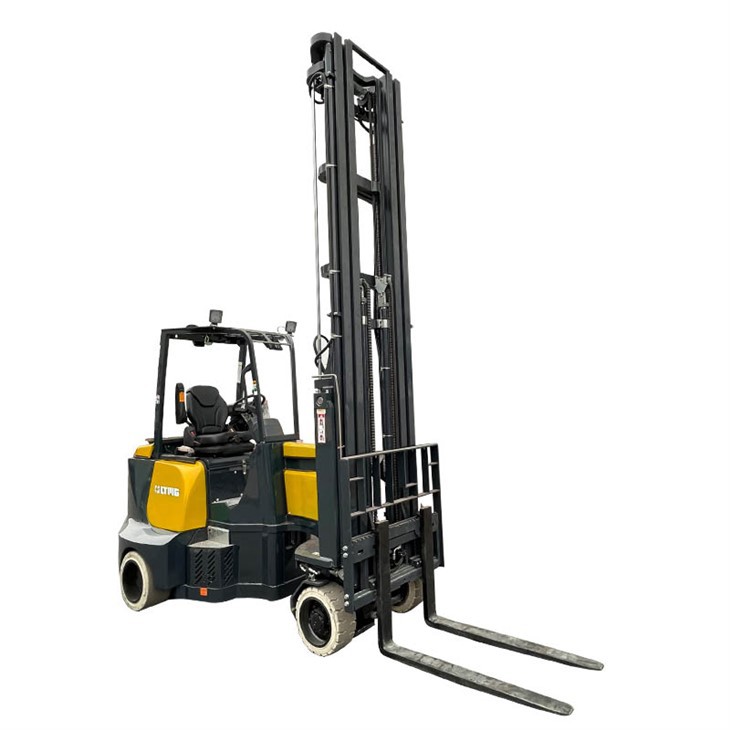

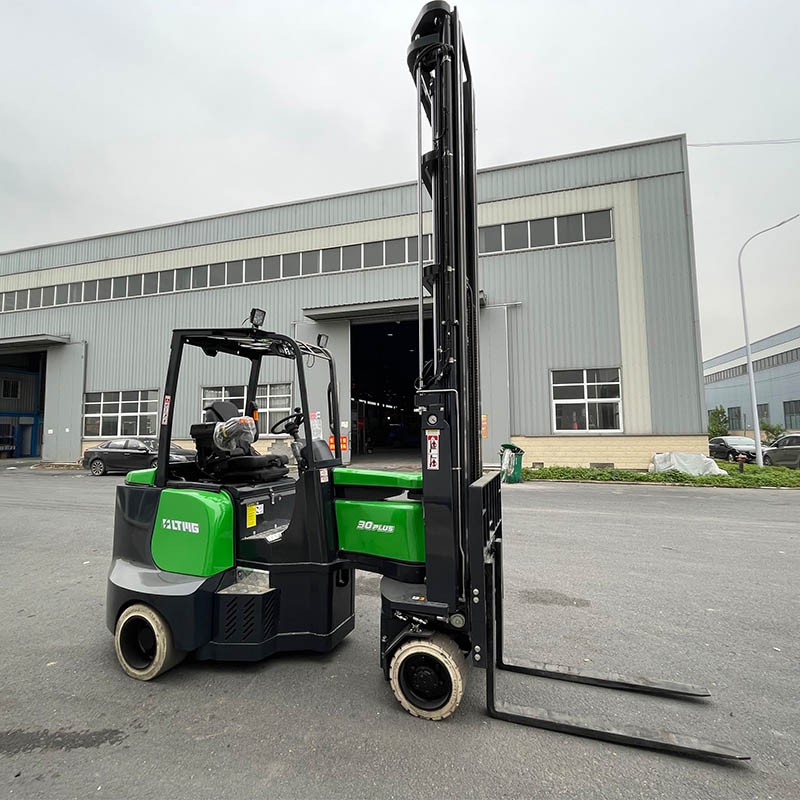

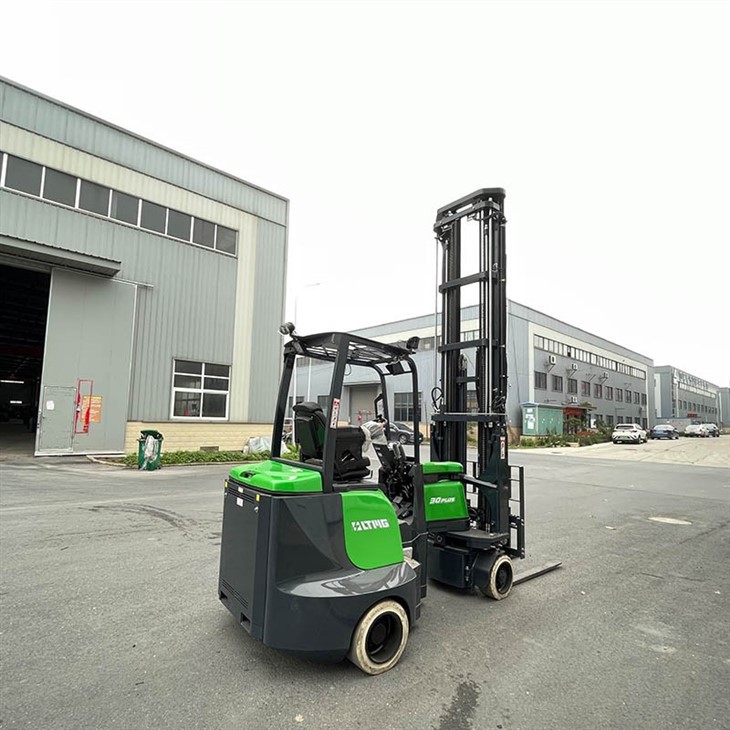

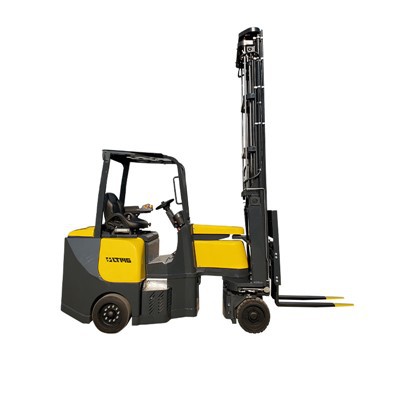

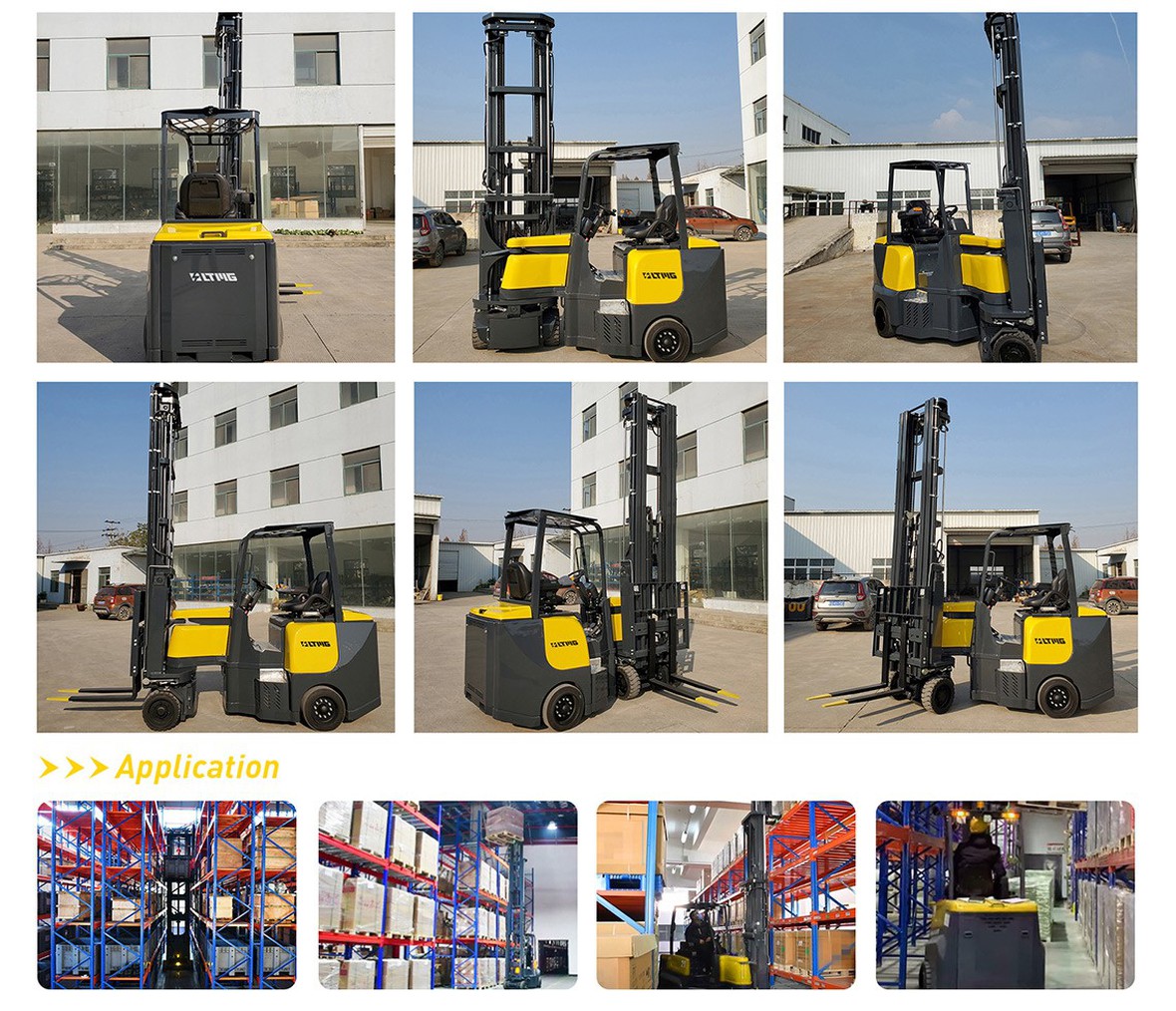

The 2.5 Ton VNA Swing Reach Truck is designed to provide top-notch performance for your warehouse needs. This innovative product features a range of unique benefits, making it an essential investment for any modern warehouse.
Technical parameters
| Model | Unit | FBZ25 |
| Capacity | KG | 2500 |
| Mast lift height | MM | 4300-12400 |
| Mast free lift height | MM | 1365-4686 |
| Mast closed height | MM | 2265-5665 |
| Mast full extended height | MM | 5561-13739 |
| Overall length(excluding forks) | MM | 2780 |
| Ground clearance | MM | 50 |
| Overhead guard height | MM | 2270 |
| Chassis width rear | MM | 1400 |
| Chassis width front | MM | 980 |
| Load center | MM | 600 |
| Wheelbase | MM | 1735 |
| Seat height | MM | 1220 |
| Mast tilt angle(back/fwd) | DEGREE | 3/1 |
| Front chassis rotate angle(left/right) | DEGREE | 220 |
| Ground speed | KM/H | 16 |
| Lift speed(load/unload) | M/S | 0.44/0.5 |
| Front tyre size | MM | 412x174 |
| Rear tyre size | MM | 457x170 |
| Grade ability(load/unload) | % | 18/20 |
| Battery voltage/capacity | V/AH | 80/500 |
| Weight excluding battery | KG | 5150 |
| Weight including battery | KG | 7400 |
| Traction motor | KW | 19.5 |
| Lifting motor | KW | 15 |
| Min net working aisle width | MM | 1900 |
| Transfer aisle width | MM | 2700 |
advantages

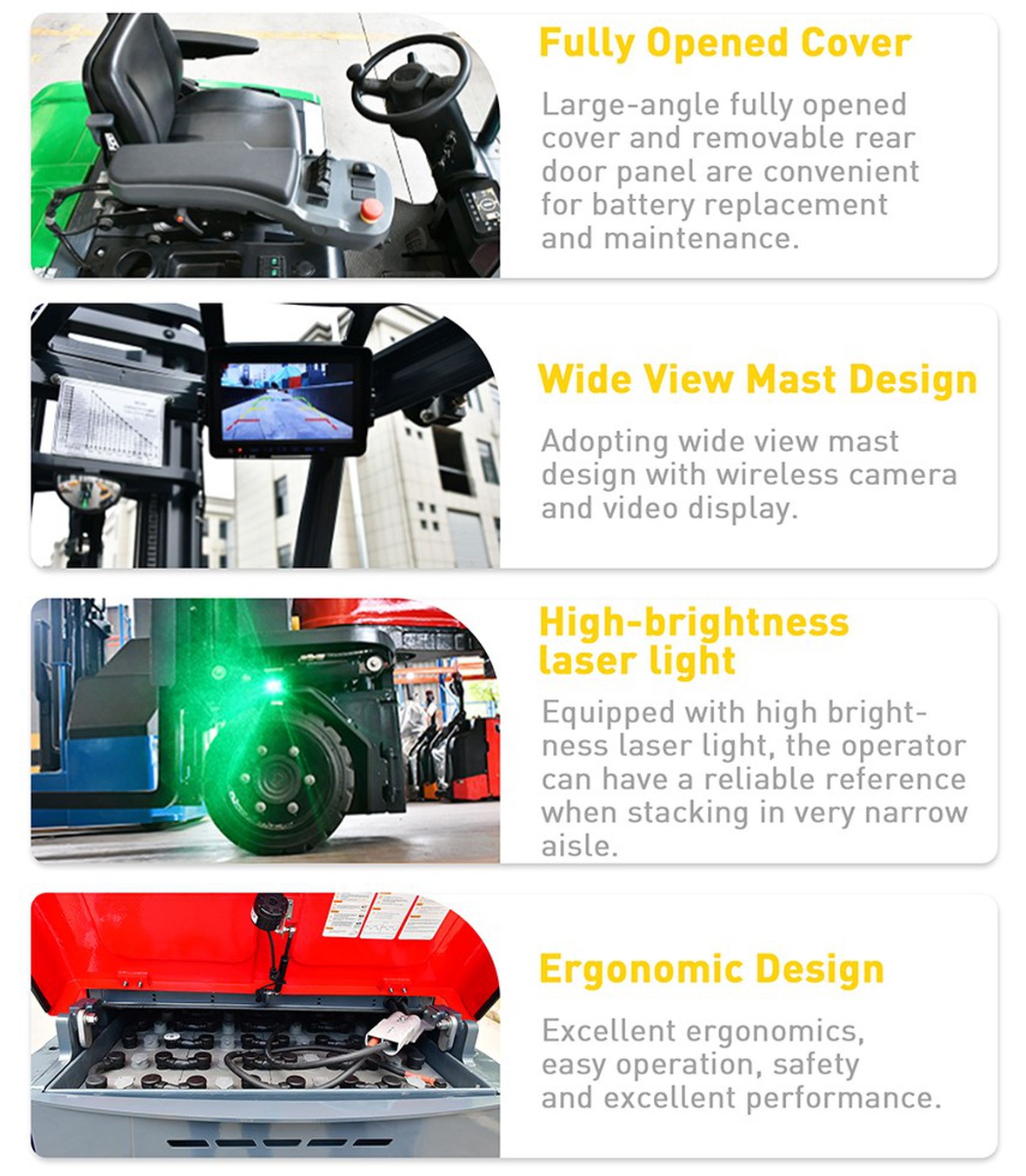

Safety is the number one priority for any warehouse, and the reach truck was designed with safety in mind. With its reinforced frame, KRUPP channel steel, and side roller, this product is built to withstand heavy loads while maintaining stability. Guiding lasers come as standard, providing accurate positioning and reducing the risk of collision. Additionally, the fingertip control mechanism offers optimal control, enabling operators to maneuver the truck with ease.
features
The narrow aisle truck is an incredibly efficient option, capable of handling heavy loads. Energy-saving features like regenerative braking contribute to its cost-effectiveness and sustainability. The product's ergonomics ensure that operators can work comfortably and efficiently, which increases productivity. Finally, the KRUPP channel steel and side roller contribute to the truck's robustness and durability.
Products applications
This product is ideal for warehouses that need better space utilization. Its ability to operate in narrow aisles, combined with its efficient energy consumption, makes it a perfect fit for a warehouse that handles heavy loads and needs optimal use of space. The guiding laser system allows for accurate and safe operation, and the fingertip controls enable operators to get their work done quickly and efficiently.
The 2.5 ton VNA swing reach truck is undoubtedly an excellent investment for any modern warehouse. Its safety features, energy efficiency, ergonomic design, and efficient space utilization are crucial for the fast-paced modern warehouse environment. If you're looking for a reliable and robust vehicle capable of handling heavy loads and working in narrow spaces, the very narrow aisle forklift is the perfect option.
FAQ
Q: What are the benefits of using a VNA swing reach truck?
Q: How do I maintain a the VNA swing reach truck?
Q: What industries are LTMG's products used in?
Q: Do you offer products labeled with clients' brands?
