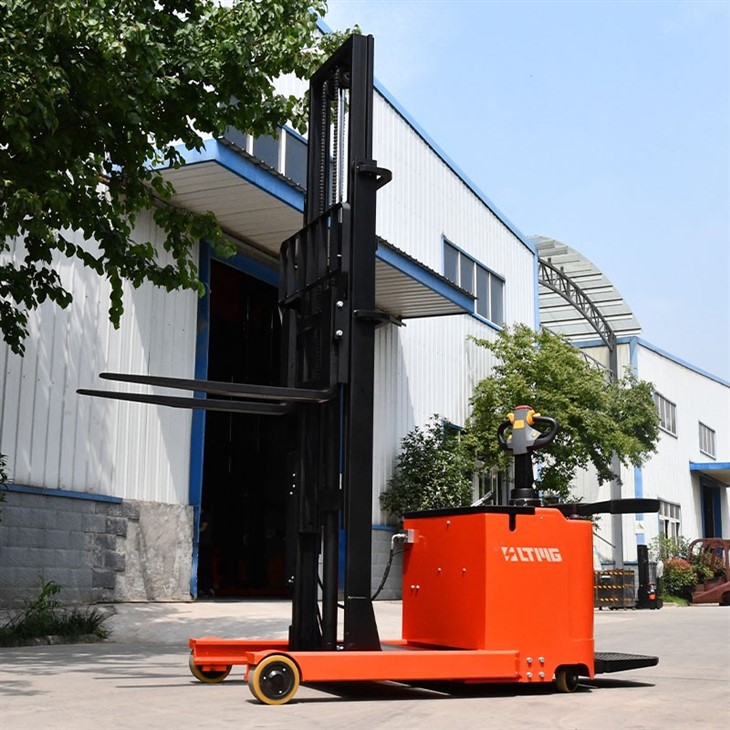

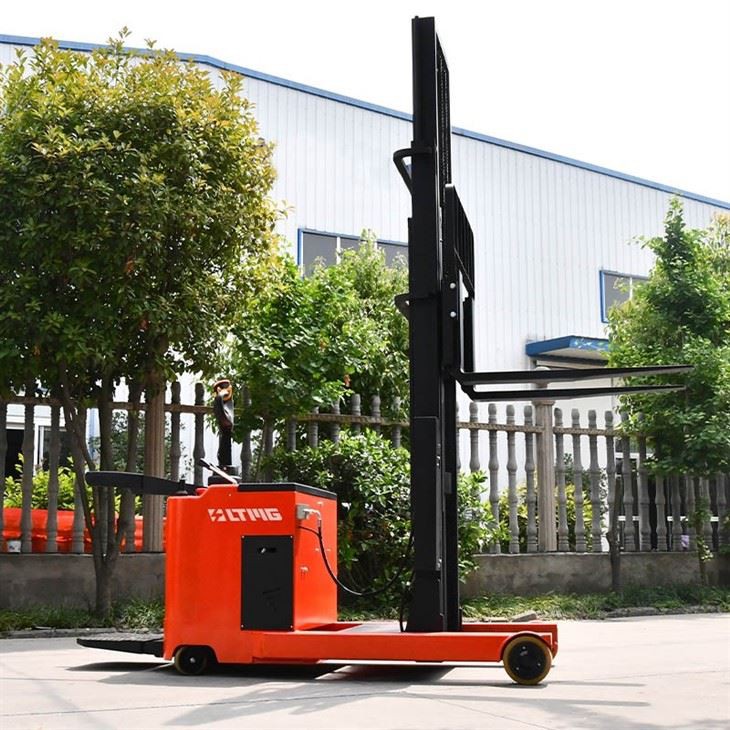

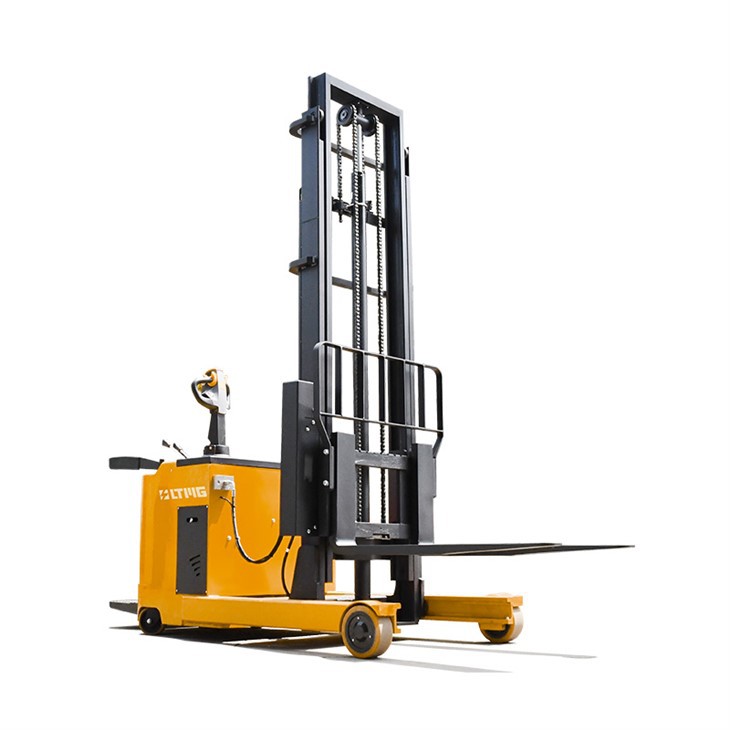

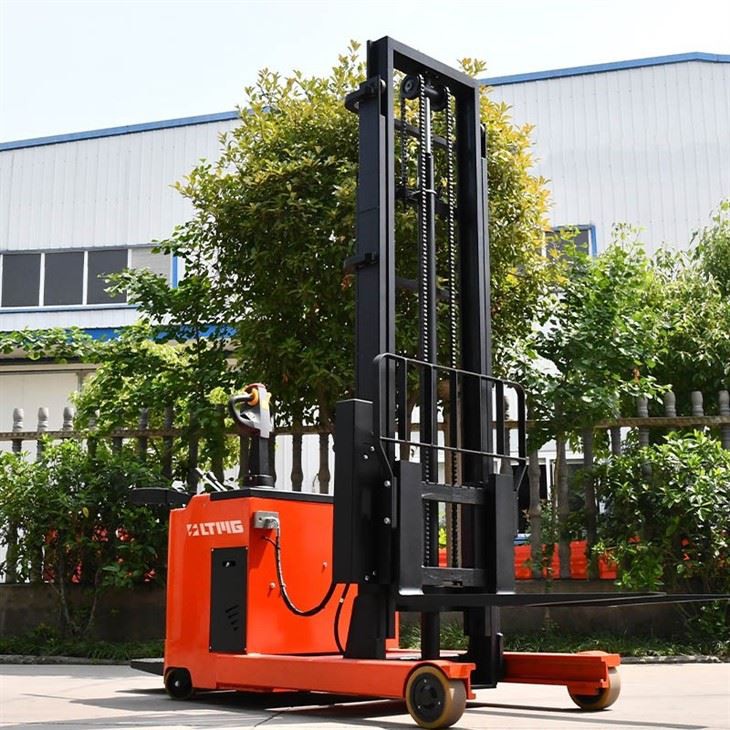

Small Narrow Aisle Reach Forklift

Items: 2 Ton Small Reach Truck Stand Type
Power type: electric
Rated capacity: 2000kg
Operating model: standing type
Send Inquiry
Chat Now

Product Introduction

Products Description

Introducing our 2 Ton Small Reach Truck Stand Type, designed to cater to your narrow aisle needs with ease. With its compact size and excellent maneuverability, this reach truck will save you time and space in your warehouse operations.


This small reach truck is equipped with a 2-stage full-free type mast that extends to a height of 4.5 meters, providing ample lift capacity for your heavy loads. The mast's dual guide rollers ensure stable and precise lifting and lowering of your goods, while the hydraulic cushioning system provides smooth and steady operation.


Our 2 Ton Small Reach Truck Stand Type also features a CE certification, attesting to its compliance with European safety, health, and environmental requirements. You can be assured that our reach truck is built with your safety and the environment in mind.


We understand that space is a premium in most warehouse settings, and our reach truck's small narrow aisle feature enables it to access narrow spaces with ease. The reach truck's compact size and low profile design allow it to pass through tight corridors and tight spaces with ease, maximizing your floor space utilization.


The operator's compartment is ergonomically designed to provide the operator with a comfortable working environment. The adjustable seat and steering column can be adjusted to accommodate operators of different heights and sizes. The easy-to-read dashboard displays information such as speed, battery level, and error codes, providing the operator with critical information.

narrow aisle reach truck
electric reach truck
Products parameter



Name

Electric reach stacker(24V)

Model No

 TRS20

Capacity

Kg

2000

Mast

2 stage full free type

Max lifting height

H(mm)

3000

Load center

C(mm)

500

Wheel type

PU solid tire

Fork size

(mm)

1070*100*35

fork spread

(mm)

210-680

Overall length

L(mm)

2335

Overall width

S(mm)

1034

Reach distance

(mm)

210-680

Height--Mast Lowered

H1(mm)

1840

Min.stacking.aisle.1000*1000pall

(mm)

2675

Turning radius

WQ(mm)

1740

Max.Walking Speed

Km/h

4.0/5.0



Products customization


customization of automated reach truck



Products certificates



certificates of reach lift forklift



Products Description



company of battery reach truck



FAQ

Q: What is the maximum height the 2 Ton Small Reach Truck Stand Type can reach?

A: The mast of the 2 Ton Small Reach Truck Stand Type can reach a height of 4.5 meters.

Q: Does the 2 Ton Small Reach Truck Stand Type have a hydraulic cushioning system?

A: Yes, the 2 Ton Small Reach Truck Stand Type has a hydraulic cushioning system which provides smooth and steady operation.

Q: Is the 2 Ton Small Reach Truck Stand Type compliant with European safety, health, and environmental requirements?

A: Yes, the 2 Ton Small Reach Truck Stand Type features a CE certification, attesting to its compliance with European safety, health, and environmental requirements.

Q: What is the advantage of the 2 Ton Small Reach Truck Stand Type's narrow aisle feature?

A: The 2 Ton Small Reach Truck Stand Type's narrow aisle feature allows it to access narrow spaces with ease, maximizing floor space utilization.
