Name: 4 Directional Forklift For Long Material Handling
Brand: LTMG
SKU: 230537424

The LTMG 4 way direction electric reach trucks are efficient and practical material handling equipment for modern storage environments. Its unique four-way driving design allows it to navigate in narrow channels, maximize the utilization of warehouse space, and provide greater flexibility for warehouse handling work.

1. Four-Way Direction: Enables efficient operation in narrow aisles and tight spaces. Maneuverability in all directions, allowing versatile handling in confined warehouse environments.

2. Suitable for Narrow Aisle Stacking: Specifically designed for stacking operations in narrow aisles, optimizing warehouse space utilization.

Maintenance-Free AC Drive System: Utilizes an advanced AC drive system, reducing maintenance requirements and ensuring long-term reliability. Enhances energy efficiency and provides smooth acceleration and deceleration.

4. Real-Time Display of Steering Wheel Angle: Provides operators with real-time feedback on the steering wheel angle, aiding precision control during maneuvering.

5. Polyurethane Solid Tires: Equipped with durable polyurethane solid tires for enhanced traction, stability, and resistance to wear and tear. Ensures a smooth and stable ride while minimizing the need for tire maintenance.

6. Curtis Instrumentation: Incorporates Curtis instrumentation for precise monitoring and control of various operational parameters. User-friendly interface for efficient and intuitive machine operation.

7. Suitable for Single and Double-Sided Pallets: Versatile design accommodates both single-sided and double-sided pallets, increasing operational flexibility. Excellent Stability for Long Material Handling: Demonstrates high stability during operation, making it suitable for the efficient handling of long and bulky materials.

9. High-Capacity Specialized Power Battery: Equipped with a large-capacity specialized power battery for extended operating periods. Ensures consistent power delivery for prolonged usage without frequent recharging.

10. Multifunction Operator Console: Features a multifunctional operator console for convenient and efficient control. Intuitive controls and ergonomic design contribute to operator comfort and productivity.

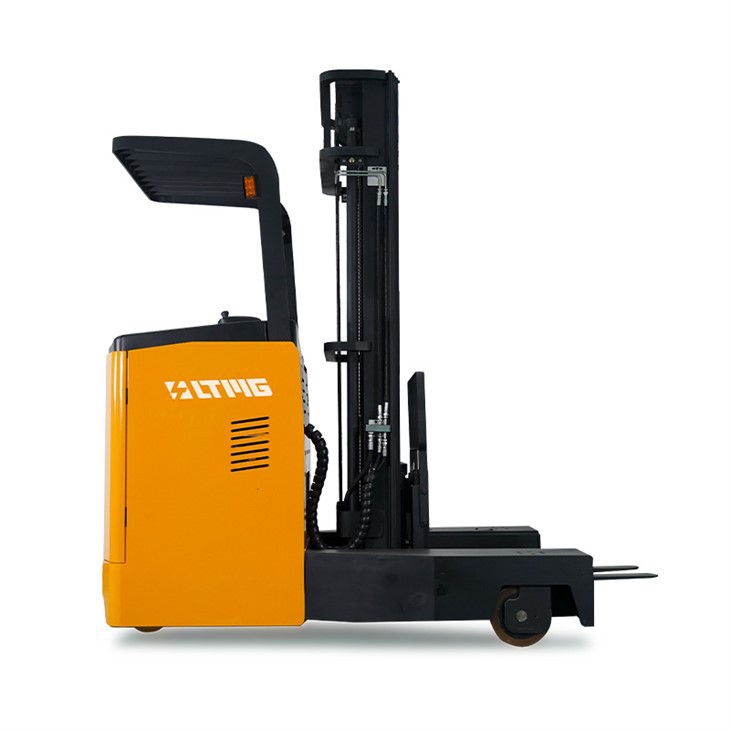

4 directional forklift

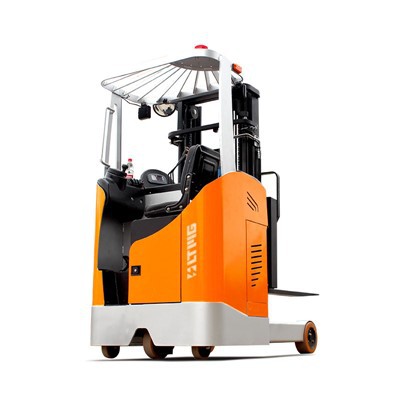

4-Directional Reach Truck

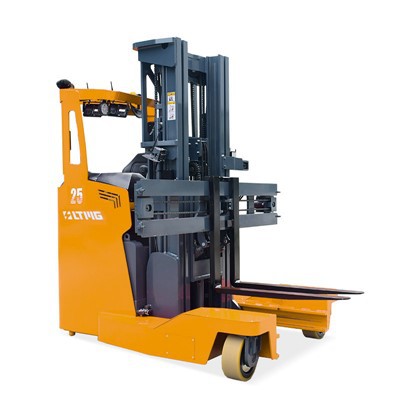

four-way reach truck

Technical parameters

Characteristics	Models		FRB20
	Power (electric, diesel, petrol, LPG, manual)		Electric
	Operating mode (manual, walking, standing, picking)		seat
	Rated load capacity	Q(kg)	2000
	Load centre distance	C(mm)	500
	Front overhang	X(mm)	180
	Wheelbase	Y(mm)	1540
Weight	deadweight with battery	kg	2535
Wheels & chassis	Wheel type		Polyurethane
	Front wheel size	∅×w(mm)	254*104
	Drive wheel specification	∅×w(mm)	230*75
	Balance wheel specification	∅×w(mm)	150*50
	Wheelbase, front	b10(mm)	976
	Wheelbase, rear	b11(mm)	772
Dimensions	Height with gantry retracted	h1(mm)	2120
	Lift height	h3(mm)	4500
	Maximum gantry height during operation	h4(mm)	5485
	Height of top guard	h14(mm)	2090
	Fork height when retracted	h13(mm)	40
	Tilt angle front/rear	°	3/5
	Overall length (incl. forks)	l1(mm)	2389
	Body length (without forks)	l2(mm)	1874
	Body width	b1(mm)	1090
	Fork size	s/e/l(mm)	40/122/1070
	Fork adjustment dimensions	b5(mm)	244-705
	Forward travel distance	L(mm)	600
	Minimum ground clearance (centre of wheelbase)	m2(mm)	80
	Stacking aisle width, pallet 1000 x 1200 (1200 across fork placement)	Ast(mm)	2872
	Min. turning radius	Wa(mm)	1780
Performance	Travel speed, unladen/full	km/h	5/4
	Lifting speed, unladen/full	m/s	0.135/0.100
	Descent speed, no load/full load	m/s	0.085/0.140
	Max. climbing capacity, no load/full load	％	8/4
	Travel brake		Electromagnetic

About LTMG

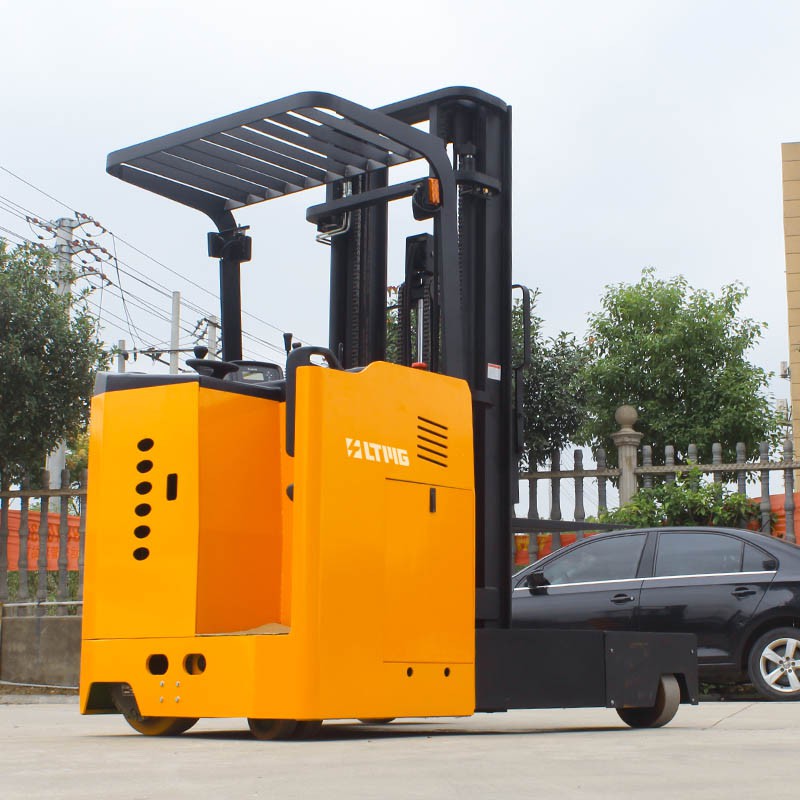

4 way direction reach truck forklift

certification

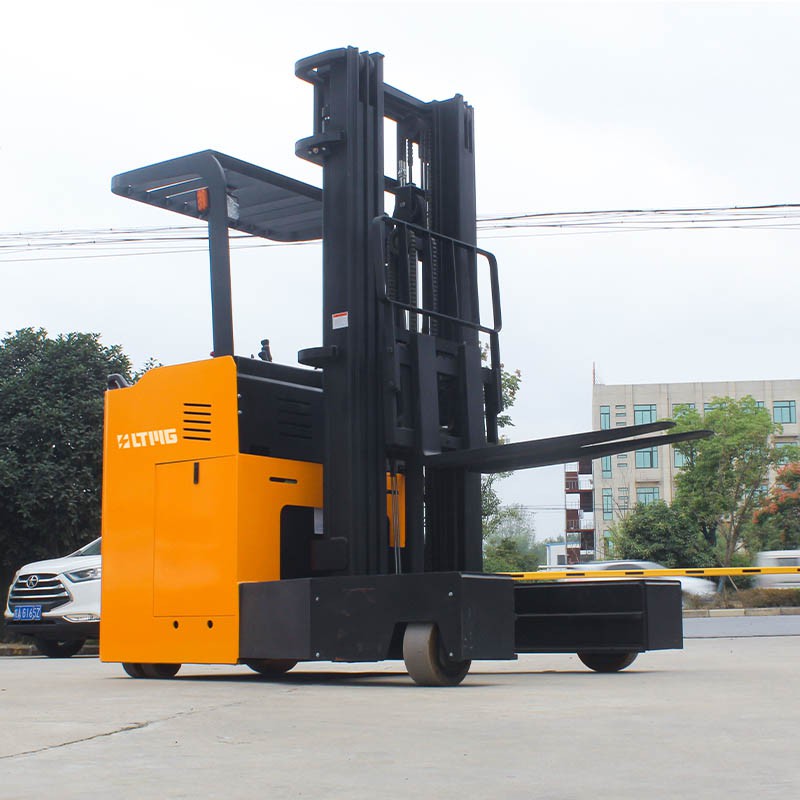

4 Way Direction Electric Reach Truck

shipping picture

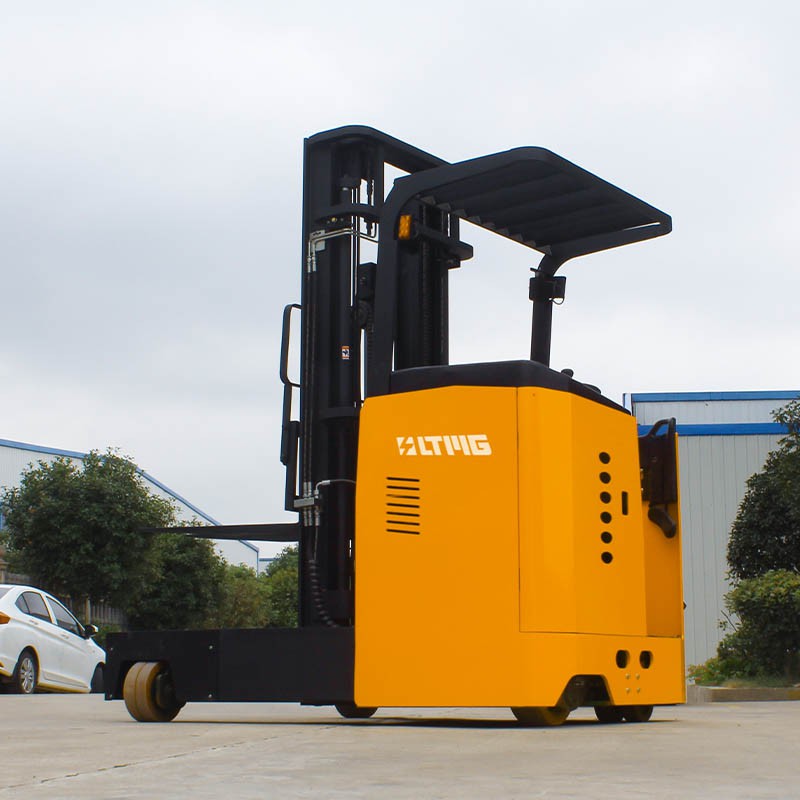

4 way directional reach truck

FAQ

Q: What makes the four-way reach truck suitable for narrow aisle stacking?

A:The four-way reach trucks are specifically designed for stacking operations in narrow aisles, optimizing warehouse space utilization. Their four-way driving design enables efficient operation in narrow aisles and tight spaces, making them ideal for narrow aisle stacking.

Q: What types of loads can a 4 directional forklift handle?

A: A 4 directional forklift is suitable for handling long, bulky, or awkward loads, such as lumber, pipes, steel rods, carpet rolls, furniture, and pallets. It can also handle mixed loads or odd-shaped items.

Q: What factors should I consider when selecting a 4 directional forklift?

A:You should consider the weight, length, height, and width of your typical loads, as well as the type of floor surface, the height of your racking system, the operating environment, the operator's skill level, and the required lifting capacity and reach. You should also check if the forklift has safety features, such as sensors, alarms, lights, and controls.

Q: How do I maintain and repair a 4 directional forklift?

A: You should follow the manufacturer's guidelines for maintenance and inspection, which may include daily checks, regular servicing, and periodic repairs or replacements of parts. You should also train your operators on how to operate and maintain the forklift safely and efficiently. If you notice any issues or malfunctions, you should stop using the forklift and seek professional assistance from a qualified technician.
