Products Description

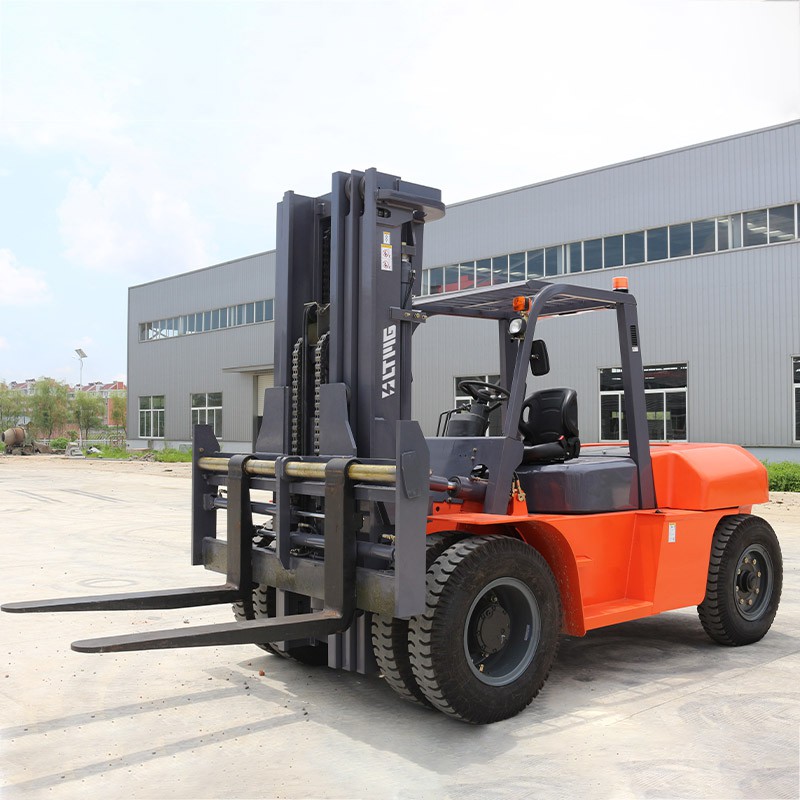

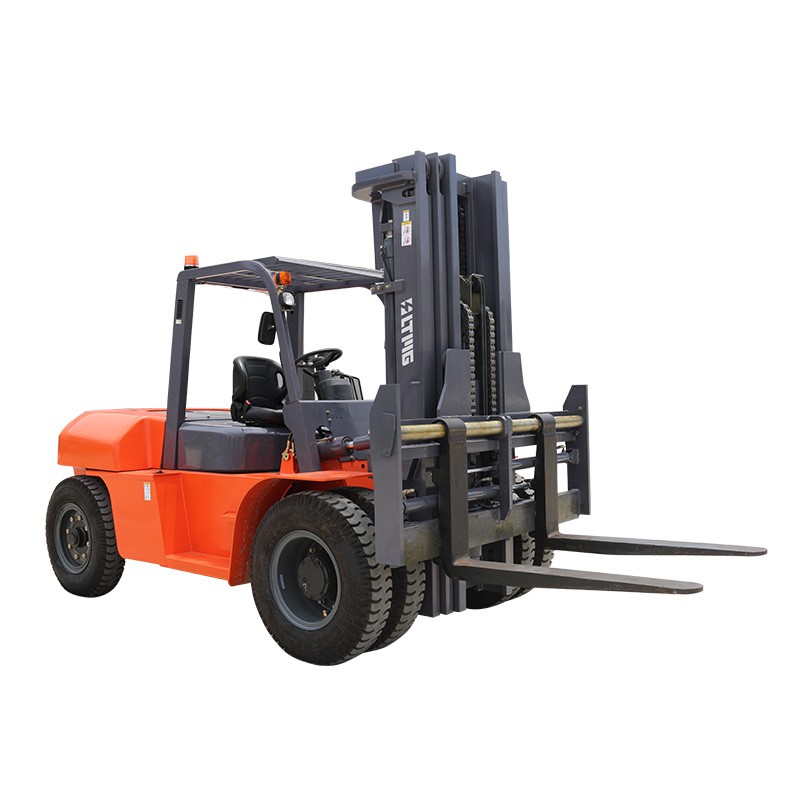

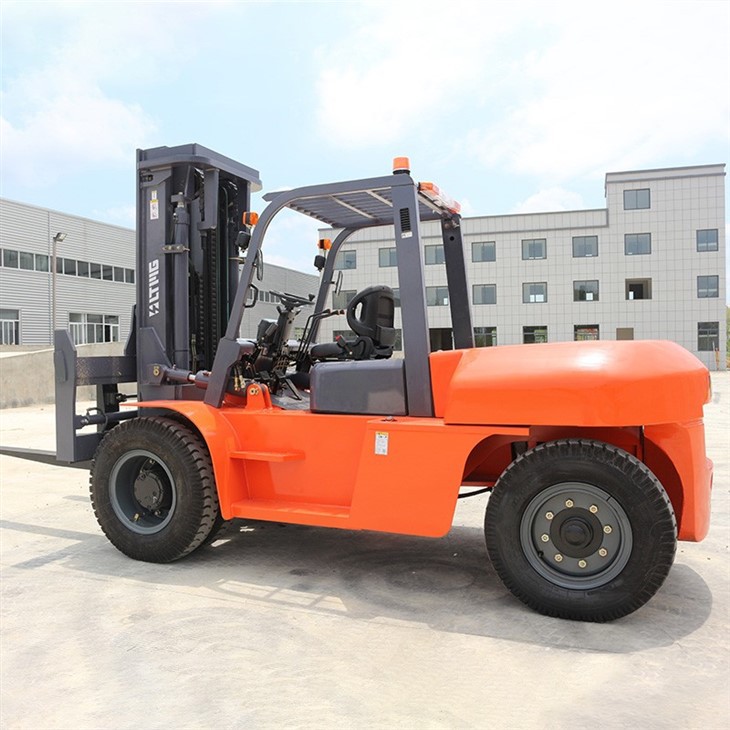

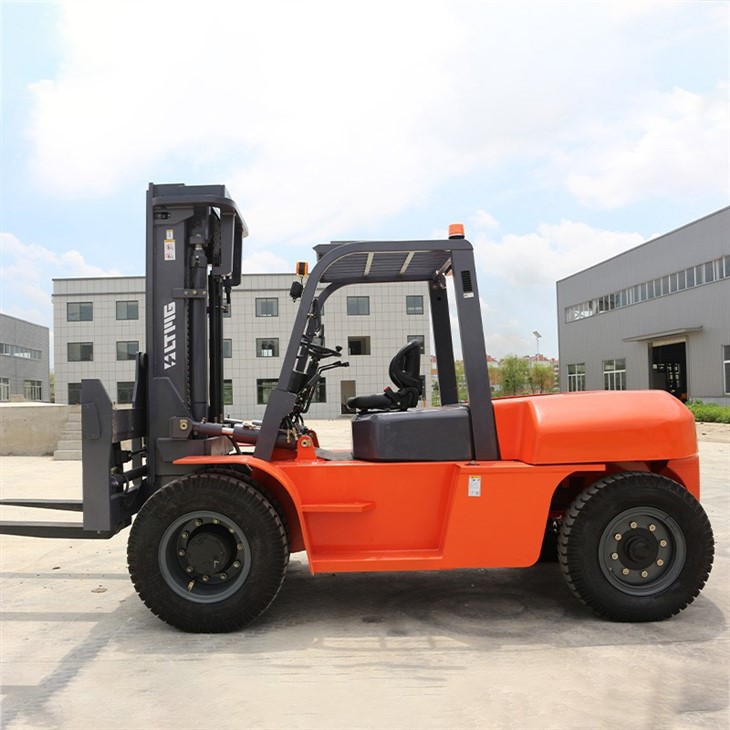

The new 10-ton diesel forklift is an efficient, flexible and reliable logistics equipment with the following features:
1. Powerful power system: It adopts a high-quality diesel engine with strong power and can quickly provide enough power to enable the forklift to operate stably under heavy loads and long-term use.
2. Stable driving performance: Using a sophisticated control system and advanced suspension system, it can drive stably on uneven roads and reduce vibrations and ups and downs during the transportation of materials.
3. Efficient working ability: The crane frame uses hardened tooth surface technology to be more wear-resistant, durable and easy to operate. It has the ability to quickly lift and lower cargo. The maximum lifting height can reach 5 meters. Steel, pipes, bags, wood and other materials can be easily transported.
4. Safe operation: The forklift adopts humanized design to ensure the operator's driving safety. Equipped with seat belts, collision protection devices and fire-fighting equipment in the cockpit to enhance operational safety.
5. Economical operating costs: Low fuel consumption and easy maintenance significantly reduce operating costs, which is very beneficial to organizations in saving costs.
Application areas:
This forklift is suitable for factories, docks, logistics warehouses and other occasions. Its efficient working capacity and stable operating performance can easily handle materials in different environments, such as metal products, wood, ores, cars and other heavy items. In addition, the forklift can also be used for operations such as stacking, dismantling and loading of goods.
In short, the new 10-ton diesel forklift has the advantages of strong working capacity, stable operating performance, safety, reliability, cost-effectiveness, etc., providing an excellent solution for material handling.
Products parameter
| General | Model | FD100 | |||
| Power Type | Diesel | ||||
| Rated Capacity | kg | 10000 | |||
| Load Centre | mm | 600 | |||
| Characteristic&Dimension | Lift Height | mm | 3000 | ||
| Fork Size | L×W×T | mm | 1520×175×85 | ||
| Mast Tilt Angle | F/R | Deg | 6°/12° | ||
| Fork Overhang (Wheel center to fork face) | mm | 739 | |||
| Ground Clearance(Bottom of mast) | mm | 230 | |||
| Overall Dimension | Length to face of fork(Without fork) | mm | 4280 | ||
| Overall Width | mm | 2170 | |||
| Mast Lowered Height | mm | 2830 | |||
| Mast Extended Height(With backrest) | mm | 4335 | |||
| Overhead Guard Height | mm | 2510 | |||
| Turning Radius (outside) | mm | 3970 | |||
| Performance | Speed | Travel (Full load) | km/h | 30 | |
| Lifting (Full load) | mm/s | 270 | |||
| Max.Gradeability | % | 20 | |||
| Chassis | Tyre | Front | mm | 9.00-20-14PR | |
| Rear | mm | 9.00-20-14PR | |||
| Wheelbase | mm | 2800 | |||
| Self weight | kg | 13100 | |||
| Power&Transmission | Battery | Voltage/Capacity | V/Ah | (12/80) x 2 | |
| Engine | Model | 6BG1-QC02 | |||
| Manufacture | ISUZU | ||||
| Rated output/r.p.m. | kw | 82.4/2000 | |||
| Rated torque/r.p.m. | N·m | 416/1600 | |||
| No.of Cylinder | 6 | ||||
| Bore×Stroke | mm | 105×125 | |||
| Displacement | cc | 6494 | |||
| Fuel Tank Capacity | L | 135 | |||
| Transmission | Type | Hydraulic | |||
| Stage | FWD/RVS | 2/2 | |||
shipping plan

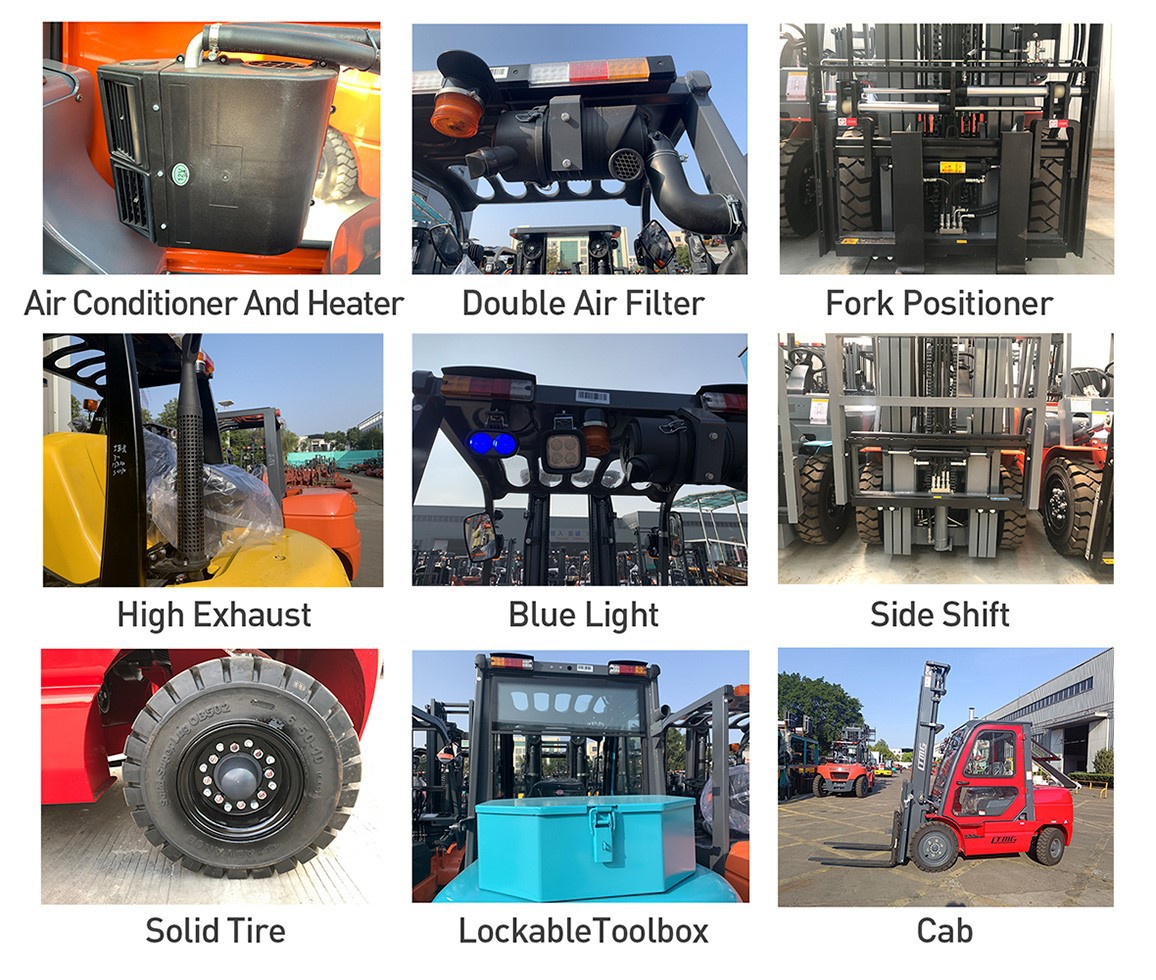

optional configuration

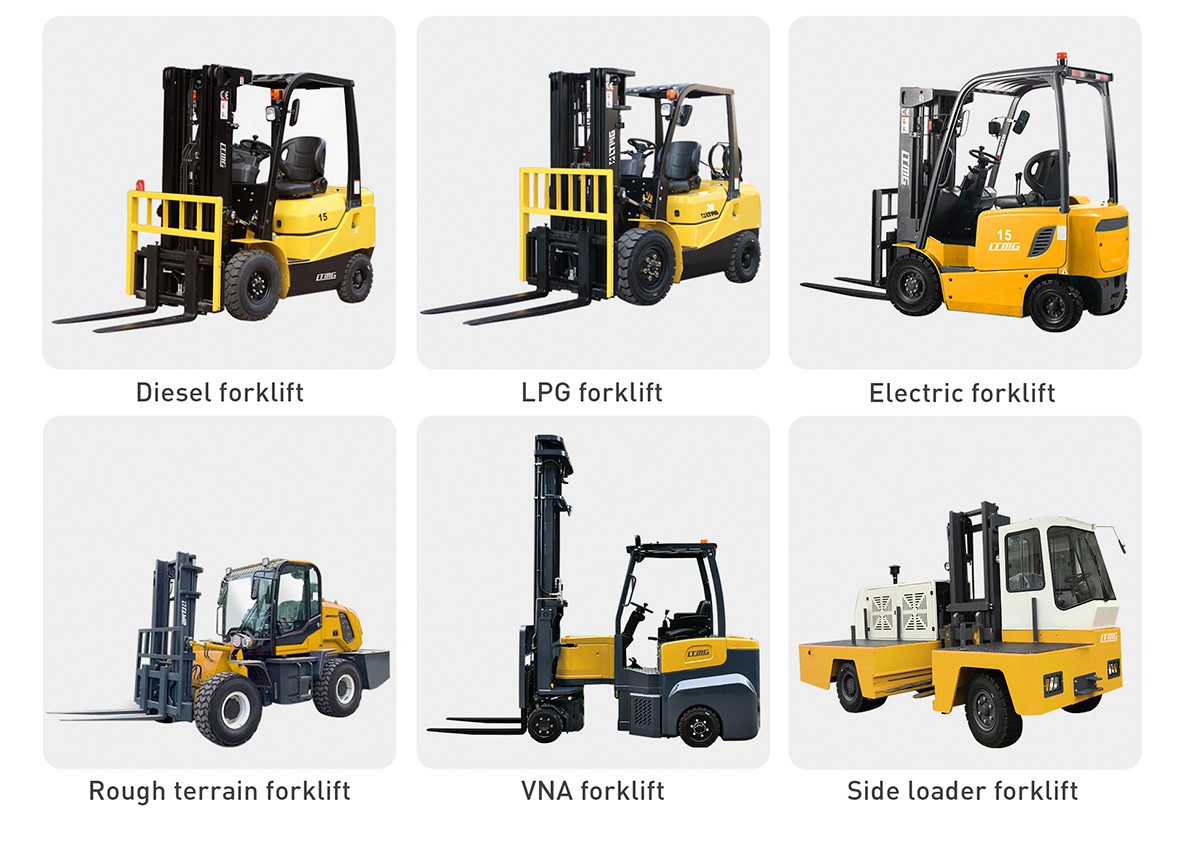

related products
FAQ
Q: Does the forklift truck come with any safety features?
Q: What is the fuel efficiency of the diesel engine?
Q: Is the forklift truck easy to operate?
Q: Does the forklift truck require regular maintenance?
